Hi there,

Would like to ask if anyone knows how to disassemble the gear stick.
I don't mean taking out the gear stick from the socket, I mean tearing it apart.

Thank You

assuming AMT ya
i have done it. what do you need?
just a few screws
its just a few resistors to activate

Hi there, I suspect a problem in my shifter, so I want to disassemble it to manually activate the gears. can teach me how to?

amt?

the problem is with the white plastics breaking apart. tried epoxy, superglue. dont work
it looks like this.. someone done a fully stainless steel version which should be done in the first place.
https://www.carousell.com.my/p/gear-stick-p...loy-1078462730/


fed up in the end i use few resistors and switches to make my own pushbutton shifter.

yes AMT.
okay let me take a look at your link first yea.

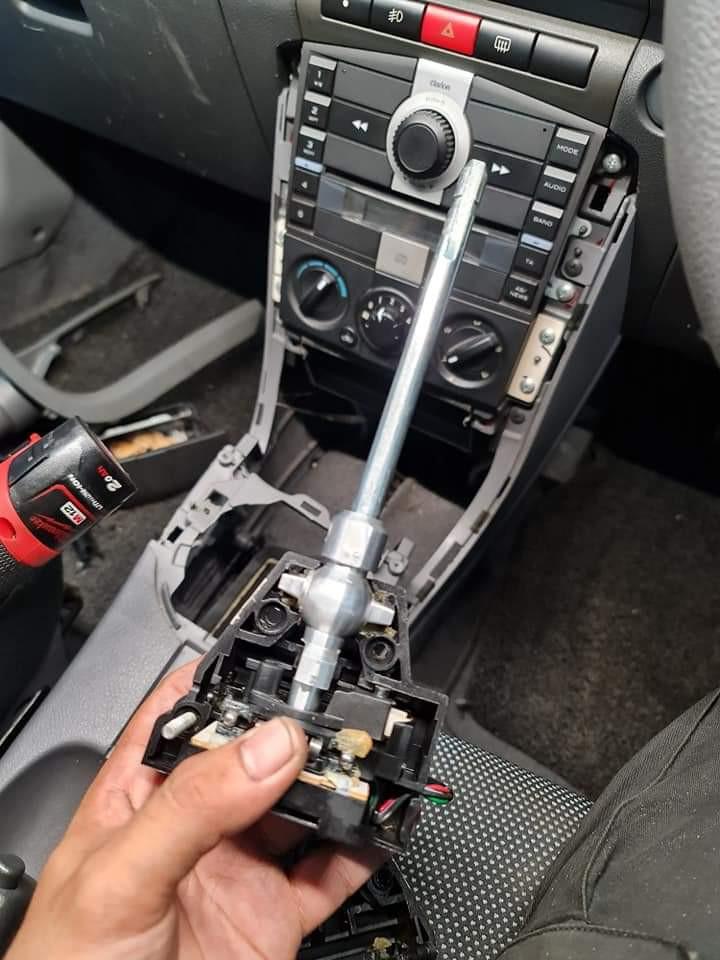

This is what i want to do. Open it up to this point. I don't know how to open those screws.

what do u intend to do?
whats wrong in the first place?

there is nothing to unscrew. just pull it out
beware of the springs

I can't select certain gears. So I want to check if it's my shifter. I want to manually connect the pins inside.

ok thank you sir

it started with gears like cannot reverse. need to wiggle a bit to activate
then become totally cannot reverse.

reason is the white plastic break. cannot move the contact plate anymore

I think so as well. So if I open it up and manually join the pins to make it select gears, can know right?

ya. kinda

need to push 2 buttons at one time to activate a function
eg.

east+ south = +
west + south = -
north+ south = N
west+north = Reverse

https://shopee.com.my/sensor-gear-stik-amt-...2349.9008832180

thank you so much

Today Savvy can not start and gear stuck 5th. After try multiple time finally can get to 1st gear but can not change back to auto or N. The gear keep jumping between 4 to 5.
After machanic reset and add auto oil, can shift to N but can not start.
Machanic test can said the power didn't arrive switch box - starter, after he jump start using cable, it can start but can not change back to auto.

Anyone experience this?
Is this gear stick spoil or speed sensor issue?

You get the durian symbol or check engine symbol?
Try unplug the gear selector . It's near the cigg lighter
after that you should get gear error.
Press brake and start.
Reconnect the gear selector. If same jumping gear, you have a bad selector.

Sifu.. normal state of 1-5 / 2-5 / 3-5 / 4-5 are 1k? Or all are 270ohm?

Which workshop u guys send for the savvy?
I need a shop to clean tdc sensor, hard to start and sometimes shaking 2nd gear

Owning since 2005, mileage 2-3k per yr only

Renautech usj1

Sorry forgot to answer you.
I will publish the drawing
