so expensive

If you don't like red led, might as well get non-backlit and DIY (may need to change the resistor though).

These are the few shops remaining which still got stock, have a look yourself.
http://detail.tmall.com/item.htm?spm=a230r...ed55e27b&pm_id=
http://detail.tmall.com/item.htm?spm=a230r...ed55e27b&pm_id=

Price = 470+10RMB

Assume agent rate = 1.75, shipping = 2kg = RM26

RM300 only what?

Sell your QFR and add another RM100 something then ok liao.

Then you will be the first guy here to have a red plate, red case, red wire, red switch and red keycaps keyboard.

This post has been edited by Human10: Nov 24 2013, 02:37 AM

i just get the keycool now
then wait until my money come in
but the red color on that board looks kinda orange....

alternatively, i paint my own case and get a red wire
done

This post has been edited by midnight2903: Nov 24 2013, 02:42 AM

IINM, red, blue, white, purple and ice blue shouldn't have issue. Hmmm... Got any photo of your light turned on? I wonder how bright is it since I'm sure the backplate is black color. So, it's the same exact plum just with and without LED? Afraid happened like Oni special case, unable to turn on etc.

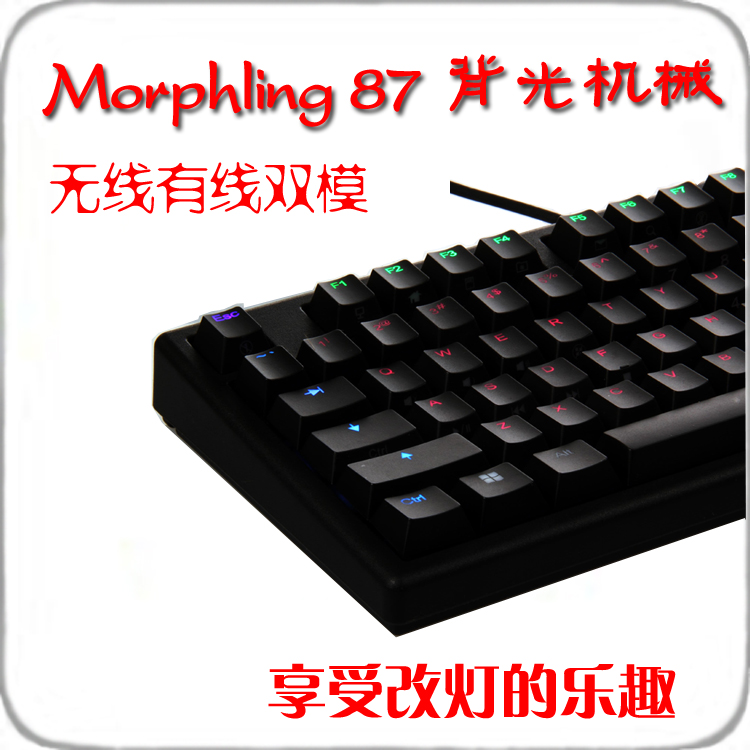

Different lighting effect, I believe the real one should look more like this.


After you get red cable, you still don't have red plate.

CMStorm QFR is red plate
https://fbcdn-sphotos-a-a.akamaihd.net/hpho...922118087_n.jpg
sorry poorly taken

This post has been edited by midnight2903: Nov 24 2013, 02:52 AM

Plum not as extreme as Vortex I guess (but their decision to make the PLUM96 wired version completely different from wireless version somehow shocked me)...

The 6th point, had the circuit for LED mounting.

Regarding the LED part, I think the rated LED should be 2V, not sure what will happen if installing 3V (white/blue/green) LED on without modifying the resistors.

This post has been edited by Human10: Nov 24 2013, 02:54 AM

Ok, my bad.

p/s: So you indeed had removed the case huh?

are leds usually mounted at top of switch or bottom?

haha yeah
hands itchy....
but now easier to remove alr, before this the clip hard like rock cannot take apart

diaBoliQu3
I forget there are this picture, and I guess they didn't do any modification to the resistor.

are these worth it?
http://item.taobao.com/item.htm?id=14116305049

Most backlit or backlit intended board have reverse mounted switches, to allow LED to be mounted at top as the legends are normally located on the top.

The only exception to that are those korean customs and also greedwolf blade.

i see, caz i feel weird that my cmstorm the led on caps lock is at bottom but those in my ducky s at top

Don't feel so. Better wait for better stuff.

Indicator LED on non-backlit boards normally will be installed normally (which is on bottom).

This post has been edited by Human10: Nov 24 2013, 03:09 AM

GAMDIAS HERMES - Ultimate Black

32-bits ARM Cortex premium micro-processor
N-Key Roll over with 116 keys programmable and patent GAMDIAS Element.
GAMDIAS Element increase execution speed for fast tactic operations and controls!

Like GAMDIAS Facebook

GAMDIAS Malaysia

This post has been edited by kenyu8535: Nov 24 2013, 03:15 AM


Attached thumbnail(s)

What the hell?

How much is the taihao group buy cost last time?
http://item.taobao.com/item.htm?spm=a230r....&id=35721611683

Fullset Cherry black POM for cheap. kaiserreich
http://detail.tmall.com/item.htm?spm=a230r...&id=17603066855


This post has been edited by Human10: Nov 24 2013, 03:38 AM

But the non LED is wired or not? And the wired version is? So far, I understand that there is four version.
- LED wireless
- LED wired
- Non LED wireless
- Non LED wired

Gosh, it's nearly 3.30am, no wonder my processor a little slow. Forgive me for any lagging or delaying understand what you post.
