LYN's DDR2 Discussion, Come in and share
|
|
 Jan 18 2008, 12:05 AM
Return to original view | Post
#1
|

Senior Member
2,547 posts Joined: Oct 2007
|
erm...sorry guys... an OC newbie here... wat do u guys look for when setting the ram timing? i currently have a stable 2.4ghz e2140 using p35-ds3.. i adjusted the ram until 1:1... just confused on wat shud i do for the timings... ohya... as i lower my timings , do i have to up my vdimm?
|
|
|
|
|
|
Jan 18 2008, 12:27 AM
Return to original view | Post
#2
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
QUOTE(a1098113 @ Jan 18 2008, 12:18 AM) yes as u tighten the timings u need to up the Vdimm. hope u dont mind me asking...when looking for tight timings, is the timing lowering thing just a hit n try stuff ... or is there anymore prefered option to be prioritised 1st? lets say 5-5-5-15... which one part of the four is the one dat i shud concentrate? |
|
|
Jan 18 2008, 12:48 AM
Return to original view | Post
#3
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
QUOTE(a1098113 @ Jan 18 2008, 12:29 AM) normally u can try 4-4-4-12 straight off.. whats the ram ur using bro? oh well.. i am just using a corsair 667 value ram... 2x1gb... actually i just did a 4-4-4-12 @1.9volt yesterday... n i use prime 95 blend test(is this the right test?) on it for 12 hours .. no errors... just wanted to learn more on ram OC... this ram can go any lower more? |
|
|
Jan 18 2008, 01:04 AM
Return to original view | Post
#4
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
QUOTE(a1098113 @ Jan 18 2008, 12:55 AM) hmm u can try 4-4-4-10 oh...ok ok ... understood... thanks a lot bro.... btw just to double confirm... is the test i used is correct? or shud i use memtest? or u can recommend? hehe...TCL-Trcd-Trp-Tras, try to reduce your Trcd, Trp, and Tras as your Tcl cant go any lower than 4, since its not performance ram. |
|
|
Jan 18 2008, 01:28 AM
Return to original view | Post
#5
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
QUOTE(a1098113 @ Jan 18 2008, 01:19 AM) i use just OCCT. It is pure torture test for cpu and ram together hehehe. You pass that and u can run stable after that. oh ya..b4 i forgot... upping ram frequency also have to up vdimm as well right? thanks alot for ur info bro...very much appreciated... |
|
|
Mar 24 2008, 01:59 PM
Return to original view | Post
#6
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
QUOTE(BuLaNaR @ Mar 24 2008, 07:36 AM) just got it from kiong...eager to blow it sorry for my noobness .. but whats a 700mhz club?   |
|
|
|
|
|
Mar 24 2008, 09:59 PM
Return to original view | Post
#7
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
holy god! anyone did it so far ?
|
|
|
May 14 2008, 08:21 PM
Return to original view | Post
#8
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
QUOTE(mfcm @ May 14 2008, 08:10 PM) vmc=vNB rite?its oredi 1.45v..erm loose timing oso 5-5-5-15..btw im on 4gb kit hmmm....so Vnb so high ar on 5-5-5-15? maybe u can try playing with the NB gtl... makes a bit of difference for me in terms of stablity.... n then i realise in the DFI smartguardian punya voltage adjustment pun ada sikit effect stability.... but i dont know how to read how much is the actually voltage after tuning tho  |
|
|
May 14 2008, 09:22 PM
Return to original view | Post
#9
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
i dont know bout u... but i can manage to do 500mhz 5-5-5-15 on stock Vnb @ 1.95vdimm...on my 2gb kit balistix.....
4gb kit punya OCability difference so big?  This post has been edited by tkh_1001: May 14 2008, 09:26 PM |
|
|
May 14 2008, 09:57 PM
Return to original view | Post
#10
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
open teh heatspreader n see?
 |
|
|
Jun 25 2008, 06:49 PM
Return to original view | Post
#11
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
QUOTE(BlackThyra87 @ Jun 25 2008, 08:18 AM) just got my Ballistix Tracers from shawty last nite. i guess that is just the norm for the tracers... had one last time on the p35-ds3 as well n it craps out at 990mhz 5-5-5-15 with 2.2vdimm tested them, and found out that they are not as good as it used to be  @2.2v i can only push up to 458MHz (916 DDR, 1:1) with 5-4-4-12.cant even boot at that speed with 4-4-4-12 .. while my D9GKX can do it absolutely with no sweat @ 2.0v... is it the ram or my P35-DS3 is holding it out? tried various tweaking but none helps. Refer to my sig for my specs. so the rumors that the 1gb modules chips got changed is true then, and high density modules are useless for OC (cant expect more like before - low vdimm @ 9xx) any comments?   but after that i changed to normal ballistix on the same mobo and it can go around 1000mhz 5-5-5-15 on stock vdimm |
|
|
Jun 26 2008, 06:50 AM
Return to original view | Post
#12
|
|
Senior Member
2,547 posts Joined: Oct 2007
|

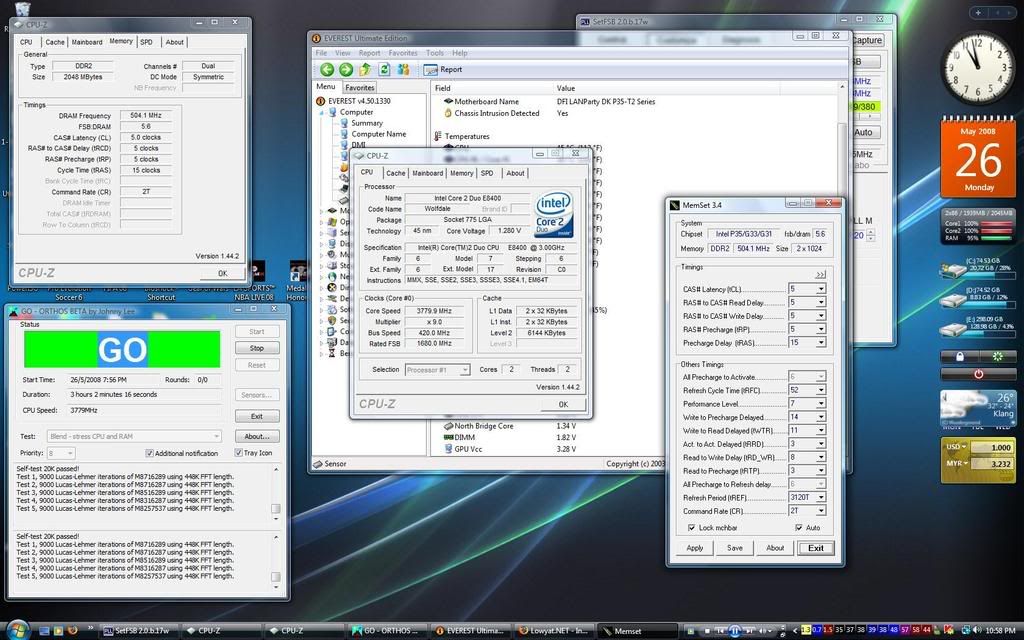

QUOTE(BlackThyra87 @ Jun 26 2008, 02:03 AM) wow normal ballistix can do 1ghz @ NORMAL vdimm? thats awesome... can show me some screenies? tempting... here's the SS...i am still new noob to ram OC actually   QUOTE(seiji_kun @ Jun 26 2008, 02:47 AM) sory wanna ask tat tracer compatible wif my mobo ka??.. yes...can use no problem.....QUOTE(BuLaNaR @ Jun 26 2008, 05:23 AM) anybody knw wut is the max volt for ram to oc??? normally its 2.2v depending on ram... but to use on more than 2.1v, its recommended to have air cooling on it... |
|
|
Jun 27 2008, 12:27 AM
Return to original view | Post
#13
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
QUOTE(gamers maniac @ Jun 26 2008, 08:41 PM) thanks for d reply, saw ur team xtreem at ur siggy hmm....i manage to hit 980mhz 4-4-4-10 on my xtreem with 2.2v ..hehe...so u sure can one la  . btw im aiming for ddr1000 cl4 or 5,4,4,15 or sumthing like that. hope it doesnt crap out like my previous tracer's. can ur team hit cl4 at ddr1000 regardless d voltage ? QUOTE(BlackThyra87 @ Jun 26 2008, 09:57 PM) some GEM u got there... its in teh garage sales now  wish i had those kits... |
|
|
|
|
|
Jun 27 2008, 05:39 PM
Return to original view | Post
#14
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
QUOTE(gamers maniac @ Jun 27 2008, 02:24 PM) anyone remember 'burn in' process? my previous bh5 & bh6 able to run 250mhz 2,2,2,5 after burn in process. my q is, can ddr2 or d9 able to be train in burn in process? as far as i have tried... normally burn-in for ram doesnt really gives me better OCability |
|
|
Jun 28 2008, 12:56 AM
Return to original view | Post
#15
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
wow...urs is good man... mine run at 990mhz will have instability already...but i didnt tweak the subtimings la
|
|
|
Jun 28 2008, 04:23 PM
Return to original view | Post
#16
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
try increase ur tREF..... its very normal to get this kinda score cos ur divider is not 1:1.... if ur divider is 1:1 at that speed i m pretty sure it can hit over 9k....but u'll need a proc which can do 500fsb though...
n then...higher speed is always better than tighter timing... go read kmarc's guide for more understanding |
|
|
Jul 3 2008, 05:39 PM
Return to original view | Post
#17
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
QUOTE(Hoodlums @ Jul 3 2008, 02:01 PM) Team Dark Xtreem PC2 6400 4GB Kit (DDRII 800 2GBx2) is good for OC or not? iirc the team dark is not d9 chip...shud be promos instead....QUOTE(ham_revilo @ Jul 3 2008, 05:14 PM) iinm there is team dark xtreem and team xtreem. to be honest i dont know anything about the "dark" version or what is the differnce but for xtreem i know it cant go up to 1000mhz on 4-4-4-10 timing. bro...ur link to ur SS need some editing @gamer maniac this is what i got so far with xtreem. since i think ur ram is better than mine so i guess u can go further. http://i255.photobucket.com/albums/hh138/Ollee87/RAMMax-1.jpg |
|
|
Jul 4 2008, 07:38 PM
Return to original view | Post
#18
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
QUOTE(sHawTY @ Jul 4 2008, 06:25 PM) ProMOS is not available on 2GB stick. hmm...any idea what the 2gb stick will be?ProMOS can only be found on 512MB & 1GB stick. Thus, the Team Xtreem Dark DDR2 PC2-6400 800MHz 4GB Kit is not using ProMOS. btw, what happened to ur status? |
|
|
Jul 18 2008, 10:02 PM
Return to original view | Post
#19
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
QUOTE(a1098113 @ Jul 18 2008, 04:16 PM) just finished my exams, hooray, now can start benching!! faster.....me want to see the powah   QUOTE(OC4/3 @ Jul 18 2008, 08:19 PM) Go Go Go u oso same la...got WC liao....dont spam with laggy line  |
|
|
Jul 19 2008, 03:45 PM
Return to original view | Post
#20
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
QUOTE(a1098113 @ Jul 19 2008, 12:46 PM) i am using the ver1.2 which has the Micron D9Gmh/d9gkx variant i want SS Added on July 19, 2008, 12:46 pmmost revision now do suck... not like the rev1.x |
|
