D9 means nothing if it's not D9GCT/D9GMH/D9GKX

D9 just indicates that it's Micron DDR2... nothing special. it can be D9DZM, D9HNH, D9DCN

no it does not.

so far the greatest Micron chips are D9Gxx ... hence GCT/GMX/GKX was the only one I have mentioned

D9Hxx is a newer chip with higher density. D9HNH is overclockable but most of the time it is very average like typical Aeneon/Elpida.

Yes, the Team ValueRam 1GB PC2-5300 DDR667 is using Micron D9 chipset.

But it's not Micron D9GKX D9GCT or D9GMH.

It's using Micron D9DCN [Relabeled as Team Chipset]

So far i've seen two users able to clock that ram to more than 500MHz [1GHz].

I myself bought that ram, and now waiting for my DFI Infinity P965-S board to arrive, when it arrive, i'll clock it to hell like you too.

PS:
Dude, your timing is damn high.
You can at least set the timing to 5-5-5-15

Hoii boss, i forgot to ask you one thing.
What's the vdimm that u use to clock your valueram to that speed?

I'm thinking of pumping 2.5Volts to make my team valueram to reach 1GHz @ 4-4-4-12    [If it's possible la ]

So, what's the vdimm that u use to make your ram to reach that speed you're running right now?

Owh, okay, now that explains.

Hey dude, tried CL4 on your rams yet?
Try ler.

Little updates from me....

564mhz 5-5-5-15-2T @ 2.19V (BIOS set at 2.2V)

Hi all, I wanna ask something from u all pro here, wanna ask u all to help me compare the OC'bility of the 2 RAM here:

1. Kingston DDR2 533MHz D9GMH chip
2. Team DDR2 667MHz (wat chip used i donno, but i got the pic)

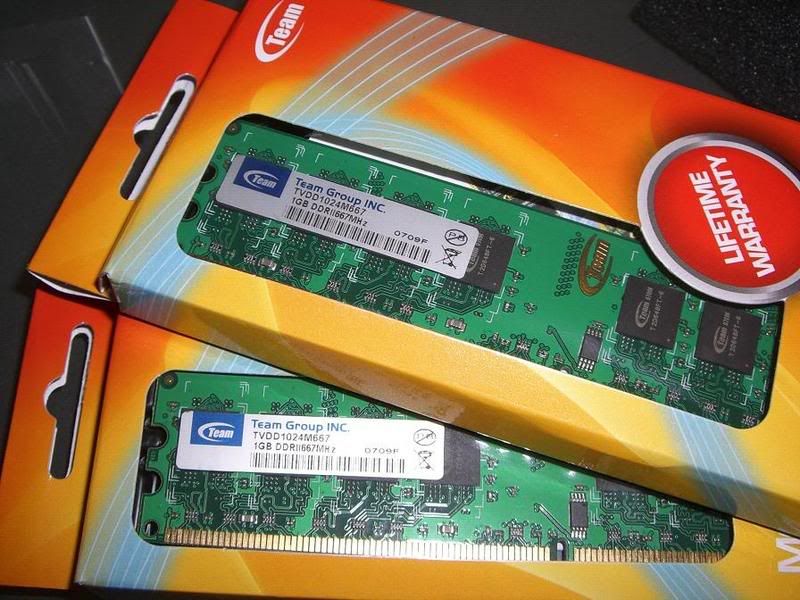

TEAM DDR2 667MHz pic


I heard that my friend can goes up to 1200MHz with the TEAM RAM with DFI mobo....

so I wanna ask if I use the same DFI mobo or wat, which 1 have the higher OC'bility n more stable~

hope can get some answer from here soon thx

sorry but that is not D9DCN.... it looks like Aeneon

D9DCN is rectangular-shaped

---

Added on April 26, 2007, 9:35 am
you can't go wrong with D9GMH no matter how suck the pcb is

integrated memory controller runs at the same speed as the cpu clockspeed

just imagine an fsb running at 2.5ghz

---

Added on April 27, 2007, 9:04 pm
Since they don't use Aeneon... it could be Promos.

Team can use any chips they want for their value RAM, any IC they have in their inventory. But I can assure you the pic of Team value posted by michealelsie, that is not D9DCN.

And the ramlist link is just a guidance, they can change anytime.

You can find how D9DCN exactly looks like if you dig XS forum deep enough. It's rectangular, not square.
