Ivy Bridge-E Overclocking

user posted image

Please share your benchmark, stability, guides etc...

===========================================================================

Latest Overclocking Programs, System Info, Benchmarking, & Stability Tools

LINK - credit to stasio

Updated R4E Bios and tools such as TurboVCore/MemTweakIt
http://www.mediafire.com/?p8tc4vb6hkntsyo

Improved dram tuning/presets
note - can try enable swizzling bit 1 when imc is tough to train under cold - but may deprove stability

BIOS for R4F
http://www.mediafire.com/?6103gmow2he23gd

Bios for R4G
http://www.mediafire.com/?ebvigk79u9vixg9

===========================================================================

Monitoring/Tweaking Tools:

Monitoring/Tweaking Tools:

Haswell Reviewer Kit
CPU-Z 1.68.2 X64
RealTemp 3.70
ReadlTemp TI
CoreTemp 1.0 RC6
HWiNFO 4.27
Mem TweakIT 2.02.01
CPU-Tweaker 2.0 Beta 15
ASRock OC Tools 0724
ASUS TurboVCore
Intel Exreme Tuner Utility 4.2
AIDA64 Extreme 4.20.2800

Stability/Stressing Tools: - Please use Win7 Service Pack 1 (SP1), take a screenshot before the test finished.
LinX 0.6.5 (11.1.2)
Prime95 28.5 Build 1 X64
Linpack 11.0.5.009
OCCT 4.4.0
» Click to show Spoiler - click again to hide... «

» Click to show Spoiler - click again to hide... «

» Click to show Spoiler - click again to hide... «


===========================================================================

Benchmark Tools:
SuperPI Mod XS 1.5
HyperPI 0.99 Beta
AIDA64 3.00.2590
Cinebench 11.5
wprime 2.09
pifast
maxxmem
AquaMark 3.1

OC Tips & Guides

===========================================================================

Latest News & Updates:

===========================================================================

4960X & 4930K Reviews:
[Anand] Intel Core i7 4960X (Ivy Bridge E) Review
[Tom's] Intel Core i7-4960X Review: Ivy Bridge-E, Benchmarked
[G3D] Core i7 4960X processor review
[Overclockersclub] Intel Core i7 4960X Review
[TR] Intel's Core i7-4960X processor reviewed
[LR] Intel Core i7-4960X Ivy Bridge-E Processor Review
[TS] Intel Core i7-4960X Ivy Bridge-E Review: New flagship, old flagship
[ET] Core i7-4960X Ivy Bridge-E review: Intel’s Great Limp Forward
[HardOCP] Intel Ivy Bridge-E Core i7-4960X IPC and OCing Review
[Madshrimps] Intel Ivy Bridge-E 4960X CPU Review (LN2 inside)

=============================================================================

BSOD codes for overclocking
QUOTE
0x101 = increase vcore
0x124 = increase/decrease vcore or QPI/VTT... have to test to see which one it is
0x0A = unstable RAM/IMC, increase QPI first, if that doesn't work increase vcore
0x1E = increase vcore
0x3B = increase vcore
0x3D = increase vcore
0xD1 = QPI/VTT, increase/decrease as necessary, can also be unstable Ram, raise Ram voltage
0x9C = QPI/VTT most likely, but increasing vcore has helped in some instances
0x50 = RAM timings/Frequency or uncore multi unstable, increase RAM voltage or adjust QPI/VTT, or lower uncore if you're higher than 2x
0x109 = Not enough or too Much memory voltage
0x116 = Low IOH (NB) voltage, GPU issue (most common when running multi-GPU/overclocking GPU)
0x7E = Corrupted OS file, possibly from overclocking. Run sfc /scannow and chkdsk /r


This post has been edited by owikh84: Mar 8 2014, 08:18 AM
TSowikh84
post Sep 4 2013, 09:06 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



LYN IB-E Owners:

## to be listed you must post at least a screenshot of CPU-Z consisted of CPU & motherboard tabs.

Username | CPU | Highest OC | Motherboard | Cooling

1)
owikh84 | 4930K | 5.0GHz (2C/2T) | ASUS Rampage IV Extreme | Water
owikh84 | 4960X | 4.625GHz (6C/12T) | ASUS Rampage IV Black Edition | Water

2) pali_5373 | 4820K | 4.5GHz (4C/4T) | ASUS Rampage IV Black Edition | Cooling?

This post has been edited by owikh84: Mar 6 2014, 09:14 PM
TSowikh84
post Sep 4 2013, 09:07 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



Reserved.

Cheers and happy overclocking thumbup.gif
ZaiNor-DI255
post Sep 4 2013, 11:56 AM

Getting Started
**
Junior Member
72 posts

Joined: May 2011
From: Negeri Sembilan


4930K? Not 4960X? biggrin.gif
stasio
post Sep 4 2013, 06:35 PM

10k Club
********
All Stars
18,503 posts

Joined: Oct 2007
From: P.Jaya
owi,
what is CPU ID for retail 4930K ?

Btw,
here is latest ASUS X79 BIOS:

http://www.mediafire.com/folder/e3ibdsf17mk7q/Asus_biosses

This post has been edited by stasio: Sep 4 2013, 08:23 PM
TSowikh84
post Sep 4 2013, 10:48 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(ZaiNor-DI255 @ Sep 4 2013, 11:56 AM)
4930K? Not 4960X? biggrin.gif
*
For now I just have the 4930K sample only.

QUOTE(stasio @ Sep 4 2013, 06:35 PM)
owi,
what is CPU ID for retail 4930K ?

Btw,
here is latest ASUS X79 BIOS:

http://www.mediafire.com/folder/e3ibdsf17mk7q/Asus_biosses
*
No idea bro about the CPU ID for retail bro never seen anyone posted so far.
stasio
post Sep 4 2013, 10:57 PM

10k Club
********
All Stars
18,503 posts

Joined: Oct 2007
From: P.Jaya
QUOTE(owikh84 @ Sep 4 2013, 10:48 PM)
For now I just have the 4930K sample only.
No idea bro about the CPU ID for retail bro never seen anyone posted so far.
*
OK.
Yea,everywhere is ES version in reviews.

Edit:
Some pic of retail chips........

user posted image

This post has been edited by stasio: Sep 5 2013, 12:09 AM
TSowikh84
post Sep 5 2013, 12:22 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



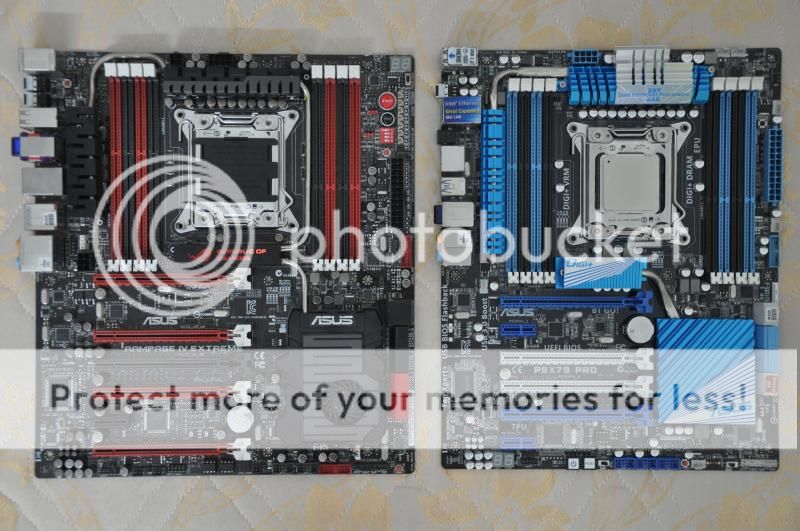

ASUS MY sent me two X79 boards - R4E and PRO to pair with the 4930K:
user posted image

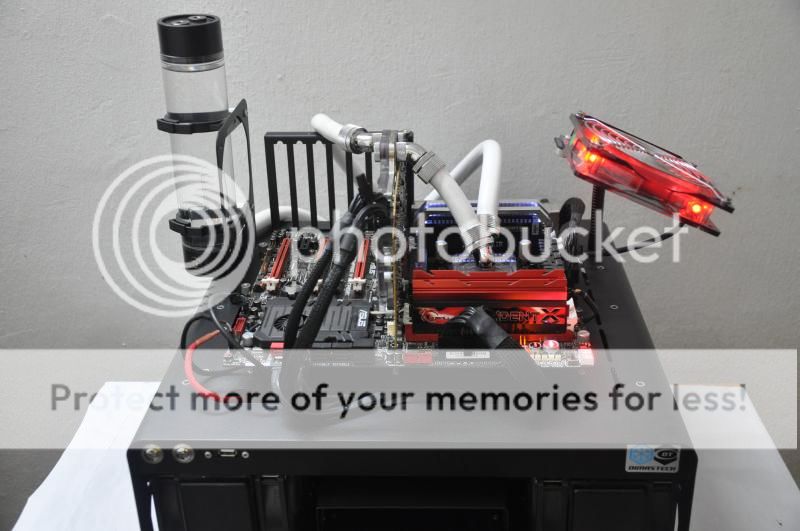

Today I got a chance to take the 4930K + R4E for a spin on my test bench under water:
user posted image

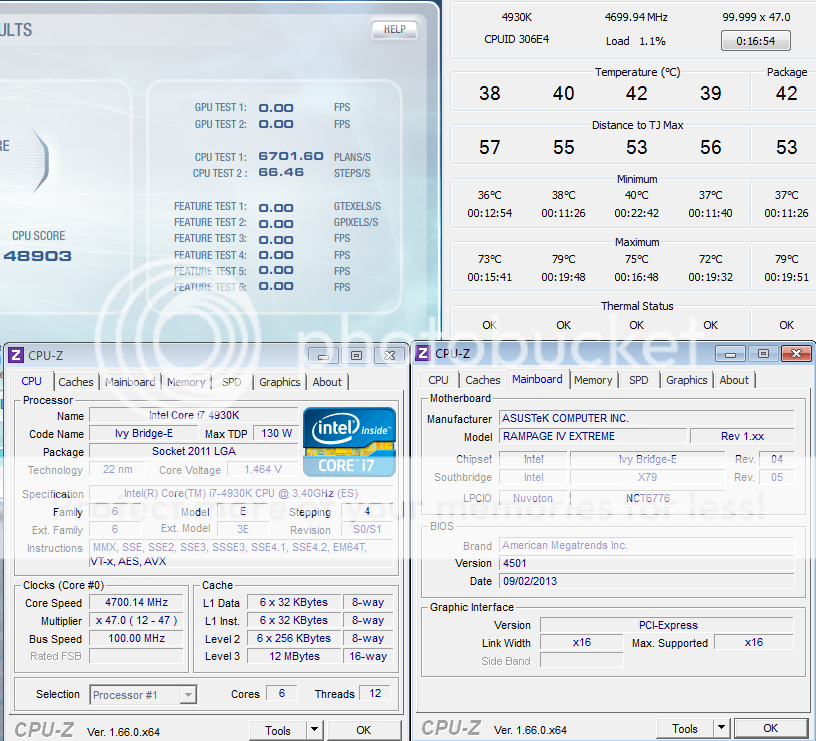

So far, the best clock for watercooled 4930K is 4.7GHz @ 1.45v (LLC very high)

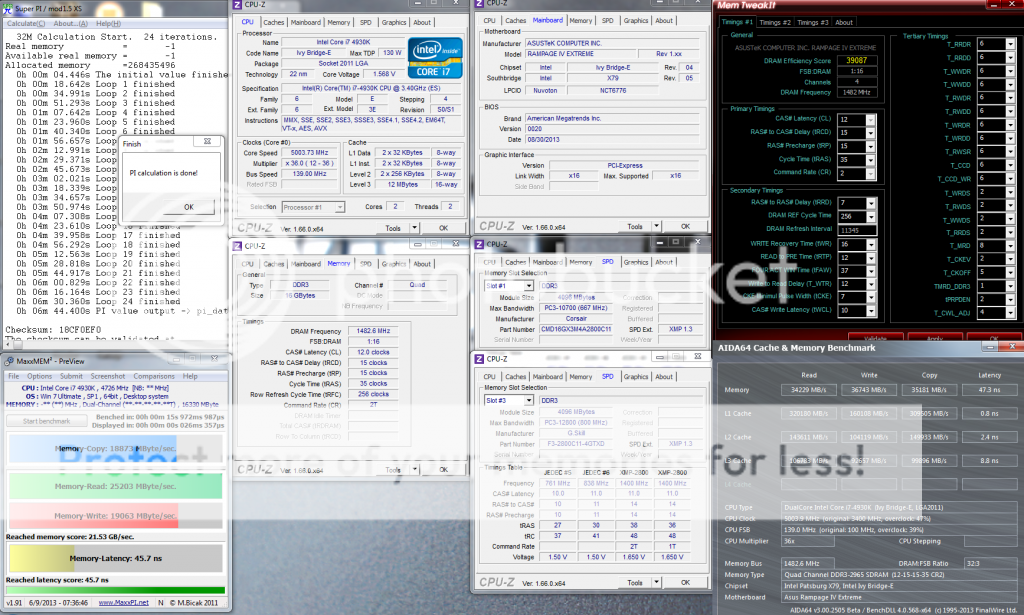

user posted image

user posted image

Stay tuned for more benchies. biggrin.gif

This post has been edited by owikh84: Sep 6 2013, 10:14 PM
stasio
post Sep 5 2013, 01:01 AM

10k Club
********
All Stars
18,503 posts

Joined: Oct 2007
From: P.Jaya
GA-X79-UD3

F15: http://download.gigabyte.eu/FileList/BIOS/...x79-ud3_f15.exe
F16d: http://download.gigabyte.eu/FileList/BIOS/...79-ud3_f16d.exe

http://www.gigabyte.my/products/product-pa...x?pid=4050#bios

GA-X79-UP4

F3: http://download.gigabyte.eu/FileList/BIOS/..._x79-up4_f3.exe
F4g: http://download.gigabyte.eu/FileList/BIOS/...x79-up4_f4g.exe

http://www.gigabyte.my/products/product-pa...x?pid=4288#bios



This post has been edited by stasio: Sep 5 2013, 01:01 AM
TSowikh84
post Sep 5 2013, 07:02 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan

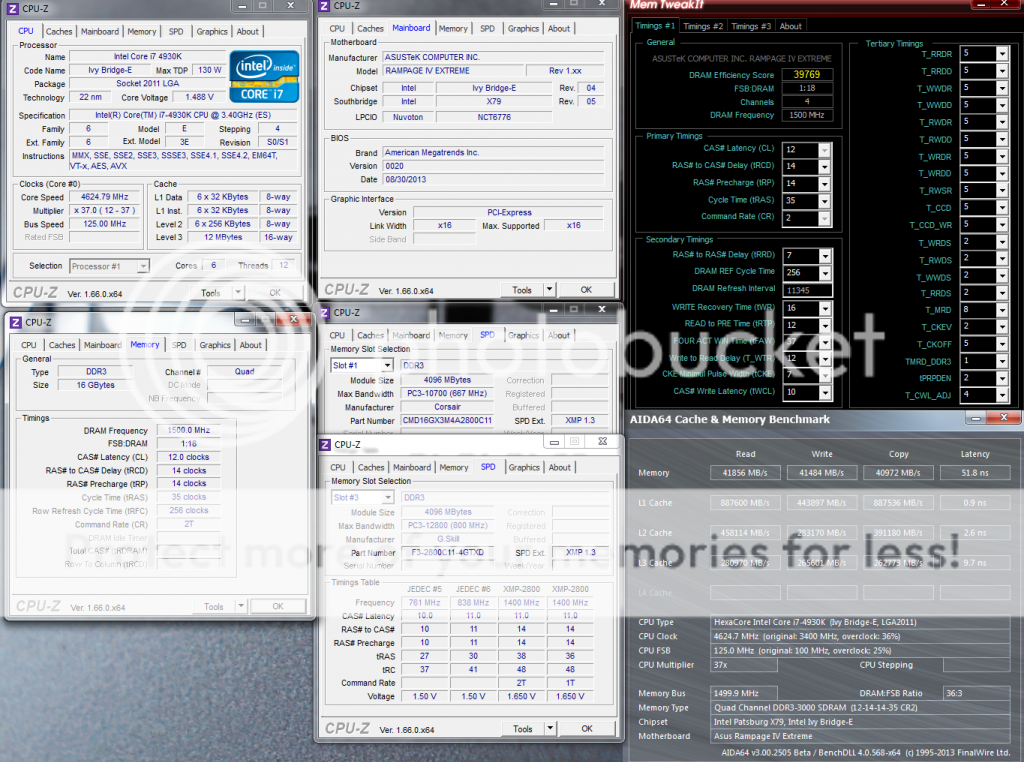

Hynix-CFR @ 3000 12-14-14-35-2T

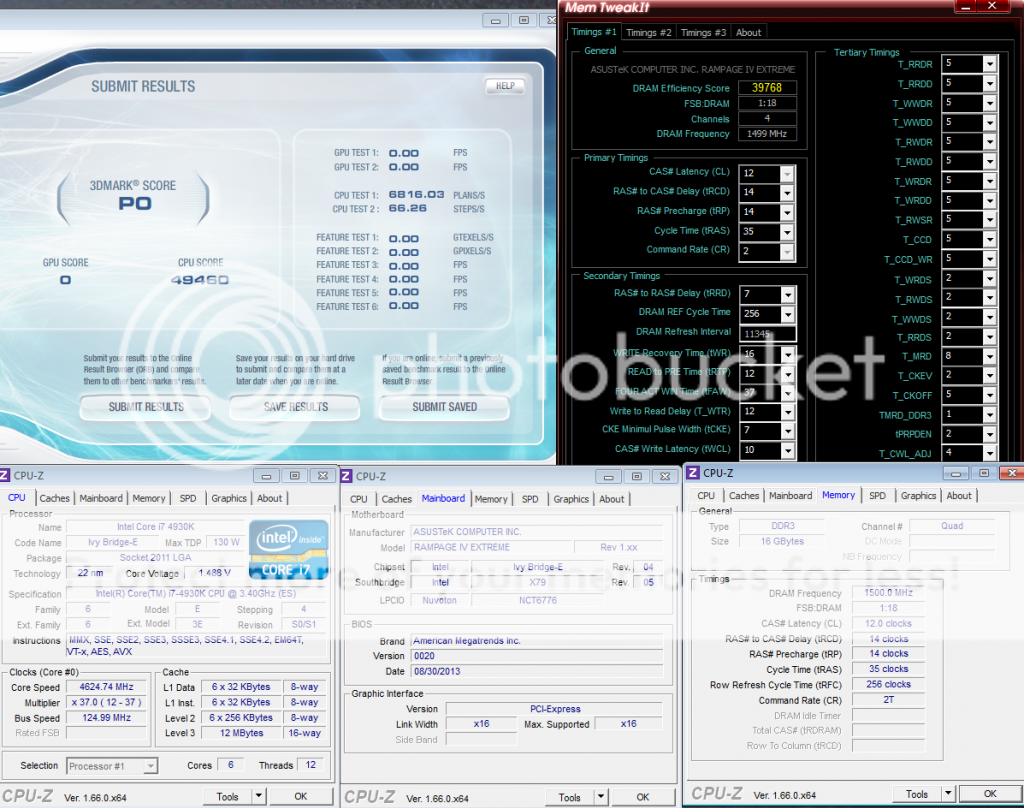

user posted image

user posted image

This post has been edited by owikh84: Sep 5 2013, 07:13 AM
kelvinchen
post Sep 5 2013, 11:58 AM

New Member
*
Junior Member
48 posts

Joined: Jul 2010
QUOTE(owikh84 @ Sep 5 2013, 07:02 AM)
Hynix-CFR @ 3000 12-14-14-35-2T

user posted image

user posted image
*
rclxms.gif rclxms.gif rclxms.gif good job bro.. thumbup.gif
ZaiNor-DI255
post Sep 5 2013, 11:39 PM

Getting Started
**
Junior Member
72 posts

Joined: May 2011
From: Negeri Sembilan


how's the temp with that speed? brows.gif
TSowikh84
post Sep 5 2013, 11:57 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(ZaiNor-DI255 @ Sep 5 2013, 11:39 PM)
how's the temp with that speed? brows.gif
*
Post #8 shows 4.7GHz topped at 79C.
TSowikh84
post Sep 6 2013, 07:17 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



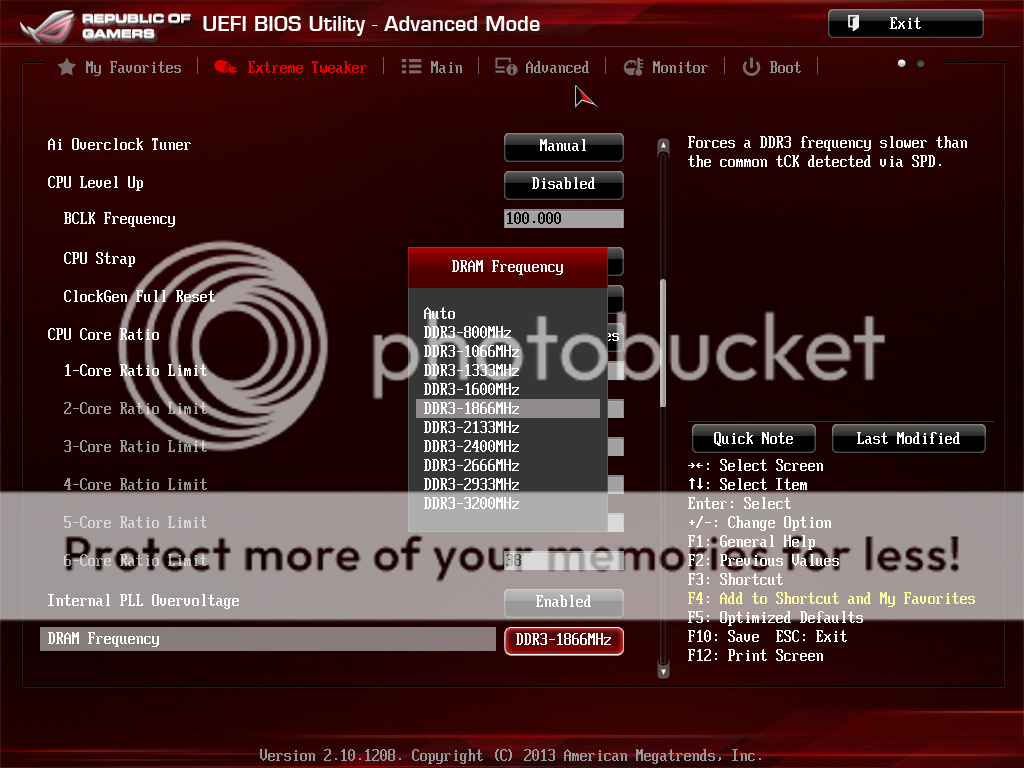

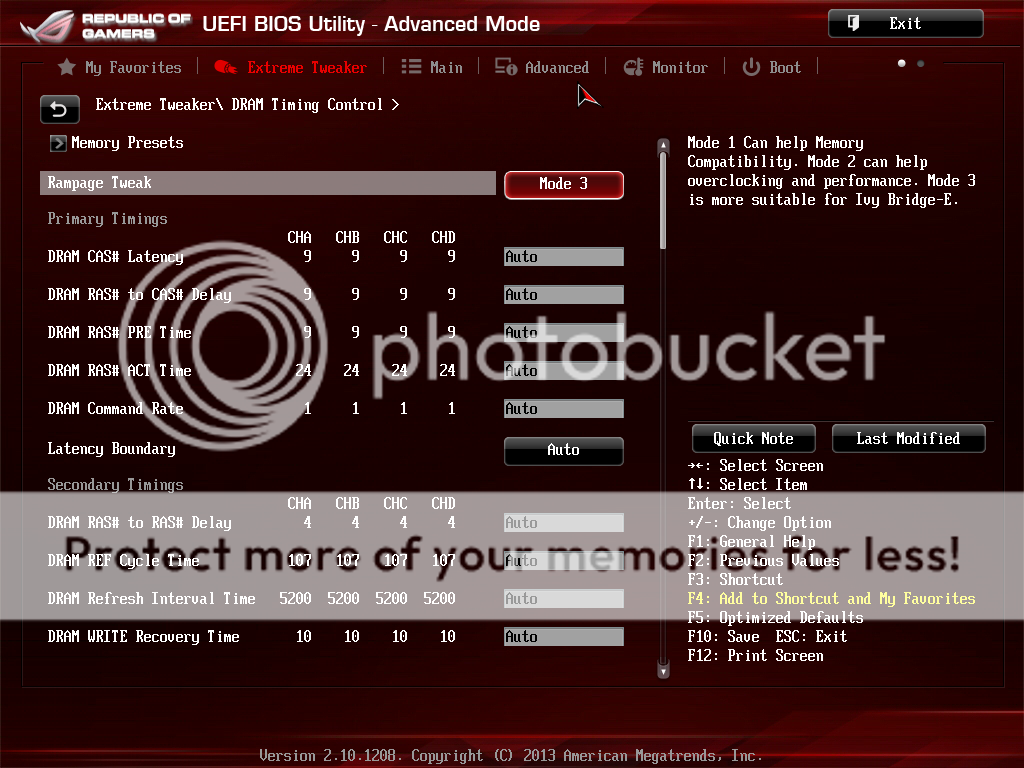

Some R4E BIOS screenies that have been optimized for IB-E:

user posted image
» Click to show Spoiler - click again to hide... «

» Click to show Spoiler - click again to hide... «


TSowikh84
post Sep 6 2013, 09:17 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan

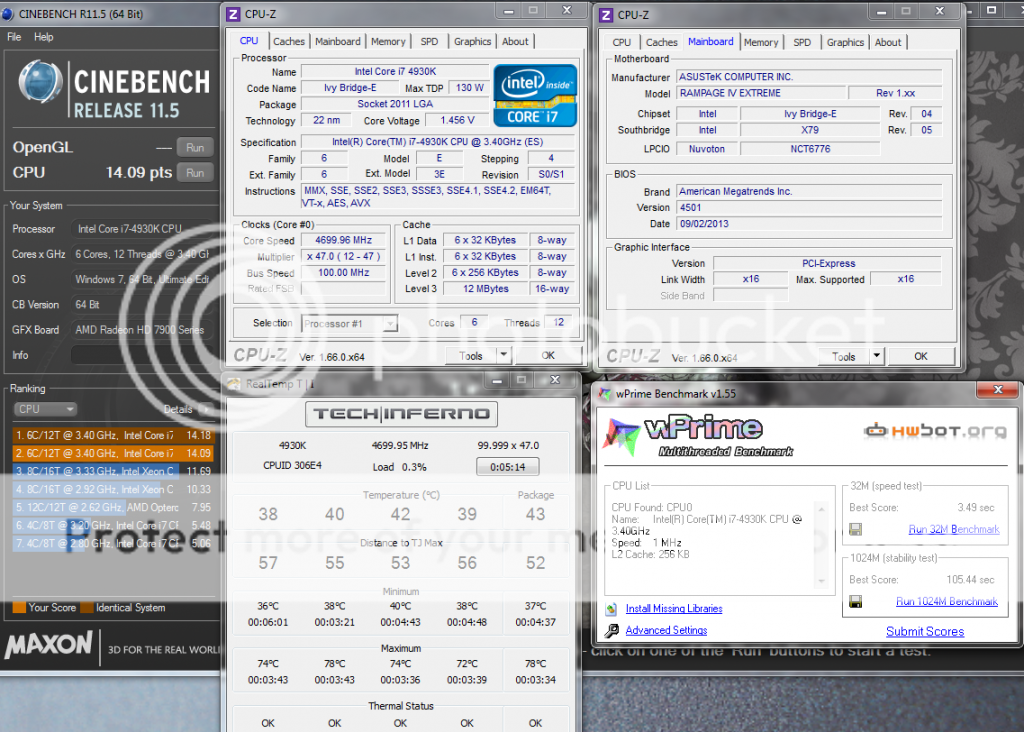

4930K @ 5.0GHz
Corsair Dominator 2800C11 2x4GB + G.Skill TridentX 2800C11 2x4GB @ 2965MHz 12-15-15-35-2T

user posted image
stasio
post Sep 6 2013, 09:31 AM

10k Club
********
All Stars
18,503 posts

Joined: Oct 2007
From: P.Jaya
^Nice Owi with Hynix cfr......now some with samsung ic....right?
TSowikh84
post Sep 6 2013, 10:14 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(stasio @ Sep 6 2013, 09:31 AM)
^Nice Owi with Hynix cfr......now some with samsung ic....right?
*
thanks bro
right now i am short of 2 Sammy stick for quad channel.
But I am still considering to grab your 2600C10.
stasio
post Sep 6 2013, 10:26 AM

10k Club
********
All Stars
18,503 posts

Joined: Oct 2007
From: P.Jaya
QUOTE(owikh84 @ Sep 6 2013, 10:14 AM)
thanks bro
right now i am short of 2 Sammy stick for quad channel.
But I am still considering to grab your 2600C10.
*
No problem,bro.
TSowikh84
post Sep 6 2013, 11:13 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



4930K @ 4.6GHz
Corsair Dominator 2800C11 2x4GB + G.Skill TridentX 2800C11 2x4GB @ 2800MHz 11-14-14-25-2T

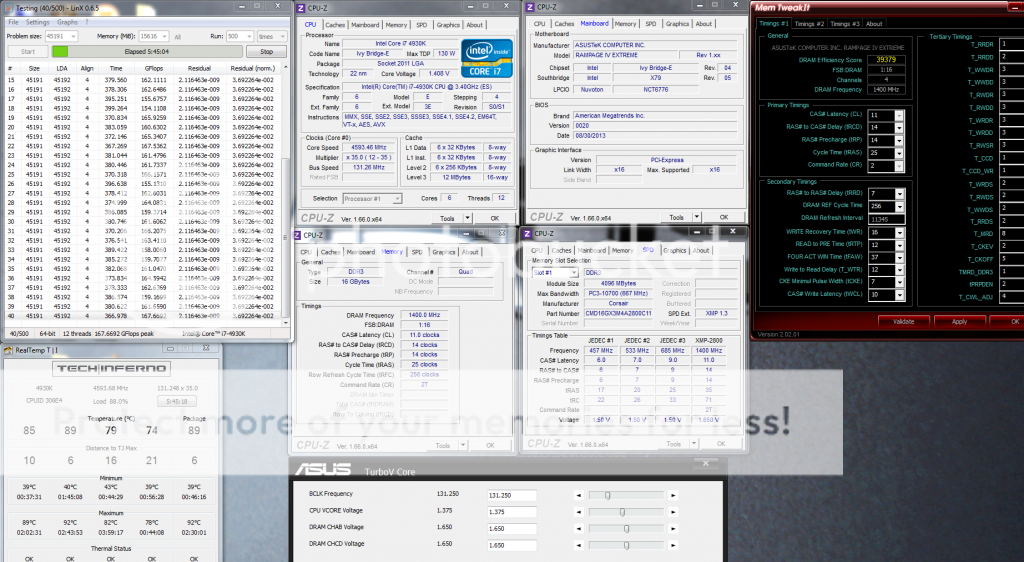

user posted image

I am not sure whether the Gflops are correct though. It's still fluctuating quite badly. Just as a reference of highest clocks for 24/7 under water.
stasio
post Sep 6 2013, 01:31 PM

10k Club
********
All Stars
18,503 posts

Joined: Oct 2007
From: P.Jaya
QUOTE(owikh84 @ Sep 6 2013, 11:13 AM)
4930K @ 4.6GHz
Corsair Dominator 2800C11 2x4GB + G.Skill TridentX 2800C11 2x4GB @ 2800MHz 11-14-14-25-2T

I am not sure whether the Gflops are correct though. It's still fluctuating quite badly. Just as a reference of highest clocks for 24/7 under water.
*
Nice Owi....... rclxms.gif.....4600MHz @ 2800C11.......stable biggrin.gif ......CR1?
I think GFlops is not correct (should be higher)......due to LinX 0.6.5 and Linpack 11.5.
Is to early......for IVB-E applications.
Btw,
what is CPUID for 4930K?
Thanks.

Edit:
Hmm....TJmax 95C

This post has been edited by stasio: Sep 6 2013, 01:35 PM
TSowikh84
post Sep 6 2013, 03:18 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(stasio @ Sep 6 2013, 01:31 PM)
Nice Owi....... rclxms.gif.....4600MHz @ 2800C11.......stable  biggrin.gif ......CR1?
I think GFlops is not correct (should be higher)......due to LinX 0.6.5 and Linpack 11.5.
Is to early......for IVB-E applications.
Btw,
what is CPUID for 4930K?
Thanks.

Edit:
Hmm....TJmax 95C
*
The DomGT Plat sticks are not as good as the TridentX, that's why I am not able to pass 32M even on dual channel with these modules on Haswell and now this IB-E. sad.gif
hmm yeah need to wait an AVX based linpack for 6C/12T.
RealTemp shows CPUID for 4930K is 306E4.

stasio
post Sep 6 2013, 03:29 PM

10k Club
********
All Stars
18,503 posts

Joined: Oct 2007
From: P.Jaya
Thanks for CPUID....... nod.gif

Edit:
Out of this thread (sorry)........any costa haswell in Malaysia?

This post has been edited by stasio: Sep 6 2013, 03:30 PM
TSowikh84
post Sep 6 2013, 04:47 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(stasio @ Sep 6 2013, 03:29 PM)
Thanks for CPUID....... nod.gif

Edit:
Out of this thread (sorry)........any costa haswell in Malaysia?
*
Nope. Until now havent seen any Costa Haswell in local market. I think there are still alot Msia batch out there. Nobody wants to upgrade their PC that fast and frequent lol.
TSowikh84
post Sep 7 2013, 09:06 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



Since the Corsair DomGT Plat are of bad sticks I could only play 3k with TridentX in dual channel biggrin.gif

4930K @ 5.0GHz
G.Skill TridentX 2800C11 2x4GB @ 3000MHz 12-14-14-35-2T

user posted image

MFR 2933C12 arrived DOA sad.gif Awaiting for refund from Newegg MY

This post has been edited by owikh84: Sep 7 2013, 09:07 AM
stasio
post Sep 7 2013, 01:03 PM

10k Club
********
All Stars
18,503 posts

Joined: Oct 2007
From: P.Jaya
QUOTE(owikh84 @ Sep 7 2013, 09:06 AM)
MFR 2933C12 arrived DOA sad.gif Awaiting for refund from Newegg MY
*
WHAT !!! shakehead.gif

Btw,
nice score rclxms.gif .........
I think before that platinum ic ,are better then G.Skill and Team.......... hmm.gif

Edit:

Intel® Linpack 11.1.0.002
http://registrationcenter.intel.com/irc_na..._11.1.0.002.zip

This post has been edited by stasio: Sep 7 2013, 01:53 PM
TSowikh84
post Sep 8 2013, 09:24 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(stasio @ Sep 7 2013, 01:03 PM)
WHAT !!! shakehead.gif

Btw,
nice score  rclxms.gif .........
I think before that platinum ic ,are better then G.Skill and Team.......... hmm.gif

Edit:

Intel® Linpack 11.1.0.002
http://registrationcenter.intel.com/irc_na..._11.1.0.002.zip
*

I think all brands roughly the equal as long as the same ICs used. From what I see, Team kits always rated at 1T.
SoLeHuDDiN98
post Sep 8 2013, 01:30 PM

Getting Started
**
Junior Member
279 posts

Joined: Mar 2013
From: Batu Pahat, Johor :P



4820k?
TSowikh84
post Sep 11 2013, 08:18 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



Rampage IV Black Edition: The Ultimate LGA2011 Motherboard

user posted image

QUOTE
Though not to be confused with the previous (non-real product) Rampage IV Extreme in black, the official Rampage IV Black Edition is a whole new product you can buy with a full stack of 2013 ROG innovations:

    Ivy Bridge-E optimized design
    The only ROG with an all-black color-scheme.
    SupremeFX Formula [2013] with WIMA and ELNA capacitors, OpAmp headphone amplifier and 120dB SNR.
    Sonic Radar software
    Extreme Engine DIGI+ III (VRM design)
    802.11ac Wi-Fi
    12 SATA [8 SATA 6Gbps]
    8 USB 3.0
    USB BIOS Flashback
    2013 UEFI updates, including Secure Erase, Last Modified Log, Quick Note and ROG Pulse (see more on our innovations page)

Additionally the ROG team went through 5 full layout designs to find the best possible 8 DIMM memory layout topology, and where the ROG team was working on the five new Z87 boards in the first half on this year, that whole team has focused efforts on just the Black Edition this time around!

SoLeHuDDiN98
post Sep 13 2013, 10:27 PM

Getting Started
**
Junior Member
279 posts

Joined: Mar 2013
From: Batu Pahat, Johor :P



QUOTE(owikh84 @ Sep 11 2013, 08:18 PM)
shocking.gif shocking.gif shocking.gif
cstkl1
post Sep 14 2013, 03:31 PM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003

holy crap.
buy buy buy.
TSowikh84
post Sep 21 2013, 10:12 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(cstkl1 @ Sep 14 2013, 03:31 PM)
holy crap.
buy buy buy.
*
That would cost more than RM2k in Malaysia laugh.gif

shinjite
post Sep 23 2013, 01:36 PM

�ŞħĬΩĵΐŦ��
********
All Stars
19,318 posts

Joined: Jan 2003
From: Klang


That board looks hella beastly
TSowikh84
post Dec 13 2013, 07:10 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



Yeah I have got these beasty ROG card and board recently.
Reviews are coming up next biggrin.gif

» Click to show Spoiler - click again to hide... «

TSowikh84
post Dec 15 2013, 10:03 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



Mem OC on ASUS Rampage IV Black Edition is awesome
Samsung kit @ 2800 9-12-12-25-1T QUAD channel

user posted image

user posted image

This post has been edited by owikh84: Dec 16 2013, 11:27 AM
TSowikh84
post Dec 20 2013, 11:59 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



4960X
ASUS Rampage IV Black Edition
ASUS ROG MARS 760
G.Skill TidentX 2666/2600 C10 4 X 4GB

user posted image

user posted image

This post has been edited by owikh84: Dec 20 2013, 11:59 PM
pali_5373
post Mar 6 2014, 05:20 PM

Getting Started
**
Junior Member
145 posts

Joined: Oct 2011
hye here is my result of stressing my 4820K for 3 hrs, mainboard ASUS R4BE

» Click to show Spoiler - click again to hide... «

please give me advice as i am still new in OC

thanks
TSowikh84
post Mar 6 2014, 10:43 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(pali_5373 @ Mar 6 2014, 05:20 PM)
hye here is my result of stressing my 4820K for 3 hrs, mainboard ASUS R4BE

please give me advice as i am still new in OC

thanks
*
Welcome the the club biggrin.gif
What's the actual capacity of RAM are you using? Why only 24GB is detected?
pali_5373
post Mar 7 2014, 12:19 AM

Getting Started
**
Junior Member
145 posts

Joined: Oct 2011
QUOTE(owikh84 @ Mar 6 2014, 10:43 PM)
Welcome the the club  biggrin.gif
What's the actual capacity of RAM are you using? Why only 24GB is detected?
*
Because i only got 24GB only, will upgrade later..tomorow i will try to push more..
saturn85
post Jul 31 2014, 06:48 PM

Folding@home
*******
Senior Member
8,686 posts

Joined: Mar 2009



Intel Core i7-5960X De-Lidded Haswell-E Uses Soldered TIM
now guru3d has thrown a question to ts: tongue.gif
QUOTE
Now the question begs, who the heck did they get that processor from ? smile.gif

TSowikh84
post Aug 1 2014, 12:06 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(saturn85 @ Jul 31 2014, 06:48 PM)
Intel Core i7-5960X De-Lidded Haswell-E Uses Soldered TIM
now guru3d has thrown a question to ts:  tongue.gif
*
It's from AMD biggrin.gif



Change to:
| Lo-Fi Version
0.0312sec    0.62    5 queries    GZIP Disabled
Time is now: 29th November 2025 - 10:34 PM
