It's more nice if put some ramsink on top chipset and blow it. Btw, where u connect fan power DC?

put some passive heatsink on the chip and blow the fan to it

good idea there

Then make one another box using acrylic or find some tupperware.

erm...

not sure about this question...

wll it void my tmnet warranty ??

i mean my modem is covered by tmnet, if i mod using a passive heatsink, will it void the warranty ?

hehe....

thanks

NICE MOD.... was thinking of doing it, but scared will void the warranty...

if u say not VOID... I WILL DO IT !!

NIce there but have u though that the dusk with be accumulating inside the modem and may i mean may causes static inteference as dusk become more...

i wanted cool off the modem as well but cant see much alternative besides ur way there... others even create a new box for it which is time consuming and a bit dangerous >_<.

wow! nice mod!
I'm noob in modding, so juz wanna ask, if u put LED, how to you connect the power to it?? Thanks.

Im gonna take all the risk and mod a brand new modem..since my modem always die 1 month or so after the waranty...gotta go to lowyat to hunt for the modem....heatsink...fan....and thermal compound.

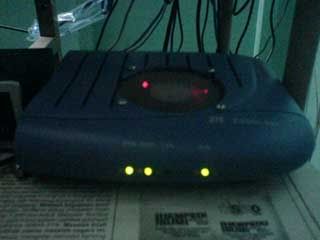

Errr....... How about put some LED there....... it's nice for nite time surfing net wif yr modem.......

wow nice
after this would u like to evolve it to water cooling??

Woot!!! now everyone is modding their modem!!

Any way to mod the fan without using external/additional power supply. I don't think Ramsinks work. My Aztech modem is so hot that I placed it vertically. Opening the unit does not help. There is a 2cm heat radiation from the modem. This is also my fault since I used the old aztech modem adapter on the new unit (I thought it was the same) since the modem is the same, but the new one requires less voltage. I successfully pumped in additional power and when I revert to the old modem, the modem is too weak to be used- so now staying with the old adapter and new modem.

How much you but that aluminium netting

What is the netting for exactly?

nice mod
where connect the fan power to

I think he meant what for like, for mosquito maybe?

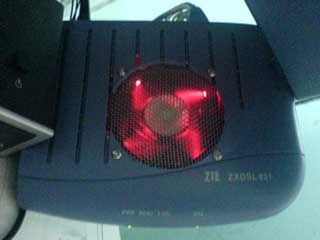

bro i have an idea. why dont you remove the LAN LED. than using another LED, you can tap the power from there and have a nice blinking effect on the fan while you're surfing.....

Yo shah, since ure 1 of the electronics experts here. Just wanna ask bout those modem LEDS. They're running on 5V or 12V? I wanna solder sum wires in parallel to the LED n power sum blue LEDs n a 40mm fan for my acrylic modem.

the modem LED should be running at around ~2V only. you can connect another LED in parallel but if you find that the LED became too dim, you'll have to remove the original modem LED. for powering your fan, i think most modem runs from a 9V adaptor. just tap the power directly from the adaptor connector on your modem boards. but please make sure the adaptor is DC. i've seen a modem use an AC adaptor with the bridge diode inside the modem.

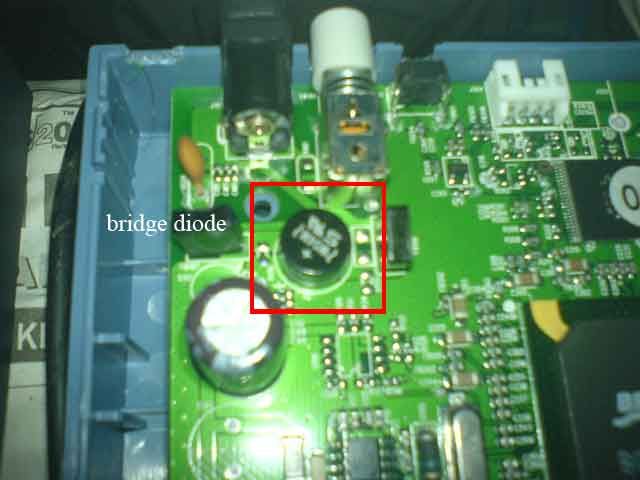

now now, dont cry yet...there's still a way to do it. the LED mod can be done just fine. the fan will be a bit tricky. you need to find the bridge diode output and tap the power for your fan from there. very easy to do. btw what is the voltage output of your AC adaptor? maybe i can help you if you have a high res picture of the modem boards

u can try to mod the fan draws the power from usb port(5v)

wow....

actually i already voided my warranty...

i opened up the casing 2 weeks after i got my modem,

but i managed to ensure the void seal looking like it was not tampered with....

i dunt know, since the modem is given by tmnut... and it is still new, but it is REally HOT !! crazy Zte Modem....

anyways...

maybe i can just find a Zte Modem which is spoilt and replace the casing.... 1 casing at stock, the other one i can mess around with

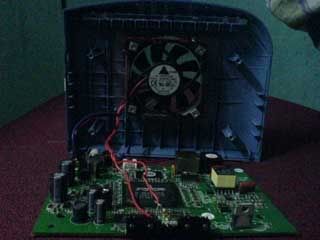

Power for the fan:

that rounded thing is not bridge diode look at the picture below (ianho's modem). see those 2 caps that i pointed at. one of them is the power filter caps and you can tap the power for your fan from the +ve leg of that cap. just measure the voltage and the one that have the closest voltage to the output of your adaptor is the one. i think its the cap that is closest to your adaptor port.

now if the voltage is higher than 12V, you could use LM7812. this voltage regulator will reduce the voltage to 12V.

LED:

what is the value of the resistor? why dont u try connecting the LED without a resistor.

i feel sad....i just opened up my aztech modem thinking i wanna stick one of my old NB heatsinks on the main chip....ended up the chip is friggin small and the caps n wat not around the chip prevent me from putting the heatsink on it....the only way i can think of putting heatsinks on the chips is by using 2 of the CM ramsinks....and sadly...im fresh out of those

erm....

i think there is two batch of this ZTE modem...

coz mine comes with the big chip rite in the middle

hehe....

My Modem Still virgin... haha....

erm...

i managed to opened it once, and put it back together....

the sticker i sambung a bit....

so looks like i never tampered with the modem

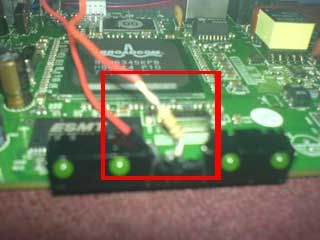

show some pics of the LED connection ??
you cut off which resistor ?

ok...so you found the current limiting resistor. now, lets do the fan. can you read schematics?

oh...and what is the voltage readings at the +ve leg of the capacitor?
