Cannot lah... not everyone here so courages and young as u...

Old man like me... no kahuna of steel... fastest i've gone (own vehicle driving myself) on 2 wheels is 260+, on 4 wheels about 230 then my small little balls ask me to pull back

Wow..

I want to start collect Them money for the Real Evo X

lai lai lai...Evo X MR phantom black for sale..direct import from mitsu motors malaysia..

JDM? or MDM?

where got JDM or MDM...this evo is CDM

Y u question Mr JDM WINNER??
ppl already says who got money who win..

U want 2 car convoy Ka??

sorry boss I go and face the wall sin

3 cars boleh kah

Last time I heard their extreme engineering damn geng leh.. 4 days settle KOS d... We took so long to settle leh

Hahahaha.....Proton vs Perodua, nvr fair fight b4 geh.....proton sikit problem is quality problem, no give chance no give face hantam until publish newspaper....my colleague just got his Alza that is 6 hours old...normal roundabout turn got kluk kluk sound, traffic light turn left/right oso kluk kluk sound. Send back check....service center told him "aiya...sorry ya bang, lu mia absorber 4 batang longgar tarak pasang ketat....sorry arr"....thn driver jz accept it as minor issue....if proton masuk youtube jor!

Guys,

Please note that our pariah key was confirmed can use from level 14..tested it, provided no obstacle, as for me, only have glass wall

Yup.. as many cars as possible lar... can plan 1 time go do all mod lor.. no ned go everytime...
Driving alone is bored ler... so what poison U guys want? New china mali key? 4-1? Bodykit? Lim?
Kl,selangor got everything..

Our original key is damn powahful one bro....i tested mine in i-City, from car park at the bottom...standing opposite the road where to lighted xmas tree are around 2 football field long. That's y the GB flipkey i ask for distance....hehehehe

This post has been edited by blursquid: Jun 19 2013, 10:11 PM

ANJINGNEARING GUIDE FOR AUDIO DIY

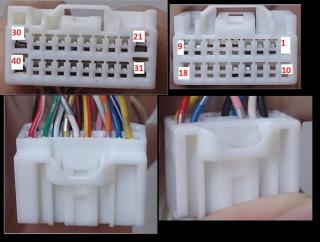

INSPIRA only have these 2 connector behind the deck ..

There are few common wires which whatever Headunit will required.

1. Batt (12 v) .. constant even when ignition is off. This is to use to preserve the memory and the running clock. Connect this to pin 30 (Red-White).

2. Ignition (12v) .. this power comes on when ignition is turn on. This is to power on the headunit. connect to pin 21 (Blue-Red)

3. Ground (-) . This is the return point of the power. Suppose to be pin 40 (black) but inspira wiring is NOT CONNECTED. So you just have to connect the Ground (your headunit) to the car chassis ..any screw will do (must be touching the chassis)

SPEAKERS

FL (+) - pin 28 (White - Blue)
FL (-) - pin 38 (Black - Yellow)

FR (+) - pin 26 (White - Red)
FR (-) - pin 36 (Black - Red)

RL (+) - pin 27 (Yellow - Blue)
RL (-) - pin 37 (Grey - Blue)

RR (+) - pin 25 (Yellow - Red)
RL (-) - pin 35 (Grey - Red)


If you are connecting a 3rd party steering controller module ..
You will require to tap in pin 22 and pin 32.

if you require to power up the amp. u can try pin 24 first ,if it does not work use pin 21 as well. Warning . this is just to signal the amp to wake up. Not the actual power line. you should connect the actual power line from battery to your amp.

Good Luck ..

psst .. we dun just google .. we know what we are doing .. .LoLz

Terbaaaeeek....

oops... sounds too fishy... here we say...

Woi, copy from where again?

Got it from my dreams..
I mean copy

Tq tq dor future ref..

Pipx can put at first page

Ayam still at ipoh

Thanks Kenny for the guide...plan to install back the Clarion to my Myvi...

Or the easiest way....get NZH to order wire harness...cheap and with markings somemore!
