Yw bro. Thanks for introducing the apps to me

Btw main point with the right cables both joytest and I are getting 1800ma for both phones

This post has been edited by brotan: Jan 29 2013, 10:29 PM

Only 1 unit for sale but sold to joytest

Just take the ori cable lor. Next week arriving

Hi joytest,

Mine not that canggih lah. lol.

anyway, just got the dock yesterday and haven't advertise yet. so note2 users are the first to have a quick snapshot of it

basically it can be used for most of the cases out there as you can see from the pic

have audio jack out, data sync port (you can connect your MHL cable here). cables + wall adapter provided

oh btw, this same dock can be used on HTC or Samsung or BB phones, so pretty universal

cheers

Hi fruitie,

not sure you are referring to which one but if that samsung original smart dock I am not sure. but mine tested GCC is 900mA even with ori 2A charger because this is supposed to be universal dock for all micro usb phone (and most phone out there is 1A only)

i also got random auto restart .

any idea why?

hi bro

pls take note that can't really compare car and wall charger

Wall charger output from TNB sure very powerful but car charger output from car engine, different story lah.

Also take note that if you test with engine off (but electric on) and with engine on and with engine on for long time (30 min) will have different results. also depend on your engine lor. If test on lorry and kancil will have different results too

anyway, i tested mine (dual usb 2a each) and below is the GCC result

1) engine off - 900mA
2) engine on - 1200mA
3) engine on long time (min 30 min) - no time to test

but my dual usb 2a each can really reach 2A each under ideal conditions but in practicality (as stated above), may not be

so as long as the voltage fluctuation for the car is not too high (+/- 2 or 3V should be ok), the car charger if circuit is ok, should regulate it to 5V

what's the best way to clear ram? last time on note1, i use task manager but can't find it in note2

i got use android task manager but damn complicated

oh wow, why they hide it like that?

many thanks

Hi all

Was reading up li ion electrical behaviour yesterday and doing my own testing with various charger and cables today including yoobao ORIGINAL and my own oem powerbank

Wall charger (assuming it can charge 2a)

In summary if you want faster charging speed from wall charger, cable length is not too much of any issue if 1 meter or less (don't have more than 1 meter cable so can't know the impact of longer cables).

But cable quality is a major impact on charging speed and in principle the faster the better

Power bank (assuming it can charge 2a)

Now for power bank I tested, not only cable quality has impact on charging speed but 0.5m and 1 meter cable also has big impact. I guess because powerbank is a standalone charger the charging force is not as great as wall charger, that's why can see the difference

Both my oem and yoobao original powerbank can achieve gcc of 1.8a with good short cable but 1m cable shows charging speed drop to 1a

For powerbank, high charging speed may NOT be a good thing depends how you look at it. In principle the higher current you draw from the li ion battery cell, the effective available capacity drops

Professional measurements (not by me) shows discharging li ion with 1a compare to 2a can decrease available capacity by as much as 40% (depending on cell quality)

What this means is if you use your powerbank at very high charging rate, the number of cycles you can charge your phones decrease a lot

Just some sharing

This post has been edited by brotan: Feb 2 2013, 02:06 PM

i haven't replied?

sorry too many pm. btw, joytest and gin&tonic took the dual charger already

pm me yah

if you are a heavy user of powerbanks (means very long time no wall charger), i would advice against charging at high speed because available capacity will drop compare to optimum condition

but if you have high capacity powerbank + you use it not for long time, then you can use the high current method. although the available capacity drops, it doesn't matter because before it reach zero, you would have recharge the powerbank with your wall charger

This post has been edited by brotan: Feb 2 2013, 01:51 PM

Yw bro

Note1 I also got weird results as posted earlier

Btw just to update

1) ori uk white travel adapter+ ori cable in klia now. Should get within tomorrow or next day

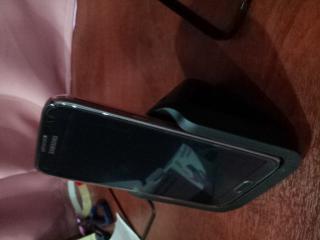

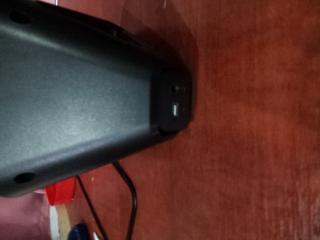

2) my note2 cradle with phone dock + extra battery slot charging just arrive. Got speaker out + can use with slim case (you can see I am using the case for my note2)

Cheers


Attached thumbnail(s)

Bought from brotan

Uk = 3 pin plug

Not that it comes from uk

ok guys, the cradle sales thread is up

cheers

http://forum.lowyat.net/index.php?showtopic=2693882&hl=

try different (shorter) cables

most likely fakes

you bought ap unit?
