hmm how to check the signal speed on mr3420 with hunstmen red?

finally found a rooter version which is fit our E3276 totally

try this version Huntsman 2013-10-12 / LuCI Trunk (svn-r9811) -> here

no need to do anything, just flash it and wait for auto dial, auto recognize and auto reconnect !!!

try it , no need at command

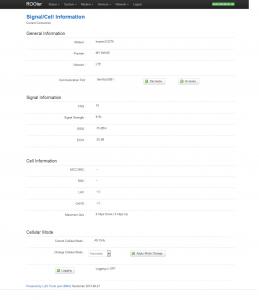

to check signal :

-> login LuCI -> modem -> network status

to check speed :

-> Login LuCI network -> bandwidth monitoring

hope it helps

actually all works, its about the AT command that some bought modem need to be checked.

some turn on Modem only function.

some didn't turn on the HI-link function.

some turn all on with GPS...makes my PC hang

so need to correctly turn off those things before plug in the huntsman.

yeah,.

i finally found a rooter which fit my E3276,

finger cross and hope it able to auto reconnect too once it DC

yeah finally it auto detect correct protocol

But after restart, what is this error...

[ 90.520000] usb 1-1: device not accepting address 5, error -145
[ 90.520000] hub 1-0:1.0: unable to enumerate USB device on port 1

Hi, you are having the same problem with me

Rooter V2 problem, not sure what's wrong

most probably it’s a result of hardware failure rather than a driver or kernel bug. USB has an over-current protection, which gets triggered when power consumption from the port is too high.


-----------------------------

any suggestion of device that can add the USB power?

A Big Thank You to Blacktubi for helping me to setup my E3276 with 1043ND, take note this is a stable but older version of the ROOter.

just change the power adapter from your original 12V / 1A -> 12 V /2A will do the job,.

blacktubi

Once I extend out the E3276, my speed improves.







Peak hour now, consider good ady.

Thanks again bro

digilife Fixed yours but my own V2 still cacat.

I measured on my Multimeter, my V1 draws 280mA on 3G IDLE and 417mA on 3G load.
Signal is -8XdBm, wifi is turned off.

On V2 with wifi turned off, 3G not connected state draws 204mA and a kernel error seem disabled the USB. Thanks or the tips lpc26
TP-LINK circuit is poorly designed or to save cost and unable to supply enough juice

Both test are conducted on the same power brick and same E3276.

Solution : Use a Y connector.
Solution 2 : Get a cheap 5V module to power up the modem using the 12V supply bypassing the TP-LINK circuit.

I am not an E&E engineer. As far as I know ampere is auto regulated.

the method that dairyman provide at rooter websites is something similar like what you stated,..

i choose the 12V 2A power adapter replacement method from there too
i use it with my V2 & E3276 and also wifi is running at Maximum broadcast as well

http://www.ofmodemsandmen.com/powert.html

The brick I use able to supply more than our router need.
Problem is not with the supply, is with the circuit.

As V2 is not regulating the correct current, will send mine to warranty.

can still sent to warranty even after using custom firmware?

i through they will reject it if they know you already

yeah, the cricuit on the board might has issue, well so far mine seems okay i guess

yeah sure, why not ?
just reflash it back to stock firmware and send it in

i see, now i know.

i through they have some special device that can detect if that device already been install with custom firmware or not. like apple, they can know if this iphone or ipad already been jailbreak before or still virgin

This post has been edited by syahpian: Nov 16 2013, 11:43 PM

most user successful claim warranty,
of course u should at least flash it back to the stock firmware before send it in LOL

i mean the stock firmware is good, but their are so outdated due to newer 4G LTE modem is coming,.so most user kind of like have to jump in rooter custom firmware to get better support with their device, like current one huawei E3276 especially,..

This post has been edited by chuahcs79: Nov 17 2013, 12:08 AM
