Nice one dude.. keep on updating..

Updates.....

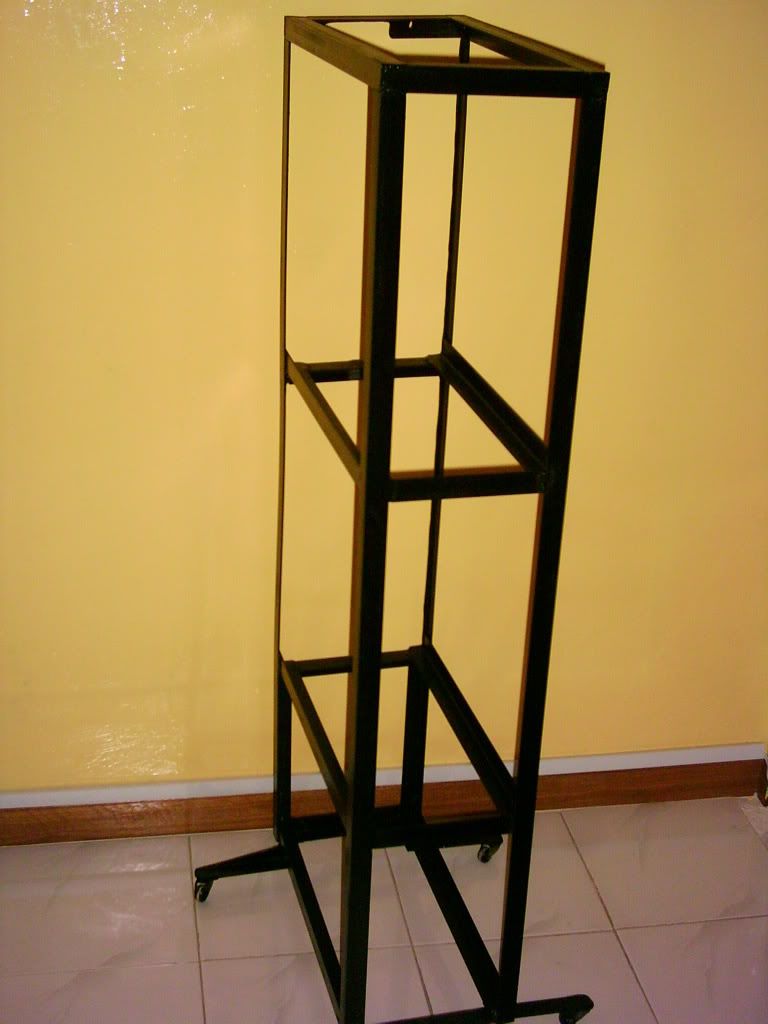

My steel frame...top deck..celeron..middle deck..Pentium 4...lower deck..water cooling systems compartment.

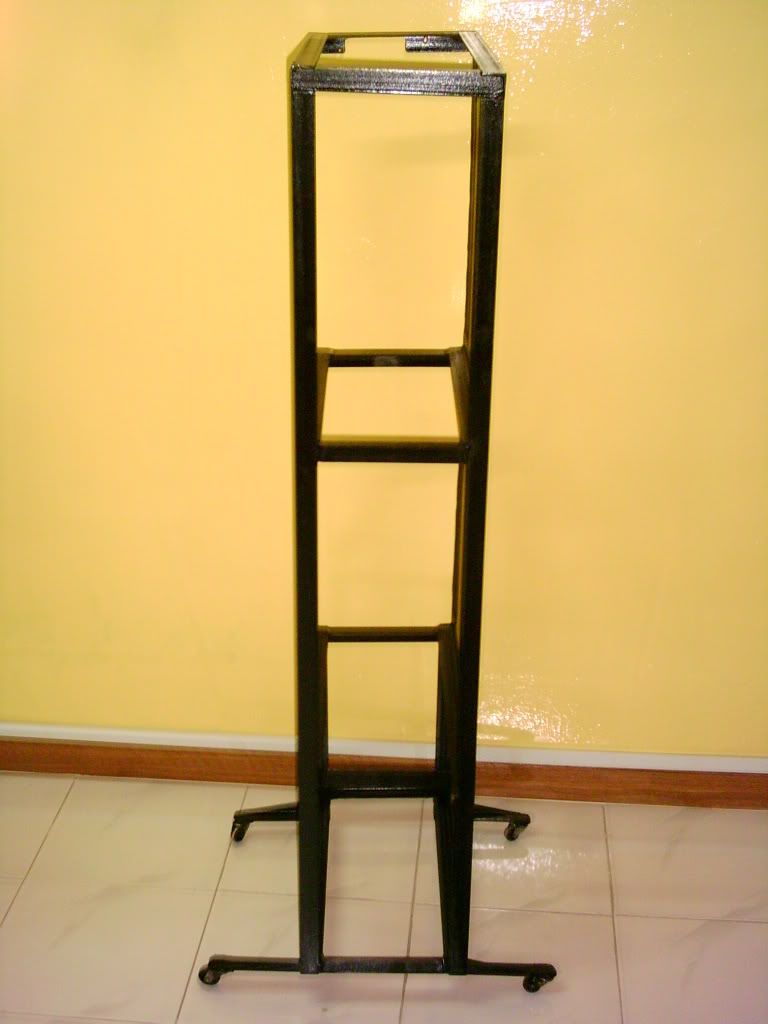

Front view...the outriggered wheel base was added due to stability issue.

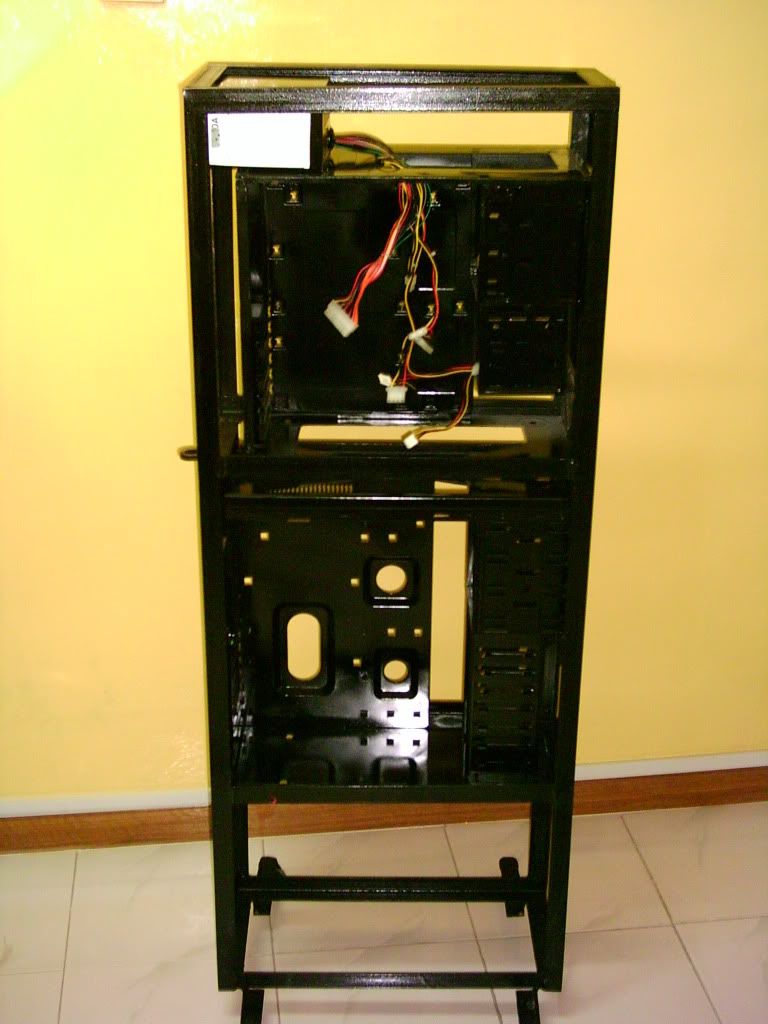

This is how its gonna look like with the cpu inside the frame.


A closer snap...glass will be mounted on the two sides for thermal conductivity and economical cost.

You built a rack? Gosh, I need your help then. I have to re-organize my folding farm.. Neat and tidy, good job man!

in the picture, the thing doesn't show straight lol

Tidy ar but careless work..i forgot to trim the steel to equavalent length until i welded the top part firmly..then i oni noe the top part is not 90..cannot do anything ade since a made one heck of a weld on the steel.


Yalar..the top part mahh...everything except the top.

This post has been edited by radioactive: Mar 22 2006, 01:09 AM

woah looks very high

the top part. Waaaaaaaay off lar. Leaning Tower of Pisa oredi. U shud haf used rivets instead of welding. Then u can always drill out n redo again if things go wrong.

Still got solution. Just cut off the top part. Straighten everything n join back again. Cut off at the 4 vertical pipes.

This post has been edited by ianho: Mar 22 2006, 01:18 AM

Cam effect...its actually off by jus a mere 2mm..1 side up 1-2mm..not sure...the whole tower never leanin mah. The other side is ok ok. not so severe.

This post has been edited by radioactive: Mar 22 2006, 01:19 AM

Oh, now I noticed the senget-ness.

Btw, you're going to watercool both rig is it? U surely need a powerful pump for that.. Or perhaps few pumps between the loop.

But hell, Im sure the finall outcome its gonna look great.

This post has been edited by c9: Mar 22 2006, 01:19 AM

Cut off the 4 vertical pipes. Make sure they're even then rejoin back lar. After so much time n effort, dont settle for the 2mm defect lar. No syiok lar. After u finish doing everything n install the PCs n find tak puas then u gonna regret not doing it properly.

Im gonna use a high capacity pump used for aquarium. A secondary pump...smaller act as a backup if the waterflow stops. 1 pump..pressure tank(low pres 1 lar)..split water to rig then a car sized radiator



Oni 1 shorty is the culprit...but im gonna give it a bit grinding to see if the steel surrender or not..or else i'l have to use the glass frame to cover up my mess.

This post has been edited by radioactive: Mar 22 2006, 01:29 AM

Source:Newsletter
Tt's HDD waterblock...
Wonder how much izit and is a 7200 rpm HDD so hot or Tt is jus trying to promote their products?

i honestly, truly, hate the senget part...pls do sumthing bout it...

the senget-ness ruin the whole beauty

okla..tomolo try la..dunno got energy left or not..tomolo im takin driving test...gonna wait and wait and wait like an idiot at the dewan.

TT?
Watercooling?
Lol~ they can't even make cases right, you dare trust them with cooling your components with water?
What more the hdd?

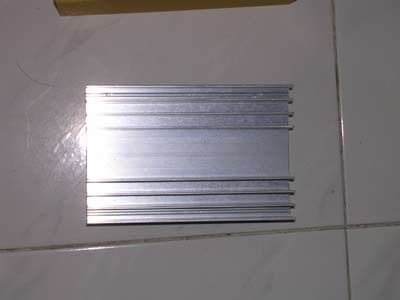

this is what i'm gonna do when i will build my own rig.

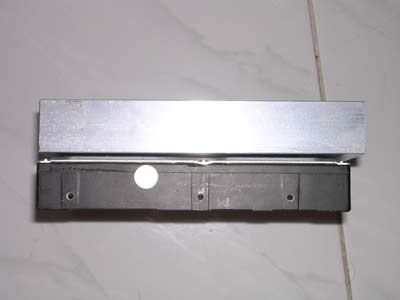

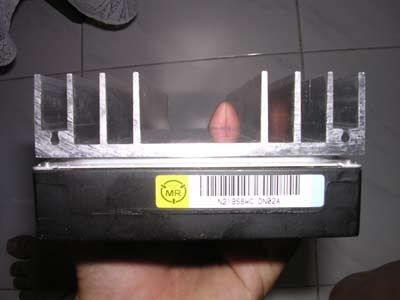

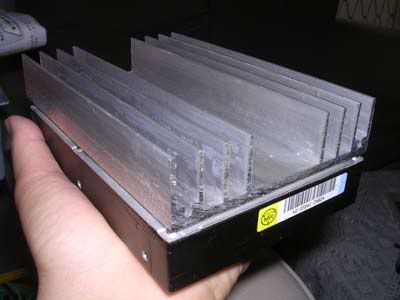

just a heatsink sitting on the HDD and a fan in front of the HDD.

will certainly work better than this TT crap

Theory of science.

Heat moves upwards.
Alluminium disipates heat quickly
Copper absorbs heat faster
Fan+copper heatsink=Better?

Wouldn't it? Allngap?

correct. but copper is way to expensive, by theory, putting a huge copper heatsink would make ur heatsink run at near to room temperature because it is able to absorb heat so well

So wats ur opinion on Tt's waterblock?..i wan to buy 2 leeee...got any good brands or not and more cheaper...

Anyway of custom waterblock? Jus curious.

Tht mtf*ing tester failed my on the road test....u f*kin indian M***er tester....next time..im gonna give u kopi kao kao kao..once in a lifetime...i give....

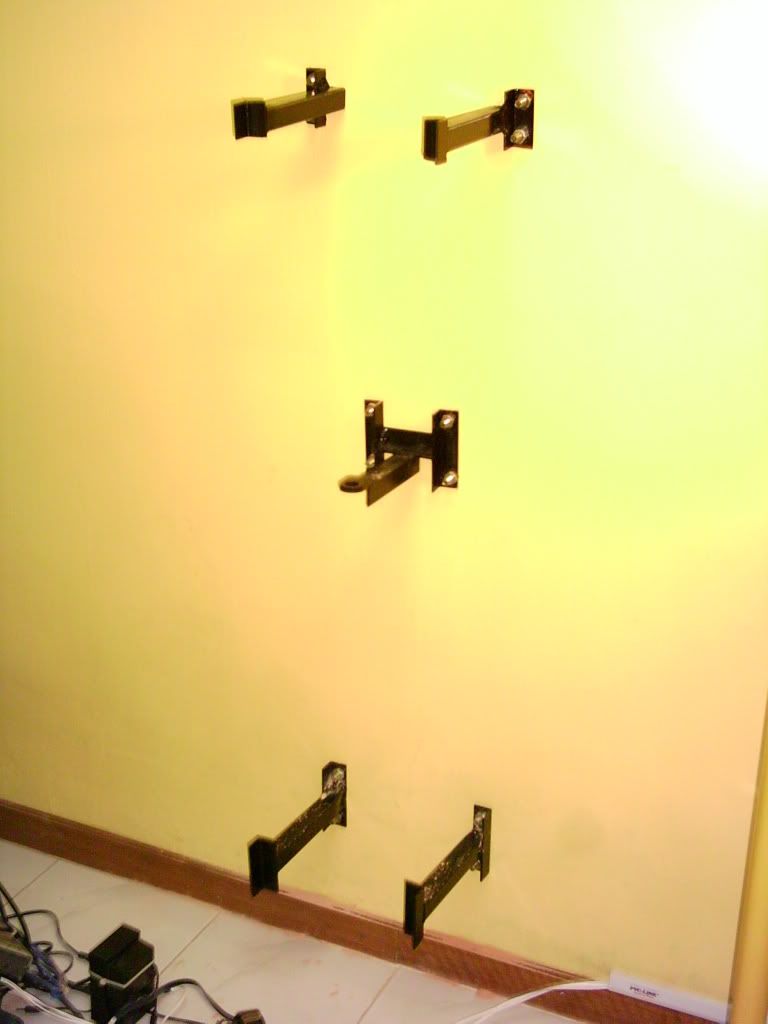

I jus came home oni..no mood make my rack(ask 1 forumer call it)..anyways this is my update for today...its the wall fittings to lock my casing in place...and first time i ever got my pc so dusty...

5 of those thing...2 top,2 bottom..each fastened wif a wall screw...the middle is the locking rings....

This is a closer shot of the locking rings...the base is fastened wif 4 screws as this is the most crucial part...theres a lil orange dirt left on it from my drilling.

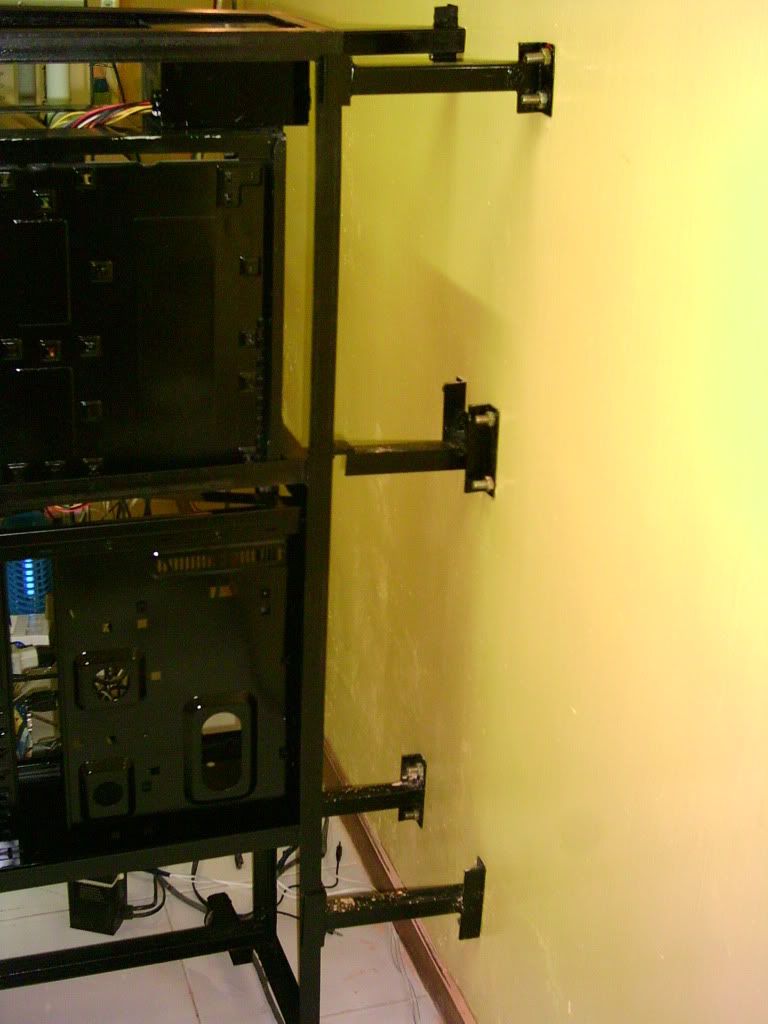

This is the frame/rack attached to the wall fittings...although all these seems like overkill but i really dun wan my rig get burglared...since i have spent so much time,effort and money for it..i'll definitely be very depressed if it gets stolen.


I still hasn't made the anti-cutting lock cover..it'll be made from 3.5 inch(external dia), 2 mm thick round tube....according to my dad,the metal cutter tht those losers burglar use is rather big and can oni cut wif 1 snip..can't cut like scissors cutting.

PS: Spot any flaws?
