... and. .. my first venture into RC flying lol.
[attachmentid=5128187]

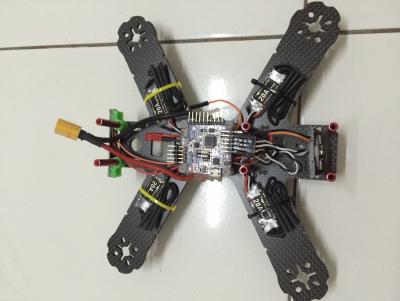

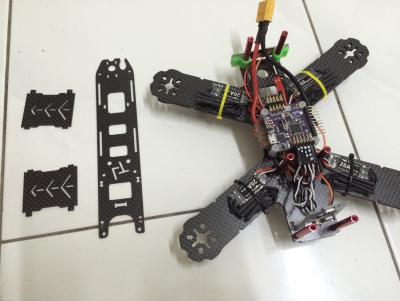

assembled diy.

Frame zmr250
fc flip32+
12A ESC
1806 2300kv brushless outrunner
5030 props
TX fs-i6

=)

Hey, i'm actually interested to assembly one quadcopter myself.

Where do you get started?

1st u will need a remote control
2nd a kit or u can build one yrself
3rd electronics to suit the frame u built
4th batteries to suit your copter
Charger to charge yr batts too..

The ez way is to just buy a ready to fly thing with all those already.. No need to build etc.. Much cheaper too
Buy if coz do not compare the flight quality etc etc la

Some of items i'll may be getting below. Feel free to comments any suggestions? I'm still undecided most of the parts, would definitely like to fly with FPV

Item
Flight controller                          AfroFlight Naze32 Acro (bought this)
FPV transmitter                          TS5823 200mW
FPV Camera                        recommendation??
FPV headset/monitor                recommendation??
FPV receiver                        recommendation??
Radio Receiver                        FrSky D4R-II or any recommendation??
Radio System (Transmitter)        Turningy 9xPro with DJT module (will it work with FrSky D4R-II?)
Brushless motor                      DYS 1806/2300KV
ESC                                    Afro ESC 12A (SimonK) *bec or ubec, whats the diff?*
ESC power distribution board      ZMR250
Prop GemFan 5040                    50/40
250mm body                        ZMR 250 Mini Quad Kit (bought this)

Frsky taranis x9d plus - which hobby shop sells here?

So the 12A easily burn up more then 20A?

Which motor you recommend other than 1806?

Thanks!

I'm a beginner, so guess the 1806/2300kV would be sufficient enough for start.

The price stated in rcsmart/myrccorner online -> RM1100/1200 pheww

Does the below pic consider quad ?    I had it for a while..

Yeah, i practice flying around my home sometime outside (if windy hard to control)

Not much, but will get them from HobbyKing or Banggood.

I got a friend travelling to China soon so I'll ask him help me to get FrSky Taranis x9D Plus from Taobao (RM710) without battery. Shipment 24hrs to hotel.

What I have right now are below:

1. ZMR 250 frame
2. UFO FPV DIY 5.8G 32CH 5 Inch 800 x 480 HD Snow Screen Goggles
3. AfroFlight Naze32 Acro

Nope, it's a Rev 5

http://www.gearbest.com/rc-quadcopters/pp_355354.html

This drone somehow very powerful. If the spec are real

Yeah, i practice flying around my home sometime outside (if windy hard to control)

Not much, but will get them from HobbyKing or Banggood.

I got a friend travelling to China soon so I'll ask him help me to get FrSky Taranis x9D Plus from Taobao (RM710) without battery. Shipment 24hrs to hotel.

What I have right now are below:

1. ZMR 250 frame
2. UFO FPV DIY 5.8G 32CH 5 Inch 800 x 480 HD Snow Screen Goggles
3. AfroFlight Naze32 Acro

Yeah, something for newbie like me play for.

me now looking the promo page....a bit wan buy the Flying 3D X6 PLus....180us about

Thanks for the info!

He ddidn't show the receiver part.. but it's ok, i think i know

flight videos pls ..

Nice ... im guessing you got a lot of flying hours with those quads. I just can't wait till the parts arrive and assemble them myself. Soldering skills a bit rusted.

Do you use a PDB circuit board for your ESC's and FPV?

What i am planning to do for Power distribution is to use a piece of copper, split it to +/-. That's where all the power goes

Is the wiring diagram setup ok? I've not add the FPV yet as i'm still figuring out the connections..any comments would be much appreciated.

Thanks

For the fc naze32 it will be powered up by the ESC BEC (linear) 5v. Picture below is the ESC BEC linear that i had bought from HobbyKing.

The D4R-II receiver will be getting the 5v supply from fc naze32 when i will solder the PPM together.

ok, thanks for the heads up...will test the ESC's before real flight. throttle test to 100%?
