"PRETTY HARDCORE", the main theme for my first work log build. At first i planned to build my first ever liquid cooling system using my old Silverstone raven rv01, so yeah, since i got extra "moola" i bought a new case, quite a major upgrade as all of the components/hardware are new. I took about 1month to think about the design/layout and buy all of the stuff to fit perfectly in the TJ-11 case. so here is the spec.


MAJOR COMPONENT
CPU:
Intel Core i5 3570K

MOTHERBOARD:
AsRock Z77 Extreme 4

RAM:
Corsair Vengeance 1600MHz 8GB dual kit

GRAPHICS CARD:
EVGA GTX 580

POWER SUPPLY:
Corsair AX750

HARD DISK:
1TB WD green, 200GB WD

FANS:
4 units of Arctic Cooling F14 PWM


LIQUID COOLING SETUP
CPU BLOCK:
XSPC Raystorm (intel)

GPU BLOCK:
Koolance VID-NX580 Water Block

RADIATOR:
Black Ice SR-1 560, EK Coolstream XT 120

PUMP:
Alphacool VP655 with custom top

RESERVOIR:
Swiftech MCRES Micro Revision 2

TUBING:
Black Tubing

FITINGS:
10 XSPC compression fittings (Chrome), 6 XSPC compression fittings (Black), and 2 units of 45 degree rotary, 3 units of 90 degree rotary, 5 units of extender


COLORS AND MANAGEMENT
BASE COLOR:
BLACK

SECONDARY COLOR:
WHITE

EXTENSION CABLES:(FROM BITFENIX)
24 pin motherboard
8 pin motherboard
8 pin PCIE
6 pin PCIE


AS FOR NOW I ONLY HAVE TO WAIT FOR PUMP, AND SEVERAL MORE ROTARY ADAPTER. THEN I WILL BEGIN THE CONSTRUCTION OF MY EVIL RIG.
NOTE: I WILL POST PICTURE AS SOON AS I GET MY CAMERA BACK THANK YOU!

This post has been edited by steven93: Aug 27 2012, 01:51 PM

looking forward for ur build..awesome case u have there...one of my dream case

thanks man! hmm i still dont have a camera.. haha oh and plus i will not have any picture showing the process of my build. ill be showing my finished rig when it is complete.. now just waiting for cyntrix to get my pump and some 45 degree rotary fitting and it is done!! hehe..

and one more.. should i mix distilled water with anything? boicide?? or anti corrosion stuff..

i dont think those stuff are needed..just use distilled water with silver coil is suffice..

Oh ok!! Now one more thing to get.. Yeah ive done some research about those kill coil. U know who selling?

i'm quite sure many is looking forward to see what u're doing haha..

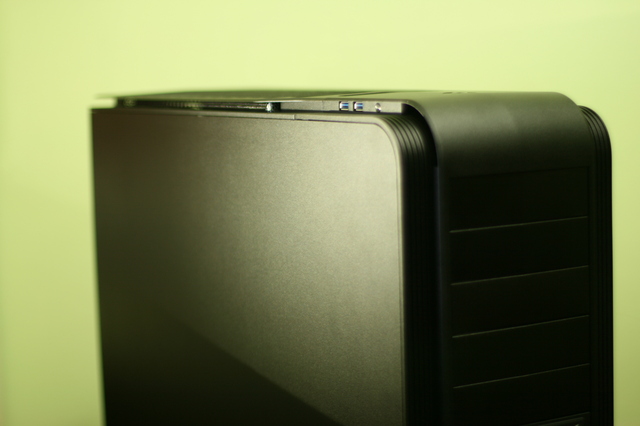

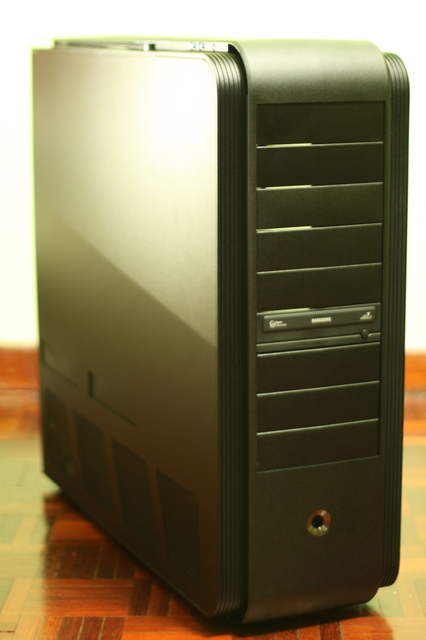

here... some exterior shots..

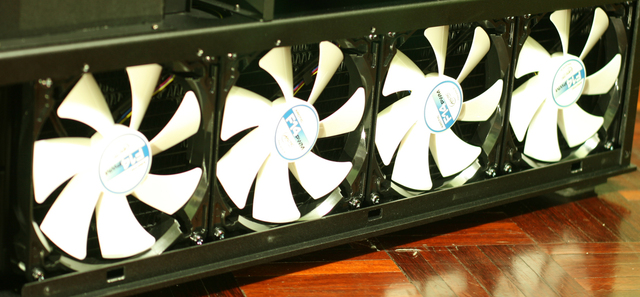

the radiator with arctic cooling fan.. tested the fan.. not noisy at all. lol

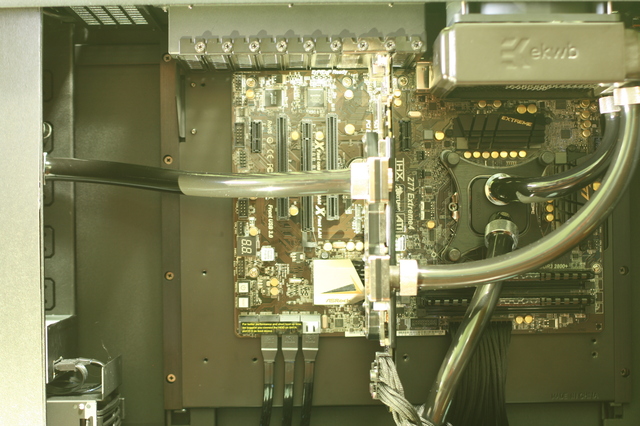

the "STUFF INSIDE"
The only thing that is missing is the tube going from the res to the pump.


THAT IS ALL FOR NOW.

taken from a cheap ass camera. -.-
will update when i get my pump and some rotary fittings.
AND ALSO SOME GOOD CAMERA!! hehehe...



85％FINISH！！

This post has been edited by steven93: Aug 15 2012, 01:13 AM

nice~
black tubes?
awaiting more keke

ya black tube... to be honest im not a pro photographer... lol camera is not my bread and butter...

Looking good. Is it already finished?

Finish already. My friend busy cannot take photo. He is doing some photoshooting and and some video competition.

bro where u get the F14 pwm?

what about your camera phone?

bro...upload the whole rig pic la... heheh

progress??

ya, where you get the F14 and price?

i found it already but almost rm50 include shipping to malaysia

wow at the price

eh i tot i just saw that fan on GS rm70 few week ago..
btw its srp
