hey guys.. its the first time i post in this topic. =) ive mod a cheapo cooler pad into a better one by adding some foams to control the airflow which goes thru the vented holes below my laptop.

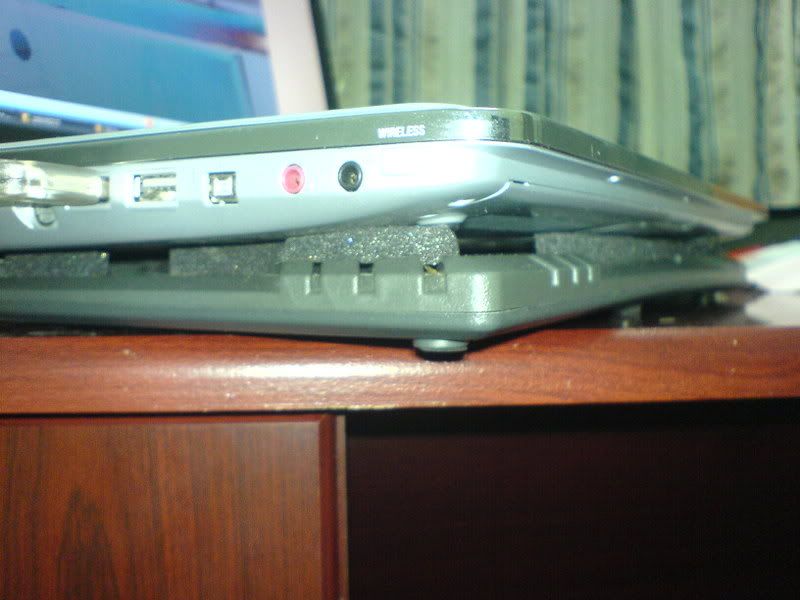

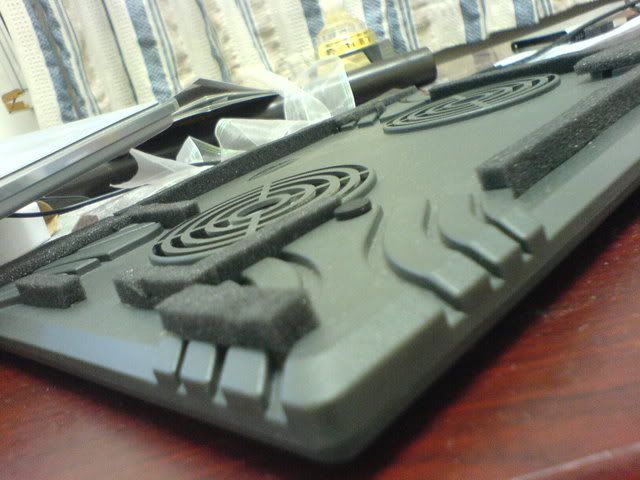

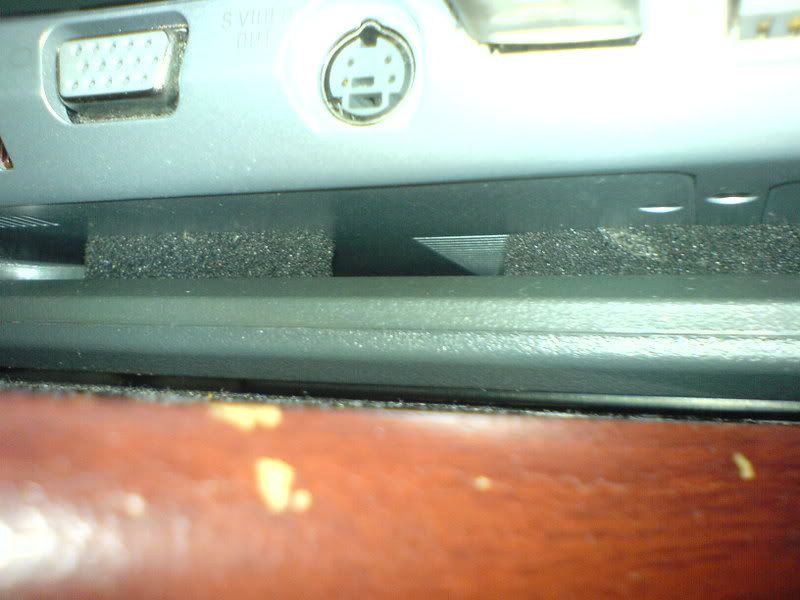

Heres some pics.

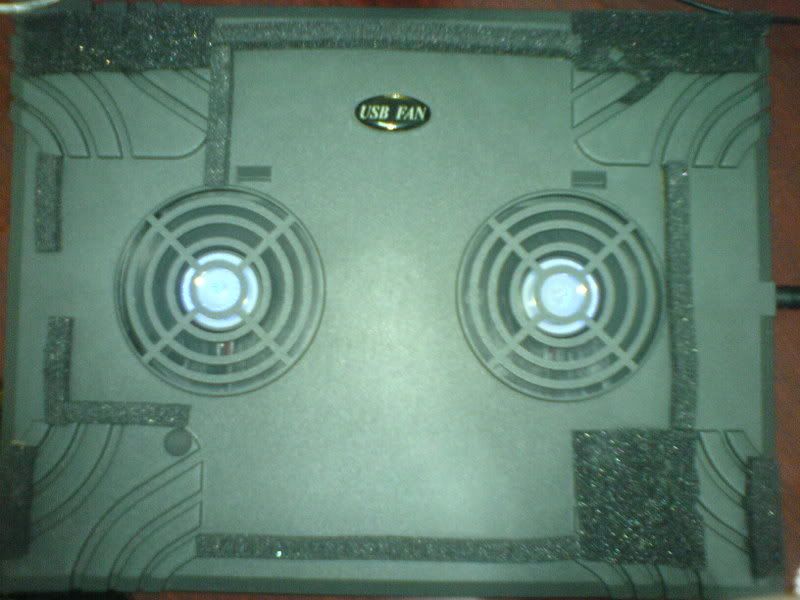

top view






yeah. its powered by usb so.. thou teh power isnt much. its cooling down much more compare to the stock ones. with a help of a 12v adapter, hell yea. =D (i didnt manage to take a pic).
hmm.. thats all. ^^

*edits, didnt really took down the changes in temp but currently its 47C in CPU and 31C in HDD running on 5v usb.
Materials used,
-Cheapo cooling pad(free when bought laptop)
-foam (found somewhere in my house)
-double sidded tape

Heres a ss with 12v powered cooler. xD


This post has been edited by qwert44: May 30 2008, 11:52 PM

Hi guys , with the help of this topic I've also made my own one. Just want to contribute something back by showing some instructions on making it i ^^V

Here's the Link - Instrutionshttp://tanjunsheng.blogspot.com/2008/08/diy-how-to-make-your-own-laptop-cooler.html

Hi all,i have an usb connector with the wire (my usb hub already dead),so i want to use the usb connector including the wire to power up a fans,there are 4 wire,red,green,white and black,how i want to power up the fans using this wire?? which one to use to power up the fans...i mean the combination of the color?? if got guide or tunjuk ajar,please help me ya..thanks

---

Added on August 25, 2008, 2:25 ami already got the solution,i read one by one..hehe,nice thread

This post has been edited by MildLO: Aug 25 2008, 02:25 AM

I have the materials / plastic already , I just need fans and adapters now and that's not the problem to me.
All I need now is , I'm not sure how to cut a hole in the center.
Anyone can help ?

I'm interested to make 1 for my lappy...Where can i buy acrylic in Jalan Pasar?

i use a 1/2 inch 3 ring binder. 2 RM

Hi sifus.

I have this fan (12V 1.40A):


which is of this size:


The connecter is:


which has four wires connected to it:


My question is can this fan be modded to become a DIY notebook cooler? If yes, please let me know how I can connect it to the power adapter... Thank you!

This post has been edited by DFlo: Dec 4 2008, 12:10 PM

Your ideas/guidance will be much appreciated.

hi,

i think it can be moded ,
but i dunno which wire for your four wire to be connected to the adapter,(maybe red,and black only needed)
i give example of mine,
for my fans,i got 2 wire,which is red and black,
i cut both wire from the molex connector,and also the 12v power adapter,
i just connected the red wire from fans to the black white stripe wire from the power adapter,
and the black wire from the fans connected to the black wire from the adapter,
and just on it,
all working fine,
make sure there is no contact between black and red wire which are already connected to the adapter wire,
it will coz the fans not function,
just seperate it

p/s :this is just axample from my fans,any modification is your own risk

waooo~ cool man

Hi MildLO! Thank you for the reply!

May I have a close up view of the modifications done? Thank you so much!

hi, i will upload soon,now feel sleepy,hehe,
tomolo i upload,but quality of picture not soo gud coz i use my phone camera
i try my best

Just for information, 'niah' has got meaning: It's a Hokkien word and it can be used to substitute Manglish 'only'.

For example, if you're gonna say "Not expensive-lah, five Ringgit only..."
it can be translated to "Not expensive-lah, five Ringgit niah..."

This post has been edited by DFlo: Dec 7 2008, 02:07 PM

hi DFlo,

Here are the pic:

My setup,using the files cardboard only :


this is the red wire from the fans connected to the black white stripe wire from the adapter,
i cut the connector originally from the power adapter and i use the wire to connected it to the red wire from the fans,
i just twisted it together to connect it,
i got 2 fans function while the other one i just disconnected it ,
u can see 2 red wire in the picture:

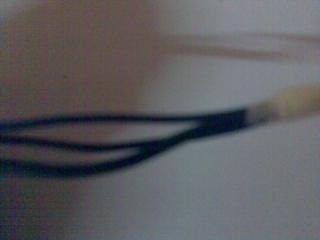

this is the black wire from the fans and the black wire from the power adapter,
just the same method,cut it,and twist it together to connect each other,
here are the blurry pic


hope it can help u,sorry for blur picture

This post has been edited by MildLO: Dec 7 2008, 09:38 PM

Hey there MildLO, thank you so much for the pictures!

I have tried to wire my fan to the adapter according to your method - red to black white, black to black - but the fan won't spin. Now I'm wondering whether the current is not enough - the adapter is giving out 500mA, whereas the fan needs 1.40A?

This post has been edited by DFlo: Dec 8 2008, 01:57 AM

Hi DFlo,
Sad to hear that its not working,
i use the 12 volt power adapter,
whut kind of adapter are u using?
i think your fans is performance one,sorry if im noob,
maybe need a higher volt i think

Same here, I'm using the 12V adapter but 500mA of current only... Hmm, maybe the fan is faulty

And please don't say sorry, you're not a noob!

This post has been edited by DFlo: Dec 9 2008, 01:02 AM

Offtopic:
hi,juz wana ask...
where can i get those acrylic case material?
coz i've been searched most of da place,not available......
anyone know where can i get that?

oic,have u try the fan before,working?
if working maybe my method for your fans is not right
i also use the 12v adapter 500mA of current

---

Added on December 9, 2008, 1:35 amHi,
u can try find it at any advertisement shop/advertising shop,
they sure get it,i have go there before,they sell it,
try ask for acyrlic or plastic material like windows,u can explain whut u want from them,
sure they can help u
best luck

This post has been edited by MildLO: Dec 9 2008, 01:36 AM

oic....but a place like LYP does they selling it?
