hi.im building my first mini casing rigs .

sorry for the poor picture.just using my phone

the casing


want to change the blue sleeve 1st just finish the window still need to smoothing the rough edge using sand paper



half way to finish with the sleeving.


change the cooling system



This post has been edited by belontokbelang: Jun 18 2012, 11:41 PM

nice casing to work with

I suspect u cut the sidepanel using the common grinder rite ? u should do it more slowly ..since when it touches the panel ..heat can be generated real fast thus ..the paint around that area spoiled .... U can use some CF or matt black sticker to cover up the spoiled area.

Good luck

Thats right bro im using the normal grinder to cut the side panel .. all my diamond cutting disk finish already ..too many friend ask me to cut side panel and casing.last time i bought the cutting disk from bro supernothing.plan to get more.for this side panel i plan just to use flat black spray

urm I dont think spraying it back would be good ..since the case are powdercoated or diferrent color code ...the color would be different ...or maybe u can try spray the inner part ..and see it would be good or not.

Unless u spray the whole casing with another color ohohohoh

thanks bro for your suggestion but actually i already spray the side panel yesterday. will see the result today.i will upload the picture later

This post has been edited by belontokbelang: Jun 15 2012, 05:55 PM

dah tukar mini pulak ke bro?? mana tj7 monster tu bro??

dah jual la bro .dah tak larat dengan casing besar2 bilik sempit ni bro lagi dah takde duit nak main casing besar tak mampu .

lawa pula mini casing..nice look

wahhhh..dasat projek ni....klu ada benda x pakai jgn lupa pm aku

mana ada dasat bro.biasa2 je.baru belajar .bro punya lagi dasattt

This post has been edited by belontokbelang: Jun 17 2012, 12:57 AM

update my work



ssd at the back of the case


tak tahan test dulu


then with the gpu waterblock(have to sell one of my gpu gtx580 + waterblock tu funding this project


have to removed this case hdd rack to mount another rad at the front.(i want to sell this hdd rack if somebody interested please pm me).



the 2nd rad at front


plan to add 1 more radiator 120mm infront of the psu but not enough budjet .

still got some customer side panel to cut.

some of the side panel window that already finish just waiting for the paint and acrylic.


all my modding tool and music instrument sumbat in my small room.some of lyn forumer already been to my room they know laa .actually im modding for fishing reel before not pc.just started to mod my own pc and some of my friends



ps:still short of angle and compression fittings.if someone have extra pls pm me



to be continued...

This post has been edited by belontokbelang: Jun 17 2012, 01:30 AM

nice , how u hadd later ??
fuyoh,where u got the scroll saw ?? how much ?

This post has been edited by lun1986: Jun 17 2012, 09:08 PM

hi bro.i bought the scroll saw at a machinery shop at jalan maharajalela kl 2 years ago rm620.but i think you can get it less than rm500 now.there were many type of scroll saw some got laser to make sure u got a straight cut. last time i got 2 scroll saw and 1 table saw but since not many people interested to modding they fishing reel anymore i just sold them.

how much is your HDD racks for sale ? PM me.

hi bro..already pmed


This post has been edited by belontokbelang: Jun 18 2012, 11:23 PM

more picture

---

Added on June 18, 2012, 11:50 pmhere is the side panel


This post has been edited by belontokbelang: Jun 18 2012, 11:50 PM

have mercy on da ssd... u r so cruel... nice simple mod... jelly to see all da mods... but... da 'lust of evolution' gone edy... i put da blame to da 'bad boy age factor'... hahaha

hehe.no mercy at all.hahaha.got 2 of them 1 is hide under the hdd drive.hahaha..i never feel like quit all my hobby even now already turn 34

It better to be 34 with some money available to use
I'm 21 and working my ass to get my rig set up .... unless u got makpak can support u hahhaa


Nice Side panel where and how much did u buy those rubber channel ?
and u really kejam with the HDD hahaha, U can try buy a 5" bay adapter for HDD and put it there seems like 1 slot are still free

actually the hdd is for my other rigs.im just finish copying all my file to my ssd.for this rig i use 3 ssd because it is to small to store all the hdd. 1 at the back of the case and other 2 just sumbat into the empty slot .
u can buy the rubber channel from the aluminium and glass shop for around 50 sen per feet

3ssd...manyak kaya ini orang

mana ada kaya bos.1 ssd je baru lagi 2 2nd hand je ..

Bro, mane dapat casing ni?
Rare ni. Kat Malaysia cume ade arc midi jer.
Ingat nak angkat gak satu.

beli kat forumer lyn. dia beli tak pakai. tengok kat resit dia beli kat singapore

i find kyros is the most nice cpu block for amd because of the mounting. its look like beetle

..that right boss.its just look like beetle ..baru perasan

hey bro still no update?

bro where did you get the case and how much was it if you dont mind me asking. thanks

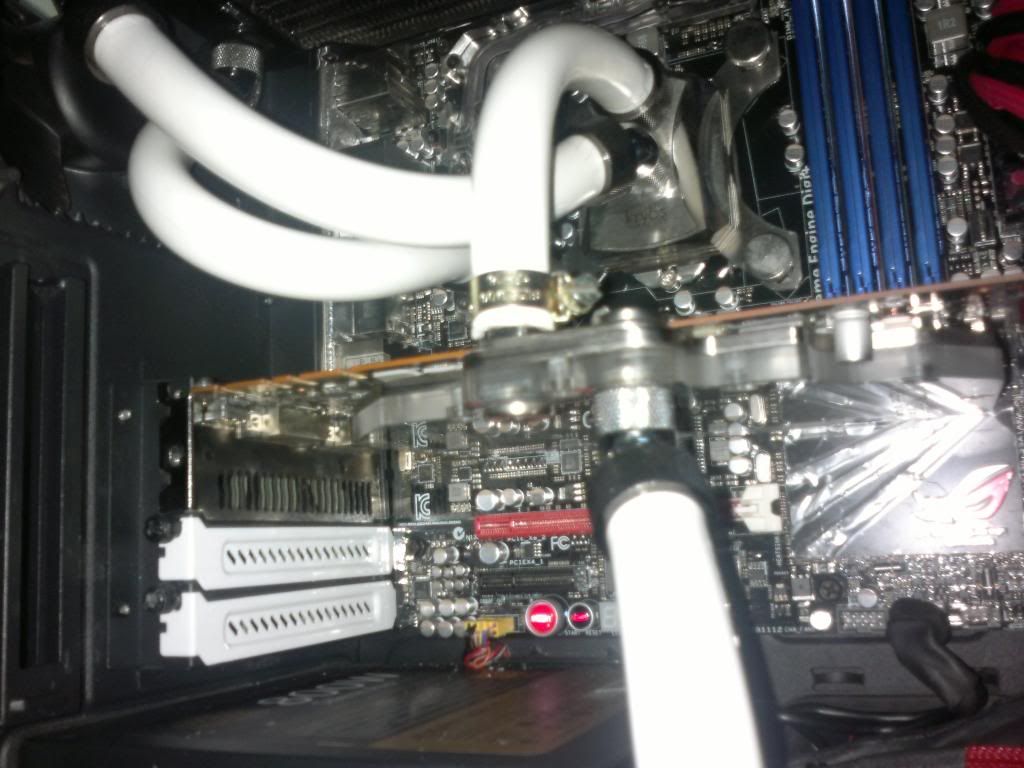

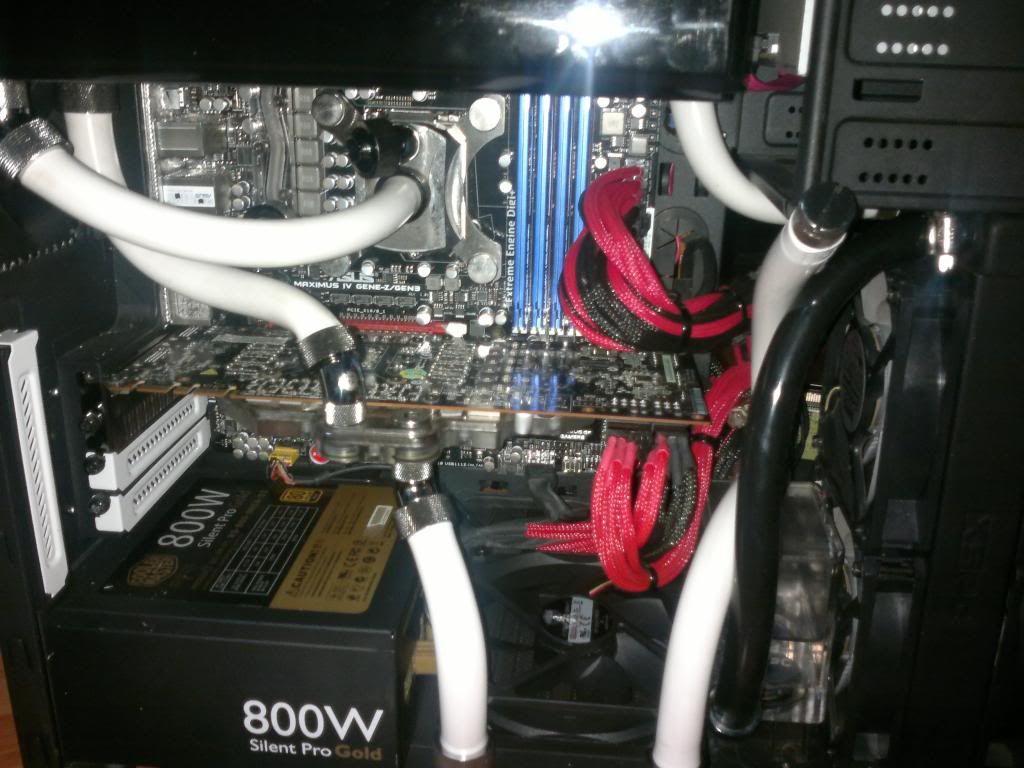

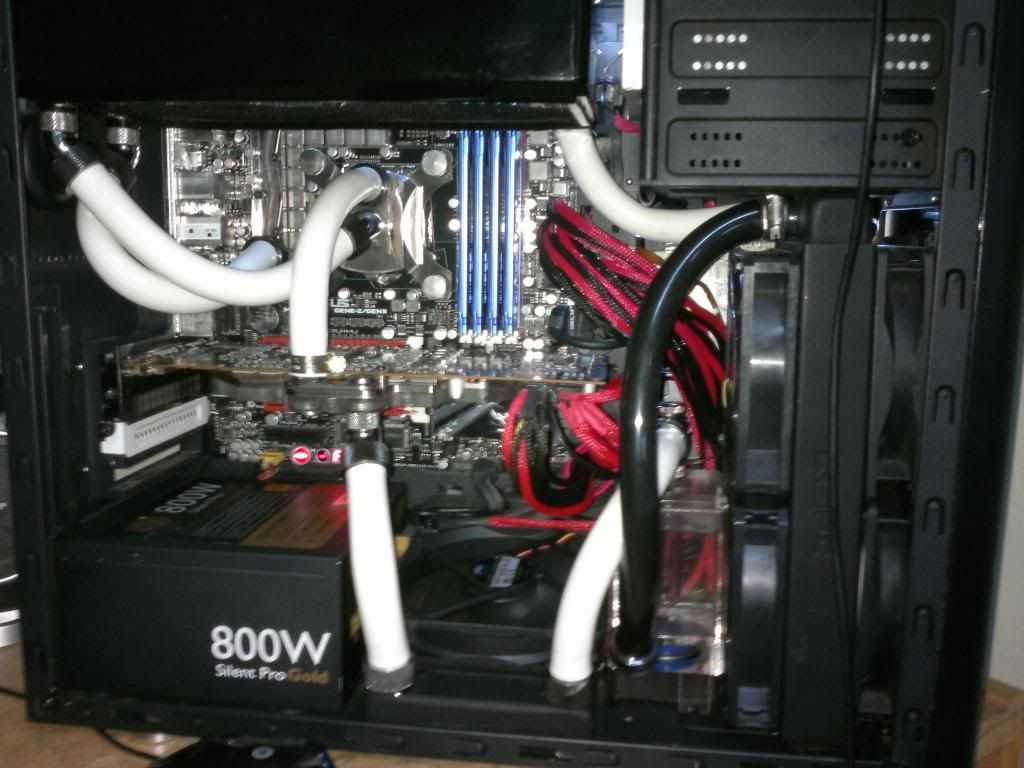

few update.project pending for long time already because it hard to get wc stuff now.here some progress picture

latest update..enjoy the picture

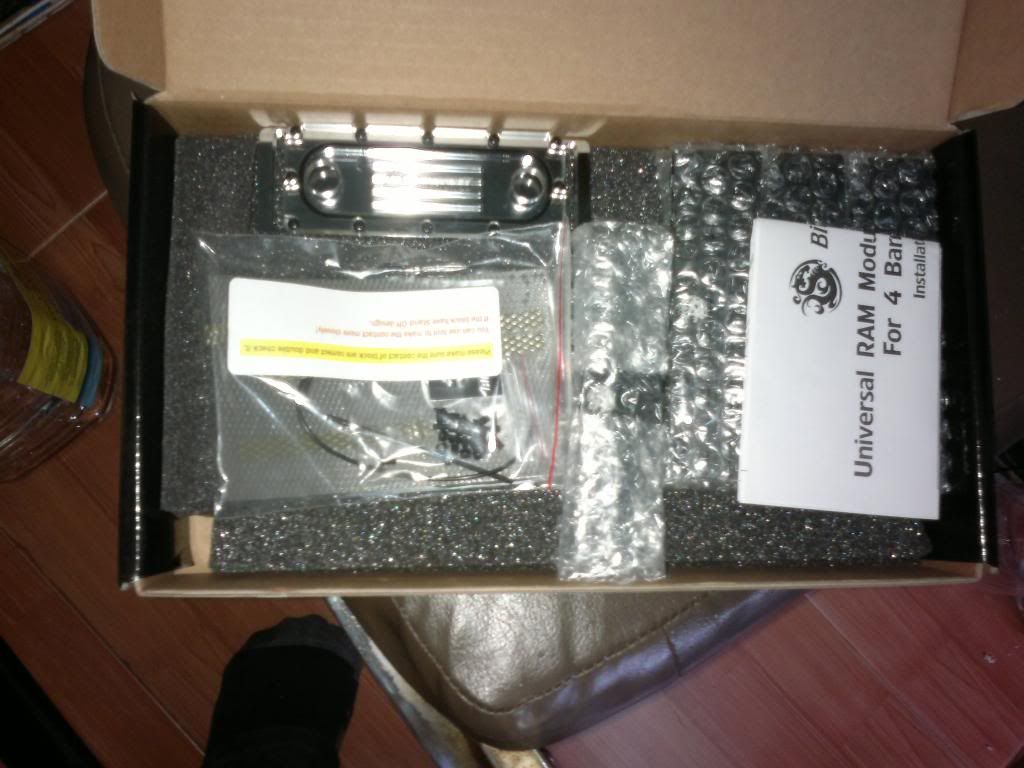

i get the bitspower universal ram block from apes

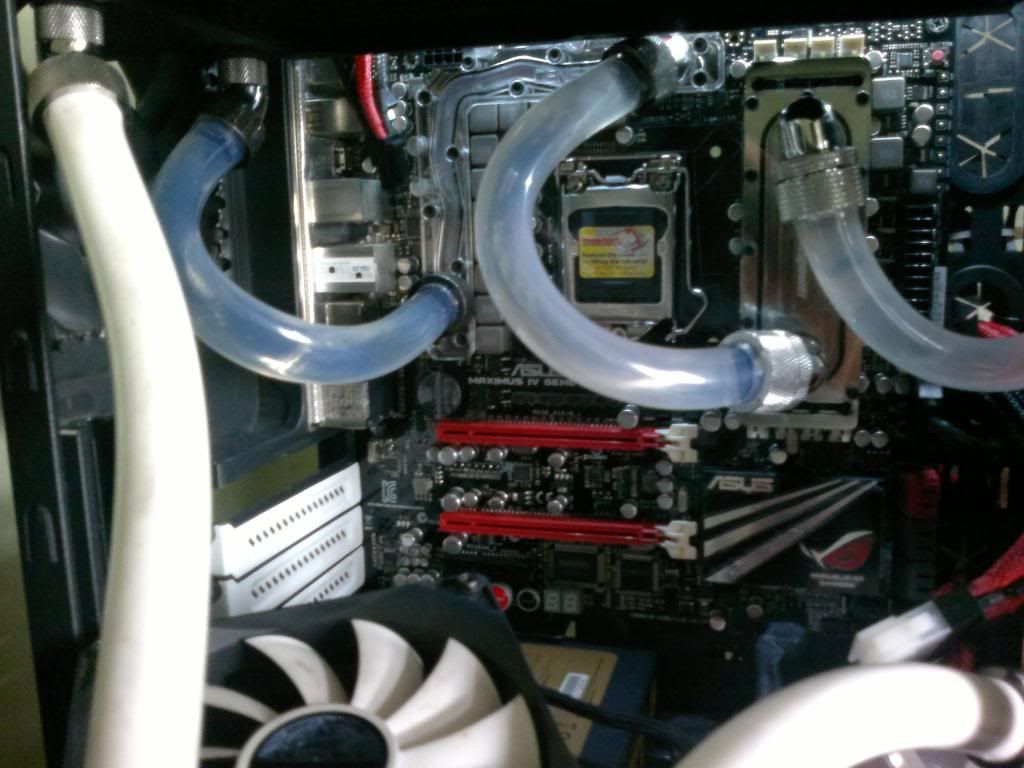

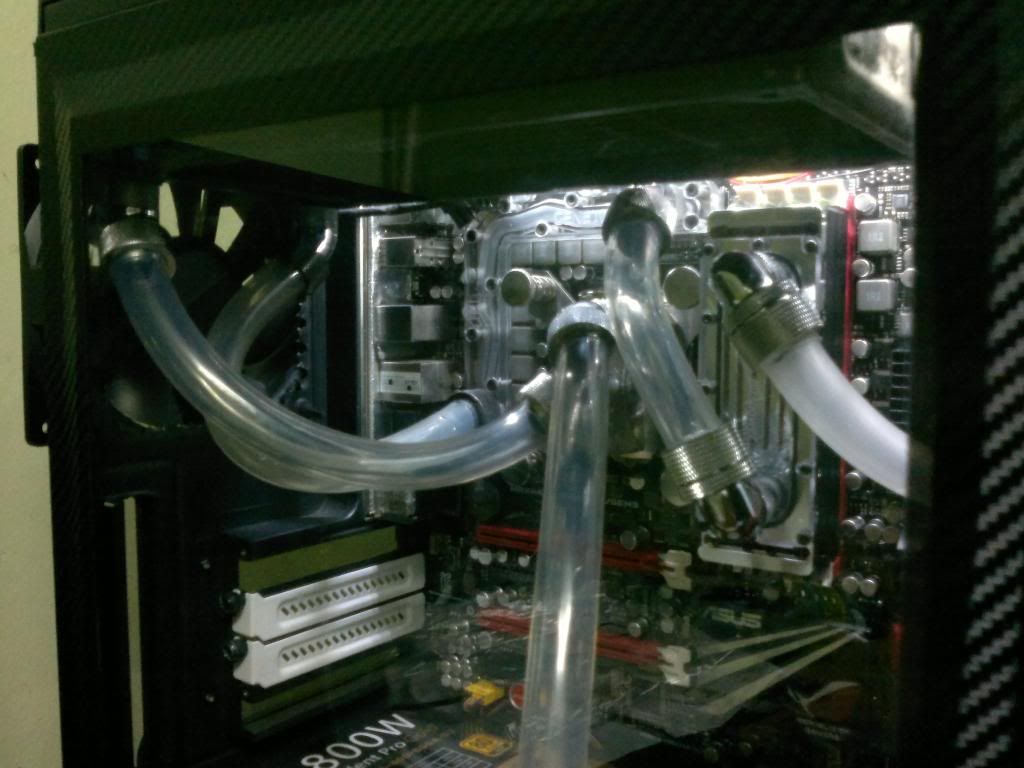

also change the white tubing to clear

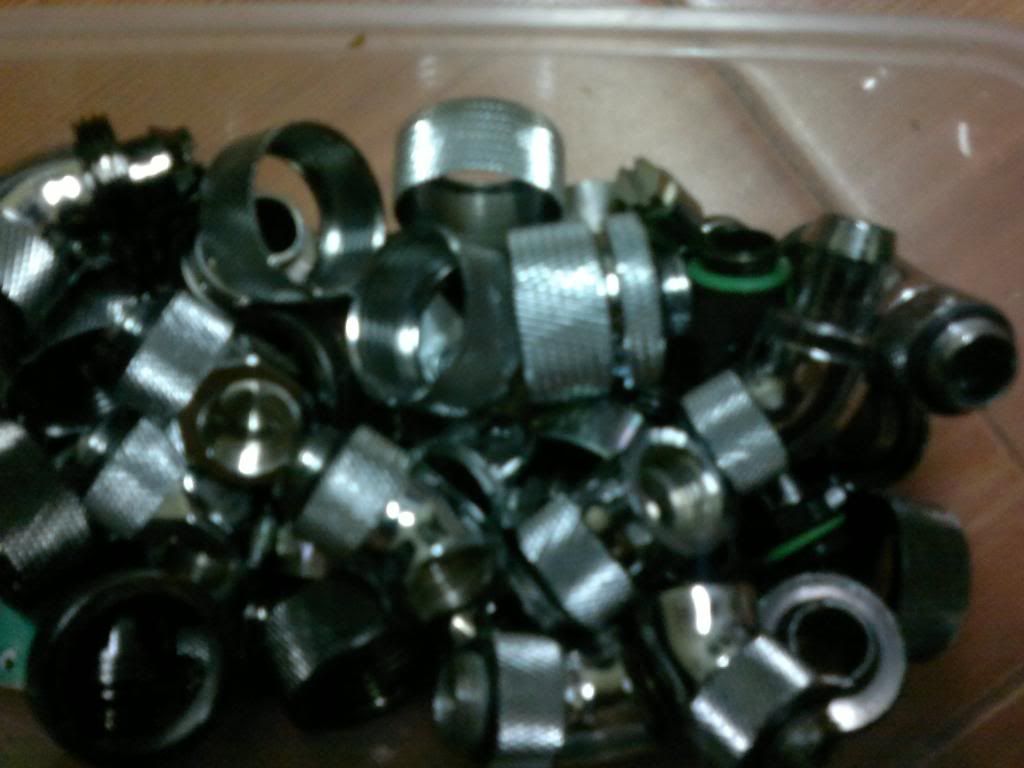

adding more fittings to get a short loops look

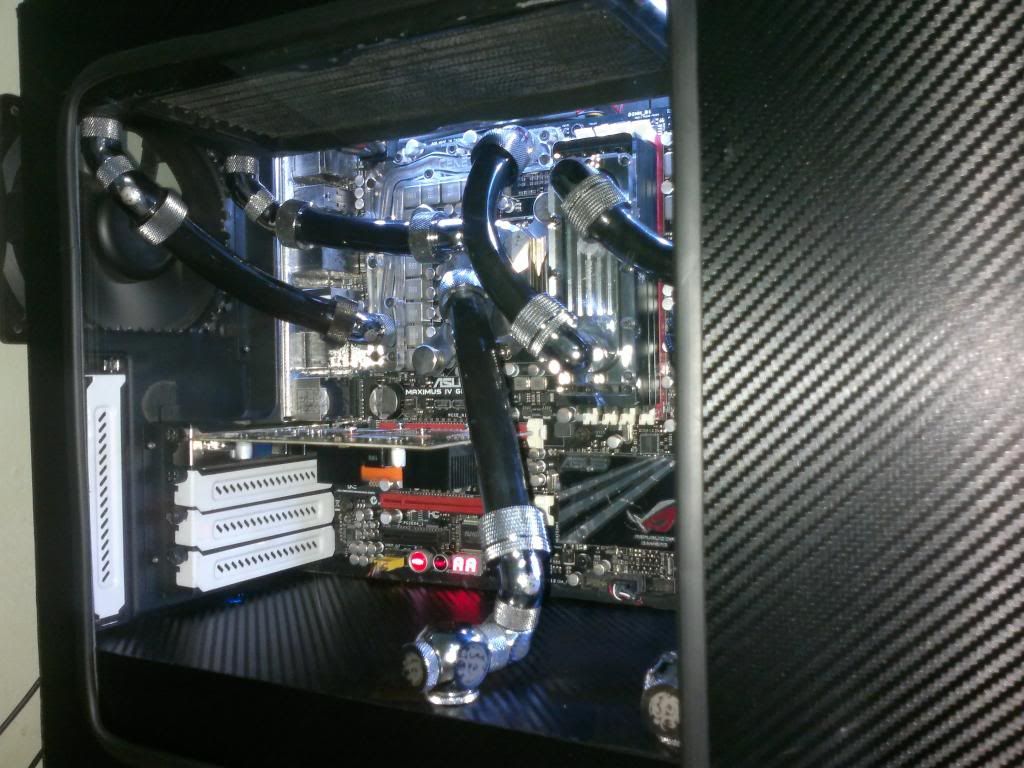

change the tubing again to black colour tubing because i cant get the blood red coolant that i plan to use before.the black tubing is from my old rig. Also i mod a panel to cover the psu. i cannot use my 2x gtx580 gpu bacause i cant get the thermal pad .if some one have extra thermal pad please pm me




This post has been edited by belontokbelang: Mar 23 2013, 10:15 PM

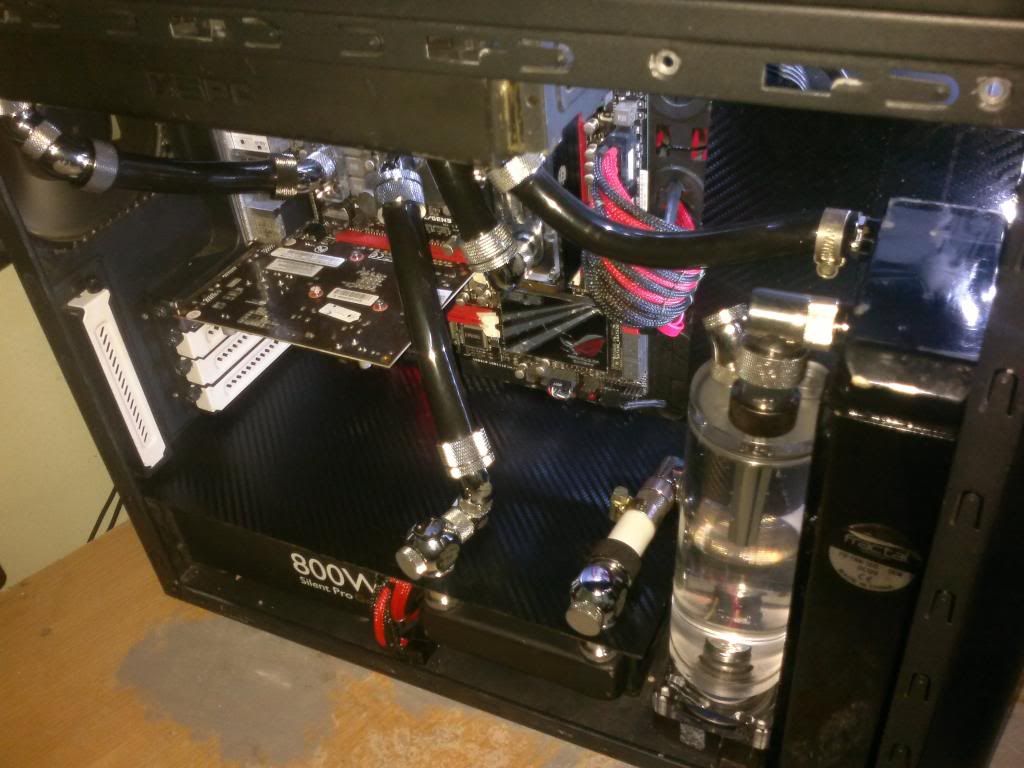

change the reservoir to bitspower z-multi 150 full clear acrylic

Bro, you don't really "need" the thermal pads. You can just use TIM.

Otherwise, can in touch with APES, they have Phobya thermal pads. If they don't have stock, get hold of niclasteoh. He's got 3M ones.

thanks bro for the info. i already went to apes but they already out of stock. i will try to get from niclasteoh.
