> V12 MRV-F705 4 Channel Power Amplifier 3600Watts (ICE)

post May 13 2012, 06:11 PM

New Member
Group: New Member
Posts: 0

Joined: Jul 2010
From: Johor


V12 MRV-F705 4 Channel Power Amplifier 3600Watts

Package includes:
Mounting Screws, Original Box, User's Manual

Technical Specifications:

1. Average Power Output/CH into 4 Ohms, 4 Channels Driven @10Hz~40kHz, 0.5% THD 85W X 4 or 170W X 2Ch @1kHz, 10% THD 250W X 4Ch or 500W X 2Ch (Total Harmonic Distortion (THD) Amount of change in harmonic content of the signal as it is amplified. A lower figure indicates less change and a more accurate amp. THD below 1% is inaudible.)
2. Low Pass Filter (VARIABLE) 40Hz ~ 150kHz
3. High Pass Filter (VARIABLE) 80Hz ~ 1.2kHz
4. Output of Bridged (BTL) Operation into 4 Ohms @ 1kHz, 1% THD 1000Watts
5. Frequency Response (-1dB) 10Hz ~ 40kHz
6. Signal to Noise Ratio ("A" WTD) >100dB
7. Input Sensitivity 100mV ~3V
8. Input Impedance 22k Ohms
9. Operation Voltage (Negative Ground) DC 12V
10. Speaker Impedance @ Stereo Driven 4 Ohms
11. Fuse Rating 40A X 1
12. Dimension (WxHxD)mm 260X58X320 Weight 3.2KG
13. Bridgeable & TRI-Mode Operation.
14. Continously Variable 12dB/Octave High Pass & 12dB/Octave Low Pass Crossover.
15. Subwoofer Variable Crossover for Deep Bass Control.
16. Enhanced Bass Boost 0dB/ +6dB/ +12dB @ 50Hz.
17. Gold/Silver Plated RCA & Power, Speaker Terminal.
18. Soft Start & Muting.
19. Overload, Thermal, Short Circuit Protection.
20. Power & Protection Indicator.



Dealing method:

Pos Laju

Location of seller:


Contact method/details:

016-4155546 / SMS / PM

Age of item:

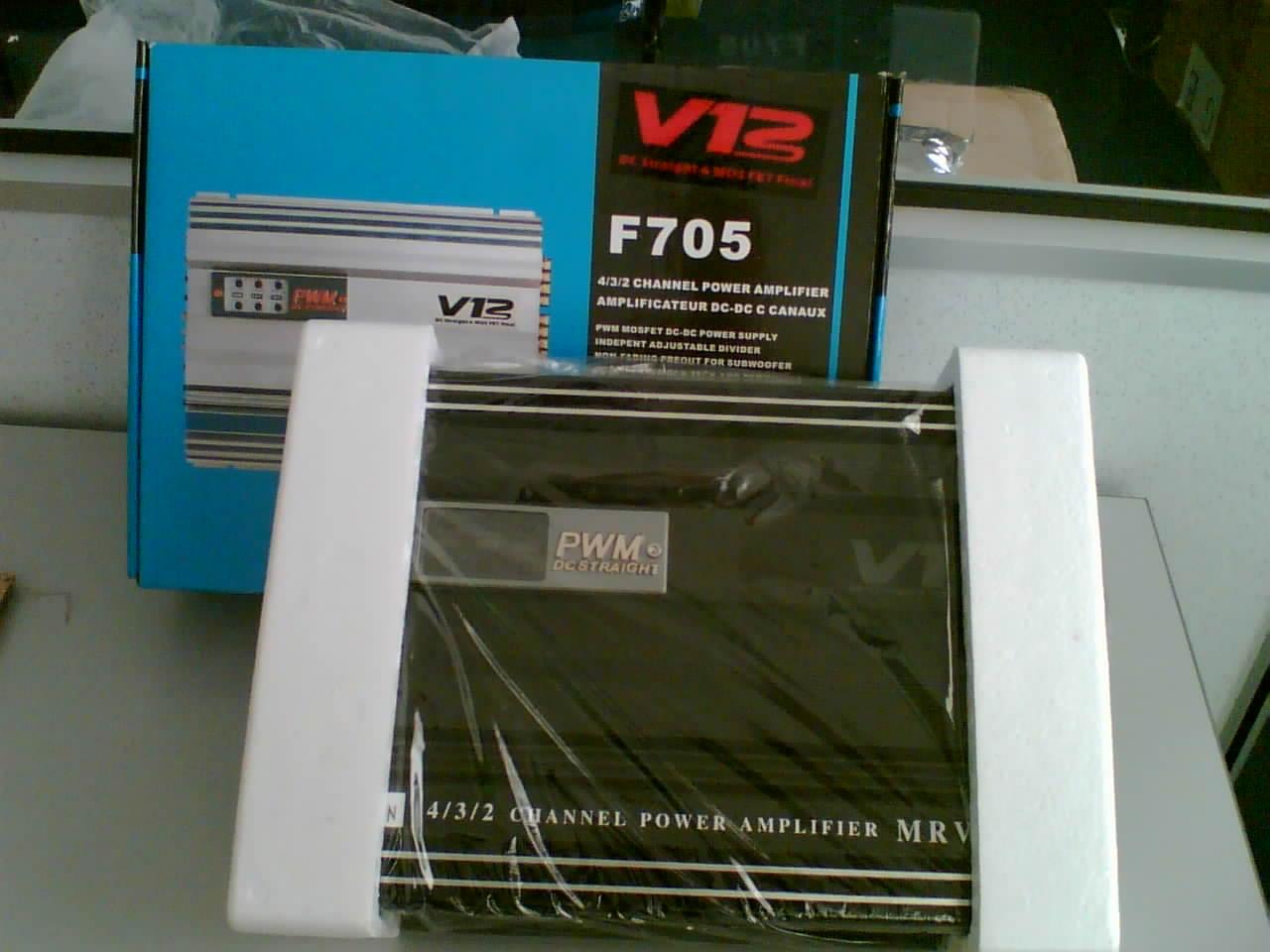

user posted image
user posted image
user posted image
