guys... any1 using the 7 port usb hub wif ac adaptor to power up your Pi? got this pic from lelong website... looks promising hehe

yeap,using it as a nas currently..planing to utilize the gpio pins soon

nope,not using ext hdd,don't have enough funding for one *poor* using the sd card as the hd,currently holding all my music collection..BT?bluetooth or bittorrent?

learn more here about GPIO

http://www.cl.cam.ac.uk/freshers/raspberry...ature/#step-one

Sensor model : Photoelectric sensor 10-30V NPN

The code in C++ must have multiple threads so that it could detect simultaneously for high speed movements.

Yeah, totally wireless, But do note that wireless adapter could disconnect every now and then, for a total headless operation,

Create a script to detect whether wireless is connected and run that script in a screen multiplexing software like, "GNU Screen" or use crontab, scheduling software.

Yup, port forwarding will allow external access.

hmm question..tried this raspberry and seems awesome but it could not detect my 2.5 WD pasport hdd...is it because of not enough power? it is 500gb size....

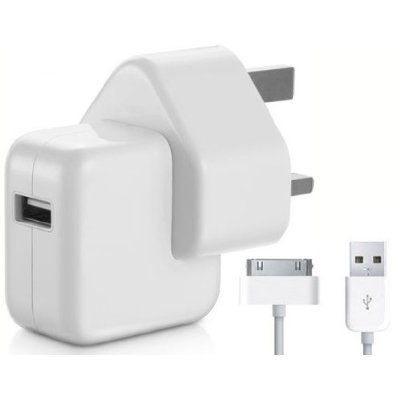

hmm u means the ipad charger is the plug head right? that will allow usb to connect to it? if yes i will try it later since i have that

For the wireless adapter part, m not that sure on whats the issue, but i guess my issue was the distance
or the adapter power down when no activity. Because when the browser access the web server,
the wireless adapter tend to work non stop.. But when no devices access the internal webserver,
the wireless adapter tend to disconnect from the router. So i had to restart the whole pi.
The distance between the router and rpi box is approximately 6 meters.

So create a script which will check the wireless connection every 1 or 5 minutes and
script run ifconfig wlan0 down and ifconfig wlan0 up if in case connection breaks.
As the whole operation is headless, GNU screen is very useful. The program/script will
still run eventhough our terminal session ends.
Level shifter with circuit diagram planning - 3 days
C/C++ program - 7 days
PHP web output - 4 days

Took me approximately 2 weeks.

u mean due to the wifi channels ?

if i am not mistaken usually due to channel overlapping,

channel 1,6,11 are the best as most router comes with either channel 6 or auto channel. But the weird part is my router is the only one in the office.

Or could it be the adapter self sleep when there is no activity ?

No la, i just came across the channel overlapping part when we r trying to bond
& link aggregate multiple network interfaces in linux. When wireless networks
under same channel, link aggregation works but bandwidth doesn't multiply.

Then only i found out about it in wikipedia : (channel 1,6,11)
http://en.wikipedia.org/wiki/List_of_WLAN_channels

Not final year, its a small R&D for a factory (counting purpose), wireless & portable.

Wifi do disconnect, but there will be a script running every 1 minute, so
wifi will reconnect automatically.

I cant submit this as my fyp either because m pursuing chemical engineering.

I just made a laser-cut clear acrylic case for my pi

if anyone want a laser-cut acrylic case, please let me know

If you guys read this thread here
http://www.raspberrypi.org/phpBB3/viewtopi...=22158&start=75

you can see how people are dissapointed with RPi Foundation's stance on Android - which, to summarise... will not be officially supported anytime soon.

simply put, they don't care about android on RPi. and they certainly won't care if broadcomm - the makers of RPi's graphics chip - officially supports android development nor release the code for RPi.
while it is understandable that the Foundation's view of Raspberry Pi is for education, they just don't want to care if we use it for anything OTHER than for educational purpose, in the strictest sense of word.

aisehhhhh

sort of right with the polyfuse but then again, maybe some usb hubs protect the current surge but this rm 15 hub i have does not. i first experienced it when plugging to the hub. i tot my hub faulty. then plug to usb port directly. same same.  . decided to contact element14 for RMA. hopefully they comply.

i am not sure about the others, but vztech 7 port one worked just nice for me.

i have a ATEN 4 port hub that I can power using 5v 1A. that one is ok.

my other VZTECH 4 port hub that also can be powered is not ok.

power rating?
