New DCMoto 925W Swing/Folding Type AutoGate
**Suitable for Both Swing & Folding Gate System

-----------------------------------------Price RM 1,500 only + installation without any autogate wiring install.

DC Moto all new products are going green!

Hybrid Power; Reduces 95% CO2 emission.
A normal automatic gate consumes about 5 to 10W of electricity during standby 24/7.
The hybrid design consumes only 0.2W during standby.

Main power is only switched on for running the motor or charging the battery.
Backup battery for standby uses only 0.2 Watt.
The system will switch to normal power mode and thus function normally in case the backup battery fails.

------------------------------------------

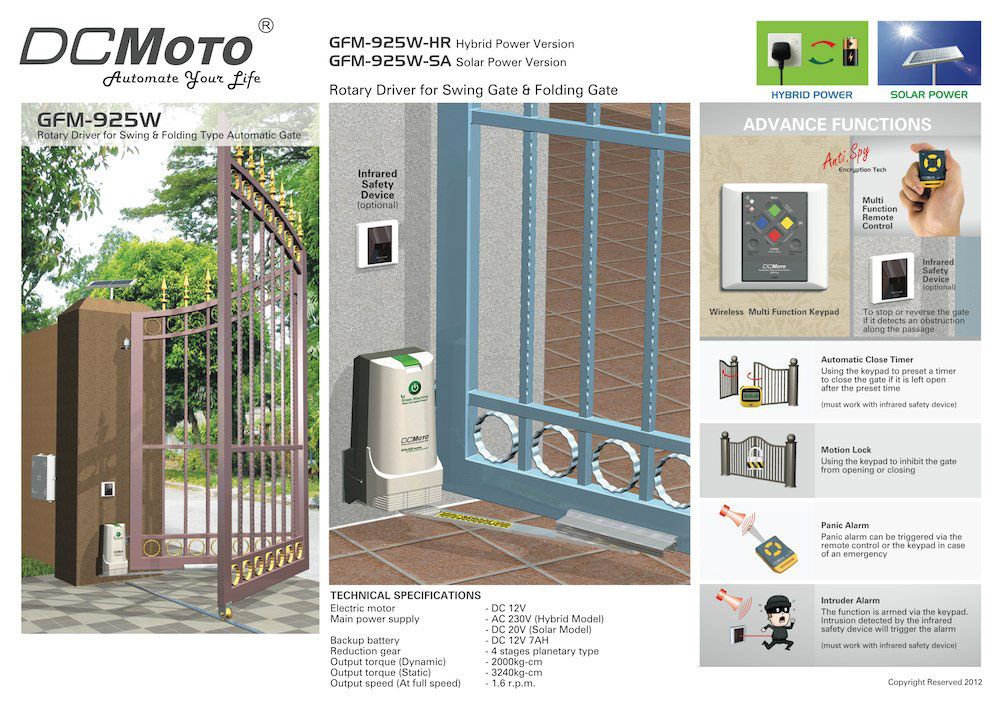

GFM-925W-HR (Hybrid Power Version)

Specification:
- Electric motor – DC 12V
- Main power suppler – AC 230V (Hybrid Model)
- Backup battery – DV 12V 7AH
- Reduction gear with 4 stages planetary type
- Gear ration at 1:2310
- Output torque (Dynamic) – 2,000kg-cm
- Output torque (Static) – 3,240kg-cm
- Output speed (at full speed) – 1.6 r.p.m.

Package Content:
DCMOTO 925W Swing Type DC Motor x2
DC Controller Board with PVC Box
Transformer & Backup Battery
Wireless Multifunctional Keypad x 1
Driving Bar, Bracket & Boils
Antispy Remote Control x 3
Standard Installation (without Wiring)

Function:
1)Open Left / Right / Both Gate
2)ON / OFF Pillar Light with Multifunctional Keypad (depend on exiting wiring)
3)Panic Siren (Alarm) function
4)Auto recharge backup Battery
5)Auto reverse function (Open) the door when detect object (Must install Photo Beam Sensor)

Optional Item:
Safety infrared Sensor - RM250



[

contact: mr zhang
016-9493338
philip skylight works.

This post has been edited by morrisdeco1018: Aug 6 2013, 12:41 AM

interested. kindly quote.

how is the warranty like?

1 yrs manufacture warranty and service.

i am using this DCmoto just installed recently... the open and closing speed is freaking fast and considered quiet to me... After the gate is closed, you can't force pull to open the gate , maybe inside the motor have build-in locking system or the gear is hard to spin if from the secondary force, so no more like the older model can easily grab to open the gate by intruder ...

overall casing design is not bad, but found that the casing material a bit fragile....worry cannot last more than 5 years since the material thickness is too thin.....

remote control is impressing me... 4 buttons and easy control. In house 3'x3' wall type switches included in wirelessly...

Guys, is good to try this product... i am not bought from this seller but i just wanna share my experiences...

Hi,

Can give a quote including installation, wiring, etc?

I have a folding gate and located in Segambut.

Thanks!

Dude do you sell extra remote?
