TimelineX 3820TG & 4820TG series notebooks have several specifications. Latest batch of TimelineX 3820TG & 4820TG have latest processor, for example Intel Core i5-460M. The specifications below doesn't mean all of the features will be available. For example, not all notebooks in the series have WWAN card. TimelineX is the best ultraportable computer in it class. In fact, TimelineX excel in both performance & battery life. For me, TimelineX notebook is pure pornography.

Acer Aspire 3820TG Notebook Specifications

• Operating System
  • Genuine Windows® 7 Home Premium 64-bit
  • Genuine Windows® 7 Home Basic 64-bit
• CPU and chipset
  • Intel® Core i7-620M processor (4 MB L3 cache, 2.66 GHz with Turbo Boost up to 3.33 GHz, DDR3 1066 MHz, 35 W), supporting Intel® 64 architecture, Intel® Smart Cache
  • Intel® Core i5-430M/i5-520M/i5-540M processor (3 MB L3 cache, 2.26/2.40/2.53 GHz with Turbo Boost up to 2.53/2.93/3.06 GHz, DDR3 1066 MHz, 35 W), supporting Intel® 64 architecture, Intel® Smart Cache
  • Intel® Core i3-330M/i3-350M processor (3 MB L3 cache, 2.13/2.26 GHz, DDR3 1066 MHz, 35 W), supporting Intel® 64 architecture, Intel® Smart Cache
  • Mobile Intel® HM55 Express Chipset
• System memory
  • Dual-channel DDR3 SDRAM support:
    • Up to 4 GB of DDR3 system memory, upgradable to 8 GB using two soDIMM modules (for 64-bit OS)
• Display
  • 13.3" HD 1366 x 768 pixel resolution, high-brightness (200-nit) Acer CineCrystal™ LED-backlit TFT LCD, supporting simultaneous multi-window viewing via Acer GridVista™
    Mercury free, environment friendly
    Super-slim design
    16:9 aspect ratio
• Graphics
  • ATI Mobility Radeon™ HD 5650 with Switchable™ Graphics technology, up to 49015 MB of HyperMemory™ (1024 MB of dedicated DDR3 VRAM, up to 30676 MB of shared system memory), supporting Unified Video Decoder (UVD), OpenEXR High Dynamic-Range (HDR) technology, Shader Model 5.0, Microsoft® DirectX® 11, OpenGL® 3.1, OpenCL™ 1.1
  • ATI Mobility Radeon™ HD 5470 with Switchable™ Graphics technology, up to 35795 MB of HyperMemory™ (512 MB of dedicated DDR3 VRAM, up to 3067C6 MB of shared system memory), supporting Unified Video Decoder (UVD), OpenEXR High Dynamic-Range (HDR) technology, Shader Model 5.0, Microsoft® DirectX® 11, OpenGL® 3.1, OpenCL™ 1.1
    Dual independent display support
    16.7 million colors

    External resolution / refresh rates:
    • VGA port up to 2048 x 1536: 85 Hz
    • HDMI™ port up to 1920 x 1080: 60 Hz
    MPEG-2/DVD decoding
    VC-1 and H.264 (AVC) decoding
    Microsoft® DirectX® Video Acceleration (DXVA) application interface (API)
    HDMI™ (High-Definition Multimedia Interface) with HDCP (High-bandwidth Digital Content Protection) support
• Audio
  • Dolby® Home Theater® v3 audio enhancement, featuring Dolby® Digital Live, Dolby® Pro Logic® IIx, Dolby® Headphone, Dolby® Natural Bass, Dolby® Sound Space Expander, Dolby® Inverse Filtering, Dolby® High Frequency Enhancer technologies
    High-definition audio support
    MS-Sound compatible
    Built-in microphone
• Storage
  • Hard disk drive:
    • 160/250/320/500/640 GB or larger
  • Multi-in-1 card reader, supporting:
    • Secure Digital™ (SD)Card, MultiMediaCard (MMC), Memory Stick™ (MS), Memory Stick PRO™ (MS PRO), xD-Picture Card™ (xD)
• Webcam
  • Acer Video Conference, featuring:
    • Acer Crystal Eye webcam with 1280 x 1024 resolution
• Wireless and networking
  • WLAN:
    • Intel® Centrino® Ultimate-N 6300 a/g/n Wi-Fi CERTIFIED™ with Acer Nplify™, featuring MIMO technology
    • Acer InviLink™ Nplify™ 802.11b/g/n Wi-Fi CERTIFIED™
    • Acer InviLink™ 802.11b/g Wi-Fi CERTIFIED™
    • Supporting Acer SignalUp™ wireless technology
    WPAN: Bluetooth® 2.1+EDR
    WPAN: Bluetooth® 3.0+HS
    WWAN: UMTS/HSPA at 850/900/1900/2100 MHz and quad-band GSM/GPRS/EDGE at 850/900/1800/1900 MHz, upgradable to 7.2 Mb/s HSDPA and 5.7 Mb/s HSUPA
    LAN: Gigabit Ethernet, Wake-on-LAN ready
• Privacy control
  • BIOS user, supervisor, HDD passwords
    Kensington lock slot
• Dimensions and weight
  • 12.7 (W) x 9.25 (D) x 0.86/1.14 (H) inches (324 x 235 x 22/28.9 mm) with 6-cell battery pack 3.97 lbs. (1.80 kg) with 6-cell battery pack
  • 12.7 (W) x 9.25 (D) x 0.86/1.88 (H) inches (324 x 235 x 22/47.8 mm) with 9-cell battery pack 4.34 lbs. (1.97 kg) with 9-cell battery pack
• Power adapter and battery
  • ACPI 3.0 CPU power management standard: supports Standby and Hibernation power-saving modes
  • Power adapter
    3-pin 90 W AC adapter:
    • 5.23 (W) x 2.32 (D) x 1.22 (H) inches (133 x 59 x 31 mm)
    • 0.86 lbs. (390 g)13 with 180 cm DC cable
  • Battery
    • 66.6 W 6000 mAh 6-cell Li-ion standard battery pack
    • 99 W 9000 mAh 9-cell Li-ion standard battery pack
  • Battery life: 8 hours14, 15, with 6 cell battery pack; 12 hours14, 15, with 9 cell battery pack
    ENERGY STAR®

Acer Aspire 4820TG Notebook Specifications

• Operating System
  • Genuine Windows® 7 Home Premium 64-bit2 Genuine Windows® 7 Home Basic 64-bit
• CPU and chipset
  • Intel® Core™ i7-620M processor (4 MB L3 cache, 2.66 GHz with Turbo Boost up to 3.33 GHz, DDR3 1066 MHz, 35 W), supporting Intel® 64 architecture, Intel® Smart Cache
  • Intel® Core i5-430M/i5-450M/i5-520M/i5-540M processor (3 MB L3 cache, 2.26/2.40/2.40/2.53 GHz with Turbo Boost up to 2.53/2.66/2.93/3.06 GHz, DDR3 1066 MHz, 35 W), supporting Intel® 64 architecture, Intel® Smart Cache
  • Intel® Core i3-330M/i3-350M/i3-370M processor (3 MB L3 cache, 2.13/2.26/2.40 GHz, DDR3 1066 MHz, 35 W), supporting Intel® 64 architecture, Intel® Smart Cache
  • Mobile Intel® HM55 Express Chipset
• System Memory
  • Dual-channel DDR3 SDRAM support:
    • Up to 4 GB of DDR3 system memory, upgradable to 8 GB using two soDIMM modules
• Display
  • 14" HD 1366 x 768 pixel resolution, high-brightness (200-nit) Acer CineCrystal™ LED-backlit TFT LCD
    Mercury free, environment friendly Super-slim design 16:9 aspect ratio
• Graphics
  • ATI Mobility Radeon™ HD 5650 with Switchable™ Graphics technology, up to 4091 MB of HyperMemory™ (1024 MB of dedicated DDR3 VRAM, up to 3067 MB of shared system memory), supporting Unified Video Decoder (UVD), OpenEXR High Dynamic-Range (HDR) technology, Shader Model 5.0, Microsoft® DirectX® 11, OpenGL® 3.1, OpenCL™ 1.1
  • ATI Mobility Radeon™ HD 5470 with Switchable™ Graphics technology, up to 3579 MB of HyperMemory™ (512 MB of dedicated DDR3 VRAM, up to 3067 MB of shared system memory), supporting Unified Video Decoder (UVD), OpenEXR High Dynamic-Range (HDR) technology, Shader Model 5.0, Microsoft® DirectX® 11, OpenGL® 3.1, OpenCL™ 1.1 Intel® HD Graphics with 128 MB of dedicated system memory, supporting Microsoft® DirectX® 10 Dual independent display support
    16.7 million colors

    External resolution / refresh rates:
    • VGA port up to 2048 x 1536: 85 Hz
    • HDMI™ port up to 1920 x 1200: 60 Hz
    MPEG-2/DVD decoding WMV9 (VC-1) and H.264 (AVC) decoding Microsoft® DirectX® Video Acceleration (DXVA) application interface (API) HDMI™ (High-Definition Multimedia Interface) with HDCP (High-bandwidth Digital Content Protection) support
• Audio
  • Optimized 3rd Generation Dolby® Home Theater® audio enhancement features, including Dolby® Digital Live, Dolby® Pro Logic® IIx, Dolby® Headphone, Dolby® Natural Bass, Dolby® Sound Space Expander, Dolby® Inverse Filtering, and Dolby® High Frequency Enhancer technologies High-definition audio support
    S/PDIF (Sony/Philips Digital Interface) support for digital speakers MS-Sound compatible
    Built-in microphone
• Storage
  • Hard disk drive
    • 160/250/320/500/640/750 GB or larger hard disk drive
  • Multi-in-1 card reader, supporting:
    • Secure Digital™ (SD) Card, MultiMediaCard (MMC), Memory Stick™ (MS), Memory Stick PRO™ (MS PRO), xD-Picture Card™ (xD)
• Optical media drive
  • 8X DVD-Super Multi double-layer drive:
    • Read: 24X CD-ROM, 24X CD-R, 24X CD-RW, 8X DVD-ROM, 8X DVD-R, 8X DVD+R, 6X DVD-ROM DL, 6X DVD-R DL, 6X DVD+R DL, 6X DVD-RW, 6X DVD+RW, 5X DVD-RAM
    • Write: 24X CD-R, 16X CD-RW, 8X DVD-R, 8X DVD+R, 4X DVD-R DL, 4X DVD+R DL, 6X DVD-RW, 8X DVD+RW, 5X DVD-RAM
• Webcam
  • Acer Video Conference, featuring:
    • Acer Crystal Eye high-definition webcam, 1280 x 1024 resolution
    • Acer Crystal Eye webcam, 640 x 480 resolution
    • Acer Video Conference Manager Software, featuring Video Quality Enhancement (VQE) technology, supoprting 640 x 480 resolution online video calls
• Wireless and networking
  • WLAN:
    • Acer InviLink™ Nplify™ 802.11b/g/n Wi-Fi CERTIFIED™
    • Acer InviLink™ 802.11b/g Wi-Fi CERTIFIED™
    • Supporting Acer SignalUp™ wireless technology
  • WPAN:
    • Bluetooth® 2.1+EDR
    • Bluetooth® 3.0+HS
  • WWAN:
    • UMTS/HSPA at 850/900/1900/2100 MHz and quad-band GSM/GPRS/EDGE at 850/900/1800/1900 MHz, upgradable to 7.2 Mb/s HSDPA and 5.7 Mb/s HSUPA (for 3G models)
  • LAN: Gigabit Ethernet, Wake-on-LAN ready
• Privacy control
  • BIOS user, supervisor, HDD passwords Kensington lock slot
• Dimensions and weight
  • 13.46 (W) x 9.64 (D) x 0.94/1.13 (H) inches (342 x 245 x 24/28.8 mm) 4.65 lbs. (2.11 kg) with 6-cell battery pack
• Power adapter and battery
  • ACPI 3.0 CPU power management standard: supports Standby and Hibernation power-saving modes
  • 3-pin 90 W AC adapter:
    • 5.23 (W) x 2.32 (D) x 1.22 (H) inches (133 x 59 x 31 mm)
    • 0.86 lbs. (390 g) with 180 cm DC cable
  • 66.6 W 6000 mAh 6-cell Li-ion standard battery pack
    Estimated Battery life: 8.0 hours
  • 99.0 W 9000 mAh 9-cell Li-ion standard battery pack
    Estimated Battery life: 11.5
    ENERGY STAR®

3820TG + ATI Radeon HD 5470G Motherboard


3820TG + ATI Radeon HD 5650/6550 Motherboard


Useful Resources for Advanced Users


CPU Overclock

kizwan: no ppl spammed? u din reserve? i reserve for u!



This post has been edited by ngkhanmein: Nov 23 2011, 10:59 AM

what happened to d old thread?
anyway, anyone played Skyrim using dis lappy?
can survive or not?

not sure. skyrim play liau headache. so i sticked v old games. u asked kizwan. i think he sure playing it with his 5870!



This post has been edited by ngkhanmein: Nov 23 2011, 03:24 PM

definitely can...
BTW..I already kill two dragon..

yay!!
tested edy with my lappy...
can stretch to high setting for Skyrim..nice graphics just a lil lage when open world..huhu

Do these startup programs influence the pc?
I scare one of these might prevent the auto-switching of GPU..

Intel display setting,
Intel Screen Resolution Utility Program,
Catalyst Control Centre Launcher?

Shouldn't affect..

If not mistaken, you need AMD External Events Utility for the switching..

This post has been edited by lee_what2004: Nov 24 2011, 11:25 PM

AMD External Events Utility make it stopped at services.msc & set manual ok liau. disable CCC at msconfig as well.

Don't set it manual. Switchable GPU need it.

paiseh if din use switchable, it can disable. since mine is dedicated like urs mr. lee

This is TimelineX 3820TG/4820TG thread, not Dell. TimelineX 3820TG/4820TG have switchable graphic. Please keep on-topic.

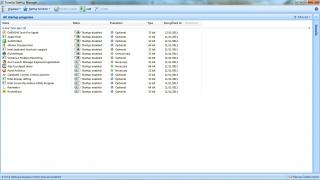

Here's the startup list from tunes up, any recommended programs to disable that doesn't affect my switchable functions?

Thanks people~


Oppssssss... long time no come lowyat, here's it! Paiseh!!


This post has been edited by hottemper: Nov 25 2011, 10:59 AM

Your startup list OK (since it's empty)

kizwan: suddenly so serious. i tension leh!

hottemper: where is ur startup list?

@hottemper, the CCC and the Intel should be can disable safely..

can del itunes helper & apple push.

Really need Demon Tool? that thing is sloooooowww.....

You can unzip ISO instead of using Demon Tool nowadays...

use winrar but some file like cue & bin still need daemon or alcohol & etc...

Thanks people~


@Cow, I'm not sure, but I always use Daemon.. haha~
