got my sm4(1993) a few weeks ago and the previous owner replaced it with a F20B and how to check wether its DOHC or SOHC?
and are all F20B vtec engine?

paiseh i am new to honda and dont have much knowledge about cars yet

This post has been edited by JaniceWLV: Oct 27 2011, 01:03 AM

woahhhhhhhh that f20b is great stuff man!

anyway, it's said to be a destroked h22a. Honda needed a 2.0 for racing. should be from Accord CF4.

yours blue top?

---

Added on October 27, 2011, 1:15 am180hp on shifttronic auto and 200hp on manual to the flywheel. STOCK! that's for accord cf4.

This post has been edited by fisherman10: Oct 27 2011, 01:15 AM

it doesnt come with the cover i think, thats why i m confuse about all this rite now and what does blue top mean?

blue top means the valve cover is blue.

If that f20b was taken from a jdm accord cf4, it should be dohc.

---

Added on October 27, 2011, 1:37 amactually, just take show a pic of the engine bay. you can easily differentiate a sohc and dohc.

---

Added on October 27, 2011, 1:38 amwhat other details did the seller give you?

This post has been edited by fisherman10: Oct 27 2011, 01:38 AM

ok, i'll add a pic tomoro

my dad and i did not ask the seller ==
my dad made a decision to buy this because engine running smoothly and silently lol, and we didnt know what engine it is either ==

don't just simply buy without knowing what kind of engine it is, it's like marrying (buying) a Vietnamese wife and the worst outcome will be the wife left suddenly and leaves u with nothing

lol, i am lucky this time ==
will check carefully next time

---

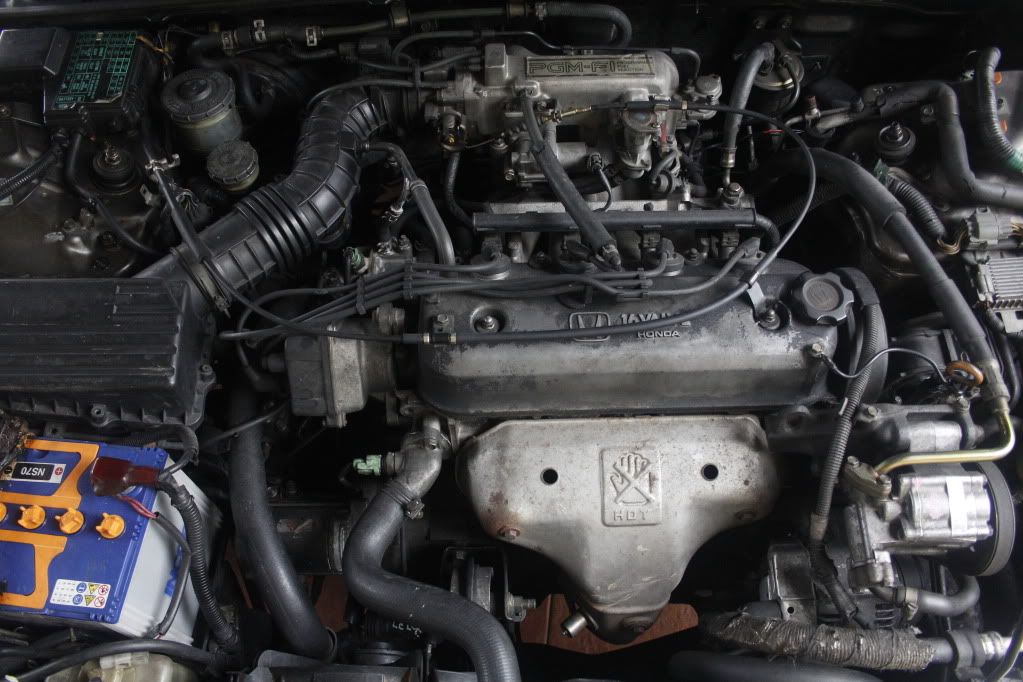

Added on October 27, 2011, 12:15 pmhere's the picture
http://i1115.photobucket.com/albums/k555/J...V1/_MG_2018.jpg

This post has been edited by JaniceWLV: Oct 27 2011, 12:22 PM

looks like a SOHC

not the F20B from CF4

This post has been edited by driftmeister: Oct 27 2011, 12:37 PM

Looks like a D series?

Not even close to F20B...more like standard PGM-EFi engine to me.
And definitely SOHC.

This post has been edited by skool: Oct 27 2011, 12:54 PM

sadly to say that it is definitely SINGLE OVERHEAD CAM (SOHC)

---

Added on October 27, 2011, 1:00 pmOld engine but its ok. next time, can do engine transplant in the future

This post has been edited by hailiss8384: Oct 27 2011, 01:00 PM

but isnt it a F20B?
somewhere below the engine says so?

Its an F20B SOHC!
This engine series was used in the CF4, CF5, CF9, CL3 Honda Accord.

150hp/6100rpm
137tq/5000rpm
6400rpm redline
9.5:1 compression ratio
85.0mm bore x 88.0mm stroke

F20B has SOHC n DOHC versions... the one u have is obviously the SOHC version.

anyway, it is true that CR-V also use F-series engine?

ok, thx guys

it is a F20B. the first version from SM/CB Accords

F20B got many type wor..

CRV is B20B and K20A

ops not the blue top..

i thought the CF4 and cl1 uses f20b dohc. the one with blue top?

and TS, this does not look like a transplant. looks like the basic engine that came with the SM4.

if transplant, most ppl would go for this http://www.mudah.my/F20b+auto+tiptronic-11418502.htm it's cheap!

as i said f20b many variants.. not every one is a blue top..

http://en.wikipedia.org/wiki/Honda_F_engine#F20B

yeahh. i was saying the cf4 uses f20b. isnt the f20b that cf4 uses comes with blue top? or there are other variants?

http://en.wikipedia.org/wiki/Honda_Accord

Look on d bright side. At least ur engine is not d earlier carb fed SOHC F20.

What is the original engine used in SM4 (1991, 2.0l, imported from Japan)?F20A..

And I changed the ori engine to F22B, is this engine good?

This post has been edited by yifie_911: Jul 7 2013, 08:01 PM

And this F22B a SOHC or DOHC? how many valves and how many cylinder?

Comparing F20A (previous engine) and F22B (using now), of course the latter one got more power. it is also more fuel efficient. And after I use Shell Helix 5 instead of ENEOS (used previously), I have found that SH5 is more fuel efficient too (My experience)

Here the pictures of engine I took, please have a look and give any comment。 ThankYou


This post has been edited by yifie_911: Jul 7 2013, 08:18 PM


Attached thumbnail(s)
