Below are common tools easily available in most household :

1) Scissor
2) Tape
3) Flat head screw driver for spectacle
4) Lighter
5) Hair Dryer


Additional tool for removing 4pin mobo, PCI-E & 20/24pin ATX Connector :

5) ATX pin removal tool from XMod ( RM 45 )




Remove all 4pin molex, FDD, ATX pin connectors

If ur afraid of forgetting which color order, u can :
- take a picture
- write it down

or remember this rule :

1) 4pin molex connectors - yellow always closest to u
2) Fdd connector - red always closest to u
3) 4pin mobo connector - Yellow closest to the clip
4) PCI-E connector - Black closest to the clip
5) 20/24pin atx connector - write it down !! or take picture, i no formula for this




use the flat head screw driver to push in the FDD pins


This picture below show FDD pins.
Top show push in pin so that it can slip out from the connector.
Bottom of picture show pin open up. Open it up & insert back the conncetor so that it'll "lock on"


use the flat head screw driver to remove the molex pins


Left picture show a closed molex pin. Right picture show a open molex pin.
The idea is to close the molex pin with ur flat head screw driver. This will allow the molex pin to slip through & out of the connector. u'll get a hang out of it very soon after a few try. relax & be patient.


Sata head can be removed too, I'll touch up on this part again when I get my hand on another PSU with Sata connector.

pic of antec PSU - messy cable management, I bet all Antec engineers DO NOT comb their hair !! Of my countless PSU sleeving journey, only Antec PSUs are this messy, even when we pay for their premium high-end 550watt series .. hehe SO, those who do not have an Antec, are lucky to skip this part. Or else its gonna be like some 10-15mins job trying to group up the cables neatly.


the extra work in grouping the cables in proper order, geezz ..



Tape up all exposed pins

Don't try to be lazy & skip this part. Or else u'll find ur sleeve getting entangled by the sharp edges later on. trust me ...

- tape up the exposed FDD cables as a group
- tape up the exposed 4pin molex pins 2 by 2. Seperate them 2 by 2


this picture show the 4pin molex taped up 2 by 2. If u were to tape all 4pin molex together as a group, it'll be too THICK for the Heatshrink to pass through later on.



These type of connectors below can be tape up as a whole.

- 4pin mobo
- 6pin PCI-E
- Sata

** For Sata, tape them up first for sleeve to get through, then remove it & insert heatshrink. let the individual Sata cables go through 1 by 1 if the heatshrink is a little too tight.

This post has been edited by uglyvamp: Oct 5 2005, 10:25 PM

the 3 main tool again : lighter, ATX removal tool & flat head screw driver


If u have Sata connector below, sleeving is NOT possible, unless its cut & change. I won't want u to void the warranty here, so I won't touch on this one here. PM me for solution, ( cutting is still a must though )

For your infos, its ANTEC psu again that come with such stupid factory sealed Sata connnector.



Cutting the correct sleeve length.

Before I share my formula below, remember that sleeve expand. And expanded sleeve will eventually be shorter. Having too long sleeve will make ur final sleeving job look fat while sleeve too short wont' be looking good either. Therefore, please try to follow the formula below. I hope the explaination & guide be is good & clear.

Cables from PSU to the 1st connector is the longest. Measure it with ur sleeve & cut at least 1cm LONGER

Cables from 2nd connector to 3rd OR 3rd to 4th connector is short. Measure it with ur sleeve & cut at least 0.5cm SHORTER.

Sata cable from PSU to 1st Sata connector. Measure & cut at least 1.5cm Longer. Sata cables are thicker than 4pin molex cables.

4pin mobo cable from PSU. There's only 1 connector. Cut the sleeve at least 1cm LONGER.

This picture here show an example of the shortest sleeve required. From the last 4pin molext to the FDD connector. This one will require at least about 0.5cm to 0.7cm shorter. ( its the thinest part of PSU cables )


REMEMBER :
Sleeve inserted, has to be slightly shorter. Like this picture below.
This will allow the heatshrink to HOLD tight between the cable & the sleeve. It'll also "straighten" ur final sleeving job & make it look slim


This post has been edited by uglyvamp: May 8 2007, 07:03 PM

Sleeving

The lighter. Burn the tip every time the sleeve is cut.

Left of picture show burnt tip while right show a freshly cut sleeve.


Top of picture show burnt tip still in good shape.
Bottom of picture show unburnt tip in BAD Shape when u don't follow.


Unburnt tip trying to get through, the sleeve will start splitting & ur gonna get pissed off very soon .. hehe

Picture only show earlier stage of split sleeve. PLS remember to burn the tip a little !!


Sleeve first, then cut the Heatshrink to appropriate length & insert in.
If u find ur sleeve being too short, then cut slightly longer Heatshrink.
Cut the heatshrink to length able to hold the sleeve by about 1cm & the rest cover up the bare wires.


Picture below show Heatshrink going through the 2 by 2 4pin wires as mention on earlier part of this guide.


Do not forget each sleeve section require 2pcs Heatshrink !!! Forget 1pc & u'll have to remove all & start all over again ...
Do note again, it is sleeve first, then 2pcs heatshrink.


U can attach back the molex connector after every section of sleeving is complete.


Push the Heatshrink all the way closest the PSU as possible. Cut appropriate heatshrink length. Heatshrink must hold the sleeve & cable.
IF, ur heathshrink only hold the sleeve & not the cable, the sleeve will slip eventually.



Heatshrinking

To shrink the heatshrink, use a Hair Dryer. DO NOT use a lighter !! The fumes from ur lighter's flame will cause ur colored heatshrink turn black !!

However, if u have got Black heatshrink instead, go ahead but be very carefully not to burn the sleeve.


Tips on Ligher : If ur a botak & never require a hair dryer, then lighter can still be a solution.

To use lighter to shrink the Colored Heathshrink. Turn ur lighter to bigger flame. Use only the lower blue flame. DO NOT use the orangish/yellow flame or it'll turn ur heatshrink dark color. Try it carefully putting the blue part of the flame close to the sleeve. U'll see ur sleeve shrinking very fast but be careful. Spoilt jobs, burnt wires is not my prob !!! heehee

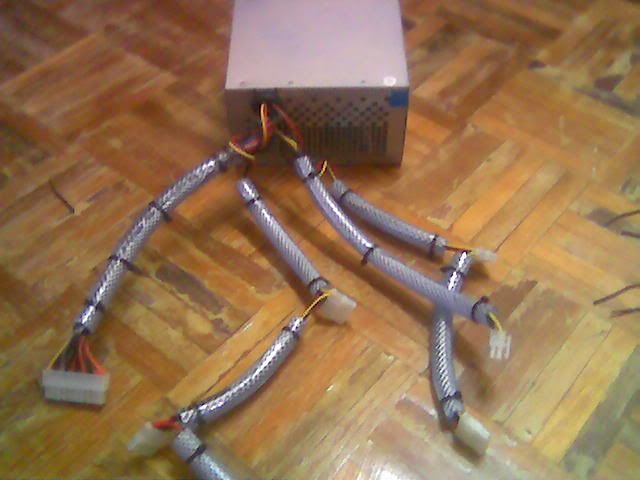

This picture below show shrinked heatshrink holding the sleeve & cables tight.




Completed job awaiting pickup by SG modders.

Added : July 2006

20/24 ATX Removal guide ..

Before we start, do note : ATX pin same as, 4pin mobo, 6pin PCI-E & 8pin EPS

What u need is staplets or wat we call that ?? staple bullets ??
Straightened 1 pair. straight, as straight possible.



Use technology to remember the wires color codings ... take a pic & the pic will remember for u. Black wire is ground, they can mix. Here I insert a white paper as background for easier contrast recognition.

You NEED 2 picture shots, then take out the wires 1row @ a time. Then tape up the 1st row of wires b4 removing the 2nd row.

** I also notice some PSU's ATX connector has "thinner" black wire at 1 point, so try to insert back the same 1 @ the same spot. Same goes to if u find a red or an orange being thinner than the other, just try remember to put back same hole... This hardly occur anyway **





The idea of the 2straightended staple bullet is to push the pin inwards so u can pull "down".

Push both pin as deep possible, till both at same height, the hold tight & pull the wire downward. If 1st try unsuccessful, reinsert the 2pins & do again. Lots of practice & patience for this one.

Most ATX pins are really difficult to remove, thus, I use PLIER to hold the connector while i pull the wire with my finger @ moderate strength. Beware not to break the wire or ur in deep trouble & so do I !!



I'll provide a short video demo of the process for download here again,
good luck



To summarize it all :

1) Remove all connectors
2) Tape up all exposed pins
3) cut the approriate sleeve & start sleeving
4) insert 2pcs heatshrink to every sleeve section
5) put back connectors
6) Provide heat source to shrink the heatshrink



Below are optional tools that can be purchased seperately from me.

Top - Carbon steel molex removal tool ( the BEST molex removal tool ever )
Middle - Plastic molex removal tool ( the 2nd Best molex removal tool ever )
Bottom - ATX pin removal tool ( the BEST ATX pin removal tool ever )

** I've used other tools by Big major brands but none of them to my satisfaction which i shall not name them. Above are highly recommmend tools if modders have the extra cash to spare.

http://img184.imageshack.us/img184/4929/dsc058888vf.jpg


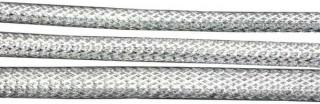

Sleeving colors

I always recommend 2tone color for sleeve & connectors for my customers. It'll be a good reference for guys wanting to sleeve up their PSUs.


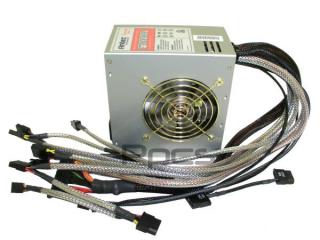

Admire the work

Here comes the gallery ... and dont loose ur jaw









This post has been edited by uglyvamp: Aug 28 2006, 04:11 AM

Thanks for guide. Hope can pinned it.

*Claps*
this is one of the best guides in LYN

Pinned. Good job there !!

thanks sniper, about 6hrs job .. from photo taking, to writing it all up & editing ..

I'll still re-edit the guide here to be better.



SATA power connector :

3types Sata power :

Left to right : Factory sealed Sata connector on far left. Middle & right one can be removed.





can remove ..


right angle Sata connector




This post has been edited by uglyvamp: Jul 8 2006, 08:06 PM

[uglyvamp]
thanx for this guide
hav been waiting for a long time for ppl 2 post thiz guide
at last u post
: 2 thumbs up :

The Molex removing is very tedious if done ure way lar. There's a very nice tool that comes with the Vantec sleeve kits. It looks like the doctor's injector. Just insert into the molex hole, press the injector n pull the wire out. Very simple n neat. Doesn't damage the springs too.

heh .. i've done countless psu sleeving with the same old flat heat screw driver.

its easy. the tedious one will be the ATX pins even with proper removal tool

Btw, yes, i do have both plastic & metal removal tool too. I'm posting the screw driver way becos not everyone has the proper tools.

That's y u shud relocate to KL lar. Then we all can haf a regular supply of good n cheap mod parts like the sleeves, sumi tubes n all. Hahaha. Coz in KL most fellas only can get the Vantec Sleeve kit. I haven't seen any1 in LYP selling sleeves in bulk like u do. So for KL fellas we just hafta buy the expensive Vantec kits n they all come with the tool so mebe u shud include the tool in ure list of tools too. Good guide anyway.

Where did you get the ATX pin removal tool? I'd be interested in getting one...

While you could use a larger sleeve and avoid removing the four pin mobo and PCI-e connector, the result is not a pretty as the sleeve is bigger than the cords. Tights versus baggy trousers if you will...

I used the straightened staples method to remove the pins off my PCI-e and four pin mobo power connectors. This was quite tedious. A proper tool would have been nice.

I don't agree with Ian however on the vantec tool. I damaged some connectors with that thing (probably from improper use though). I find the fine jewellers flathead screwdriver that Vamp describes to be a much better tool.

Great guide though... Well done!

MacDaNife, the staple way was indeed hard !!! i tried once when my ATX removal tool broke. I didn't have the patient & never succeed lol

and yea, baggy sleeve won't look good.. hehe



Anyway, updated 2pictures above showting the proper tools .. take a look again

This post has been edited by uglyvamp: Oct 6 2005, 01:47 PM

nice thread thanks 4 the info.......

one of the best and easiest guides of sleeving.....good job uglyvamp CHEERS!!

regards,
aaron

well done uglyvamp,

can help most of the forumer that 1 2 done sleeving by DIY!!!

nice guide man.....very eazy 2 understand even for noobies

if this guide can be improved better, PM me !!

I need to ask something.. When u take off the connector, and when after we sleeve we need to put back the connector, how we know which colour first? Or which colour also the same? I mean the wire cable that have black and red and yellow and green.. Izit it can put as we like?

I think uglyvamp clearly answered that question already.

I jz wan to know izit wan to follow back the coloour.. thank u anyway..

This post has been edited by singchaii: Nov 4 2005, 09:19 AM

Dinster told me about this sleeving guide page, didnt expect it to be so professional, neway salute to Uglyvamp for another job well done.. I bought my vantec sleeving kit last year from a forumer but I dont see any other molex removing equipment inside.. izzit have to buy separately?

The molex removal tool is only included in the Vantec Molex Set, and not the Sleeving Kit.

I think this will help in sleeving..

Yeah...another gr8 addition. Dis is really so useful for those who scared might screw up evrythin'.

A Psu Guide By me.How To Test Your PSU
Well maybe you could start using it as a 'test' PSU. To test your fans, cold cathodes or other modding stuff whenever you want, without having to boot up your PC. Now you might be thinking that this wouldn't be a problem, just plug in the power cable of the PSU and start the air/light show.. right?

Now first start searching for an ATX Power Supply Unit.
This is the motherboard connector 20 pin


2nd we need a paper clip or wire.Please make sure your PSU isn't plugged in while doing this mod! You might get a shock!




Overall this is a very easy mod, just search for the connector with the green wire and insert an end from the paperclip. Then pick out one of the connectors with a black (ground) wire and insert the other end of the paperclip.


After this cover the psu connector 20 pin with some tape, just to be safe in case anyone or anything touches it..


Now plug in the power cable of your PSU.. and start running!


This might help for after sleeving the20pin to test

This post has been edited by sherren: Nov 11 2005, 10:24 PM

http://xtronics.com/reference/atx_pinout.htm

This website might be help too..


This is for 20 pin. The voltage have been show on the PSU if wan to know the colour..



This is for 24 pin.



*get from technical support

Hope it help too..

note that you can't use the 'shorting' technique to test whether the PSU is working or not... albeit the fan will still run when you short it...

The reason is, that there is no 'load' to the system, thus even the PSU fan is running, there still chances for it not to work...

Anyway, if you want to test some fan, led etc.. the shorting technique is the best since it does not need you to connect to mobo first...

Correct wut

I always take a close up pics of the 20/24pin ATX before removing all the cables. When putting back, i just refer to the picture again.

Just in any special case, the PSU manufacturer don't use the correct color wires

thx for the guide....

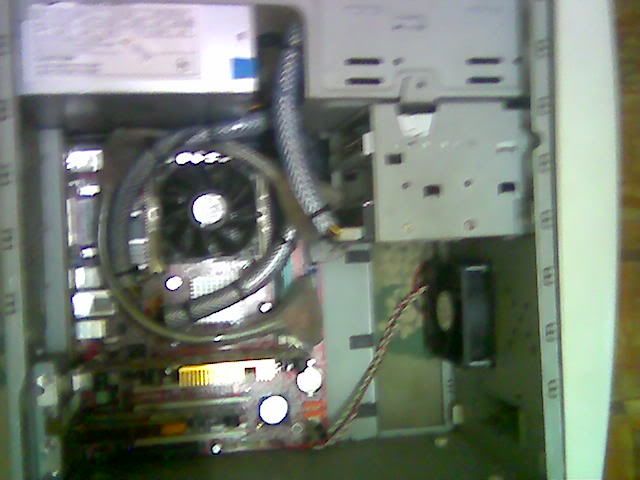

my cpu looks more tidely n nicely....

bro do you still sell those molex removing tools? interested in getting those tools

btw nice thread! good tutorial.. i think im going to re-sleeve my PSU.. dunno that heat can shrink the rubbertape.. instead i used cable tie

GOD~!~!!! i cant find a tool to remove the ATX pin... ( how?

bro....atx pin u can use 2 staple bullets and a jewellers screwdriver. search around. therell be pix on the net to show how to do it.

either that or u can buy the atx removal tool from uglyvamp.

nice guide!
thx.. now i knoe how modified psu..

anyone know where to find those ATX remover? searching for one but couldnt find it.. even uglyvamp dont have stock

why dont u try doing THIS instead?

u could replace the pins with staples and use a flathead jewelers scredriver to push the pin out.

Sherren,
nice looking transparent psu..what brand is it? or you mod it yourself?

Are there any sleeving kits or methods to allow sleeving without taking off the molex things?

yes.... if you use a fat sleeving...

but it would look fugly

And will look baggy.
Removing molex is the easiest way rather than solder out all the wires fom PSU.

y cant take off molex..easy only

just take the molex off lar....u scare void the warranty izzit????

Haha....dats why. Wht is so susah bout it� There arent many wires also so wont be any confusion.

Or u dont hav the removal tool?

Or you can ask someone to do it for you with minimal charge.

get the molex remover..... bout 15 ringit from vantex together with some molex.

atleast you get a long term use molex remover

Do you know about those pipes? The pipes for your tap, shower, the "paip air" pipes? PVC ones, grey colour?

Sleeving kits, can expand as you already know (I hope).

So put the PVC pipe on the molex connector, and slide the sleeving kit inside.

Then remove the pipe and you're done.

its quite hard actually , without the molex connector and be carefull when puttung back the molex, like me accidentally swithed the 12v with 5v one and there goes my combo drive , thank god not my hdd ... btw use thoose molex removal kit , its not expensive , but thr 24pin molex remover is ery expensive ... try to ask someone here and borrow it from them

But dis applies to big diameter sleeve only ma'. The small one (which fits the wires snuggly) couldnt expand so much.

yalo....if those small ones......maybe will break .....

so final answer....no u cant sleeve the psu wires without taking out the molex... no matter what u HAVE to take it out. unless of course ur using big a$$ sleeves.

Take out the Moles wont void the waranty,

hoh...really ka?

Actually, you CAN sleeve your PSU without removing your Molex connectors. Use spiral-wraps They don't look too bad if you ask me
Or you can use any form of firm tape, something that doesn't loose it's shape after application

Just my 2-cents worth

http://www.vantecusa.com/product-pcmods.html#
http://www.tweaknews.net/reviews/vantec/


so is it still impossible to do sleeving without taking off molex?

This post has been edited by sohaix: Feb 7 2006, 07:19 PM

Good results take some effort. If you are going through the trouble to buy sleeves, remove your PSU from your rig in order to improve the aesthetics of your rig..... Why in the world are you reluctant to do something as simple as remove a molex plug?

There are far more challenging things to do. Try removing PCIe connectors for example. For the gold, go for removing the connectors on the main ATX power plug...

Obviously you've got to know what you're doing. As one of the posters above has demonstrated, you can fry hardware by mixing up the polarity of the wires. With a little bit of common sense however, it is a simple thing to get right. That much said, even the smartest people do dumbass things... double checking your wires prior to firing up the PSU is essential...

UglyVamp has put up a sleeving guide. I suggest you read it.

shit... i cant put the FDD pins back in place, keeps on popping out... how now? all directions tried b4 still the same... dammit... kacau my sleeving mood....

spiral-wraps is different from the sleeving like the ones from vantec....
is more like plastic wrapping...hehe

If using those spiral wraps of course no need to remove any connectors also. But doesnt like as nice~ compared to the sleeve.

sohaix : If using the smallest size, which is fits snugglier. The expanded size still not enuff for the molex connector to be slided through.

And yups, warranty doesnt void for just replacing the molex. As long u dont open the PSU.

one of the molec put wrong...and my harddisk and burner is gone...maybe my motherboard also ..

Haha...r u serious? How come can go wrong there? Just 4 connectors after all; and easy color code

didnt check it back ...now my hardisk and mother board is declare dead and soo with my cdrom...btw got one of info of molec given by those pic wrong adi

very good info i got here..!!

Which pic? If it's here, better should remove the pic(s) asap so dat wont be others w/ same case

This post has been edited by bombman: Feb 17 2006, 11:31 PM

Thanks and GOOD GUIDE,

i have been using this guide to successfully SLEEVE 3 PSU's

NO PROBLEM !!

except for the COOLERMASTER PSU, cud not get the heatshrink thru, the one vantec provided was kinda small, so i used cable ties instead,

WELL IT LOOKS NICE TOo...

sorry to hear jinkinz, u fried ur mobo too ??

Cheapo hair dryer can do it?

Why couldnt get it through? Guess u didnt remove the connectors

Erks...do wht ikan�

Heat the shrink?

But why u asking so?

how to sleeve the sata and the 24pin motherboard power supply

What brand psu? Some psu can remove the sata connector like Enermax..

Ya lor, isn't worth if buying cheapo hair dryer like bought from Mydin. Can it will be heat that's shrink? Thinking to get one..

This post has been edited by ikan_semilang: Apr 11 2006, 11:28 PM

Dats rite. And the power connector can be removed for any brand of PSU. Try find the ATX pin removal tool. Or u may try looking @ pcmodding on how to use staples 2 do dis. Last time there was an in-dept article bout dis there

Owh~~...means u wanna use 2 shrink the thing? Dats wht I use too

So all dis while using lighter�

This post has been edited by bombman: Apr 11 2006, 11:36 PM

Not it will burn shrink meh?

Use air blower can burn it�

U said using lighter right? What type lighter u using?

can just use normal RM1 lighter...no need to use expensive one like zippo

just that when u burn dont burn it too long....thats all.... and try putting the shrink IN the flame and not above it....

u r so ryt, ikan_semilang. the only problem i'm facing now is where to get UV reactive sata connector? uuhuhuhu. uglyvamp??

u can get them from uglyvamp if he still has them...only thing is that hes busy with his store opening in sim lim square that sales in malaysia is currently on hold.

try to check out his site www.vampzone.com

eeheheh, i am indeed a member there. dat explain the .tot of looking at any possible local solution.

U can contact him via pm. I have order some sleeving kit from him. Hmm...RM1 lighter..

I was referring to these 2. Yeap, sorry. Itz my bad for stating it wrongly. it should be SATA Power Connector



u guys kno where to get it? or should i juz buy UV reactive spray n spray the hell out of my enermax black sata power connectors? uhuhuh

That's why i'm using the black because my psu come with black sata connector..

aiya lu ikan_semilang. come2. join me in finding the blue sata power connector leh. but dat one is only for the hujung connecter. d middle one. looks like this.



er, normal one la ryt? forgot how it looks like ar, the middle one.

I'm prefer black colour because i don't want bling-bling..

ahahhaa, one stealth guy here ar. yalor, afta giving some tots,myt wanna go wif stealth oso. neway, gotta try my new SATA connector sleeving thingy tonight. it will definitely decide whether to go wif stealth or bling bling power connector. uhuuhuhu.

nice lar..but how to remove the sata connector? any tools?
where can get the uv sata connector? i want

my one is acbel
can anyone show me how to do in atx one

whr the link for atx one!!
i can't find it
no $$$ to buy the atx removal

This post has been edited by Magician: Apr 12 2006, 10:31 PM

double post!
sorry!

This post has been edited by Magician: Apr 12 2006, 10:30 PM
