Today setup

Mikrotik Hotspot For Event





Facebook Live Setup



For enquiry please pm :-)

Yeah you have to mix and match to make a full maximum usage of it

1. The Access Point use is Ubiquiti UniFi HD Access Point 4x4 Mimo :-)

2. Huawei E5186-22 for LTE A Gateway

3. Mikrotik Routerboard for hotspot Gateway and Controller :-)

It works great

This one is in Botanica in Bangsar South

Bro i play Mikrotik long way then you do :-) For Access Point this is the best

Nothing beats UniFi AC HD AP for Access Point ( This is not normal consumer level for my setup )



4x4 mimo radio support can support hundred of users

This post has been edited by MX510: Feb 12 2018, 06:46 AM

It's coming after Chinese new year DM me ur contact i let you know when stock arrived :-)

UGPM :-)

Yeah :-)

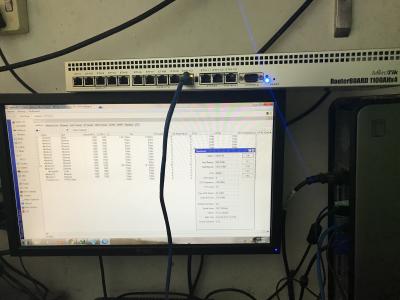

Yesterday fix a RB1100ahx4 at a new setup bitcoin mining farm which use as a core router 1000 ant miner stacked to the router

Can’t take pictures due to security issues

So far i have setup 2 mikrotik as a core router for the mining farm

Anyway here is the pictures while i do configurations

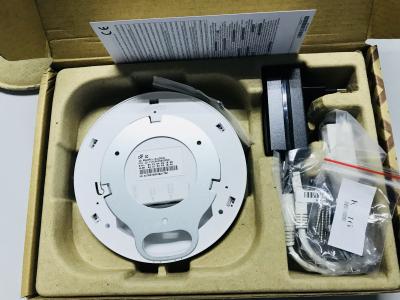

Mikrotik CAP AC




For those who want this router @ access point can place order here

Mikrotik CAP AC








Gigabit Controller Managed AP
Integrated Dual Band & Dual Chain WiFi - 802.11b/g/n 2.4 Ghz and 802.11ac 5GHz
All new ARM 4 Core 716 MHz CPU - IPQ-4018
2 x 1000Base-T Ethernet ports - Gigabit AP
Built in 128MB RAM
Level 4 RouterOS license
802.3at/af POE-in - supported
Passive POE out on second gigabit port
Up-to 26 dBm TX power

The device comes bundled with two enclosures, so you can choose the design you like best. The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz and 5 GHz in 802.11ac and legacy standards, and will provide coverage in 360 degrees around it. Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output (up to 57V) on the second port. The cAP ac is a feature packed device with a sleek enclosure, that can become inconspicuous with the push of a button - the customizable mode button in the device center will turn off all lights and sounds at it’s default configuration, but can be reconfigured to launch any RouterOS script. The cAP ac is equipped with two Ethernet ports, allowing you to connect another device, to further extend your network. What’s more, the second Ethernet port supports passive PoE output (up to 57 V), so it can power a wide variety of RouterBOARDs and other devices, like IP cameras. In the following scenario, you can use a central hEX PoE device to power all your cAP ac units, and then have cAP lite units connected to provide even better coverage. The hEX PoE can even be used as a CAPsMAN server, so you can easily manage all your access points, and control all their settings in a single device. We sell cAP ac (International) 2412-2484MHz and 5150MHz-5875MHz range

This post has been edited by MX510: Apr 17 2018, 07:42 AM

Actually TM modem and router are alsovulnerable to this new modem comes with different default password with last 4 digit of mac address

There is a lot of attack on port 80

Do secure your router by setting a password on your Mikrotik router

remove admin full access by set with different username and password

In addition you can always

Assign a different port

IP -> Services -> www either disable or set different port

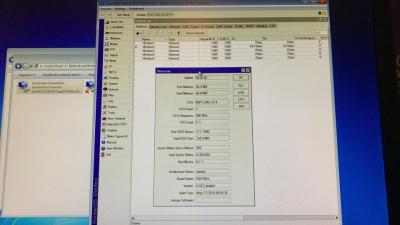

My RB450G behave weirdly i think need to netinstall the device been running more than 10 years . Some sort of memory issues and can't upload files into it

Today i switch the device with HAP Lite AC

Upload



Download



Speedtest



Yesterday help my client to netinstall RB750GL :-) manage to restore it from bootloop via netinstall





This post has been edited by MX510: May 20 2018, 11:52 AM

Try enable

https://wiki.mikrotik.com/wiki/Manual:Fast_Path

https://wiki.mikrotik.com/wiki/Manual:IP/Fasttrack

Anyone else got turbofied ?

Try again with fastrack enabled :-)

Good to hear that :-)

I don't think TM or any other ISP allowed it

I already check the GPON BTU only got your port capped speed on it and bridging for voip no other fancy config on it



Anyway this was my project end of August and Early September using CRS-328 and sfp module

https://mikrotik.com/product/RB750Gr3#fndtn-testresults

This one should be ok on fastpath mode enable

Yeah you can follow the rules very simple doing import and export config u have to make sure they are using same router os version :-)

Thank you bro you can check my lazada link to make purchase

I will update later for this arrival should be okay for our UniFi

https://mikrotik.com/product/RB962UiGS-5HacT2HnT

At the moment you can use this one

U can try enable fastpath mode enabled ok?

Noted

Did TM adjust ur speed profile?

BTU which model ?
