go626201
post Jan 7 2024, 08:20 PM

Regular
******
Senior Member
1,882 posts

Joined: Sep 2017
QUOTE(soonwai @ Jan 7 2024, 04:44 PM)
Ya, RB5009 no problem. I usually run my Mikrotiks without Fasttrack anyway.
user posted image
https://ipv6.speedtest.net
*
That ipv6.speedtest.net does not mean speedtest with ipv6 only.
This link is 100% same to speedtest.net.
But it is possible that speedtest with ipv6 on speedtest.net,some speedtest server is ipv6 enabled(Which mean ipv4 and ipv6 dns resolve with same hostname or server)
so if the hostname is resolve to ipv6,then it is speedtest with ipv6.
And when ipv6 is disabled,it will speedtest with ipv4.

The fastest way to speedtest with ipv6,is disable your ipv4 on your device and run speedtest on those ipv6 supported site.
Like speed.cloudflare.com is supported.
Later if i found any ipv6 speedtest site can hit more than 600mbps with unifi,then i will post here.

Edited:
I had setup a ipv6 only speedtest server on my next week expiring 10G SG vps.
Feel free to speedtest with it. (If ipv6 is not enabled,then u might not be able to access the site)
http://v6test.mywebping.com/

Just now i tried can hit full speed without any issue. (Device RB5009 + 2.5G PC)
Please don't spam too many time speedtest on it,thanks.

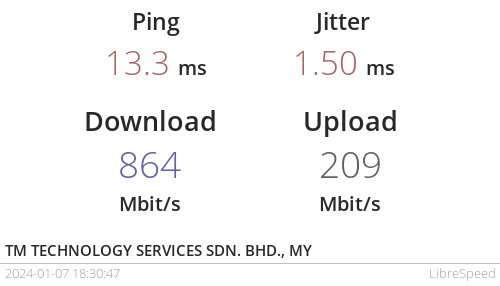

With Queue-
user posted image
Without Queue-
user posted image
Time need +8hour (2.30am)

This post has been edited by go626201: Jan 8 2024, 02:31 AM
hasmidzul_jojo
post Jan 7 2024, 09:22 PM

Getting Started
**
Junior Member
203 posts

Joined: Feb 2008
QUOTE(Quanta @ Jan 7 2024, 07:59 PM)
is your ping time without any queue tree?
*
No nothing.no queue tree,no queue whats so ever.
All default config, only input for wireguard,ddns and force client to use DOH.
kwss
post Jan 7 2024, 09:24 PM

Regular
******
Senior Member
1,207 posts

Joined: Aug 2018
QUOTE(Quanta @ Jan 7 2024, 01:52 PM)
user posted image
user posted image
user posted image
user posted image
user posted image
user posted image
user posted image
user posted image
*
Did you enable or use anything in Queue?
If not, can you post your Tools > Profile when your CPU usage is 100%?

On your Address List, they are all non-routable because outside of 2000::/3.
Just drop them with route table, it's the highest performance method of doing it.
Except the documentation prefix which is a bogon anyway, you can just blackhole it with one extra route table entry.

Just curious what's the reason you added untracked to an accept rule?
Cannot see your full ruleset but seems like they are repeated twice?

This post has been edited by kwss: Jan 7 2024, 09:51 PM
kwss
post Jan 7 2024, 09:27 PM

Regular
******
Senior Member
1,207 posts

Joined: Aug 2018
QUOTE(maxiscool @ Jan 7 2024, 08:13 PM)
I see. Attached.
*
Can you explain more about your iptv and vlan10 why they are done like that?
maxiscool
post Jan 7 2024, 09:43 PM

Casual
***
Junior Member
379 posts

Joined: Jan 2003
QUOTE(kwss @ Jan 7 2024, 09:27 PM)
Can you explain more about your iptv and vlan10 why they are done like that?
*
iptv basically following this guide for Unifi IPTV 600
Vlan 10 for "guest" network, no LAN access.

This post has been edited by maxiscool: Jan 7 2024, 09:47 PM
kwss
post Jan 7 2024, 09:54 PM

Regular
******
Senior Member
1,207 posts

Joined: Aug 2018
QUOTE(maxiscool @ Jan 7 2024, 09:43 PM)
iptv basically following this guide for Unifi IPTV 600
Vlan 10 for "guest" network, no LAN access.
*
OK, I am quite sure you duplicated them and did it wrong. Maybe that triggered a bug in RouterOS.
Example: You bridge vlan500 into your main bridge.

So yes, something broken in Layer 2 like I said earlier.

Can you make the column wider and screenshot again? I want to see the whole thing.
And if you don't mind, each of the bridge setting.

This part need to redo and I think your Layer 2 problem will be solved, no need to netinstall
maxiscool
post Jan 7 2024, 10:10 PM

Casual
***
Junior Member
379 posts

Joined: Jan 2003
QUOTE(kwss @ Jan 7 2024, 09:54 PM)
OK, I am quite sure you duplicated them and did it wrong. Maybe that triggered a bug in RouterOS.
Example: You bridge vlan500 into your main bridge.

So yes, something broken in Layer 2 like I said earlier.

Can you make the column wider and screenshot again? I want to see the whole thing.
And if you don't mind, each of the bridge setting.

This part need to redo and I think your Layer 2 problem will be solved, no need to netinstall
*
See if this can see the settings

CODE

/interface bridge port
add bridge=bridge comment=defconf ingress-filtering=no interface=ether2-master internal-path-cost=10 path-cost=10
add bridge=bridge comment=defconf hw=no ingress-filtering=no interface=sfp1 internal-path-cost=10 path-cost=10
add bridge=bridge comment=defconf ingress-filtering=no interface=wlan1 internal-path-cost=10 path-cost=10
add bridge=bridge comment=defconf ingress-filtering=no interface=wlan2 internal-path-cost=10 path-cost=10
add bridge=UniFi-IPTV ingress-filtering=no interface=vlan.600-TrunkPort5 internal-path-cost=10 path-cost=10
add bridge=UniFi-IPTV hw=no ingress-filtering=no interface=ether5 internal-path-cost=10 path-cost=10
add bridge=bridge ingress-filtering=no interface=vlan.500-TrunkPort5 internal-path-cost=10 path-cost=10
add bridge=UniFi-IPTV ingress-filtering=no interface=vlan.600 internal-path-cost=10 path-cost=10
add bridge=bridge ingress-filtering=no interface=ether3 internal-path-cost=10 path-cost=10
add bridge=bridge ingress-filtering=no interface=ether4 internal-path-cost=10 path-cost=10
add bridge=bridge.vlan10 ingress-filtering=no interface=wlan3 internal-path-cost=10 path-cost=10
add bridge=bridge.vlan10 ingress-filtering=no interface=vlan.10-TrunkPort5 internal-path-cost=10 multicast-router=disabled path-cost=10
add bridge=bridge.vlan10 ingress-filtering=no interface=vlan.10-Guest internal-path-cost=10 multicast-router=disabled path-cost=10
add bridge=bridge.vlan10 interface=vlan.10-TrunkPort4 internal-path-cost=10 path-cost=10
kwss
post Jan 8 2024, 12:57 AM

Regular
******
Senior Member
1,207 posts

Joined: Aug 2018
QUOTE(maxiscool @ Jan 7 2024, 10:10 PM)
See if this can see the settings

CODE

/interface bridge port
add bridge=bridge comment=defconf ingress-filtering=no interface=ether2-master internal-path-cost=10 path-cost=10
add bridge=bridge comment=defconf hw=no ingress-filtering=no interface=sfp1 internal-path-cost=10 path-cost=10
add bridge=bridge comment=defconf ingress-filtering=no interface=wlan1 internal-path-cost=10 path-cost=10
add bridge=bridge comment=defconf ingress-filtering=no interface=wlan2 internal-path-cost=10 path-cost=10
add bridge=UniFi-IPTV ingress-filtering=no interface=vlan.600-TrunkPort5 internal-path-cost=10 path-cost=10
add bridge=UniFi-IPTV hw=no ingress-filtering=no interface=ether5 internal-path-cost=10 path-cost=10
add bridge=bridge ingress-filtering=no interface=vlan.500-TrunkPort5 internal-path-cost=10 path-cost=10
add bridge=UniFi-IPTV ingress-filtering=no interface=vlan.600 internal-path-cost=10 path-cost=10
add bridge=bridge ingress-filtering=no interface=ether3 internal-path-cost=10 path-cost=10
add bridge=bridge ingress-filtering=no interface=ether4 internal-path-cost=10 path-cost=10
add bridge=bridge.vlan10 ingress-filtering=no interface=wlan3 internal-path-cost=10 path-cost=10
add bridge=bridge.vlan10 ingress-filtering=no interface=vlan.10-TrunkPort5 internal-path-cost=10 multicast-router=disabled path-cost=10
add bridge=bridge.vlan10 ingress-filtering=no interface=vlan.10-Guest internal-path-cost=10 multicast-router=disabled path-cost=10
add bridge=bridge.vlan10 interface=vlan.10-TrunkPort4 internal-path-cost=10 path-cost=10

*
Yea this is useful. However I am still missing some context. Can please export me the whole /interface ?
I need to know how your port is physically connected as well as your vlan mapping

This post has been edited by kwss: Jan 8 2024, 01:02 AM
maxiscool
post Jan 8 2024, 07:43 AM

Casual
***
Junior Member
379 posts

Joined: Jan 2003
QUOTE(kwss @ Jan 8 2024, 12:57 AM)
Yea this is useful. However I am still missing some context. Can please export me the whole /interface ?
I need to know how your port is physically connected as well as your vlan mapping
*
I will share the export later.
This is how it is connected.

This post has been edited by maxiscool: Jan 8 2024, 07:30 PM
Quanta
post Jan 8 2024, 08:05 AM

Idiot member
******
Senior Member
1,425 posts

Joined: Jan 2003
From: Pearl 14000 + Kayangan 01000
QUOTE(kwss @ Jan 7 2024, 09:24 PM)
Did you enable or use anything in Queue?
If not, can you post your Tools > Profile when your CPU usage is 100%?

On your Address List, they are all non-routable because outside of 2000::/3.
Just drop them with route table, it's the highest performance method of doing it.
Except the documentation prefix which is a bogon anyway, you can just blackhole it with one extra route table entry.

Just curious what's the reason you added untracked to an accept rule?
Cannot see your full ruleset but seems like they are repeated twice?
*
1. Queue - yes enabled queue tree
CODE

Flags: X - disabled, I - invalid
0   name="queue-upload" parent=fromHSBB_IN packet-mark=no-mark limit-at=91M queue=fq-code1 priority=8 max-limit=100M burst-limit=101M burst-threshold=97M burst-time=5s bucket-size=0.1

1 X name="queue-download" parent=bridge packet-mark=no-mark limit-at=310M queue=fq-code1 priority=8 max-limit=350M burst-limit=400M burst-threshold=320M burst-time=8s bucket-size=0.01


2. Tools> Profile
CODE
[@MikroTik-TDM] > tool/profile
Columns: NAME, USAGE
NAME          USAGE
www           0.3%
ethernet      0.1%
console       0.5%
dns           0.3%
networking    19%
radv          0%
management    1.7%
ssl           0.3%
dhcp          0.2%
profiling     0.1%
queuing       0.3%
bridging      0.8%
unclassified  6%
total         29.6%



3. Address list from IPV6
Attached Image


4. Filter Rules are default, never add additional rules.
kwss
post Jan 8 2024, 10:01 AM

Regular
******
Senior Member
1,207 posts

Joined: Aug 2018
QUOTE(Quanta @ Jan 8 2024, 08:05 AM)
1. Queue - yes enabled queue tree
CODE

Flags: X - disabled, I - invalid
0   name="queue-upload" parent=fromHSBB_IN packet-mark=no-mark limit-at=91M queue=fq-code1 priority=8 max-limit=100M burst-limit=101M burst-threshold=97M burst-time=5s bucket-size=0.1

1 X name="queue-download" parent=bridge packet-mark=no-mark limit-at=310M queue=fq-code1 priority=8 max-limit=350M burst-limit=400M burst-threshold=320M burst-time=8s bucket-size=0.01


2. Tools> Profile
CODE
[@MikroTik-TDM] > tool/profile
Columns: NAME, USAGE
NAME          USAGE
www           0.3%
ethernet      0.1%
console       0.5%
dns           0.3%
networking    19%
radv          0%
management    1.7%
ssl           0.3%
dhcp          0.2%
profiling     0.1%
queuing       0.3%
bridging      0.8%
unclassified  6%
total         29.6%

3. Address list from IPV6
Attached Image


4. Filter Rules are default, never add additional rules.
*
Do you get higher speed if you disable all your Simple Queue and Queue Tree?

This post has been edited by kwss: Jan 8 2024, 10:04 AM
Quanta
post Jan 8 2024, 10:04 AM

Idiot member
******
Senior Member
1,425 posts

Joined: Jan 2003
From: Pearl 14000 + Kayangan 01000
QUOTE(kwss @ Jan 8 2024, 10:01 AM)
Do you get higher speed if you disable all your Queue?
*
same lingering around 300-350Mbps after disabling all filter rules, address lists
kwss
post Jan 8 2024, 10:06 AM

Regular
******
Senior Member
1,207 posts

Joined: Aug 2018
QUOTE(Quanta @ Jan 8 2024, 10:04 AM)
same lingering around 300-350Mbps after disabling all filter rules, address lists
*
I updated my post after you post.
I mean Simple Queue and Queue Tree.
I am no longer seeing firewall anywhere in the Profile and it's not using 100% CPU anymore
OlgaC4
post Jan 8 2024, 10:14 AM

Look at all my stars!!
*******
Senior Member
5,292 posts

Joined: Nov 2006
Some old mikrotik device does have bug when update to the latest Ros.
kwss
post Jan 8 2024, 10:14 AM

Regular
******
Senior Member
1,207 posts

Joined: Aug 2018
QUOTE(maxiscool @ Jan 8 2024, 07:43 AM)
I will share the export later.
This is how it is connected.
*
Can I have the export of /interface?

I am trying to make sense of your diagram. Where you connect your IPTV?
Can I have the reason why you want to trunk 500 and 600 into your switch if your Unifi comes in from Port 1 and your router actually does the PPPoE and all?
maxiscool
post Jan 8 2024, 07:40 PM

Casual
***
Junior Member
379 posts

Joined: Jan 2003
QUOTE(kwss @ Jan 8 2024, 10:14 AM)
Can I have the export of /interface?

I am trying to make sense of your diagram. Where you connect your IPTV?
Can I have the reason why you want to trunk 500 and 600 into your switch if your Unifi comes in from Port 1 and your router actually does the PPPoE and all?
*
Update the diagram. The 500 actually is just for trunk the Internet to the switch, Unifi TV box is connected to the switch that is why 500 & 600 is trunk
See if this is what you looking for?

CODE

/interface bridge
add name=UniFi-IPTV port-cost-mode=short
add admin-mac=XX:XX:XX:XX:XX:XX auto-mac=no comment=defconf name=bridge \
   port-cost-mode=short
add name=bridge.vlan10 port-cost-mode=short
/interface ethernet
set [ find default-name=ether2 ] name=ether2-master
/interface vlan
add interface=ether4 name=vlan.10-TrunkPort4 vlan-id=10
add interface=ether5 name=vlan.10-TrunkPort5 vlan-id=10
add interface=ether1 name=vlan.500 vlan-id=500
add interface=ether5 name=vlan.500-TrunkPort5 vlan-id=500
add interface=ether1 name=vlan.600 vlan-id=600
add interface=ether5 name=vlan.600-TrunkPort5 vlan-id=600
/interface pppoe-client
add add-default-route=yes default-route-distance=0 disabled=no interface=vlan.500 name=UniFi-Internet user=username@unifi
kwss
post Jan 9 2024, 03:28 AM

Regular
******
Senior Member
1,207 posts

Joined: Aug 2018
QUOTE(maxiscool @ Jan 8 2024, 07:40 PM)
Update the diagram. The 500 actually is just for trunk the Internet to the switch, Unifi TV box is connected to the switch that is why 500 & 600 is trunk
See if this is what you looking for?

CODE

/interface bridge
add name=UniFi-IPTV port-cost-mode=short
add admin-mac=XX:XX:XX:XX:XX:XX auto-mac=no comment=defconf name=bridge \
   port-cost-mode=short
add name=bridge.vlan10 port-cost-mode=short
/interface ethernet
set [ find default-name=ether2 ] name=ether2-master
/interface vlan
add interface=ether4 name=vlan.10-TrunkPort4 vlan-id=10
add interface=ether5 name=vlan.10-TrunkPort5 vlan-id=10
add interface=ether1 name=vlan.500 vlan-id=500
add interface=ether5 name=vlan.500-TrunkPort5 vlan-id=500
add interface=ether1 name=vlan.600 vlan-id=600
add interface=ether5 name=vlan.600-TrunkPort5 vlan-id=600
/interface pppoe-client
add add-default-route=yes default-route-distance=0 disabled=no interface=vlan.500 name=UniFi-Internet user=username@unifi


*
OK, I have to give you the credit for hacking things together when what you described won't work in the first place.
I also want to rant how shitty Mikrotik config is. They are a hard to read and untangle.
Nokia and Juniper are great. Cisco is already kind of bad but Mikrotik is at the bottom of all.

Let's go into the errors you made.
You bridge IPTV into the native VLAN on port 5. You also bridge it to VLAN 600 on port 5. So all the BUM traffic flow twice into port 5 to your switch. Since IPTV hijaack your native VLAN on the port to your switch, you will never get Internet... ever! On top of that you have traffic flooding twice into the port towards your switch.

You proceed to hack around the situation by bridging VLAN 500 into your main bridge. Now you trunk VLAN 500 into your switch and you get Internet. But what you just did is bridge the interface meant for PPPoE into your main VLAN. Now everything meant for your local network get sent to TM.
All the traffic end up in the PPPoE interface, get sent to VLAN 500, and loopback into your LAN, get sent to PPPoE interface again. Over and over again.

So from here onward, do you want to take this as an exercise and fix it yourself? Or I point to you what to modify?
maxiscool
post Jan 9 2024, 06:16 AM

Casual
***
Junior Member
379 posts

Joined: Jan 2003
QUOTE(kwss @ Jan 9 2024, 03:28 AM)
OK, I have to give you the credit for hacking things together when what you described won't work in the first place.
I also want to rant how shitty Mikrotik config is. They are a hard to read and untangle.
Nokia and Juniper are great. Cisco is already kind of bad but Mikrotik is at the bottom of all.

Let's go into the errors you made.
You bridge IPTV into the native VLAN on port 5. You also bridge it to VLAN 600 on port 5. So all the BUM traffic flow twice into port 5 to your switch. Since IPTV hijaack your native VLAN on the port to your switch, you will never get Internet... ever! On top of that you have traffic flooding twice into the port towards your switch.

You proceed to hack around the situation by bridging VLAN 500 into your main bridge. Now you trunk VLAN 500 into your switch and you get Internet. But what you just did is bridge the interface meant for PPPoE into your main VLAN. Now everything meant for your local network get sent to TM.
All the traffic end up in the PPPoE interface, get sent to VLAN 500, and loopback into your LAN, get sent to PPPoE interface again. Over and over again.

So from here onward, do you want to take this as an exercise and fix it yourself? Or I point to you what to modify?
*
Yeah, could you please help to change things for the right way?
kwss
post Jan 9 2024, 09:51 AM

Regular
******
Senior Member
1,207 posts

Joined: Aug 2018
QUOTE(maxiscool @ Jan 9 2024, 06:16 AM)
Yeah, could you please help to change things for the right way?
*
In Bridge > Ports, remove "UniFi-IPTV" bridge with interface "ether5".

In Bridge > Ports, remove "bridge" with interface "vlan.500-TrunkPort5".
Add bridge=bridge with interface=ether5.
In Interfaces > VLAN. Remove "vlan.500-TrunkPort5".
In your switch, remove vlan 500. You Internet now should works on untagged interface.

Finally review all your "bridge.vlan10". I don't know if they are intended but some have changed ingress-filtering and multicast-router disabled.
I did not lab this out but it should work.
soonwai
post Jan 9 2024, 01:00 PM


********
All Stars
11,455 posts

Joined: Oct 2007
From: KL
QUOTE(maxiscool @ Jan 8 2024, 07:40 PM)
Update the diagram. The 500 actually is just for trunk the Internet to the switch, Unifi TV box is connected to the switch that is why 500 & 600 is trunk
See if this is what you looking for?
...
Attached Image
*
Cool. Your setup same as mine. Except I use number 50 for LAN. Had to trunk UnifiTV cause I only put in one cable to the living room.

This post has been edited by soonwai: Jan 9 2024, 01:02 PM
« Next Oldest · Networks and Broadband · Next Newest »


175 Pages « < 151 152 153 154 155 > » Top
Add ReplyOptions


Change to:
| Lo-Fi Version
 0.0204sec    0.40    6 queries    GZIP Disabled
Time is now: 29th November 2025 - 08:30 PM
All Rights Reserved © 2002- 2025 Vijandren Ramadass (~unite against racism~)
Removal Request
Powered by Invision Power Board © 2025  IPS, Inc.
