Hi . . . this is my rig, tried my best to sort the cables . . . there are really nice cale management in this forum and tried to follow, haha . . . advices and comments appreciated (forgot bout the cpu and cooler, Gpower pro) sweat.gif Using cm elite 330 only.


Attached thumbnail(s)
Attached Image
hermit23
post Jan 17 2008, 12:52 PM

Zoom - Zoom
****
Senior Member
699 posts

Joined: Jun 2007
From: Malacca / K. Lumpur
Haha, thanks fo the advice notworthy.gif , . . . will go check out the hardware store then.
hermit23
post Jan 18 2008, 05:33 AM

Zoom - Zoom
****
Senior Member
699 posts

Joined: Jun 2007
From: Malacca / K. Lumpur
QUOTE(longpants @ Jan 17 2008, 11:32 PM)
Nice one you got there. I am using the same casing as yours. Better than my cable management. NICE JOB! rclxms.gif  thumbup.gif  thumbup.gif

Anyway, the ram you got there right, is it running on dual channel. I thought running dual channel must be same colour slot?
*
haha, thank you . . . notworthy.gif lack of hardware so easier manage. The ram is dual channel, i also thought must be same colour but the mobo manual K9A2-CF say put in slot 1, 2 or 3, 4 for dual channel but it does run on dual now. Thanks for the concern though, haha.
hermit23
post Feb 28 2008, 02:02 PM

Zoom - Zoom
****
Senior Member
699 posts

Joined: Jun 2007
From: Malacca / K. Lumpur
got my cm 690 casing at last . . . too many fans, too many wires sweat.gif , plz comment . . . thanks
p/s: pic took woth crap 1.3 phone so not clear doh.gif

Attached Image
Attached Image
hermit23
post Feb 29 2008, 12:30 AM

Zoom - Zoom
****
Senior Member
699 posts

Joined: Jun 2007
From: Malacca / K. Lumpur
QUOTE(zubai @ Feb 28 2008, 08:14 PM)
» Click to show Spoiler - click again to hide... «

U could remove the blower and turn the psu upside down. The psu fan is far efficient that the blower. Here's mine.. A bit messy as u can see sweat.gif

[attachmentid=406819]
*
hehe . . . nice idea . . . but cant do it for now, using short cable psu, its already stretching full to reach proc 4-pin, thanks for idea though notworthy.gif
hermit23
post May 1 2008, 02:01 PM

Zoom - Zoom
****
Senior Member
699 posts

Joined: Jun 2007
From: Malacca / K. Lumpur
@StratOS

u could try getting a cable extension to re-route through the mobo tray . . . i nearly bought the same mushkin sweat.gif but decided on the same RahXeph0n's psu instead, luckily. laugh.gif
hermit23
post May 2 2008, 04:09 PM

Zoom - Zoom
****
Senior Member
699 posts

Joined: Jun 2007
From: Malacca / K. Lumpur
QUOTE(StratOS @ May 2 2008, 11:38 AM)
ordering the extention from lehteck lo.. haha.. then recable again..additional 15cm is more than enough i hope..
*
haha, 15 cm should be more than enough thumbup.gif . . . have fun re-routing all the cables tongue.gif
hermit23
post May 4 2008, 11:39 PM

Zoom - Zoom
****
Senior Member
699 posts

Joined: Jun 2007
From: Malacca / K. Lumpur
nice modding done rclxms.gif . . . u did ur own? Well u could sleeve the cables to make it look neater, otherwise . . . NICE. thumbup.gif
hermit23
post May 5 2008, 12:30 AM

Zoom - Zoom
****
Senior Member
699 posts

Joined: Jun 2007
From: Malacca / K. Lumpur
QUOTE(arjuna_mfna @ May 5 2008, 12:06 AM)
yup mode by my own... i don't know to sleeve the psu.. but will do some modification letter... wanna hide all the cable
*
you really did a nice job . . . how did u put the acrylic? U can learn from uglyvamp's guide to PSU sleeving.
hermit23
post May 7 2008, 12:17 AM

Zoom - Zoom
****
Senior Member
699 posts

Joined: Jun 2007
From: Malacca / K. Lumpur
Hows my cable managment tongue.gif . Look' like im in the same shoe as StratOS sweat.gif . Sooo . . . is Lehteck back doh.gif .Ok i was just testing to see if the cable reaches, and the end result hmm.gif . . . IT DOESN'T vmad.gif

Darn short cables and horribly placed cpu power pin. yawn.gif
Attached Image

Attached Image

Someone ripped off the top. doh.gif
Attached Image

This post has been edited by hermit23: May 7 2008, 12:24 AM
hermit23
post May 7 2008, 06:45 AM

Zoom - Zoom
****
Senior Member
699 posts

Joined: Jun 2007
From: Malacca / K. Lumpur
QUOTE(xk2 @ May 7 2008, 01:26 AM)
not very kemas,hihi
*

Added on May 7, 2008, 6:47 am
QUOTE(mfcm @ May 7 2008, 02:57 AM)
@hermit
the 4/8pin atx cannot route under ur mobo ah?
*
Under the mobo? hmm.gif U mean the cable will be in between te mobo n casing? Nvr thought of that but can try. laugh.gif

Added on May 7, 2008, 6:52 am
QUOTE(pmmonkey @ May 7 2008, 03:40 AM)
Hmm... I see many users for this casing despite the position of the psu which cause difficulties in cable management.

The 4/8pin atx seems thick, nonetheless still can be done. Since sleeving looked loose, can probably flatten it abit.

Another choice is to slip it into the hole between the graphics card and the mobo. There should be a hole there after the pcie slot.

Btw, can the psu be turned 180degrees so that the cables are towards the inside?
*
Are there any possibilities of short circuit if i route it behind the mobo? Yes the sleeving's are loose in a way.The cables r pretty close to the mobo already, if its turned 180degrees, it wouldnt be secured to the casing . . . not to mention the heat will be trapped. laugh.gif

This post has been edited by hermit23: May 7 2008, 06:52 AM
hermit23
post May 7 2008, 08:38 PM

Zoom - Zoom
****
Senior Member
699 posts

Joined: Jun 2007
From: Malacca / K. Lumpur
@RahXeph0n
Ur cables are really organised rclxms.gif .Ur cpu power pin is just below the hole above right, the problem wit my mobo is the pin is far left from the hole . . . haha laugh.gif . Guess ill try mfcm way 1st.
hermit23
post May 23 2008, 12:14 AM

Zoom - Zoom
****
Senior Member
699 posts

Joined: Jun 2007
From: Malacca / K. Lumpur

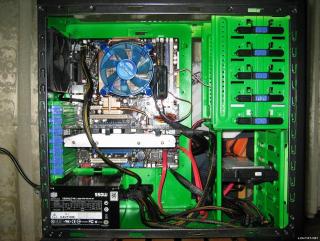

ive routed my cables again . . . not as bad as last time right?

before:
Attached Image

after:

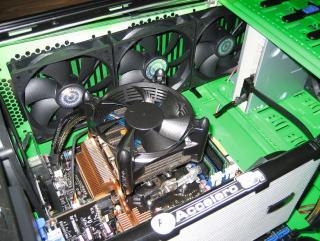

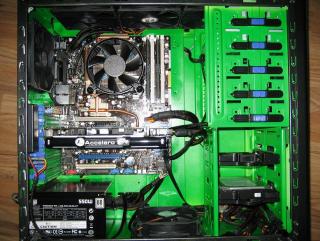

Attached Image

Attached Image

sata cables a little too short, bought wrongly from uglyvamps bulk, nvr see it 30 cm sweat.gif

hermit23
post May 23 2008, 12:24 AM

Zoom - Zoom
****
Senior Member
699 posts

Joined: Jun 2007
From: Malacca / K. Lumpur
QUOTE(Aquariusdenz @ May 23 2008, 12:19 AM)
dude you add in 3 more 120mm fan on the top isit?
*
ya i modded it a little to put 3 fans.
hermit23
post May 23 2008, 12:50 PM

Zoom - Zoom
****
Senior Member
699 posts

Joined: Jun 2007
From: Malacca / K. Lumpur
QUOTE(Doom @ May 23 2008, 10:15 AM)
wah .. 3 exhaust top fans ...

is that necessary brows.gif

hmm the only downside is the bunch of cables chucked in the HDD cage ..

but unfortunately there's no other place to hide it ...
*
not really necessary actually . . . just for the sake for being too bored. The cables . . . nvr planned to put it there, but it will involve lots of taping to hide it behind the mobo tray. rclxub.gif
hermit23
post May 24 2008, 09:24 AM

Zoom - Zoom
****
Senior Member
699 posts

Joined: Jun 2007
From: Malacca / K. Lumpur
QUOTE(Federer @ May 24 2008, 08:53 AM)
A question here. The thing that looks like a net to tie/fold the cables, where can i get it?
*
u mean those black netting that covers the wires . . . those are called sleeves, u can get it from garage sales either xcoolpc, nichleosteoh . . . etc.
hermit23
post Jun 10 2008, 11:15 PM

Zoom - Zoom
****
Senior Member
699 posts

Joined: Jun 2007
From: Malacca / K. Lumpur
@adioz88
i really notworthy.gif u, so darn neat, usually this kind of fuse boxes r in a mess like spider web. Where as urs is thumbup.gif .Haha.
