Picture of nice cable management.., - Post ur pics. No cacings pls
|
|
 Feb 27 2006, 11:34 PM
Return to original view | Post
#1
|

Senior Member
899 posts Joined: Mar 2005 From: Klang
|
QUOTE(ikan_semilang @ Sep 25 2005, 01:16 AM) Not mine Nice case  Lian Li PC-60APlus    can show more of this rig..im using this abit mobo too...need2 noe more on how2 manage the messy cable |
|
|
|
|
|
Apr 24 2007, 11:14 PM
Return to original view | Post
#2
|
|
Senior Member
899 posts Joined: Mar 2005 From: Klang
|
QUOTE(akachester @ Apr 24 2007, 10:26 PM) » Click to show Spoiler - click again to hide... «  Btw, u can try fold the ide cable to route under ur mobo or put sound insulation |
|
|
May 6 2007, 10:09 PM
Return to original view | Post
#3
|
|
Senior Member
899 posts Joined: Mar 2005 From: Klang
|
@serez
U can hv ur hdd put facing the intake fan, and keep all the cable at the side and it sure would looks nicer |
|
|
May 6 2007, 10:42 PM
Return to original view | Post
#4
|
|
Senior Member
899 posts Joined: Mar 2005 From: Klang
|
QUOTE(serez @ May 6 2007, 10:20 PM) i don`t think so bro coz the gap between the fan and the hdd socket is too close. i`m worried if the wires will crush up with fan blades Hv u try to move the hdd cage like 1 in G7 ar? will work it out later after i buy other ide and sata cable. |
|
|
May 6 2007, 11:42 PM
Return to original view | Post
#5
|
|
Senior Member
899 posts Joined: Mar 2005 From: Klang
|
QUOTE(Doom @ May 6 2007, 11:02 PM) hah?? that's totally different HDD cage ..it faced different direction... can it be done without too much of modification ...??? Duno la..i asked billy he said can 1 what about the cooling performance.. ?? won't it be restricted as the holes aren't that much compared to G7 Hdd Cage..  |
|
|
May 7 2007, 09:32 AM
Return to original view | Post
#6
|
|
Senior Member
899 posts Joined: Mar 2005 From: Klang
|
QUOTE(serez @ May 7 2007, 12:12 AM) yup that`s right. g7 hdd cage have much and bigger holes for air-direction compare to pc-007. look for the direction of placement. i think that`s not a good idea.. btw i think i get an idea. how about i just move the hdd a bit and i just screw 2 holes. add fangrill summore will help i think. thanks Doom but the problem is.. i don`t have extra 120mm fangrill! 007 comes with 2 fan grill, no?   |
|
|
|
|
|
May 15 2007, 10:17 PM
Return to original view | Post
#7
|
|
Senior Member
899 posts Joined: Mar 2005 From: Klang
|
QUOTE(Doom @ May 15 2007, 10:10 PM) If that's the case then u have to get a third party cooler for replacement of stock cooler .. hahah When you going2 post picture with your 2900XT? Anyway used to use 8800GTS and u could set the fan speed not to go up to maximun during gaming ... It's not neccessary to have it spin to the max ....  |
|
|
May 16 2007, 10:56 PM
Return to original view | Post
#8
|
|
Senior Member
899 posts Joined: Mar 2005 From: Klang
|
That 1 in xeda case is white ccfl
As for the audio enable CCFL, u can get the from LYP, or get the inverter  |
|
|
Aug 20 2007, 08:22 PM
Return to original view | Post
#9
|
|
Senior Member
899 posts Joined: Mar 2005 From: Klang
|
hey madman, can post more pics? now i like kena poison from LLg7 to this LL 007 ar
 |
|
|
Nov 5 2007, 12:39 AM
Return to original view | Post
#10
|
|
Senior Member
899 posts Joined: Mar 2005 From: Klang
|
U can try move ur ROM to the top area there, and fold the IDE cable to behind ur motherboard
Also u can fold the 4pin cable beneaf the area of ur psu |
|
|
Nov 15 2007, 10:34 PM
Return to original view | Post
#11
|
|
Senior Member
899 posts Joined: Mar 2005 From: Klang
|

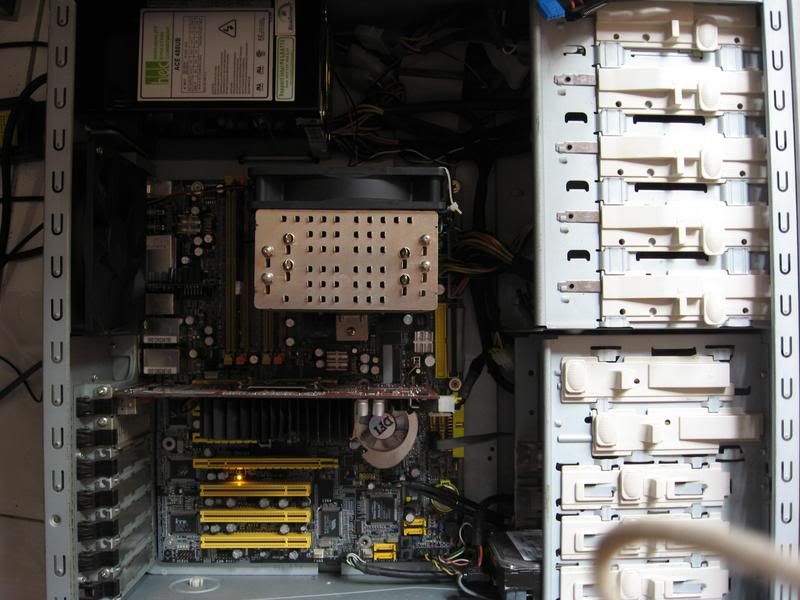

 My CM5 with DFI board |
|
|
Nov 16 2007, 04:09 PM
Return to original view | Post
#12
|
|
Senior Member
899 posts Joined: Mar 2005 From: Klang
|
QUOTE(Zangetsu @ Nov 16 2007, 12:55 AM) so simple but nice Thanks QUOTE(mADmAN @ Nov 16 2007, 03:46 AM) the top area (the dark area) looks like its very messy la bro.... Yea man, too many cables there, maybe wanna case or maybe modular PSUQUOTE(qwerty79 @ Nov 16 2007, 04:01 PM) @Zicron Nope, my hsf is sucking hot air from gc, blowing it at my psu From the picture, I see that your hsf blow hot air to your gc. Is it? |
|
|
Mar 20 2008, 06:26 PM
Return to original view | Post
#13
|
|
Senior Member
899 posts Joined: Mar 2005 From: Klang
|
QUOTE(victor1987 @ Mar 20 2008, 05:49 AM) my attempt... Very nice job, 1 of the best C5 cable management i've ever seen.» Click to show Spoiler - click again to hide... « Btw, having cables route thru beside psu wont damge the cable? |
|
|
Apr 7 2008, 10:06 PM
Return to original view | Post
#14
|
|
Senior Member
899 posts Joined: Mar 2005 From: Klang
|
QUOTE(ccy1989 @ Apr 7 2008, 09:03 PM) Here's mine : If possible, try to give the other cable sleeving, it would look nicer.» Click to show Spoiler - click again to hide... « p/s : Sorry for my noobness of cable of management Ever though of change the IDE to SATA? |
|
