Need your advices for structure issue.


Attached thumbnail(s)

if u're thinking to remove the pillar, check first if there got any beam juz above the pillar and at the top.
judge the strength by measuring thickness of the beam supporting and beam holding.
if its sufficient then u can remove the supporting pillar
if not its better not to remove it coz it may cause the structure to collapsed in future.

the thickness of the beam is the whole thing on top of the pillar. i dunno enough or not.

With limited information, I would be wary with any advice given.
You should provide at least the following info for anyone to give a general advise.
1. What are you planning to place on top of the beam?
2. What is the spacing between the next 2 supporting columns on the same beam?
Best if a site inspection is done to verify any assumptions.

i doubt that... u can try to hack a smal area above the pillar to the top till the bricks are visible enuf
then u will see how thick the beam supporting n beam holding
in between em is juz wall of brick

haha..ya i know very hard for someone to comment here.

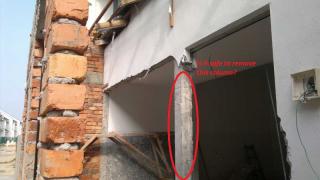

this is for kitchen extension, but got this pillar block in the middle. so ask if anyone know it is safe to hack it off?

the distance from the wall to pillar about 11 ft and then another 5ft to toilet wall as shown on pic.

This post has been edited by kh8668: Aug 17 2011, 09:57 PM

There is a reason for the pillar build there. To support the roof weight.

Is better build one on the side, not too far toward the end, maybe 5 feet, enough to open the door. Or on the end on your extension, build 2 pillar, add two beam from the pillar to support it. You need to connect the BRC

What every is it, is your own house, better consult structure engineer.

I'll pay bit more for the comfort of safety.

check if the column is a load bearing coulmn..
how?

hack a very lil bit of the column... if u see a rebar/steel.. that means the collumn is there for a purposed..to support load from above.... my 2cent advice, do not remove it...because in engineering..everything is there for a purpose...

if there is no rebar...most likely the said collumn is only a stiffener to hold the existing brick walls ...
edit:typo

This post has been edited by Lord_darkslide: Aug 17 2011, 10:02 PM

sorry but what is rebar?

i got another pic from other house to show at below. this house even hack off part of the beam.



This post has been edited by kh8668: Aug 17 2011, 10:04 PM

Looking at the picture, the thickness of the pillar it should be a load bearing. If remove, and coincident your neighbor knock the side pillar... PiPa... all fall.

---

Added on August 17, 2011, 10:06 pmWow, you remove everything, this is reinforce concrete. Rebar is use for load bearing and supporting weight. Do you have anything above? Can collapse anytime.

This post has been edited by weikee: Aug 17 2011, 10:06 PM

^ OH M G.....there is a 3x15 beam ther u just hacked

rebar is teh steel u see there... it is use to make a beam stronger to support a load....

from the look of it... u just F'ed up the beams for your 2nd floor.. because u have just demolished the supporting beam... ur 2nd floor structure is compromised..from the look of it....

[quote=weikee,Aug 17 2011, 10:03 PM]


on top of it are two toilets.

it seems that the beam support the two toilets slab, and I dunno whether the pillar is a must to support the beam or can just remove it..

Wow... so daring. May I ask do you have a proper contractor?

lol..the contractor is not recommending to hack any part of the beam but this one as per requested by house owner.

my concern is whether the pillar can be removed? i can just let the beam as is where is basic but the pillar... ....

last 1 cent advice from me....

dont do like ur neighbour did... the collumn is a load bearing collumn...to be safe, do not demolish it... although above is "just" a toilet...but load distribution of all the 2nd floor and structure integrity works like a net... take a chunk off...and the structure is compromised...



This post has been edited by Lord_darkslide: Aug 17 2011, 10:14 PM

pillar can be removed, but must make sure first the beam strong enuf and can support the loads

Column acts like our feet with sole purpose transferring load to the ground & foundation..U have your house drawings? might as well study it first. U don't want your house to collapse.

opps..i only have architectural floor plan but not structure floor plan.

Now people are just rebuilding for the sake of "nice". Safety is really the main thing before doing anything. Please consult engineer.

yeah..i need advice from structure engineers.
