Hi sifu, the aim I post this topic cause I want to know more about LOD and can't find a topic about LOD in LYN forum.

The aim of using LOD are:
1. to bypass the internal amp (LOD to 3.5 TRS Male Audio Jack type) utilise internal DAC but bypass internal Amp so get raw Analog signal prevent double amping.
2. to bypass the internal DAC (LOD to USB 2.0 type A Male Jack type) another external amp require. Total 3 device: audio player, DAC, Amp.

Currently available on:

1. Apple 30-pin dock connector (LOD), iPod and all iDevice (iPad and iPhone)



2. Sony digital media port (18 pin), Walkman® Video MP3 player


3. San Disk Sansa LOD (30 pin), Sansa Fuze


This is 3.5 TRS Male Audio Jack to 3.5 TRS Male Audio Jack are universal but it will be double amping. DAC to Amp also need this type cable.

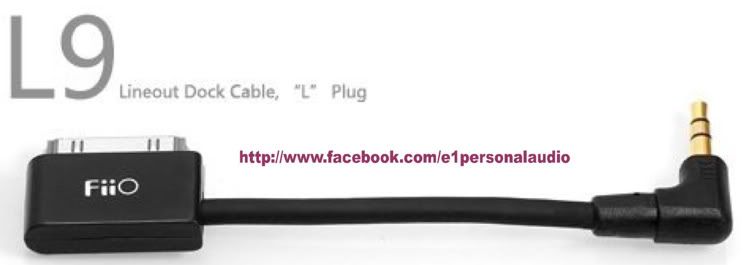

With this Apple LOD to 3.5 female jack can use above cable or better custom (silver/gold) cable


This is the Sony LOD to 3.5 female jack.


This is the Sansa LOD to 3.5 female jack.

This post has been edited by wkkm007: Sep 18 2011, 03:55 PM

LOD website:
Fiio Cable - http://www.fiio.com.cn/product/index.aspx?ID=3&MenuID=020303
Everything Fiio Fan Clubs, Practical-Convenient-Creative-Reliable
http://forum.lowyat.net/index.php?act=ST&f...0#entry45408761
alo AUDIO - http://aloaudio.com/imod/ipod-iphone-ipad-cables/
ibasso - http://www.ibasso.com/en/products/index.asp?type_one_id=20

---

Added on
I think this new type of dock connector PDMI http://en.wikipedia.org/wiki/PDMI and it might get LOD soon. Now using by Samsung Galaxy Tab. It has been developed by CEA (Consumer Electronics Association). It is possible Micro USB get Line Out Dock?

This post has been edited by wkkm007: Sep 18 2011, 02:15 PM

http://www.fiio.com.cn/product/index.aspx?...1&MenuID=020303 haha all can be found here. Bro, will u bring in the Sony and Sansa LOD? I remember last time in a post that u say Fiio don't have Sansa LOD. Maybe that time Fiio haven't come out this such good product .

I don't own Sansa but I know some LYN audiophiles using Sansa.

Bro, mind to share some of ur LOD pic?

---

Added on July 30, 2011, 1:36 pmLOD to 3.5 female jack can't plug headphone directly cause without amping rite? U all guy can tell me about (I mean the brand) performance LOD to 3.5 female jack Eg: contain good capacitor. So that I can post the pic @ 1st post. Went I 1st time saw this LOD I think is HDMI jack

The black cable (normal/oem like) and twist cable (performance/custom like) what is the different? Bak kata pepatah inggeris 'Don't judge a book by its cover'

---

Added on July 30, 2011, 1:39 pmU mean this ah? http://aloaudio.com/imod/ipod-iphone-ipad-cables/

This post has been edited by wkkm007: Jul 30 2011, 01:51 PM

Wow even LOD to RCA also got walau.

---

Added on July 30, 2011, 2:06 pm
This look no so pro. I doubt on the SQ. To provide power via Mini usb, the 3.5 jack cap sure smaller size.

This post has been edited by wkkm007: Jul 30 2011, 02:06 PM

iPod Dock with caps wow.

This post has been edited by wkkm007: Aug 12 2011, 12:51 AM

http://pdadb.net/index.php?m=pdacomparer&id1=3011&id2=2633 here is the Galaxy S Wifi spec from pdadb. Galaxy S Wifi don't using PDMI found on Galaxy Tab 7.0. Galaxy S Wifi use B type Micro-USB connector found in commonly on all android phone and new model of BB. Samsung put PDMI on Galaxy Tab 7.0 cause they want to make dock keyboard for it. For small PMP motherboard have limited space so they prefer Micro USB.

---

Added on July 31, 2011, 12:10 pmTnx bro, for sharing the LOD with 3.5 female jack direct plug will damage your hearing and your headphone. Amp not only amplify analog signal must have variable resistor to control volume due to bypass internal volume controller.

---

Added on July 31, 2011, 12:18 pmThe ori Galaxy Tab 7.0 AV cable SQ vs ALO LOD to RCA cable no fight bro light weight cham vs heavy weight cham. AV cable die terus Haha.

This post has been edited by wkkm007: Jul 31 2011, 05:12 PM

The volume control bar hide when LOD plug in.

This post has been edited by wkkm007: Jul 31 2011, 05:08 PM

?? what SHADOW?

Should make a list of LOD maker and their website on post no.2?

Hmm... inside got what kind of serious audio chip make it worth that price? I am wondering?

This post has been edited by wkkm007: Aug 1 2011, 11:58 AM

I thinking that I am a bad thread stater cause I no pro in LOD

This post has been edited by wkkm007: Aug 1 2011, 05:23 PM

hooray

---

Added on August 2, 2011, 6:52 ammax 9 photo per post I want to add another pic on the 1st post.

---

Added on August 2, 2011, 3:55 pmHow does the black cable inside look? The expensive high end LOD with cross/twist cable it is thicker beside it make of silver/gold?

This post has been edited by wkkm007: Aug 2 2011, 03:55 PM

Today gold naik harga so will effect gold LOD cable and other gold cable?

Can this thread to be Pinned?

This post has been edited by wkkm007: Sep 2 2011, 09:26 PM

This LOD cable utilise/adapt the Dock speaker function without dock just using a cable. Am I right?

OK I got it How can I request to Pin this thread?

Ok

---

Added on September 18, 2011, 4:36 pmBeside iPod, Sony, Sansa are there DAP/PMP with LOD?

This post has been edited by wkkm007: Sep 18 2011, 04:36 PM
