 Mechanical Keyboard Club V3, For Gamers and Typist Enthusiasts

views

TSCyclonechuah
post Jun 22 2011, 08:15 PM, updated 12y ago

(  ̄ c ̄)=c |。◕‿‿◕。|
******
Senior Member
1,726 posts

Joined: Oct 2007
From: Taiping Perak



Mechanical Keyboard Club is v3 Now! Keep On Rolling! rclxm9.gif rclxm9.gif
Special Thanks and Credits To Moogle Stilzkin for Creating The Mechanical Keyboard Club.

First Thread V1:
QUOTE

Thread V2:
QUOTE


Anyone that wished to learn about Mechanical Keyboard can head over to The Ultimate Mechanical Keyboard Guide


Added on
Note : All Credits(Everything Including Picture) In This Part Belongs To List Of Users On Below
Credit:
Original Guide Created by Manyak on OCN
Frequent Update on Original Guide by Tator Tot on OCN
Alps Section thanks to ch_123 on OCN
Pictures of Switches in action are thanks to Lethal Squirrel on Geekhack
Pictures of Keycaps thanks to Ripster on OCN & Geekhack
Source : http://www.overclock.net/keyboards/491752-mechanical-keyboard-guide.html

Some of you guys might interested to know what's the difference between a membrane keyboard and a mechanical keyboard, well, the most important part that is easily noticeable would be the key switch. I'll provide some Image for better explanation, since they are better and easier to understand.

Membrane Keyboard Switches(Information taken from Wikipedia Membrane Keyboard)
Mostly Consist of 2 Types, One Rubber Dome And the other Scissor Switch.
Dome-switch
Attached ImageAttached Image
    Dome switch keyboards are a hybrid of flat-panel membrane and mechanical keyboards. They bring two circuit board traces together under a rubber or silicone keypad using either metal "dome" switches or polyester formed domes. The metal dome switches are formed pieces of stainless steel that, when compressed, give the user a crisp, positive tactile feedback. These metal types of dome switches are very common, are usually reliable to over 5 million cycles, and can be plated in either nickel, silver or gold. The rubber dome switches, most commonly referred to as polydomes, are formed polyester domes where the inside bubble is coated in graphite. While polydomes are typically cheaper than metal domes, they lack the crisp snap of the metal domes, and usually have a lower life specification. Polydomes are considered very quiet, but purists tend to find them "mushy" because the collapsing dome does not provide as much positive response as metal domes. For either metal or polydomes, when a key is pressed, it collapses the dome, which connects the two circuit traces and completes the connection to enter the character. The pattern on the PC board is often gold-plated.


Attached Image
Dome-switch in Action
    Both are common switch technologies used in mass market keyboards today. This type of switch technology happens to be most commonly used in handheld controllers, mobile phones, automotive, consumer electronics and medical devices. Dome switch keyboards are also called direct-switch keyboards.

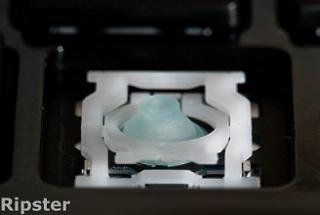

Scissor-switch
Attached Image
    A special case of the computer keyboard dome-switch is the scissor-switch. The keys are attached to the keyboard via two plastic pieces that interlock in a "scissor"-like fashion, and snap to the keyboard and the key. It still uses rubber domes, but a special plastic 'scissors' mechanism links the keycap to a plunger that depresses the rubber dome with a much shorter travel than the typical rubber dome keyboard. Typically scissor-switch keyboards also employ 3-layer membranes as the electrical component of the switch. These stabilizing scissor-like devices extend the lifespan of the membrane to as much as 10 million keystrokes. They also usually have a shorter total key travel distance (2 mm instead of 3.5 – 4 mm for standard dome-switch keyswitches). This type of keyswitch is often found on the built-in keyboards on laptops and keyboards marketed as 'low-profile'. These keyboards are generally quiet and the keys require little force to press.


Attached Image
Scissor-switch in Action
    Scissor-switch keyboards are typically slightly more expensive. They are harder to clean (due to the limited movement of the keys and their multiple attachment points) but also less likely to get debris in them as the gaps between the keys are often less (as there is no need for extra room to allow for the 'wiggle' in the key as you would find on a membrane keyboard).



Mechanical Keyboard Switches
Introduction - A Switch is Not "Just a Switch"
    Many people ask for recommendations about switches without knowing exactly what they are looking for, but instead only with an idea of what their needs are. Fortunately, this is not always a problem because most mechanical switches will always feel nicer than rubber domes. However, the final choice is very important because a switch is not just a switch; it is the heart of what makes your keyboard have its feel and your personal tastes can make or break a keyboard for your uses. If you don't like the switch when you type on it, most likely, you won't ever like the keyboard.

    Switches are generally rated by force using the weight measurement of Grams (g). Although force is more accurately described using Centinewtons (cN) However, 1g of weight applies about 1cN of downward force, so we can use "55g" when describing a 55cN-rated switch because that is sometimes easier to understand. For this fact; we'll use Grams as a measurement of force; though either term is correct.
Cherry MX Black Switches
Attached Image
Type: Linear Switch
Link: Datasheet
Tactile: No
Clicky: No
Actuation Force: 60g (40g-80g overall) (Force Diagram)
Key Travel: 2mm to actuation, 4mm to bottom
    Cherry MX-Black switches are linear (non-tactile) switches, these are considered one of the best switch types for gaming. When gaming, having a tactile bump does absolutely nothing because you're going to be bottoming out anyway. So these give you a very smooth feel. The actuation and release points are at the exact same position as well. So games that require a lot of double tapping become easier than on any other keyswitch. However, most people don't enjoy typing on them that much do in part, to their linear nature.
    If you're a person who tends to hit a wrong key every so often while gaming, these will be beneficial in that the high actuation force will help prevent many of those accidental presses.
Cherry MX Brown Switches
Attached Image
Type: Tactile Switch
Link: DataSheet
Tactile: Yes
Clicky: No
Actuation Force: 45g (55g Peak Force) (Force Diagram)
Key Travel: 2mm to actuation, 4mm to bottom
    Cherry MX Brown switches are considered a middle ground between typing and "gaming" switches. They have a light, tactile feel half way through the key press that lets you know the switch has activated. This gives you an indication of what you can release the switch. The switch is considered a middle ground because the reset point & actuation point are close enough together than you can "float" at that point, enabling you to double tap faster.

    As a note: this switch actually has a peak force of 55G, it is 45G at the point of actuation. This is due to the design of the Cherry switch itself.

Cherry MX Blue Switches
Attached Image
Type: Tactile & Clicky Switch
Link: DataSheet
Tactile: Yes, precise
Clicky: Yes
Actuation Force: 50g (60g Peak Force) (Force Diagram)
Key Travel: 2mm to actuation, 4mm to bottom
    Cherry MX Blue switches are the best cherry switch for typing. The tactile bump can easily be felt, and the resistance is similar to your average keyboard.

    Although many people find them just fine for gaming, some don't like the fact that the release point is above the actuation point. This can cause some trouble with double-tapping. This is usually the case with someone who has experienced other mechanical switches before hand.

    As a note: this switch actually has a peak force of 60g, it is 50g at the point of actuation. This is due to the design of the Cherry switch itself.

Cherry MX Clear Switches
Attached Image
Type: Tactile Switch
Link: DataSheet
Tactile: Yes
Clicky: No
Actuation Force: 55g (65G peak force) (Force Diagram)
Key Travel: 2mm to actuation, 4mm to bottom
    Cherry MX Clear switches have often been called "stiffer browns" though some users note that they have more of a tactile feel than browns do. This really can be a subjective topic, though this is another switch that could be considered "ballanced." The force required is comparable to most rubber dome keyboards, with a nice tactile feedback to tell you the key has actuated. These switches are harder to find on keyboards.

    As a note: this switch actually has a peak force of 65g, it is 55g at the point of actuation. This is due to the design of the Cherry switch itself.

Cherry MX Red Switches
Attached Image
Type: Linear Switch
Link: DataSheet
Tactile: No
Clicky: No
Actuation Force: 45g (Force Diagram)
Key Travel: 2mm to actuation, 4mm to bottom
    Cherry MX-Red's are another switch that can be considered a "gaming" switch. It's essentially a lighter version of the MX Black, requiring less force to actuate. Most people do not find this switch that good for typing or gaming because it is so light. This switch is hard to find; and was reported as obsolete. Though some board makers still use it for Special Edition keyboards.

Buckling Spring Keyswitches
Attached Image
Type: Tactile & Clicky Mechanical Switch
Link: Patent
Tactile: Yes, very precise
Clicky: Yes, loud
Actuation Force: 65g-70g (Force Diagram)
Key Travel: 2.3mm to actuation, 3.7mm to bottom
    Buckling springs are pretty straightforward once you see them in action. After pushing the key down a certain distance the spring buckles under pressure, causing the hammer at the bottom to hit a membrane sheet and create an electrical contact. The buckling of the spring also provides tactile feedback and a satisfying click as it hits the shaft wall. And you might also notice through the force diagrams that this is the only mechanical switch where the tactile and audible feedback correspond to the exact moment the switch actuates.

Black Alps
Attached Image
Type: Tactile Mechanical Switch
Tactile: Yes
Clicky: No
Actuation Force: Simplified 60g, Complicated 70g (Force Diagram)
Key Travel: 3.5mm
    Black Alps are one of the two most common Alps switch types. Many people do not like these switches due to the fact that they are stiff, bottom out hard, and tend to develop friction in the travel as they wear. Nonetheless, they are an improvement over most rubber dome keyboards.

    There are two different types of Black Alps switch - an older type known as the "Complicated" due to the large number of parts in the switch, and a newer type known as the "Simplified", which was manufactured by Alps and some other companies. Complicated switches are common in many older keyboards, particularly the Dell AT101W, which is a very common mechanical keyboard from the 1990s.

    The most well known Simplified Black switch is made by a company called Fukka, and was used in the ABS M1. The Fukka switch has less resistance, but many claim that it provides less solid tactility than the complicated switch.

White Alps
Attached Image
Type: Clicky & Tactile Mechanical Switch
Tactile: Yes
Clicky: Yes
Actuation Force: 60g-70g (Force Diagram)
Key Travel: 3.5mm
    White Alps are one of the most most common Alps switch types. These are far more popular than the Black switches due to more pronounced tactility, and the lower force requirements of some versions. Like the Black Alps, White Alps are much easier to bottom out on compared with other mechanical keyswitch designs.

    As with the Black switch. there are Complicated and Simplified White switches. The two most popular Simplified White switches are the Fukka and the XM. The XM is almost universally considered to be a terrible switch, it was used on some older Filco Zero models, and some vintage keyboards. The Fukka switch is quite popular, and some people prefer them over the Complicated switch. It is used on some current production Alps keyboards such as current production Filco Zeros, Matias keyboards and some others. Complicated White switches were used on some well made keyboards from the 90s such as the Northgate and Focus keyboards.

    There are also a variety of White Alps-like switches of varying quality. Some, like the SMK Monterey, are considered very pleasant to type on..

Topre Key Switches
Attached Image
Type: Tactile Capacitive Switch
Link: Patent
Tactile: Yes
Clicky: No
Actuation Force: 30g, 35g, 45g, 55g depending on model (Force Diagram)
Key Travel: 4mm
    Topre switches are somewhat of a hybrid switch, and are capacitive by nature. The Topre mechanism uses a spring underneath a rubber dome, and the depression of the spring causes a change in capacitance between the underlying capacitor pads. With this change in capacitance; the switch activates.

    Topre Switches are considered some of the finest switches available, as they offer a very enjoyable typing experience with a quieter experience compared to a Cherry MX, Alps, or Buckling Spring switch. The reason is Topre switches have the smoothest force gradient even compared to Linear switches like MX-Reds and MX-Blacks.



Added on

List Lowyat mechanical keyboard users:(listed by name followed by what keyboard brand/model they have) Credits To Moogle Stiltzkin For Creating the List.
Note : Users that wanted to have their name and keyboard added to the list, please pm me.

ABS
  1. OCN_fssbzz - ABS M1 (black ALPS)
ACER
  1. Cyclonechuah - ACER 6311-HU (ALPS switch)
Cherry
  1. THEswordmaster - Cherry G80-3494 Lycus-2 Black (Cherry mx Red)
  2. OCN_fssbzz - Cherry G80-3494 Lycus-2 (Cherry mx Red)
  3. Squarebox - Cherry G80-3494 Lycus-2 (Cherry mx Red with White Rice's geekhack custom made doubleshot abs 108 key cap set installed )
  4. Squarebox - Cherry G80-3494 (Cherry Mx Red)
  5. Squarebox - Cherry G80-1950 (Cherry Mx Brown)
  6. Squarebox - Cherry G80-8113 (Cherry Mx Clear/white)
  7. Squarebox - Cherry G80-8113 (Cherry Mx Clear/white)
  8. Squarebox - Cherry G80-11900 (Cherry Mx Black)
  9. Squarebox - Cherry G80-11900 Custom Mod (Cherry Mx Brown, Blue, Black, Red)
  10. Moogle Stiltzkin - Cherry G80-1295 HAU NKRO (Cherry mx black, very rare vintage keyboard)
Das
  1. alvin8866 - Das Ultimate
  2. OCN_fssbzz - DAS Silent Model S
  3. SSJBen - Das Model S Professional
  4. ganstream1 - Das Model S Professional
Deck Legend
Ducky
  1. Moogle Stiltzkin - Ducky DK-9008 laser etched PBT keycaps (Cherry Mx brown)
  2. Moogle Stiltzkin - Ducky DK-9008 Tiger Limited Edition (Cherry mx Brown, with a Cherry mx Clear spacebar)
  3. Cyclonechuah - Ducky DK-9008 Black On Black silkscreen abs keycaps (Cherry MX Black)
  4. OCN_fssbzz - Ducky DK-1087 (Cherry Mx brown)
  5. OCN_fssbzz - Ducky DK-9008 Special Edition Mix (black,blue,brown Cherry mx switches)
  6. cusx - Ducky DK-9008 (Cherry Mx brown)
  7. micdy - Ducky DK-9008 PBT laser etched key caps (Mixed black, blue and brown Cherry Mx switches)
  8. Squarebox - Ducky DK-9008 abs black on black (Cherry Mx blue)
  9. Sky.Live - Ducky DK-9008 ( Cherry Mx brown )
  10. Kepala Botak - Ducky DK-9008 ( Cherry Mx brown With PBT Keycaps )
  11. Xcen - Ducky DK-9008 (Cherry MX Blue with ABS blank caps.)
  12. VampHexia - Ducky DK-9008 ( Cherry Mx brown )
  13. ravewar - Ducky DK-1008L ( Cherry Mx brown )
  14. rockccf - Ducky DK-9008 ( Cherry Mx blue )
  15. angelofro - Ducky DK-9008 Tiger Limited Edition (Cherry mx Black)
  16. skincladalien - Ducky DK-1008 ( Cherry Mx Brown )
  17. kaiserreich - Ducky DK-9008 ( Cherry Mx Brown with ABS Blanks )
  18. larnelle - Ducky DK-9000 ( Cherry Mx Brown )
  19. westley0214 - Ducky DK-1008 ( Cherry Mx brown )
  20. seichirosano - Ducky DK-9000 ( Cherry Mx brown )
  21. storm88 - Ducky DK-1008 R2 ( Cherry Mx blue )
  22. guess19 - Ducky DK-9008S Shine ( Cherry Mx blue )
  23. unohoo22 - Ducky DK-9008S Shine ( Cherry Mx brown )
Filco
  1. alvin8866 - Filco Majestouch (Cherry Mx blue, with blank keys)
  2. Squarebox - Filco Majestouch "Otaku" (Cherry Mx Brown)
  3. Squarebox - Filco 2 Majestouch Tenkeyless (Cherry Mx Brown)
  4. willaw - Filco Zero (Fukkas switches)
  5. willaw - Filco Majestouch Tenkeyless (Cherry Mx Brown)
  6. Evo Fantasy - Filco Majestouch non-nkro (Cherry MX Brown)
  7. lew999999 - Filco Majestouch NKRO (Cherry MX Blue)
  8. zandara - Filco Majestouch NKRO (Cherry MX Brown)
  9. BlueBerry~ - Filco Majestouch Linear R Limited Edition (Cherry MX Red)
  10. BlueBerry~ - Filco Majestouch 2 NKRO (Cherry MX Blue)
  11. Slythape - Filco Majestouch 2 NKRO (Cherry MX Blue)
  12. kEazYc - Filco Majestouch AI FKBN104M-AI Blue (Cherry MX Brown)
  13. Slythape - Filco Majestouch 2 NKRO (Cherry MX Brown)
  14. paradis3lost - Filco Majestouch 2 NKRO (Cherry MX Blue)
  15. Volvagia356 - Filco Majestouch Ninja (Cherry MX Brown)
  16. eichi-sama - Filco Majestouch 2 NKRO (Cherry MX Brown)
  17. storm88 - Filco Majestouch NKRO (Cherry MX Blue)
  18. kianweic - Filco Majestouch 2 NKRO (Cherry MX Brown)
  19. kianweic - Filco Majestouch Linear R Limited Edition (Cherry MX Red)
  20. halllo81 - Filco Majestouch 2 Camouflage Edition (Cherry MX Brown)
  21. SheepMekk - Filco Majestouch 2 NKRO (Cherry MX Blue)
  22. 3010517 - Filco Majestouch Ninja ( Didn't Mention )
Gigabyte
  1. Ic3pRInc3sSsIcA - GK-K8000 (Cherry Mx black)
HHKB
  1. alvin8866 - Happy Hacking Keyboard Professional 2 (HHKB)
  2. PeaceCraft1989 - Happy Hacking Keyboard Professional 2 (HHKB)
  3. [Top-Gun] - HHKB
IBM
  1. willaw - IBM Model M (1988) (Buckling springs)
  2. Kaiserreich - IBM Model M 59G7980 'Lexmark' (1993) (Buckling spring)
IONE
  1. snipaboy - IONE Scorpius M10
Leopold
  1. Cyclonechuah - Leopold FC200R Tenkeyless
  2. Cyclonechuah - Leopold FC500RR/EB (Cherry MX Red)
  3. zandara - Leopold FC500RR/EB (Cherry MX Red)
  4. Semisweet - Leopold FC500R/EB (Cherry MX Brown)
  5. Semisweet - Leopold FC500R/EB (Cherry MX Brown) (not copy paste error)
  6. jinhan108 - Leopold FC500RR/EB (Cherry MX Red)
  7. Sky.Live - Leopold FC500RR/EB (Cherry MX Red)
  8. xenodon - Leopold FC500R/EB (Cherry MX Brown)
  9. xenodon - Leopold FC500RR/EB (Cherry MX Red)
  10. SkYY - Leopold FC500R/EB (Cherry MX Brown)
  11. opalotion - Leopold FC500R/EB (Cherry MX Brown)
  12. Squarebox - Leopold FC500RR/EB (Cherry MX Red)
  13. boonykun - Leopold FC500RR/EB (Cherry MX Red)
  14. skye - Leopold FC500R/EB (Cherry MX Brown)
  15. angelofro - Leopold FC500RR/EB (Cherry MX Red)
  16. z3r0h - Leopold FC500RR/EB (Cherry MX Red)
  17. e1e7en - Leopold FC500R/EB (Cherry MX Brown)
  18. jian5481 - Leopold FC500R/EB (Cherry MX Brown)
  19. hitman66 - Leopold FC500RC/EB (Cherry MX Blue)
  20. RangerKarl - Leopold FC500RL/EB (Cherry MX Black)
  21. FlakCannon - Leopold FC500RC/EB (Cherry MX Blue)
  22. Heav3nCl0ud - Leopold FC500R/EB (Cherry MX Brown)
  23. n3wb13 - Leopold FC500R/EB (Cherry MX Brown)
  24. lucidlts - Leopold FC500RR/EB (Cherry MX Red)
  25. yimingwureze - Leopold FC500RR/EB (Cherry MX Red)
  26. Raki - Leopold FC500RR/EB (Cherry MX Red)
Noppoo
  1. lucidlts - Noppoo Choc Mini
  2. lucidlts - Noppoo Choc Pro 2
  3. willaw - Noppoo Choc Mini (Cherry MX Blue)
  4. willaw - Noppoo Choc Mini (Cherry MX Brown)
  5. willaw - Noppoo Choc Mini (Cherry MX Black)
  6. Squarebox - Noppoo Choc Mini (Cherry MX Brown)
Mionix
  1. Squarebox - Mionix Zibal 60 (Cherry MX Black)
PLU
  1. lucidlts - PLU ML-G2000
  2. lucidlts - PLU ML-G3000 NKRO Edition (Cherry MX Brown)
  3. mikaelr - PLU ML-G2000 (Cherry MX Brown)
  4. low yat 82 - PLU ML-87
PLUM
  1. lucidlts - PLUM MX104M (Cherry MX Red)
Razer
  1. sai86 - Black Widow Expert (Cherry Mx blue)
  2. blacktrix - Black Widow Ultimate (Cherry Mx blue)
  3. phantomash - Black Widow Ultimate (Cherry Mx blue)
  4. raynmay - Black Widow Ultimate (Cherry Mx blue)
  5. boiboi95 - Black Widow Ultimate (Cherry Mx blue)
  6. BlueBerry~ - Black Widow Ultimate (Cherry Mx blue)
  7. zandara - Black Widow Ultimate (Cherry Mx blue)
  8. davidlian - Black Widow Ultimate (Cherry Mx blue)
  9. axn992 - Black Widow Expert (Cherry Mx blue)
  10. Mr.Botz - Black Widow Ultimate (Cherry Mx blue)
  11. j.sun - Black Widow Ultimate (Cherry Mx blue)
  12. eichi-sama - Black Widow Expert (Cherry Mx blue)
Rosewill
  1. OCN_fssbzz - Rosewill RK9000
Steel Series
  1. BlueBerry~ - SteelSeries 7G (Cherry Mx black)
  2. AlexLai - SteelSeries 6Gv2 (Cherry Mx black)
  3. N1ck - SteelSeries 7G (Cherry Mx black)
  4. shawnlut - SteelSeries 6Gv2 (Cherry Mx black)
  5. victor2212 - SteelSeries 7G (Cherry Mx black)
  6. warlove3 - SteelSeries 7G (Cherry Mx black)
  7. aegis` - SteelSeries 7G (Cherry Mx black)
  8. Calvin Seak - SteelSeries 6Gv2 (Cherry Mx black)
  9. jay - SteelSeries 7G (Cherry Mx black)
  10. Cyclonechuah - SteelSeries 7G (Cherry Mx black)
  11. StratOS - SteelSeries 7G (Cherry Mx black)
  12. OCN_fssbzz - Steelseries 6Gv2 (Cherry Mx black)
  13. lucidlts - Steelseries 6Gv2 (Cherry Mx black)
  14. lucidlts - Steelseries 7G (Cherry Mx black)
  15. Squarebox - Steelseries 6Gv2 (Cherry Mx black)
  16. angelofro - Steelseries 6Gv2 Modded (Cherry Mx black + Brown + Clear + Red)
  17. rockccf - Steelseries 6Gv2 (Cherry Mx black)
  18. FullMetalBoy - Steelseries 6Gv2 (Cherry Mx black)
  19. alexander_romanov - SteelSeries 7G (Cherry Mx black)
  20. vincent5195 - SteelSeries 7G (Cherry Mx black)
Topre
  1. kianweic - Topre Realforce 103U (Black)
  2. Cyclonechuah - Topre Realforce 103U (Black)
Unicomp
  1. willaw - Unicomp SpaceSaver
ZOWIE
  1. BlueBerry~ - ZOWIE CELERITAS (Cherry MX Brown)


This post has been edited by Cyclonechuah: Oct 27 2011, 05:32 PM
kaiserreich
post Jun 22 2011, 09:33 PM

Pendekar Papan Kekunci
*******
Senior Member
4,225 posts

Joined: Sep 2006

Is the PLU87 6KRO over USB?
j3tyen
post Jun 22 2011, 09:35 PM

New Member
*
Junior Member
25 posts

Joined: Nov 2009
From: kl


My FILco keyboard just died....not even reach 1 month...my rm 25 keyboard which is 2.5 yrs old is still kicking.....how ironic
kaiserreich
post Jun 22 2011, 09:36 PM

Pendekar Papan Kekunci
*******
Senior Member
4,225 posts

Joined: Sep 2006

QUOTE(j3tyen @ Jun 22 2011, 09:35 PM)
My FILco keyboard just died....not even reach 1 month...my rm 25 keyboard which is 2.5 yrs old is still kicking.....how ironic
*
Died as in won't detect at all?
Bought local or self imported?

This post has been edited by kaiserreich: Jun 22 2011, 09:36 PM
j3tyen
post Jun 22 2011, 09:40 PM

New Member
*
Junior Member
25 posts

Joined: Nov 2009
From: kl


Won't detect at all....I bought at low yat:( feel kinda stupid too purchase an expensive shit keyboard now....
TSCyclonechuah
post Jun 22 2011, 09:40 PM

(  ̄ c ̄)=c |。◕‿‿◕。|
******
Senior Member
1,726 posts

Joined: Oct 2007
From: Taiping Perak



you sure is Filco? i never heard of it died so fast. if you brought it locally, i think they will be happy to change a new one.(I think)
BlueBerry~
post Jun 22 2011, 09:45 PM

I play Dota 2
*****
Senior Member
960 posts

Joined: Jun 2007
From: Miri.....



Died in one month. Thats got to be the first case.
j3tyen
post Jun 22 2011, 09:53 PM

New Member
*
Junior Member
25 posts

Joined: Nov 2009
From: kl


Ya....I m quite surprise too.....going to low yat tomolo...hope they can get it fixed or I wan my money back...I m so angry now
kaiserreich
post Jun 22 2011, 10:07 PM

Pendekar Papan Kekunci
*******
Senior Member
4,225 posts

Joined: Sep 2006

I am sorry to say but you are just unlucky.
These things happen you know.

Hope you get it fixed soon enough.


vbNooB
post Jun 22 2011, 10:49 PM

Regular
Group Icon
Elite
1,163 posts

Joined: Jan 2003


QUOTE(j3tyen @ Jun 22 2011, 09:40 PM)
Won't detect at all....I bought at low yat:( feel kinda stupid too purchase an expensive shit keyboard now....
*
Are you hot plugging into the PS/2 port? Local units have 1 year warranty but they won't cover your motherboard.
eusioxn
post Jun 23 2011, 12:44 AM

- Shadow of the Day -
******
Senior Member
1,018 posts

Joined: Mar 2005
From: Malaysia


Anyone using Razer Blackwidow? Mind giving some own experience with the keyboard?
kEazYc
post Jun 23 2011, 03:20 AM

Regular
******
Senior Member
1,314 posts

Joined: Oct 2009
From: Cheras, KL


Did my post got deleted or something?

I remember i posted something like this previously.

Cheers for V3 cheers.gif

And i hope my Filco doesn't die on my that quick. sad.gif

Eusioxn: let the video do the talking



Tho not everyone has the same problem.

The good about the keyboard is the bling bling looks, macro keys, glossy outlook which attract people.

Disadvantage will be, 2KRO, maximum supported key are 2 (example, AS, DS, WD, WA clicked together), if more than 2 (example ASD, DSA, clicked together), you will hear the infamous motherboard sound, you know what i mean. smile.gif

If you have oily palm, it might be a disadvantage too.

This post has been edited by kEazYc: Jun 23 2011, 03:23 AM
ZainRain
post Jun 23 2011, 04:53 AM

Getting Started
**
Junior Member
88 posts

Joined: Jan 2010



QUOTE(j3tyen @ Jun 22 2011, 09:35 PM)
My FILco keyboard just died....not even reach 1 month...my rm 25 keyboard which is 2.5 yrs old is still kicking.....how ironic
*
Same thing happens to my ducky.. i think we are one of unluckiest person on earth.. lol
But ur slightly luckier than me.. since i got the keyboard from china..
TSCyclonechuah
post Jun 23 2011, 07:09 AM

(  ̄ c ̄)=c |。◕‿‿◕。|
******
Senior Member
1,726 posts

Joined: Oct 2007
From: Taiping Perak



my ducky also died, but weird thing is, after my ducky sit aeroplane with storm88, it suddenly becomes alive back. i wonder if ducky wanted to fly = =
ZainRain
post Jun 23 2011, 08:19 AM

Getting Started
**
Junior Member
88 posts

Joined: Jan 2010



Been wondering will storm88 have dk9000 or dk9008 abs in stock.. but still i dont know the location of the shop.. lol
songwillie
post Jun 23 2011, 08:35 AM

New Member
*
Junior Member
27 posts

Joined: Jan 2011


Been reading up on Mechanical keyboard, and got myself interested in getting one! Especially the NKRO feature.
Does storm88 knows the store which sells the Ducky 9008 Shine? If yes, I'm interested to know!

At first I set my mind at the Xarmor U9BL-S, which is a Cherry Brown switch, quiet type. But I had to import it myself from US.

I wonder what is the type of switch for The Ducky Shine, and I'm sure buying local is much better than getting it overseas... I won't have to cry if any problem happens to my keyboard wink.gif
Hara520
post Jun 23 2011, 09:41 AM

Getting Started
**
Junior Member
176 posts

Joined: Aug 2007
From: N9~~~~>


hey...sifu here,may i know where can buy / order Ducky Cherry MX Red board?
i use Razer BW expert now....planing change it....
BadBadtz-Maru
post Jun 23 2011, 11:20 AM

Getting Started
**
Junior Member
55 posts

Joined: May 2006
QUOTE(songwillie @ Jun 23 2011, 08:35 AM)
Been reading up on Mechanical keyboard, and got myself interested in getting one! Especially the NKRO feature.
Does storm88 knows the store which sells the Ducky 9008 Shine? If yes, I'm interested to know!

At first I set my mind at the Xarmor U9BL-S, which is a Cherry Brown switch, quiet type. But I had to import it myself from US.

I wonder what is the type of switch for The Ducky Shine, and I'm sure buying local is much better than getting it overseas... I won't have to cry if any problem happens to my keyboard wink.gif
*
Ducky Shine is black switches, may I know what is NKRO, I'm new in mechanical KB biggrin.gif
zandara
post Jun 23 2011, 11:20 AM

Ohio
******
Senior Member
1,195 posts

Joined: Mar 2007
From: 192.168.1.1


QUOTE(songwillie @ Jun 23 2011, 08:35 AM)
Been reading up on Mechanical keyboard, and got myself interested in getting one! Especially the NKRO feature.
Does storm88 knows the store which sells the Ducky 9008 Shine? If yes, I'm interested to know!

At first I set my mind at the Xarmor U9BL-S, which is a Cherry Brown switch, quiet type. But I had to import it myself from US.

I wonder what is the type of switch for The Ducky Shine, and I'm sure buying local is much better than getting it overseas... I won't have to cry if any problem happens to my keyboard wink.gif
*
I think storm88 mention before it maybe available on August.... tho you had read up? tongue.gif
SUSHuman10
post Jun 23 2011, 11:39 AM

Look at all my stars!!
*******
Senior Member
6,774 posts

Joined: Nov 2010
QUOTE(BadBadtz-Maru @ Jun 23 2011, 12:20 PM)
Ducky Shine is black switches, may I know what is NKRO, I'm new in mechanical KB biggrin.gif
*
KRO - Maximum number of keys can be pressed and accepted at a time(Example: playing FPS game which hold w+a+Ctrl and so on).

NKRO mean N(all) keys can be pressed and accepted at a time.

NKRO features is useful mainly for gaming(FPS and those dancing/music games which require multiple keys to be pressed down at a time) and for those who having insane typing speed(which pressed down the next keys b4 even releasing previous keys).

124 Pages  1 2 3 > » Top
Topic ClosedOptions


Change to:
| Lo-Fi Version
0.0261sec    0.33    6 queries    GZIP Disabled
Time is now: 5th February 2023 - 06:34 PM
