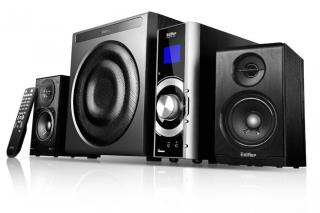

Edifier C5 High end, high powered 2.1 multimedia component audio system
The C5 by Edifier®, is a high end, high powered 2.1 multimedia component audio system. The C5 produces deep and powerful bass performance from its wooden enclosed front firing 8 inch side-ported subwoofer, while the matching 2-way dual driver satellites assist in providing massive sound with a total power output of 53 watts.

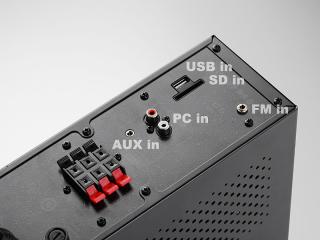

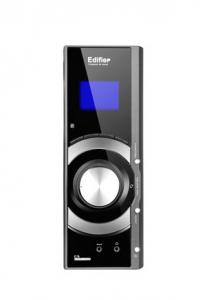

Its vertical stand alone amplifier houses an FM radio with 6 user preset channels, USB and SD card reader input slots and both PC and auxiliary inputs. Both the LCD display and infrared wireless remote allow for ease of control over all operations and functions.
Features:
8 inch front firing, side ported wood enclosed, magnetically shielded subwoofer driver

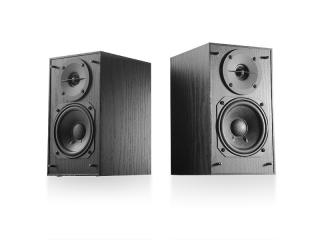

2-way, dual driver wooden enclosed satellites, including magnetically shielded 3½ inch mid range speakers and ¾ inch silk domed tweeters
Use of Edifier Intelligent Distortion Control (IDC) patent technology to dynamically manage input overload and avoid audio distortion
Stand-alone amplifier/reciever, including FM radio with 6 preset channel options, PC and auxiliary input
USB and SD card reader, with MP3, WMA & PCM format playback capability, including full function control

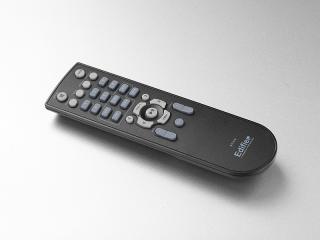

Full function LCD display and controls located on amplifier/reciever, with full function infrared wireless remote control
Specifications:
Total power output:RMS 9W x 2 + 35W x 1
THD + N (testing level): 10%
Signal to noise ratio: ≥85dBA
Distortion: ≤0.5%
Input sensitivity: PC: Satellite: 450mV ± 50mV / Subwoofer: 150mV ± 20mV (THD + N=1%) AUX1: Satellite: 450mV ± 50mV / Subwoofer: 150mV ± 20mV (THD + N=1%) AUX2: Satellite: 300mV ± 50mV / Subwoofer: 100mV ± 20mV (THD + N=1%)
Input impedance: 10KΩ
IDC: Yes
Audio Input Type: FM, SD card reader, USB, PC, 3.5mm auxiliary
Adjustment: Mute, FM settings, USB/SD navigation controls, Escape button, Volume, Bass/treble adjustments, Function controls, Input selector, LCD dimmer
Subwoofer / bass unit: 8 inch (210mm), magnetically shielded, 4Ω
Midrange / high unit: 3½ inch (92mm), Magnetically shielded, 4Ω
Tweeter unit: 13mm silk dome magnetically shielded driver, 4Ω
Remote control: Wireless: Mute, Info, FM settings, Navigation control for USB/SD, Escape button, Volume, Bass/treble adjustment, Input selector, LCD dimmer, Function controls
Control panel: USB/SD navigation, Function controls, Input selector, Mute, Volume, Power, Headphone output jack
Dimension: Power amplifier: 72mm x 223mm x 218mm | Speakers: 196mm x 320mm x 253mm (WxHxD)
Weight: ≈14.90Kg (net) / ≈16.60Kg (gross)
