Usually TV we use M10 drop in anchor to mount the TV bracket onto the wall itself with the right bolt length and size.

The drill hole M10=10mm outer diameter
The inside hole of the anchor, takes a bolt of imperial size (around 5/16" IIRC). The length that the bolt goes in into the anchor will stop ~halfway of the drop in anchor total length.
Better go hardware store and get the M10 anchor and matching bolt length that fits the anchor + your cabinet thickness

A TV is only like 30-40kg, divided over 4-6 bolts is more than overspec already even with the lousiest china made bolts.

This post has been edited by ceo684: Mar 15 2021, 02:39 PM

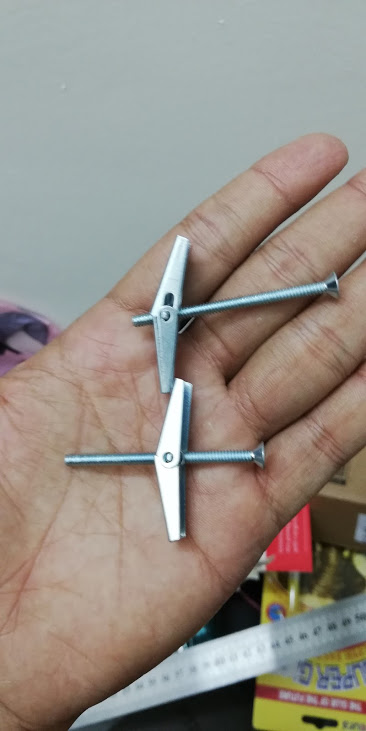

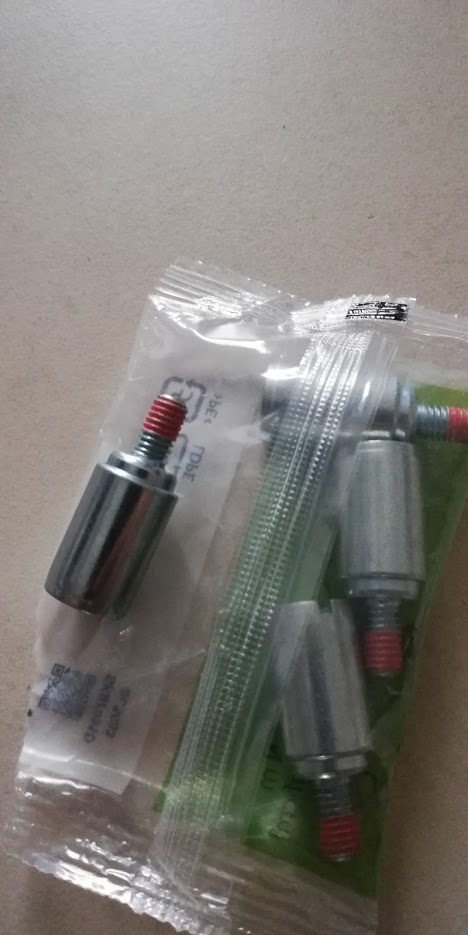

Yes these are for the TV to bracket.

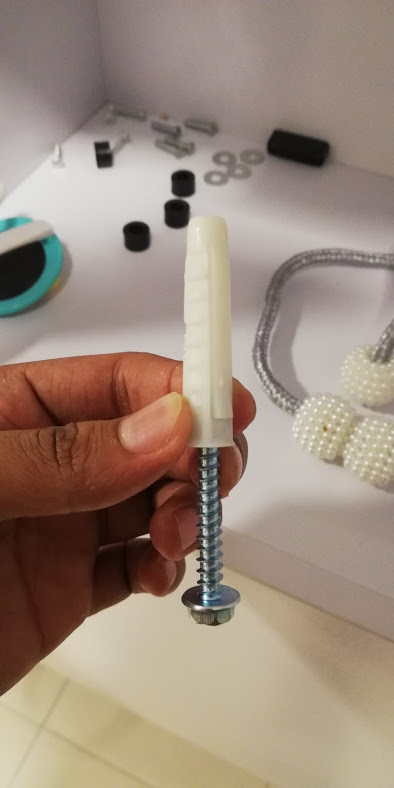

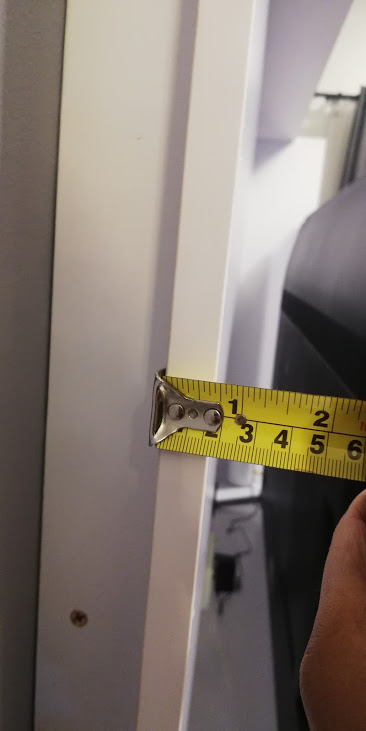

The concern is on how you gonna mount the bracket to the wall as the TV of that size n weight can rip out the feature wall or cause the chipboard hole from being an o to 0 elongated hole.

Melamine (chipboard) even for bookshelf also tend to sag over time with just books - the degree of sagging is reduced a little with thicker melamine board.
For a 55" Sony XBR-55X950G Weight of TV without Stand 39.7 lb (18 kg)
For a 65" Sony KD-65X7000E Weight of TV without Stand Approx. 20.9 Kg

Problem with chipboard it can split, sag, and bend. Hence its not really a good idea to mount heavy stuff onto it.
Mounting it onto a concrete wall is the best because concrete can easily handle a load of 7kg per sleeve anchor/drop in anchor if you use M10.

A single M10 drop in anchor 3.6 kN = 367.1 kg
http://www.inkafixing.com/products/constru...rop--in-anchor/

Even if you use the lousiest shit anchor made in china I derate it 80% lah.. still can support 72kg per anchor
which is on rough BS calculation more than the 7kg per anchor you will need for the TV weight.

The chipboard or plywood should not be the loadbearing part of the mounting. It is for show only. Adapting the bracket to mount on to solid wood planks (acting like studs) is not hard. The 2x2 goes BEHIND whatever melamine board there is.

You just need one or two 2x2" hardwood at about 10 bucks each https://shopee.com.my/Cengal-Solid-Wood-Tim...9382.7661484661

This post has been edited by ceo684: Mar 17 2021, 01:10 PM


Attached thumbnail(s)

Usually the bulky stuff like sockets, adapters will be hidden by the TV cabinet itself. To make the TV work (power and few HDMI) you can use the rectangular PVC casing/trunking (wide and shallow) eg 50 x 16 or 30 x 13 mm size or smaller (depending on your requirement of the cables you need), to conceal - smaller is better - just surface grind off the mortar layer of the wall to fit in, can putty and paint over as necessary.

See page 11 for range of sizes available, very cheap at your neighbourhood electrical store.



Attached File(s)
 PVC_LINK_Catalogue_2014.pdf ( 1.92mb ) Number of downloads: 91

Yup technically about the same concept, grind two lines or polka dot many many small holes in a line, and chisel out the center unwanted portion
