Hi all,

This would be my first time doing serious mod for my current rig (well i do change rig a lot, but i think ill stick with this one for sometime )
Actually i already started the mod last week, but have no time to open a worklog as im really bz with work etc...
Lastly i would like to thank to vladtheimpaler, RonModz, supernothing, hilmiangah, Jibek, rzs77 for their help, services, advise, ideas and comment to make this project happen.
and for all of you, feel free to comment and advice would be much appreciated

Ok now cut the crap and lets get started.

Some of the ingredients :

Hardwares :

1) Intel Core i3 530
2) Asus Maximus III Gene
3) Patriot 1333Mhz 2x2GB Ram
4) MSI GTX460 Cyclone 768MB
5) Intel SSD X25-M Gen2 34nm 80GB (OS)
6) WD Caviar Black (Data)
7) Seasonic X650 Gold PSU
8) Pioneer DVR-TS08PA DVDRW Slot Load
9) Lamptron FC5 V2 Fan Controller
10) Silverstone Temjin 08 Casing

WaterCooling :

1) EK Supreme HF - Plexi Waterblock
2) Bitspower - Black Freezer GTX460 Clear Acrylic Top - GPU Waterblock
3) Koolance RAM-33 Ram Block
3) EK DCP 4.0 Pump
4) HWLABS Black Ice SR1 240MM Radiator
5) Swiftech MC Res Micro Rev 2 Reservoir
6) Bitspower Silver Shining Compression Fittings/Rotaries/Barbs size 3/8" ID 5/8" OD
7) PrimoFlex Clear Tube 3/8" ID 5/8" OD
8) Feser One Red Coolent + Thermochill EC-6 Red

Some objectives to be achieved :

1) Inverted ATX Mod
2) Powder Coating
3) Laser Cutting / Acrylic Panel
4) Mounting for DVDRW Slotload
5) MDPC-X Sleeving
6) 2K Spray Chilli Red
7) Watercooled

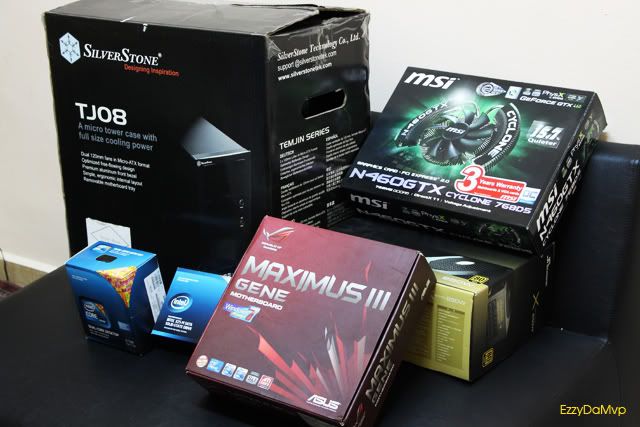

Some of the parts

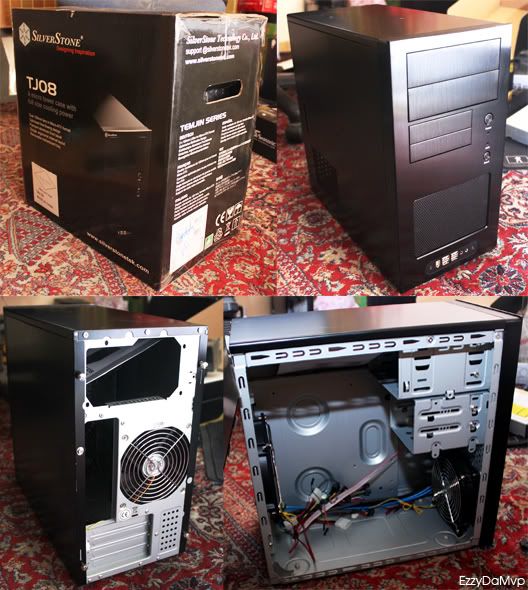

The Case



This post has been edited by ezzydamvp: Nov 1 2010, 10:59 PM

Part 1 ( The inverted ATX Mod)

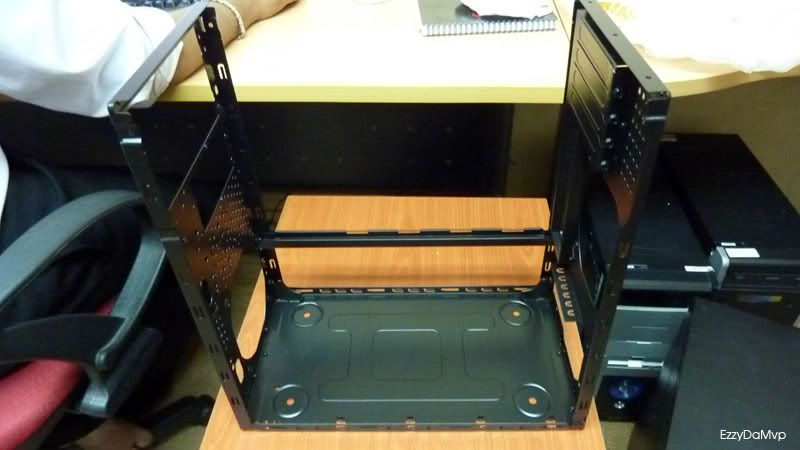

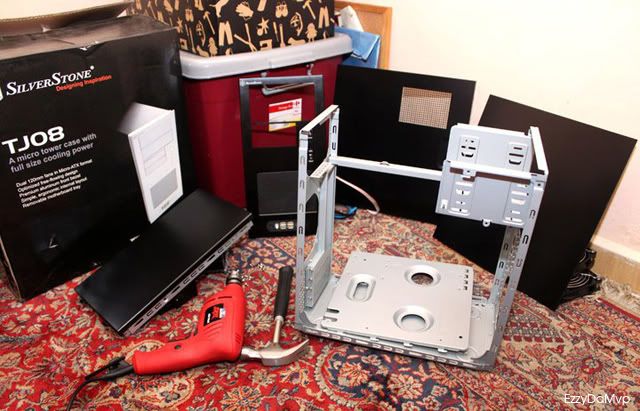

De-rivet / dismantling the case

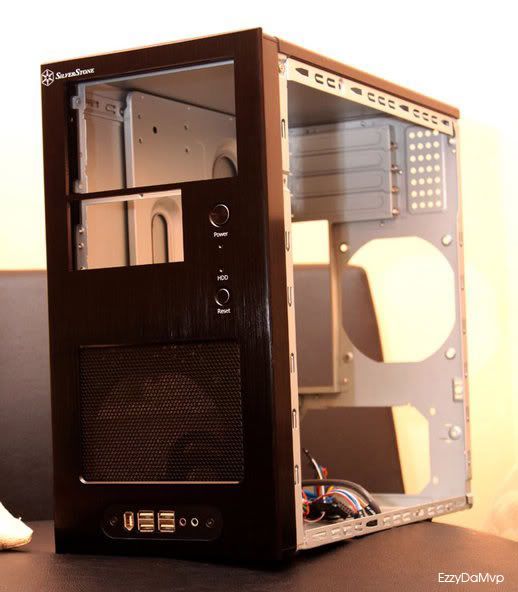

After the inverted ATX Mod




Part 2 ( Powder Coating & Laser Cutting)
Thanks to our bro RonModz for the powder coating & Laser Cutting service. really puas hati with the finishing

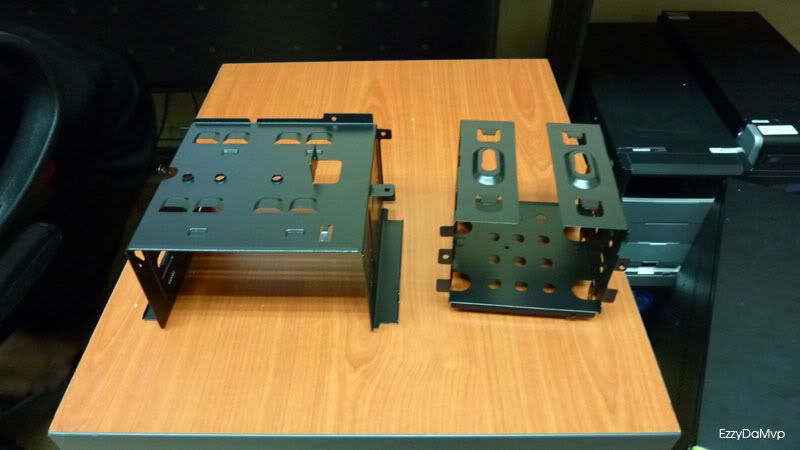

5.25" + HDD Cage



Base

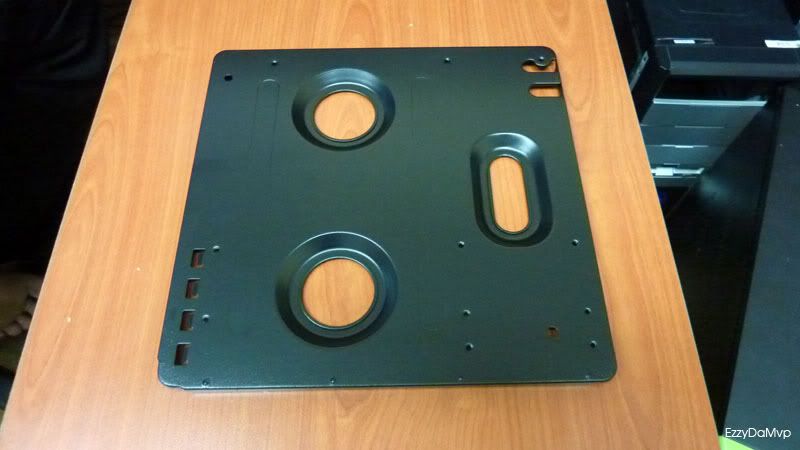

Motherboard Tray

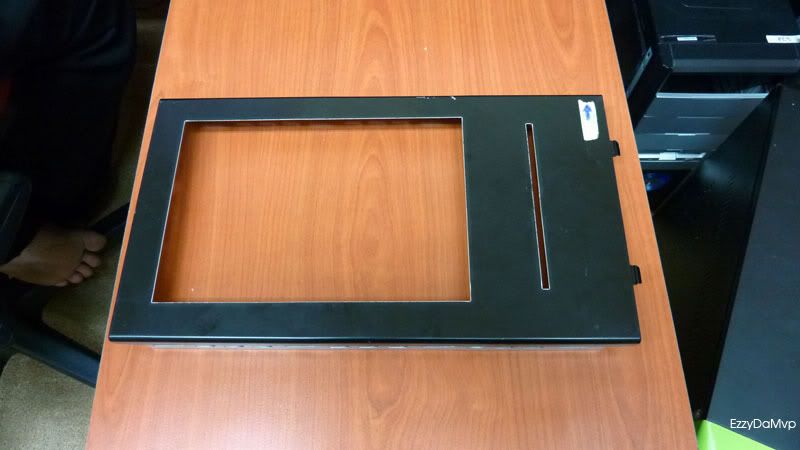

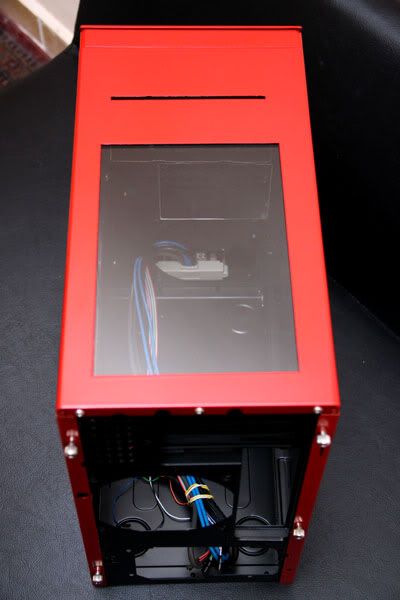

Top Panel
- the big cut will put the transparent acrylic panel and the small cut is where the DVDRW slot load to be mounted

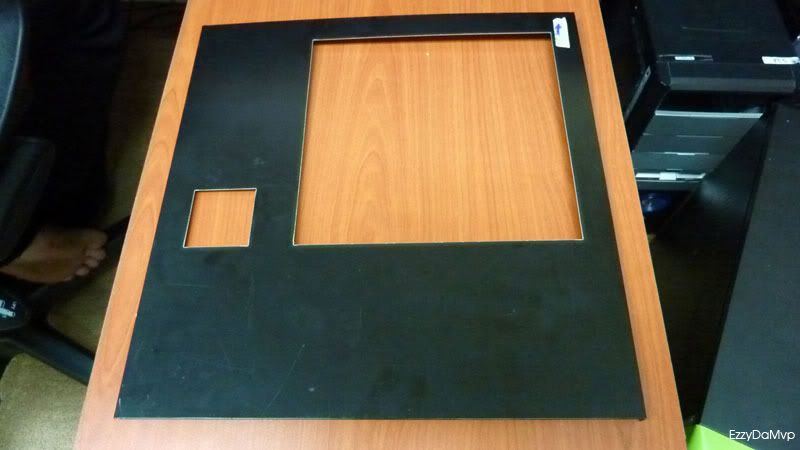

Side Panel

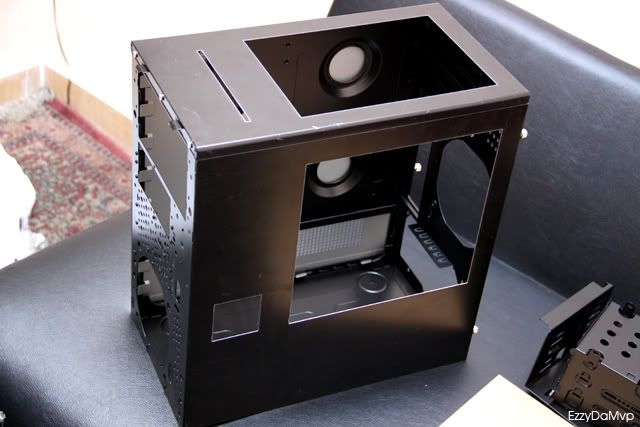

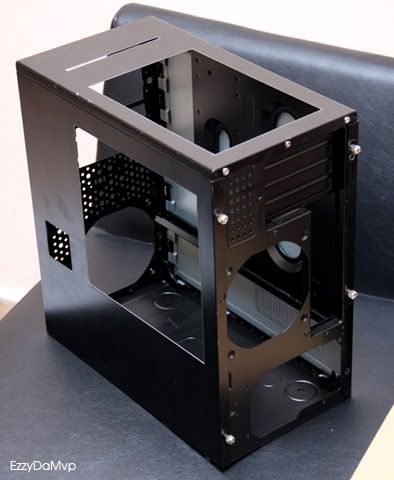

Some pics after the assembling it back





Sleepy now...will continue updating tomorrow...stay tuned!

This post has been edited by ezzydamvp: Nov 1 2010, 12:15 AM

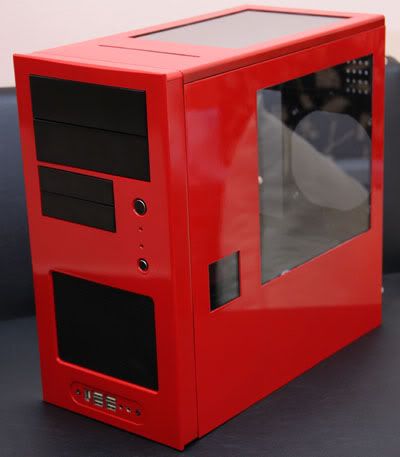

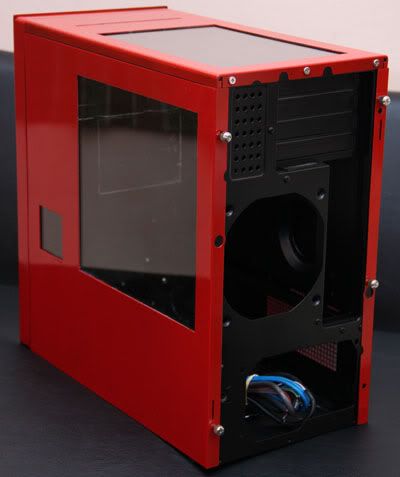

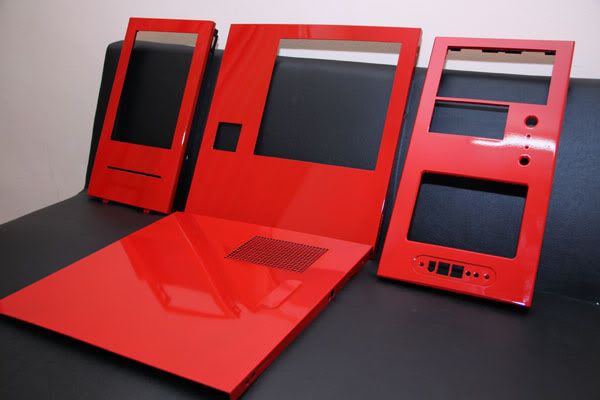

After the powder coating and the laser cutting done, i send the top panel, 2 side panel and front panel for spray. Choose the red color to suit my theme...












Ok now the most interesting part! watercooled!

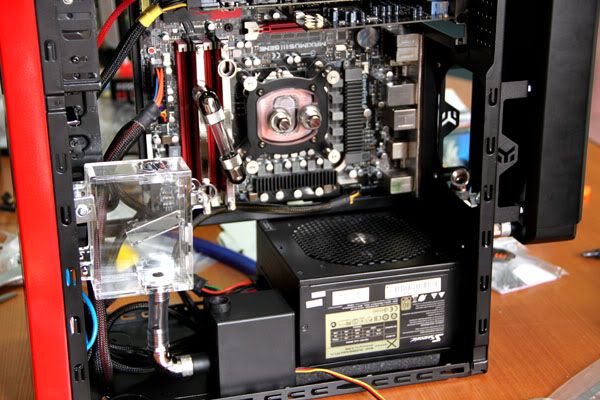

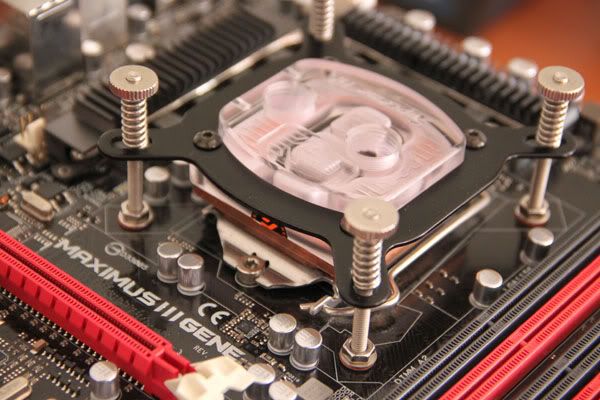

Ek Supreme HF - Plexi in action

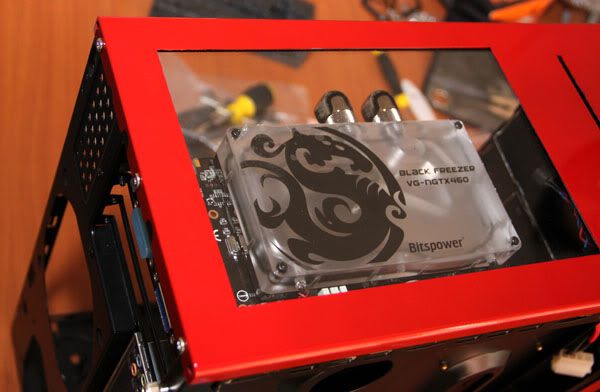

Bitspower - Black Freezer GTX460 Acrlic Clear TOP

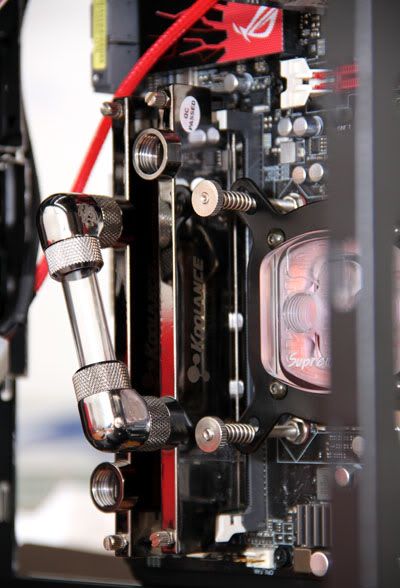

Koolance RAM-33 Ram Block ( pair with the 2 90's with C47 multi transfer adapter and 3 slots multilink tube)

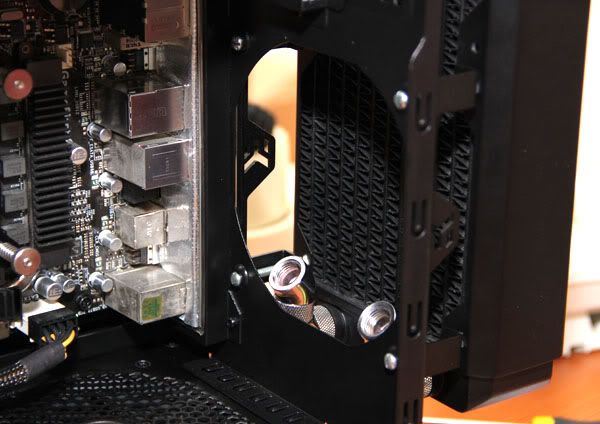

I decided to mount the radiator at the back by using the EK-Uni Rad Holder. actually i want to drill below the fan hole for the tubing from radiator...but ill use 90's rotary for awhile.


Ok here is the final layout of it...next update will be the tube routing. instead of using normal tube routing method, i guess ill play around with some twist method


This post has been edited by ezzydamvp: Nov 1 2010, 11:33 PM

nama projek tak boleh blah. best tak mobo tu? rasa cam nak beli seketul.

great inverted mod. look forward for the top slot load dvdr drive in action.

bro,how big is ur window ?
do u coat the side n top panel too ?

creative wat? temjin + m3gene = TemGene
best mobo ni...kiut. bli lah...tp cam dah xde orang jual jer

its a been a long time i wanna own an inverted atx mod...but if do this in this case have to sacrifice the 5.25" bay as it will touch the mobo tray.
for the dvdrw top slot load im still working on the mounting...maybe wanna do plexi mount. see how 1st...still researching.

window is 350mm x 357mm and the hole area is 205mm x 215mm
for the side and top panel i will spray 2k red on the outside and inside will spray to black...

This post has been edited by ezzydamvp: Nov 1 2010, 10:05 AM

just saw tis case oni fit m-atx, mini huh

This post has been edited by lun1986: Nov 1 2010, 12:09 PM

nice idea regarding the dvdrom

yup this case only fit MATX board...bored using big case, now want to try explore small case

thanks dude!

Bro, this is awesome.. i like the colour combi. It's super cool bro!!!

Bro, the hdd tray can see the cutting mark, if you can send to me again... i will re-coat for you FOC .. amacam ?

This post has been edited by RonModz: Nov 2 2010, 02:06 AM

wah lawanyer..wah cantiknyer casing die...
water cooling pon ngancam...
bilelah aku bley WC ni..huhuhuhu

huh..dah post topic dah...nyum2...aku tggu TS support WC je nih...hehe

nice one lah bro. support you!

yup the hdd tray can see the cutting mark after i send it for cut. really foc ar bro? cool! will send it to u maybe next week...and will discuss bout the dvd mounting also

bleh jer ko wc bro...ang nye rig poun dah mantap. aku leh bg ko special price

hehehehe

thx for support dude! still got many things to do...will update time to time...

bro..mantap2..akw ade barang lag skett nak kirim, nant akw pm ko..

very nice colour combination. fit the mobo theme.

what's the little square box at side panel for? kindda pack already inside.

bleh la skit2 hehe...oraito bro pape nak kirim pm jer

the little square is where u can see thru the res inside the case...yeap kinda pack inside...need do really2 nice CM.

nice man~~

where to mount your hdd then?

fuhhh hardcore modder
feel like wanna mod my a10b la
huhuhu

i mount my ssd at the back of the mc res
and for WD caviar black (data) im using xigmatek hdd dock to mobo using esata

baru nak berjinak2
mod bro...seronok wor

boss nk g rumah
hahaha
nk melawat pc

anything for advice, just come to me k..

will assist you, try help as much as i can..

This post has been edited by atomik: Nov 3 2010, 07:16 PM

best of the best....

nice mod...

woot...1st time here i see ram got WC...
good job bro...keep it up...
more pic's plz....

This post has been edited by selfdz87: Nov 3 2010, 11:40 PM

pc kat opis lg tgh projek...next week dtg ar...pastu pekene cakuetiau kat malissss...

aite sure bro...will call u if anything.

thx dude...still got lots of things to do...

just for the sake of the bling
aite more pic will be uploaded during this weekend...stay tune bro's

Terbaek bro..Kn best klu aku rajin cm ko haha

skang tgh bz...projek tak complete lg. tinggal sleeving ngan dvd slot load mounting. tp pc dah running.
nnt aku update pic...

wow so nice~

Terbaik! Two thumbs up for u my friend!

nice

genie-in-da-casing ahahah

watercooling lagi dalam casing kecik tu? wow

good job bro

comel siot..hehe..

ezzy update2..xsabar nk tgk

ezzy dah tukar casing.. hahaha

wakakkaa...dah tukar casing tp casing TJ08 aku ni ade lagi...aku simpan hehe...to be continued maybe

bagi aku pinjam la TJ08 tu..

bole, tp x muat kang R3E tuh haha

black one its better ma

bg aku lah.. hahahaha

haha maneleh kapten...aku pk2 cam nak wat hackintosh pki case ni balek...haha

kenapa aku leh x prasan lak kt worklog benda ni ezzy.. aku tgk kt fb kaw je.. pecite? lai lai hackintosh.. hehehe..

lol lama dah ni bro kino...ko yg lama menyepi...case nih aku da perturunkan kat anak murid aku dah haha...aku skg slow pc la.

perghh siap ade anak murid hahahaha

nak menuntut juga . ada pengeras ke?

haha casing ni dah selamat jadi hak milik aku dah.

klu nak jual balik roger2 la bro hehe
