Just bought a lianli case, n i'm gonna mod it.
just a very simply worklog, wan to make it nicer.
hopefully tis is a complete project, i dun wan unfinish project

Hardware
no idea wat hardware i will put, just let it blank
CPU:
Mobo:
RAM:
HDD:
PSU:
Case: Lian Li PC A05N

This post has been edited by lun1986: Jan 8 2011, 09:10 PM

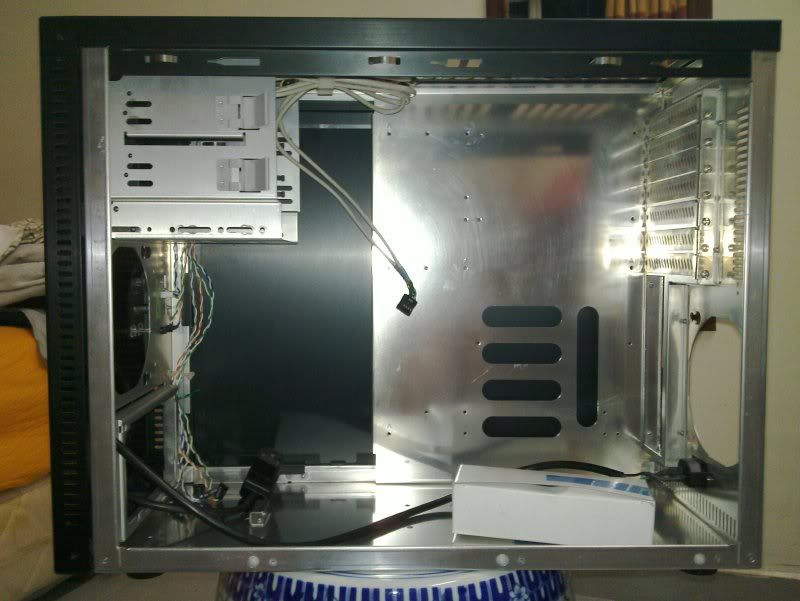

This is how it look like when i bought.

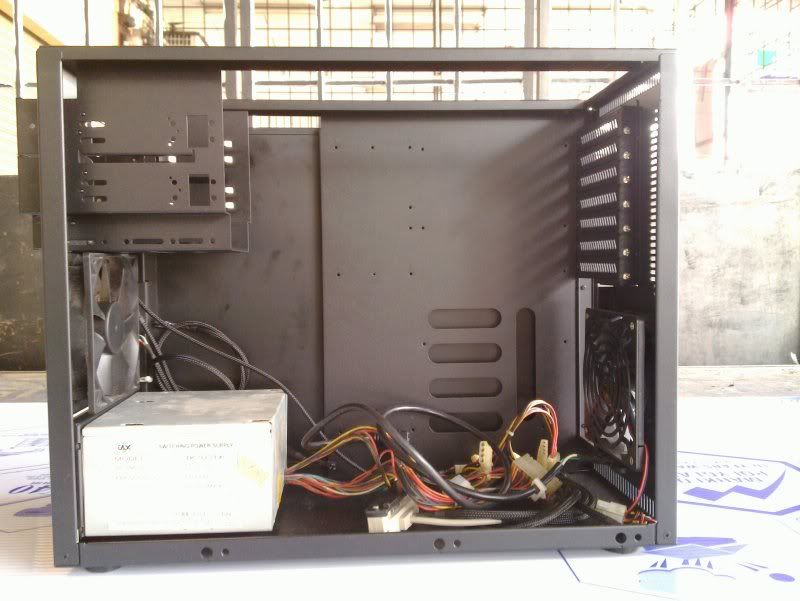

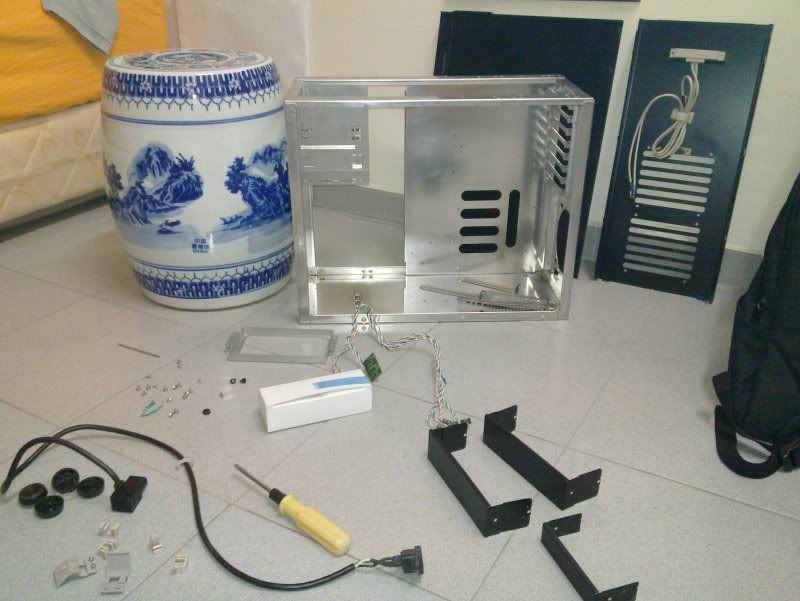

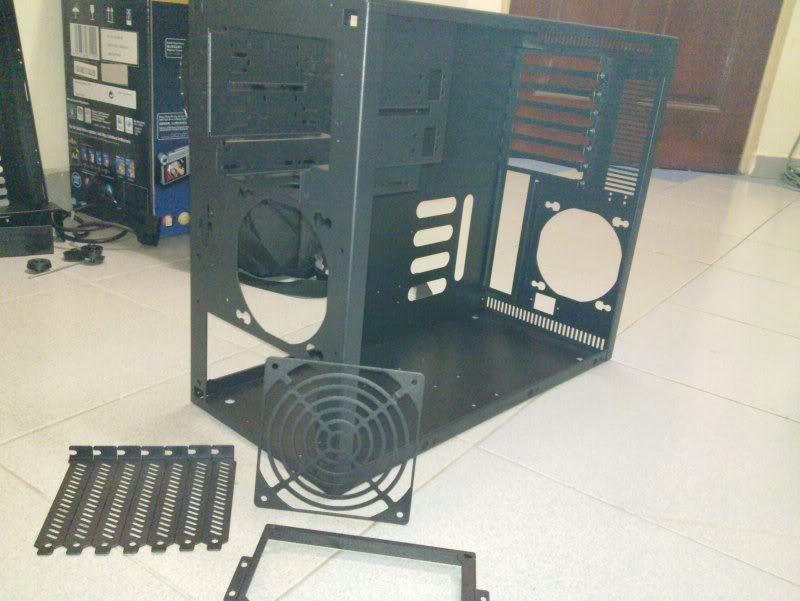

first thing to do is disassembly all the stuff, wanna take it powdercoat.

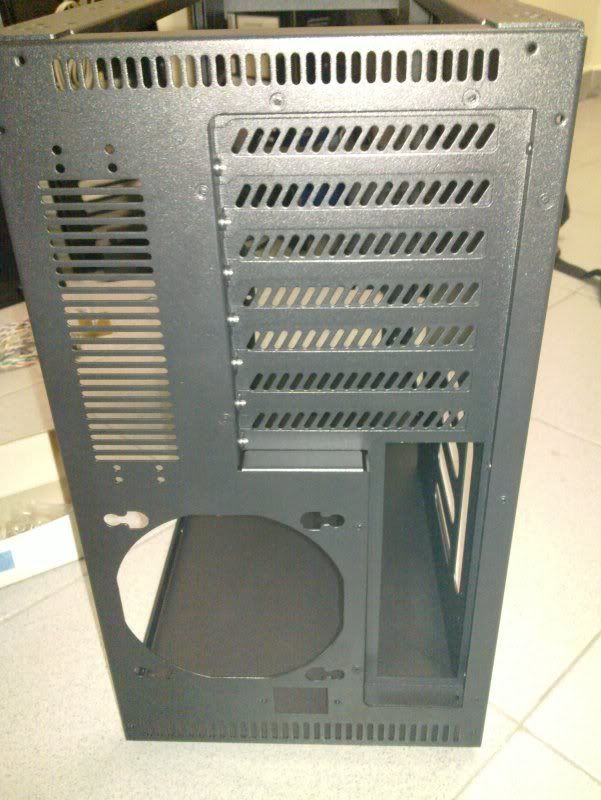

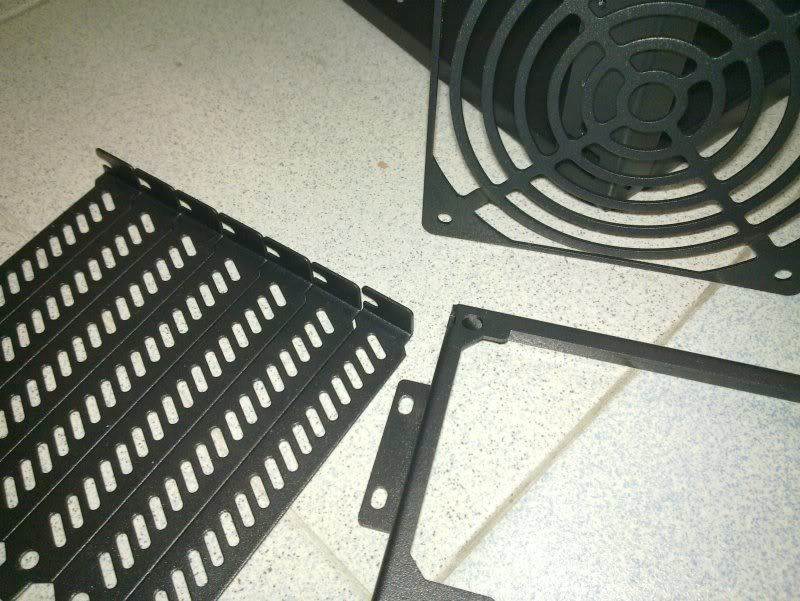

the inner cage coat matte black.


Get back on the evening of the sameday, just few hour then done d
the guy coat it without disassembly it, he straight away spray whole case.

very nice huh

This post has been edited by lun1986: Oct 30 2010, 12:56 AM

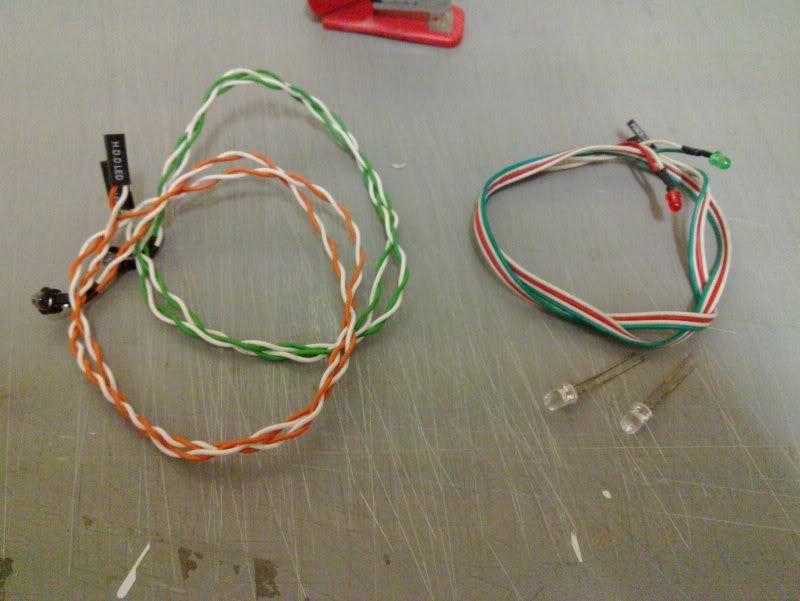

then is change the led from red to white.

left side is the original led n cable from lian li, but i dun wan use the original 1. so i take another led n cable from cheap casing.

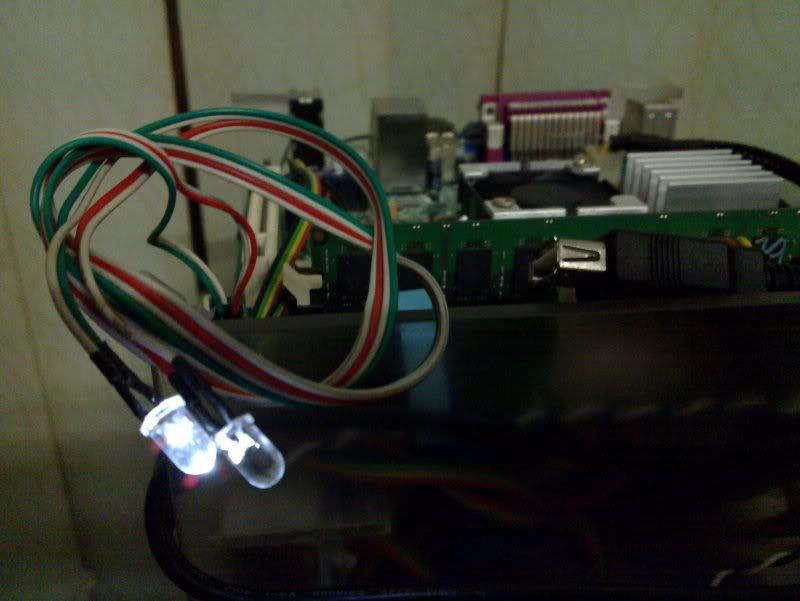

after solder, test on my itx board. It works

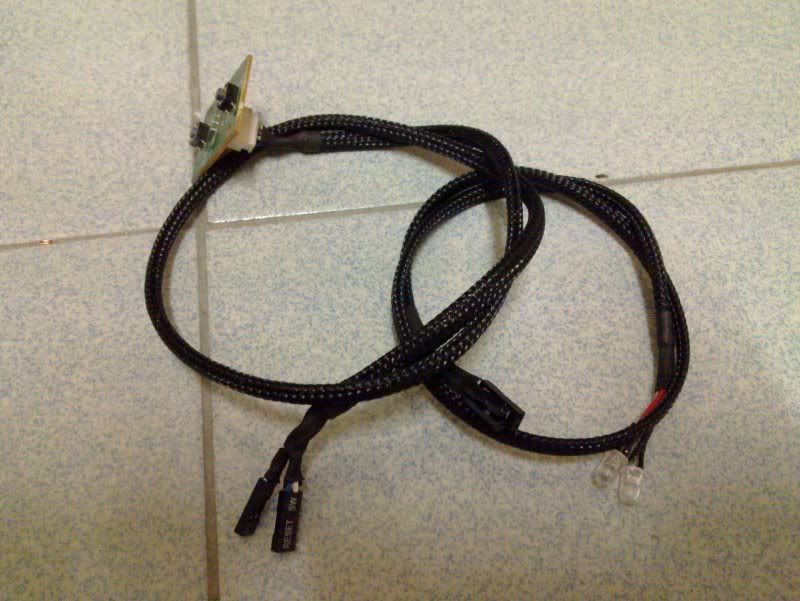

then i do sleeve on it n the cable of switch.


STAY TUNE

This post has been edited by lun1986: Oct 30 2010, 12:58 AM

i be ur 1st supporter!!!
waiting more update!!!

@k3lvinng007
tq for support

where do you sent for that black coat..?

be careful as the forward voltage and operating current of white/blue LED are not the same as normal rgb/etc led...

a factory tat do coatin to sport rim, i know the employee so he do it for me !!

---

Added on October 31, 2010, 11:21 pmyes, but i dunno cal it so just change it la.
last time i change my CM's led too lucky no problem.

---

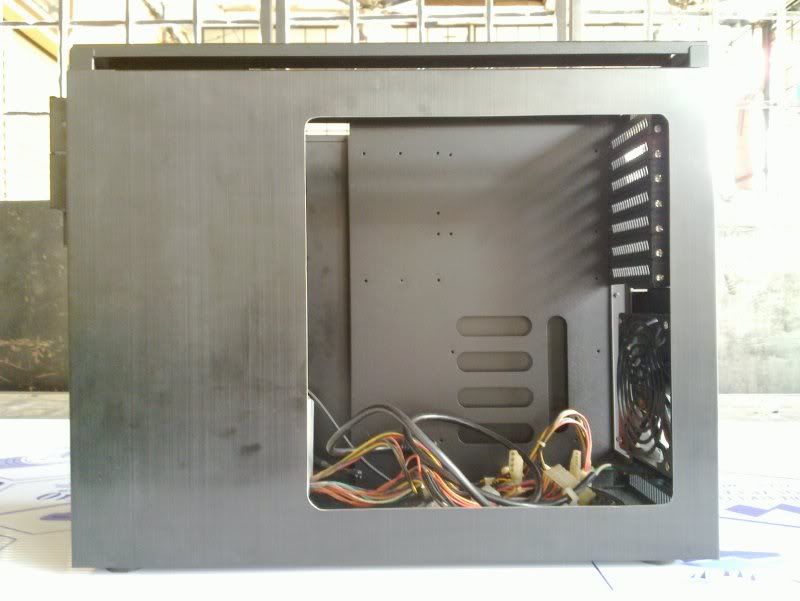

Added on November 2, 2010, 4:49 pmafter 2 day work on it, the side panel is done


the size of window is measure to dun expose the psu, but still can see la


This post has been edited by lun1986: Nov 2 2010, 05:06 PM

so when your hdd cage coming?

This post has been edited by overclockalbert: Nov 3 2010, 01:45 AM

i get it d, but dun wun use it in tis project.
i will just place 1 hdd on the 3.5" bay

---

Added on January 8, 2011, 7:34 pmA small update

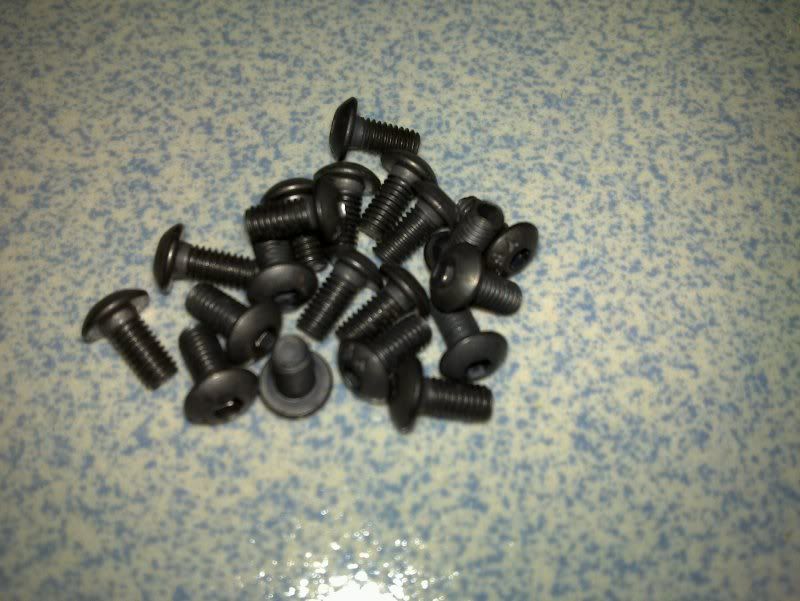

bought some cap screw, big thanks to Ronmodz that tell me where can find it. but i got it from another screw shop tat located at Low Yew Road.


N small mod on graphic card

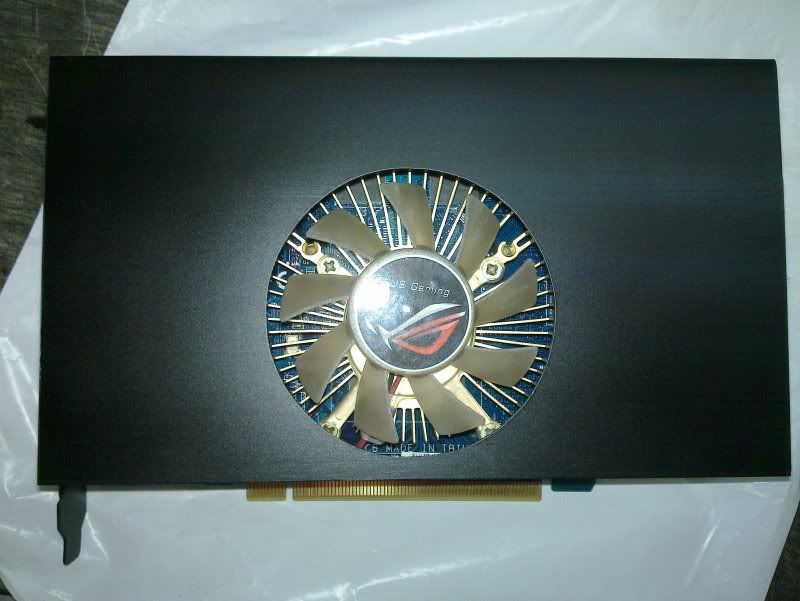

tis is the final look


This post has been edited by lun1986: Jan 8 2011, 07:34 PM

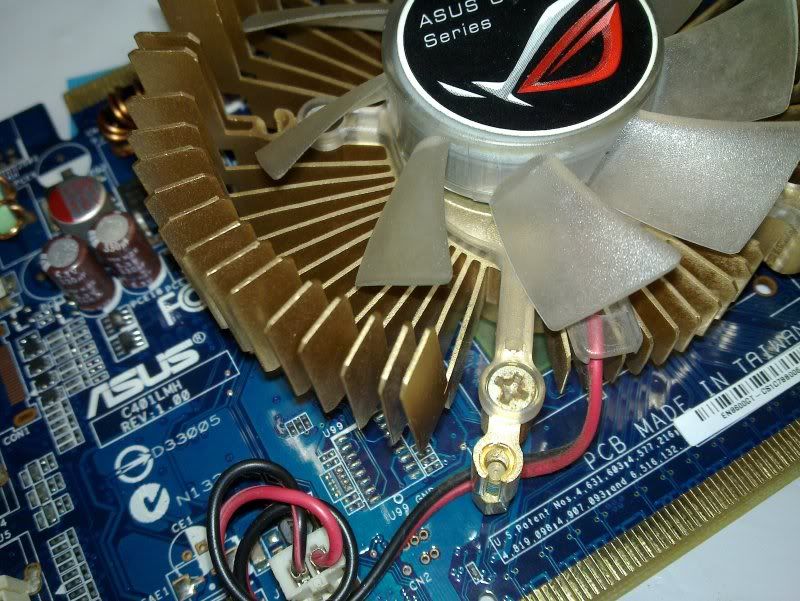

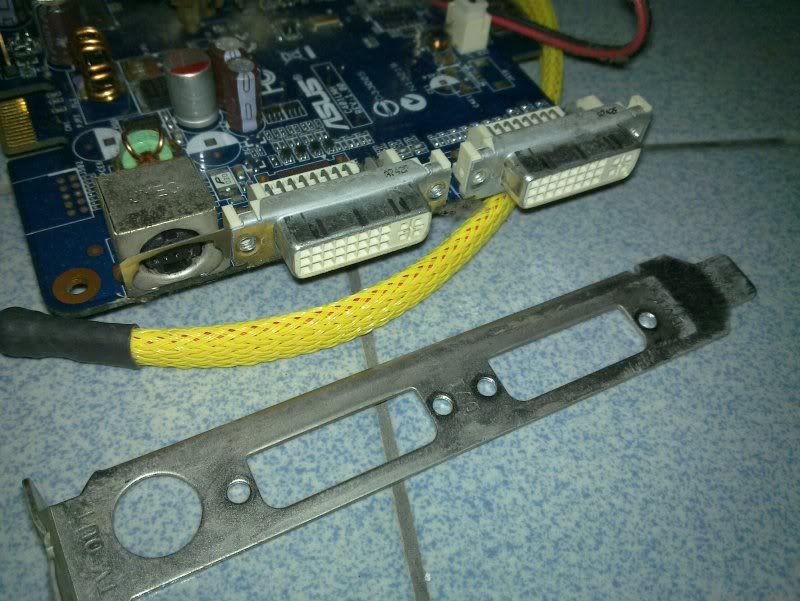

tis is how i mod the graphic card, 1st dissemble

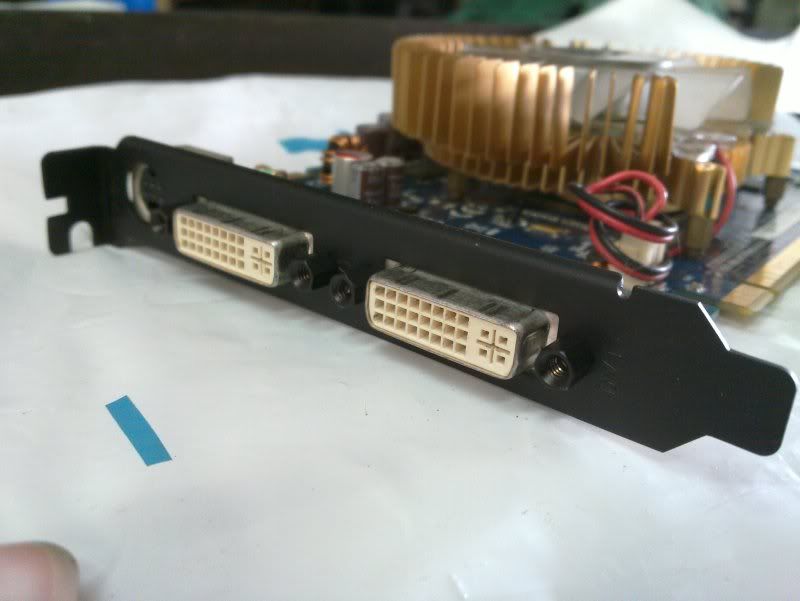

then spray black on tat metal

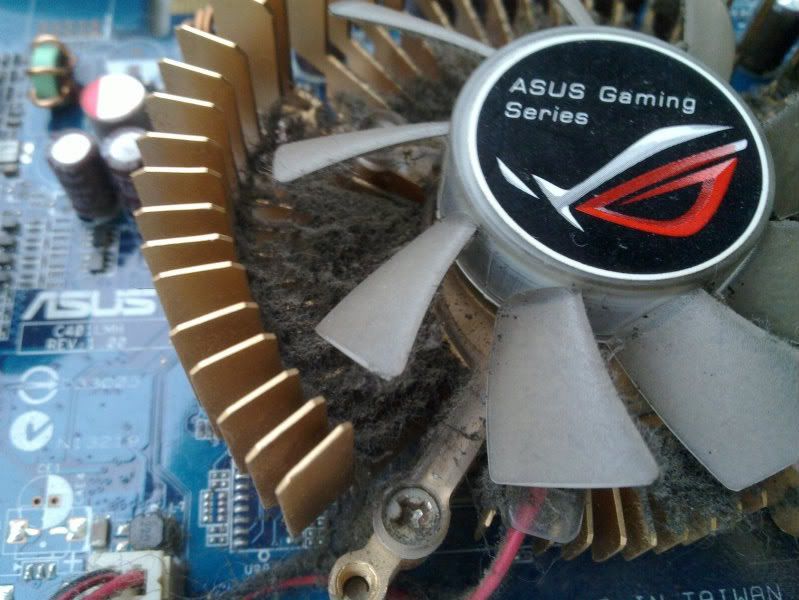

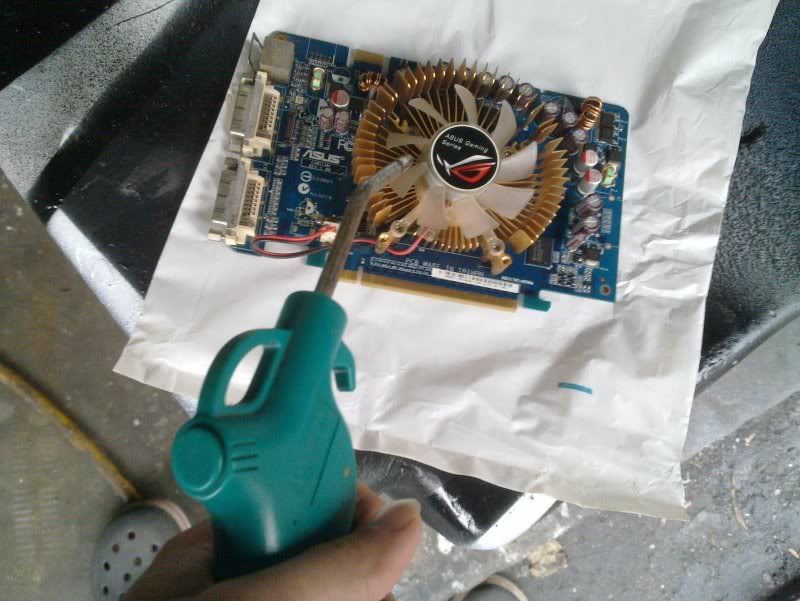

oh ya,when i spraying, i did clean the graphic by air blower



after clean up

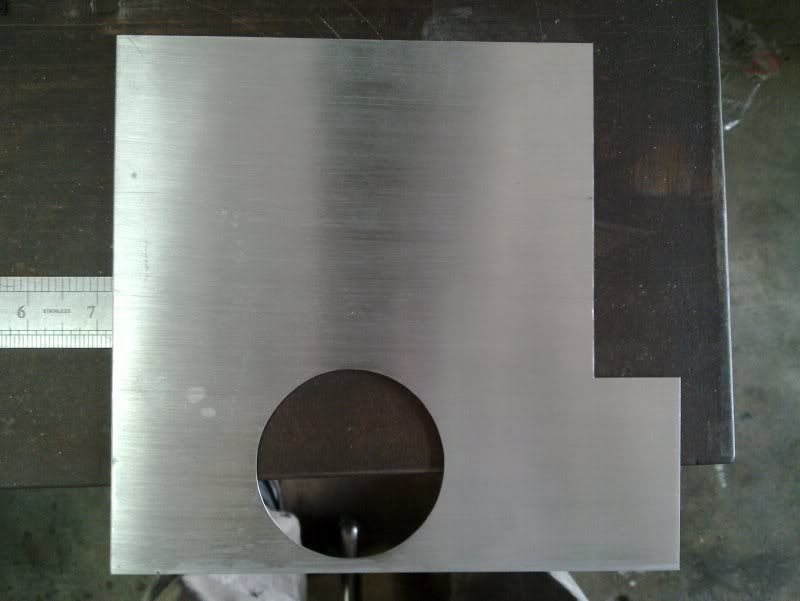

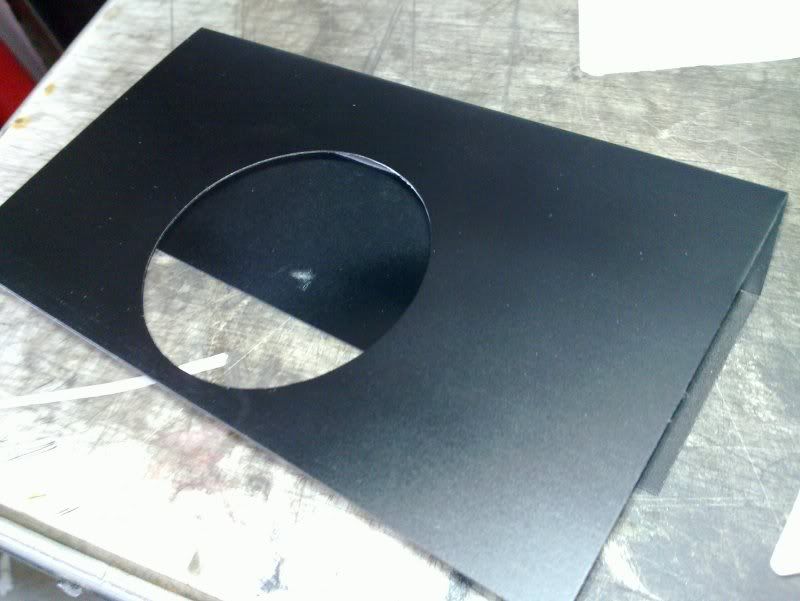

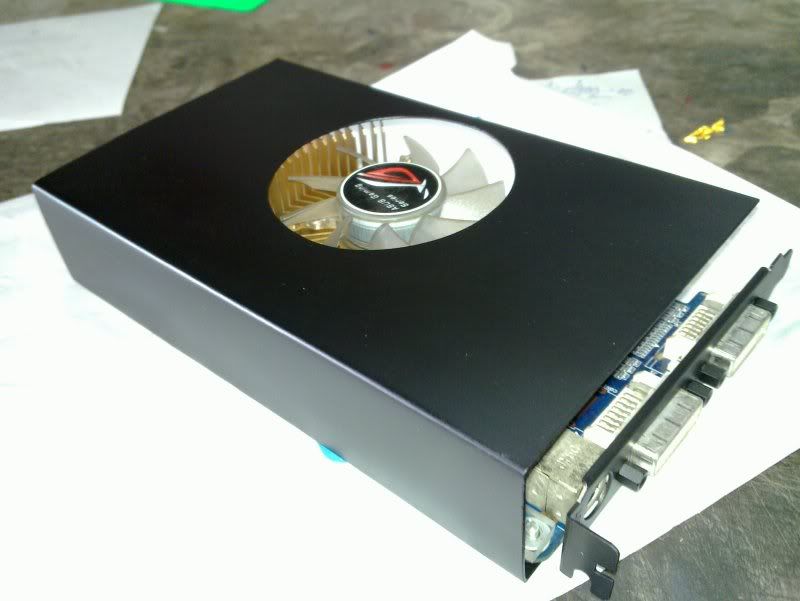

after done spray to black, i cut a piece of aluminum plate to make the cover. Sanding & paint black



Done !

wow...even gc also mod?

like my project name, Small Mod

dude, looking good so far. like what you did with the graphic card. i think your window is acceptable, gives you reason to sleeve those wires. what did u use to cut the case? those cuts looks clean.

i'm planning on getting the same case so will be keeping an eye on your build.

jigsaw, then sand paper to touch up the edge.
or u channel rubber to cover the edge also not bad,.

i can't cut a straight line with a jigsaw...lol!!! maybe i shud be be using a better blade. did you paint/powder coat it after you file/sandpaper it down?

any update soon? wanna see how the board and GC looks like inside there. would love to see the mounting details on that GC alu cover too.

cut it slowly, then do touch up. the only way
bz on work, not much time leave...

woot, been some time since i last see ur latest work hahas~!
looking forward to seeing ur updates ^^

stay tune



This post has been edited by lun1986: Jan 29 2011, 03:28 PM

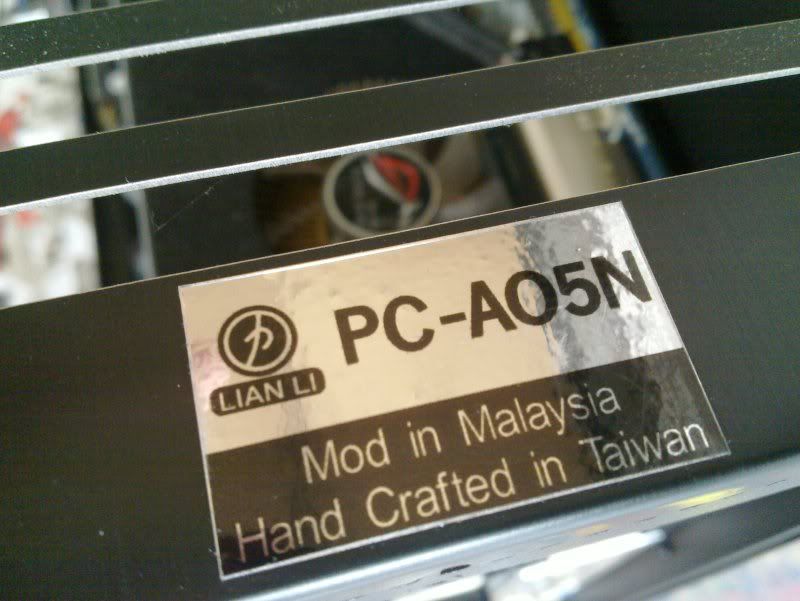

small updated
