This is the current project i am working on at the moment. Silverstone TJ07 with iATX code name : Project Concepts. It's the initial stage, just got all the internal parts powder coated black. Will post more image as the work progresses.

PART 1




























This post has been edited by RonModz: Nov 21 2010, 02:42 AM

Part 2

wow,another mod in progress
how bout posting @bit tech forum....who knows...can get MOTM

Hehehe, MOTM - Maybe start our own MOTM here in LYN Thanks for the idea. It's also on RRTech forum - http://www.realredraider.com/vbulletin/sho...ead.php?t=36730

yeah,thts an idea...need to find sponsor tho...or juz recognition might do,hehe

Hehehe, whichever also jadi la, dapat voucher for spa also ok ...lol

Updates 1

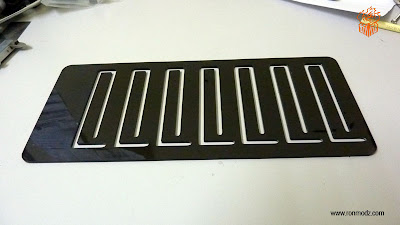

Mounted the Cooler Master 4-in-3 device module and converted the 5.25" bay into a 4 x 3.5" HDD bay area. Received the custom designed Black Acrylic cover for the HDD cooling fan and also the white acrylic for the mobo area base today.































More updates coming soon . Comments are welcomed

This post has been edited by RonModz: Oct 19 2010, 09:44 PM

This is awesome, a true modder at work Btw, I will be sending you my rig too.

Thanks Bro Really appreciate your comments.

Update 2

What do you guys think of this ? Anyone know where i can find a black coarse thread screw for the fans. I know CM comes with the black ones, anyone has extra ?











The arctic F12 really looks nice with black interior, peeled off the sticker coz their disti here don't want to sponsor this build...hahahaha [Joking!!]

wah u make me really envy ur casing la....
demn nice..u intend 2 do all black or just the inner side hitam?
btw nice job++++ cun sgt...

Thanks . Just the inner side is Black and the bottom cover is white acrylic.

the white acrylic same like mine! hehe...nice btx mod bro...will do that on my next major overhaul.

Thanks Bro, cool rig you got there too, btw how's the Feser rad ? Good ?

Thank you for the compliments, you're getting there too! i bet urs will turn out MUCH nicer

As for the rad, it's awesome! I'm able to get good temps. Last time, used the swiftech 360 radiator but no gpu block, cpu was idling around 41c and load temps are ~55c. With the feser, now using cpu+gpu+mobo block, my 4890 idles at 37-38c, load at 55c cpu at 39-40c, load at 49-50c. These temps are with no airconditiong, ambient around 26-28c.

I'll try adding more fans to pull the air cos currently, only 4 fans pushing (Coolermaster R4 red led).

This post has been edited by rzs77: Oct 21 2010, 11:00 PM

Updates 3

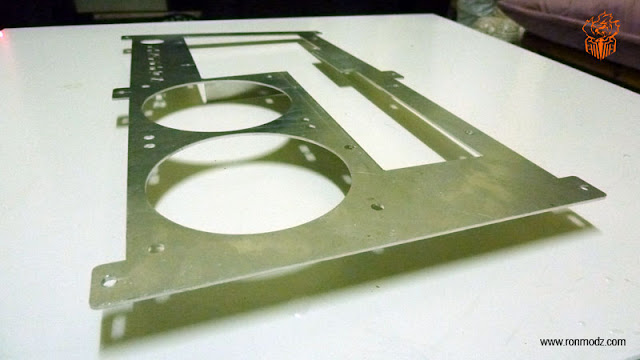

Just finished designing and manufacturing a custom quad rad holder. Looks nice but have not mounted on the TJ07 yet. Also powder coated it together with the Kingston Hyper X ram heatsinks. Here are the images



Half of my design file...hehehehe

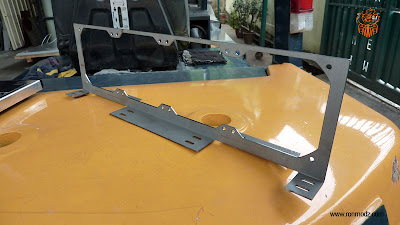

Picture taken outside the workshop.



After powder coating

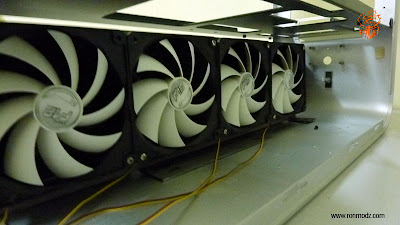

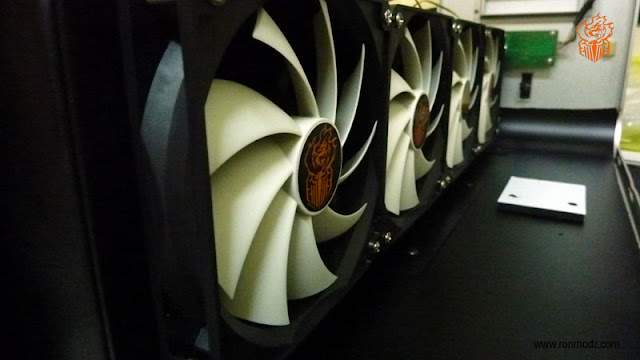

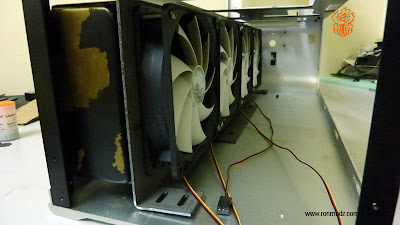

Rad and fans installed.



Close up view



Hyper X Heatsinks in Black



Another view

Well, hope you guys liked it so far More to come soon

This post has been edited by RonModz: Oct 23 2010, 09:16 PM

like phobya rad holder...lovely

its tht aluminium?whts d thickness?

This post has been edited by shajack: Oct 23 2010, 10:51 PM

Yup, like phobya!!! . Thats 2mm aluminium. Need to perfect the design and later maybe mass produce for all the rad sizes .

where did u buy tht aluminium?
did u cut it urself...planning another mod ere

I did ask a forumer here but no reply, luckily there was a small piece lying in the workshop's store. It was cut using CNC waterjet.

how did you bend the alu? good job bru, boleh jual ni. what's the cost?

It's alu, so a bit easy to bend. Used bench wise, metal blocks and teflon hammer (custom made) hehehehe. Yang ni nak pakai utk TJ07 la bro, kalau ada order i can design for all rad sizes, can mount vertical or horizontal too.

i also wan to know how much it will cost

Bcoz this was only a single piece, i would sell for RM 150 including powder coating. But the price will be cheaper if get more orders

great job bro, i miss ur pm actually....
nice job there

Thanks Bro, i will be needing it again. Do you still have it ? I need one...

after i search whole my office no 2mm .
3mm available .
bro, ur business getting bigger, 1pc mana cukup
can order 3pcs for u.

3mm a bit thick la bro, i need it for hd bay cover 2mm would be perfect.

agree, 3mm very thick.

Hmm ni casing saper?? May I know?

Hehehehe, secret...lolx

how much for 3mm n does it require a lot of work to "work" on it
we're talking bout aluminium rite

yup,is aluminium.
around rm1XX, depend on how u use it la.
if cut by CnC waterjet then save alot work. without machine, cant bend it.

erm,too much work...prefer 2mm then
so,RonModz,whts next

Hahaha, at the moment decorating the heatsinks... Next stop Side Bay Cover...lol



This post has been edited by RonModz: Oct 25 2010, 05:58 PM

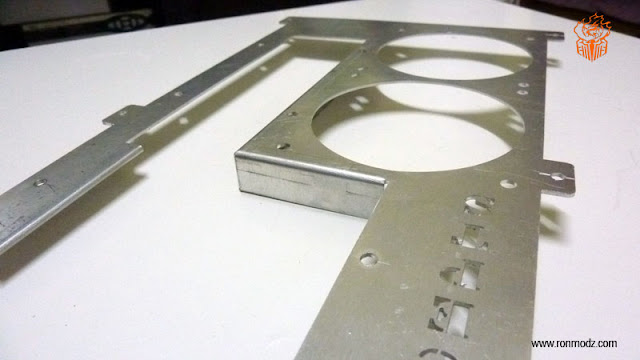

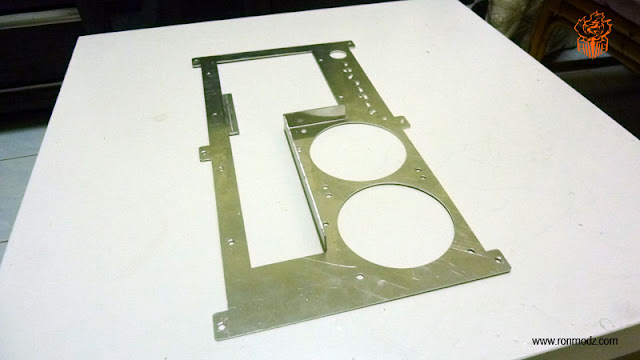

Had to re-design the rad holder to be much more sturdier, changed the material to mild steel and extended the legs . Did the 5.25" bay side cover with the theme name cut out using laser cut.



New rad holder

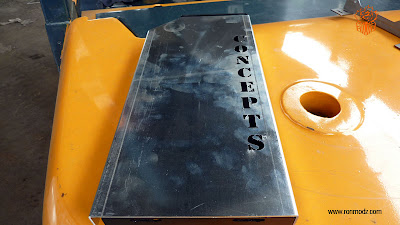

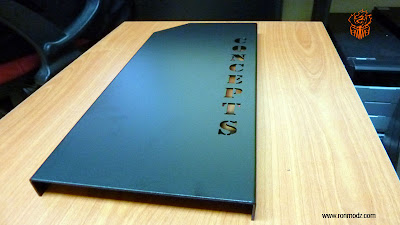

5.25" Bay side cover

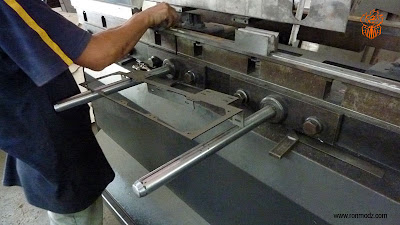

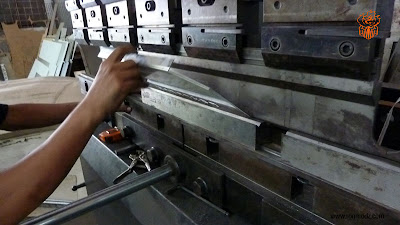

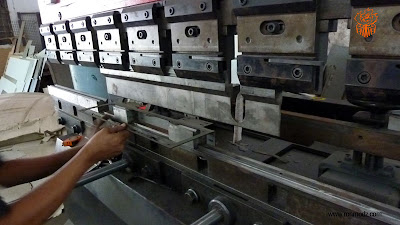

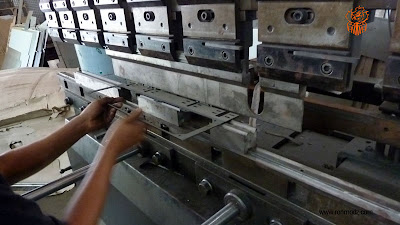

Bending in process



The last metal bender or air bender ? ..hehehehe



Setting up

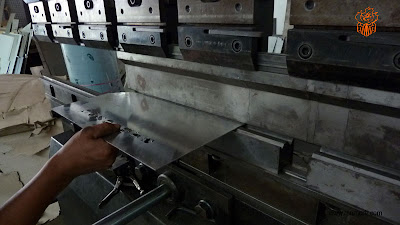

The rad holder prepared to bend.....lolx



After bending one side.


Next stop, powder coating

Next job he will help me do my rig

Hahahaha, nice.. Which case ? lol

nice yo, been looking for bending brake since forever. this is epic win. bending brake robot!

berapa charge ni?

waa, nice nice

oso got nice workspace wooo

update here please...


btw, wat type camera u used??

nice work done..update2...hehe

saya bookmark ini thread
really interesting
pro modder aite

indeed
memang pro...

tgk workspace can tell us

This post has been edited by nkarul85: Oct 26 2010, 07:43 PM

Hehehe, charge depends on the profile and the complexity of the bend...

---

Added on October 26, 2010, 8:07 pmThanks just a normal camera - Panasonic Lumix DMC-T27

---

Added on October 26, 2010, 8:08 pmThanks, will post more updates soon

---

Added on October 26, 2010, 8:11 pmThanks


This post has been edited by RonModz: Oct 26 2010, 08:11 PM

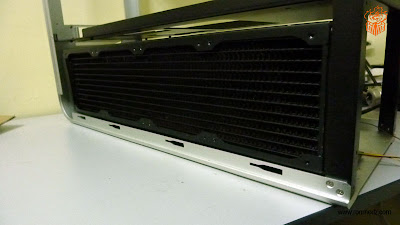

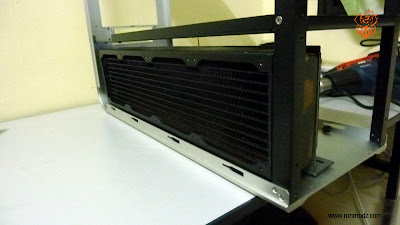

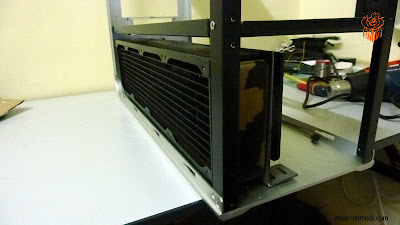

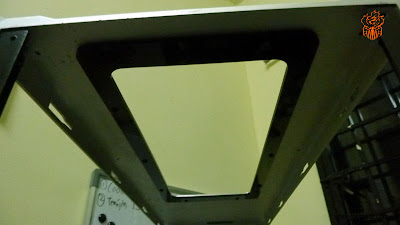

This is how it will look when mounted on the TJ07, just did a try run before i send for powder coating... it fits like a charm

















I am really happy with this version of the rad holder, was able to support the rad's weight. The previous one was a bit wobbly.

Ron has become a big shot modder in lyn.

Hahahaha . It was an honor to work with this wonderful TJ07 case.


This post has been edited by RonModz: Oct 26 2010, 10:47 PM

Shit, this is awesome. keep up the good work dude. Might find you one day for modding my case

Thanks dude, sure np . Just look for me, we might be able to cook something up...hehehe

Hi Ron, do you think you can transform my old CM690 to a TJ-07 since you're a bigshot modder?

Bro, sure... you give me 1300 and i'll give you a new TJ07 and your CM690 as bonus...lol what u say ?

Update 4

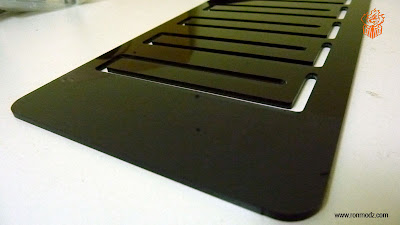

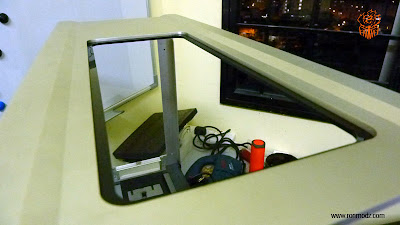

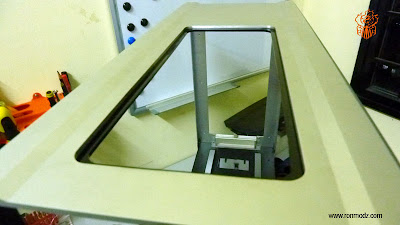

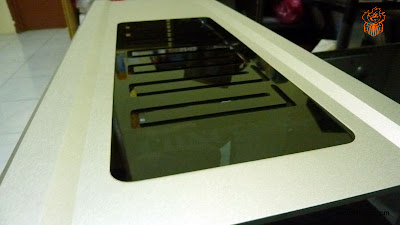

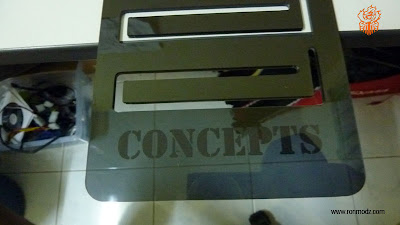

This is the design i did for the custom mod top for this project. Its made of transparent black acrylic with the project name etched below, hoping that the light in the case will help to shine the words when viewed from the top. Here are the images, the bottom holder is still in the factory... for this picture i just used my hand to place it on the case...

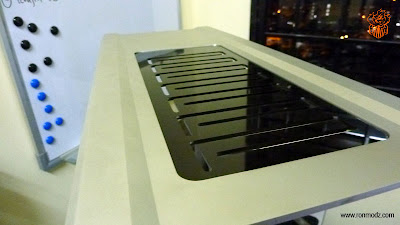

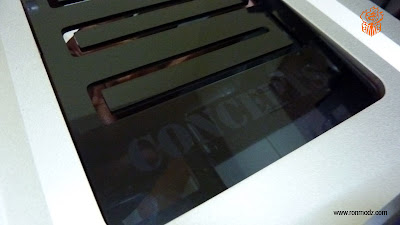

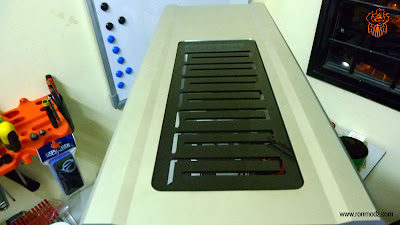

View from the top [close up]

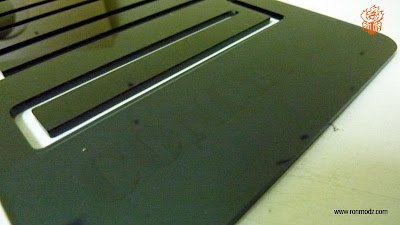

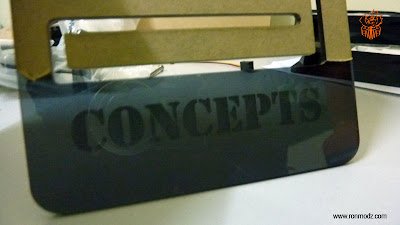

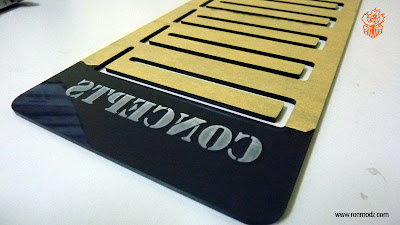

This is the etching side

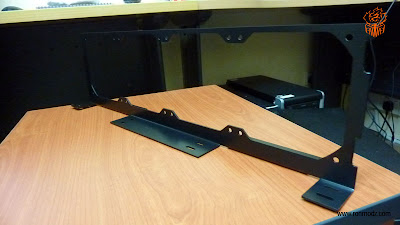

The rad holder and the 5.25" bay side cover after powder coating.

very nice!!!!!!!

I cant see pics from this host

huh why??how come?

Sorry, it tends to happen sometimes... it gets the rate limit exceeded error. I use google's picasweb . After few minutes, it will be ok again.

precision fit. good job!

bro, u can produce all those stuff for tj07 user.
especially the rad holder, without tis their rad will not fit the mesh.

Thanks Bro

Yes it can be done. To minimize or to sell at a very attractive prize, i need quantity. If i can get orders, definitely it can be done.

i believe rzs77 interested

Hehehe.. he wants the mod top

brother, excellence !

Thanks Bro

i believe the top of atcs 840 cannot be modded rite??

You mean cut a hole like TJ07 and do a mod top ? Of course you can but you have to sacrifice the 2 large fans

nice~~

Update 5

This is how it looks with the bottom support frame. It fits like a charm















More updates coming soon

This post has been edited by RonModz: Nov 9 2010, 08:49 PM

woooo nice..dat one u did using alu panel bro?how much the cost?if using other design such dragon image?

Thanks . Both are acrylic, bottom frame is Black Acrylic and Top Cover is Transparent Black Acrylic. Yes, you can cut a custom image, but i need to see the dragon image first, coz if it's too pointy or narrow, the acrylic might break during cutting. Once you have the drawing pm me, will let you know the cost.

How much do you think it would cost to replace the ACTS 840 side window with the same acrylic you using for the top part??

Sory dunno he size yet.. will research further... maybe 40cmx30cm

Yup, it can be done but i need the size before i can quote

Update 6

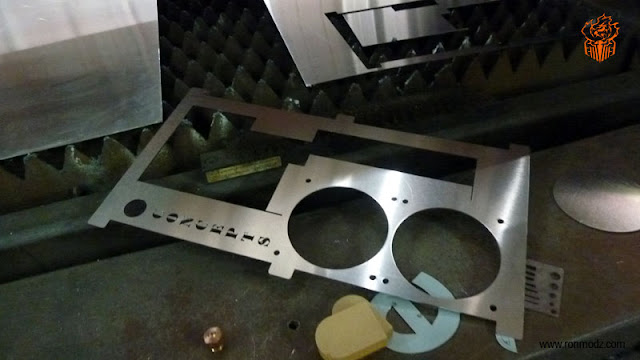

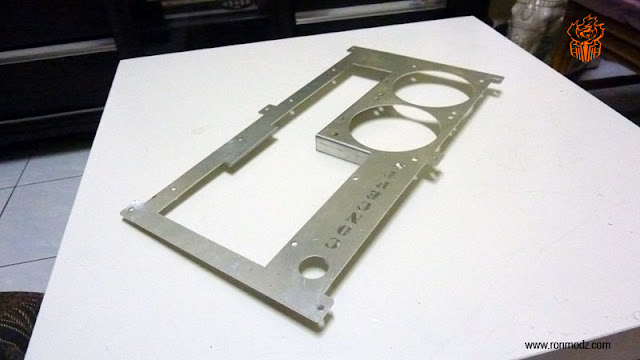

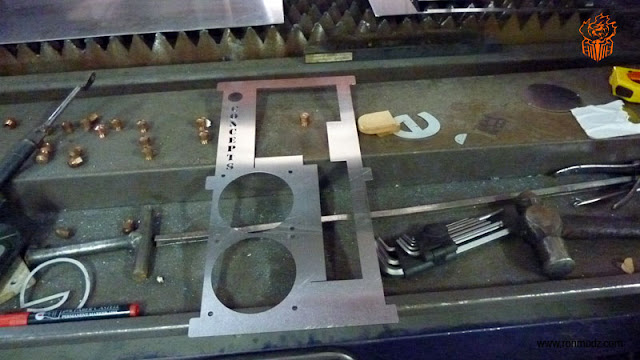

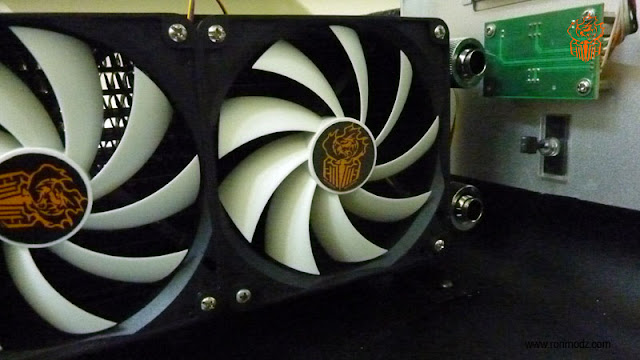

This is the custom inverted backplate design for this build. Used a 1.5mm (thickness) aluminium. For those who wants to see the process of laser cutting, i've uploaded a video YT. Hope you guys like it. Also mounted the rads .

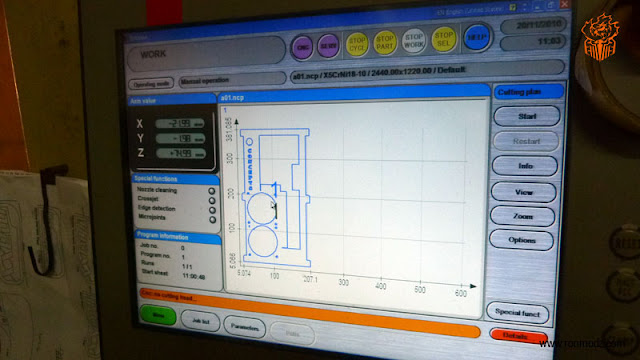

The DRO and the drawing.






The top hole is for the LED rocker switch




















Will be sending the backplate together with the custom mobo tray for powder coating. More updates coming soon after the assembly.

seriously nice modding bro ...

arrggghhh miss my Raven ...

Thanks Bro

my dream machinery... thumps up...

bro wan to c ur custom mobo tray.. pic pls

Hehehe, no worries... it will be out soon. Powder coating in progress . Once assembled, i will post the picture.

it's been a while since i went online
great work here
might request you a quote one day

oih dro kacau line !
im going for him as well .
i'll hunt him down until my TJ07 is fully modded !

Thanks Bro. Yup sure, just pm me if you need anything

---

Added on November 26, 2010, 9:21 amHahahaha, would definitely love to work on another TJ07

This post has been edited by RonModz: Nov 26 2010, 09:21 AM

@monsh

stay away from me you stalker~
hahaha

damn u dro !
sry TS, off topic a bit, DRO bila maw lepak !

anyway, TS, i'll cntc u soon . be prepared to revamp my TJ07 !
hehe

Shait might need to send my TJ-07 to you for a major overhaul!!!

>_< WIsh i got all those toys (tools) to play with~

that black thing like air filter de thing is what ?

is radiator

no water filter???xD

kidding

what is that for ?

to boost the processor and cool down the rig, u know, like how intercooler works.


anyway, is the rad so heavy that you need to reconstruct the chassis?

it's not that heavy until it's filled with fluid...

Y U No UPDATE?!
