lets take a look:

front:


side:


top:


seems doesnt have alot different than his elder brother ay?

---

Added on October 12, 2010, 5:52 pmtranslated link btw:

http://translate.google.com/translate?hl=e..._sstoneev1.html

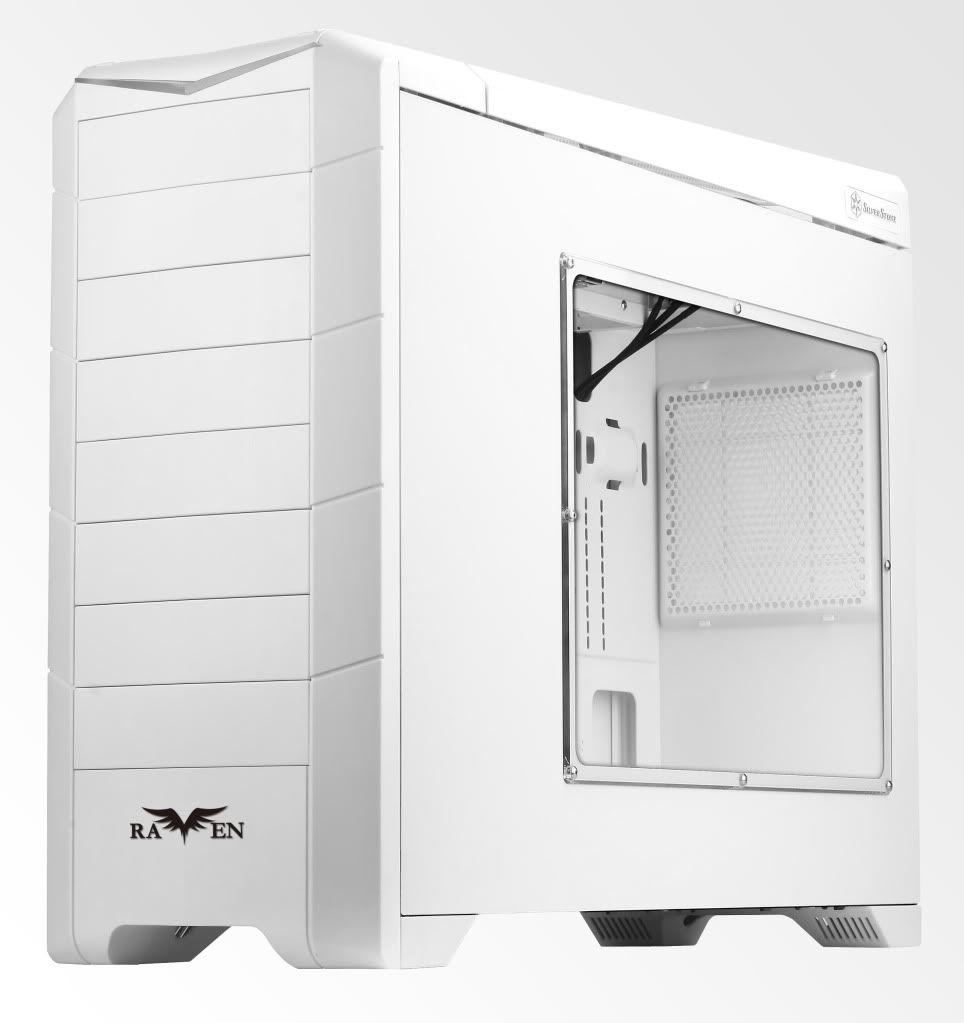

seen another special Raven 02:


Xmas editon?

This post has been edited by storm88: Oct 12 2010, 05:55 PM

still not impress wif it, fom the pics, cant see any MAJOR improvements fom raven02.

From the pic i can see the difference are:
1. The motherboard orientation is made the same as normal case eg: panel open on the left side instead of right..
2. They moved the PSu to the bottom right corner where the old raven II hold its hdd bay & 3rd fan..
3. It only have 2 180mm or is it 140mm fans instead of 3 on the raven II..
4. It has more transformeristic looks to its front panel
5. It has an 8 expansion slot design maybe for fitting e-atx?

raven03 is the hedgehog version?

vent all spiky

i think i saw it somewhere before on the net

sorry noob..
what do u mean by hedgehog version?

he probably mean the spikes or fins thingy

it's still prototype la

by the way the workmanship of the design can tell dats true...

Seems Silverstone are currently lack of idea now. Keep "revise" old model prototype, haha
Unimpressed by this one eh...

same only..

eh.. i have almost same feeling like you leh..
but hearing they say will still change the Rv03. see how it goes la

I've seen in Techpowerup, one of their members actually emailed Silverstone and is SUPPOSEDLY to be released this month.

From the looks of the picture, the chassis seemed very beat up xD I'd still prefer the RV02 over this. Doesn't seemed to have any fan blowing over the HDDs. Unless it's supposed to be fit in that cage with the blue LEDs. That would mean more hassle to remove x_x

The FT02 is a better successor to the RV02, though not by looks.

Just got my RV02 last week, and I must say, the main thing they ought to prioritize is the HDD cage... You have to remove the entire mobo just to add/remove HDD D:
And to make things worse, it only carries 3!
...but not that I'm that affected. It could be modded lightly to allow the cage to exit from the front. Haven't had a proper look.
Trying to look for those Icydock 5.25 internals to carry HDDs too =(

hedgehog-spiky

taiwan --1 japan --0

This post has been edited by ktek: Oct 18 2010, 12:18 AM

The newer design moving into more FUGLY..Uhhh

Having the same thought sort of

silverstone FT03 n RV03 preview from bit tech...n RV02 albino brother

wonder any one interested in the white Raven02?



This post has been edited by storm88: Oct 21 2010, 11:18 PM

Opps.. gonna fall off... (one of the remove-able drive clip)
Swap few things around then make a new revision LOL... smart move

Let CM follow the concept and this trend will become cheap affordable xD"

This post has been edited by wildwestgoh: Oct 26 2010, 09:26 AM

is tis the raven 03?feel weird with tis design~

U feel weird? u got orgasm or something you feel weird?

Anyways, this casing design is getting lame. The 1st and 2nd is cool, but the 3rd
