I've already done powder coating for all the internal parts now left the external parts, the 2 side windows, the top and bottom only. Since it has paint on it, i had to remove it first.

See the internal parts here : http://forum.lowyat.net/topic/1546673

Got the chemical from my cousin who is a jobber. He didn't say its name but gave me the brush on type. Apparently there is 2 types, brush on and the other is immersion which you need a tank. Don't bother trying those paint remover from the hardware shop, i've wasted 30 bucks from 3 diff shop with 3 diff brands.




























Just PM me if you need to powder coat your build, currently just doing black.

This post has been edited by RonModz: Oct 12 2010, 02:04 PM

what chemical are u using exactly? seems to remove the stock color of the casing effectively

This post has been edited by mato89: Sep 6 2010, 02:01 PM

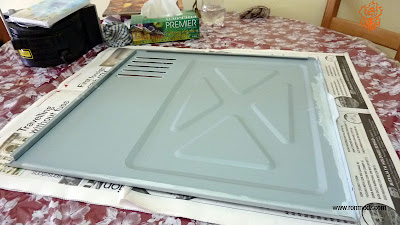

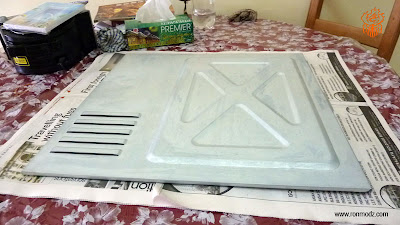

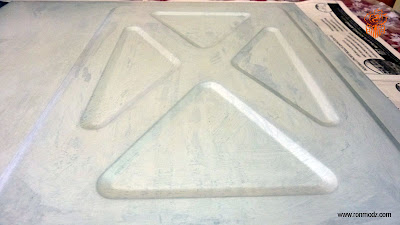

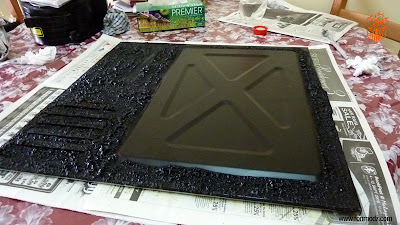

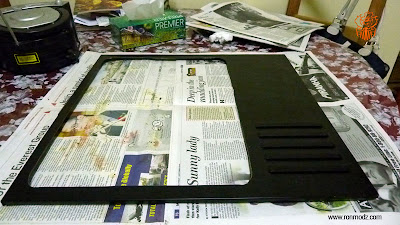

I don't know the name yet, my cousin will check for me. he got it from a supplier - a sample bottle and he gave that to me. It's a thick cloudy solution, not smelly. It was labeled as 171. Just finished the 2 side panels. Will be posting the images in a jiffy Will let u know once i get the name and msds for the chemical.

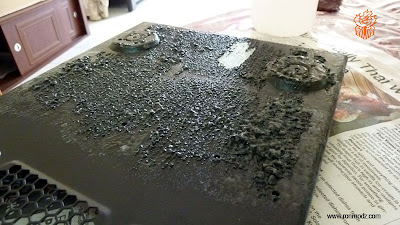

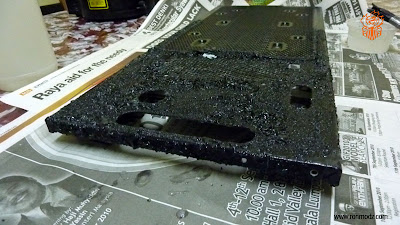

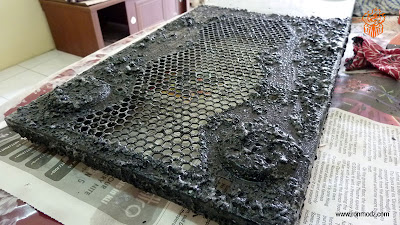

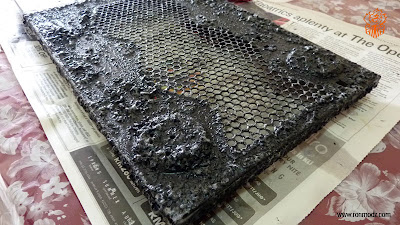

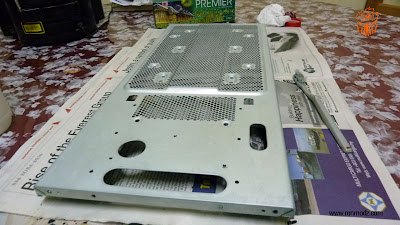

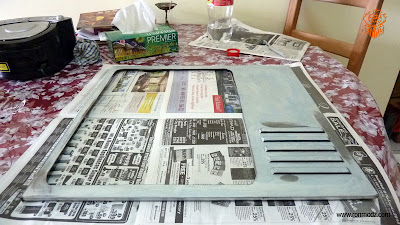

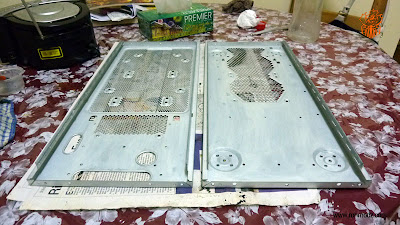

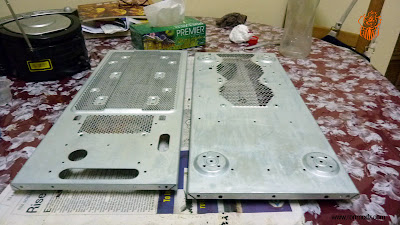

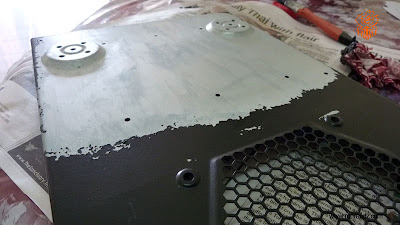

These are the remaining images. The front side window panel was a bit tough to remove, i guess they had a protective layer on top and the shiny letters of HAF. Still managed to remove all, next stop Powder Coating

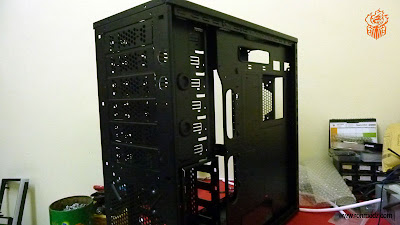

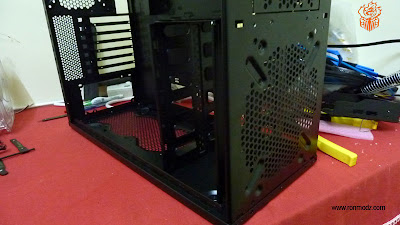

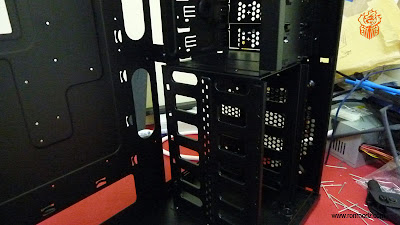

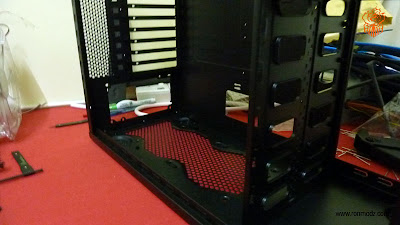

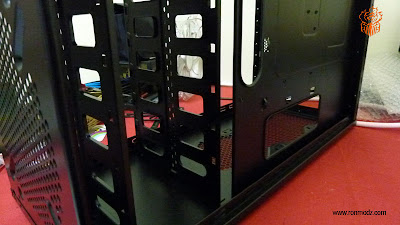

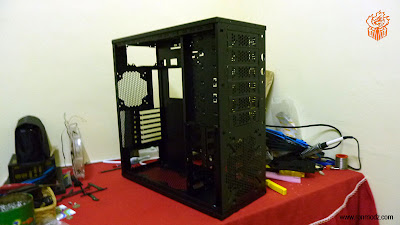

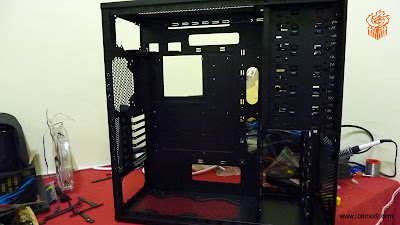

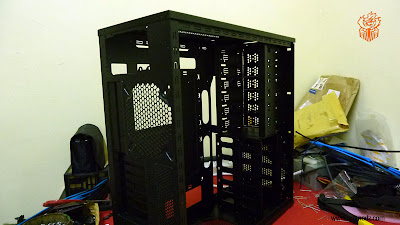

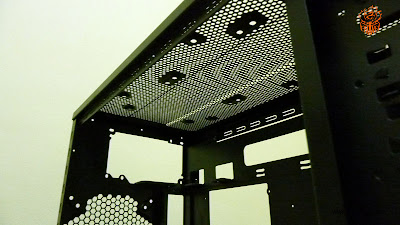

All my Cooler Master HAF 932 parts came back from powder coating. Just finished the first part of the assembly, posting the images here. Sorry, for the image quality will take better ones soon. Did a custom logo and powder coated it too, will let you know where it will go in the casing, after finish arranging the custom mesh panels...Extra mesh!!! and 2 big window

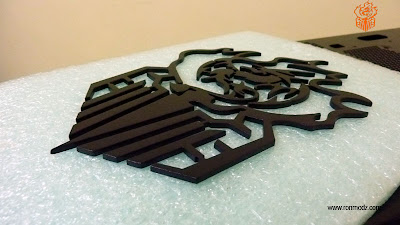

RonModz Logo

never done paint remover job yet. how difficult was it ?

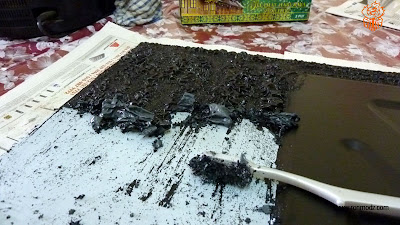

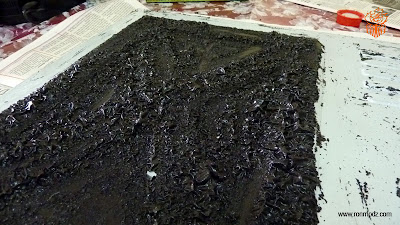

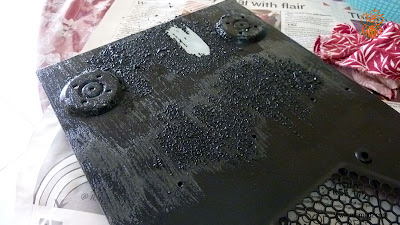

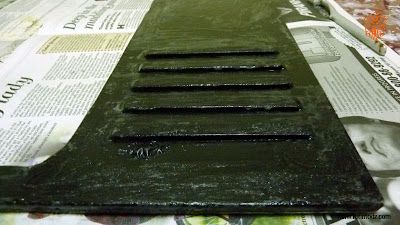

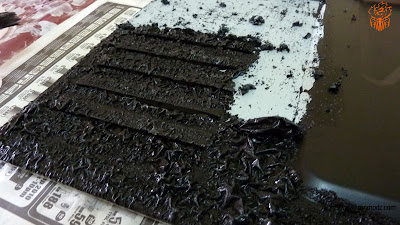

It was ok, not so hard. Just apply on, wait for it to blister and peel, apply again till all the paint is removed and clean the surface. I bet it's much more faster if you use the immersion method. Mine was the brush on. Took about 2 days to finish, about 4 hrs a day.

damn dude..it was really nice..?.

how much do you sent for your powder coating..?..i'm considering it too..xP..

The whole case including my DVD-ROM covers and the steel logo - RM 186.00. Let me know early, can get group discounts . I need to send my modders mesh too. Just need to finish bending and shaping it first.

It sure looks nice with Black rivets, got it from MDPC-X.

u used aerosol paint remover or da liquid type?

It's a liquid type....quite thick

wow i do like ur steel logo...

This is a true mod, excellent work there Surely looking forward to see more in this thread soon.

Thanks Bro Will be having 2 windows on each side panel, exposed but covered with acrylic and mesh. 2 extra blowholes with mesh and few other things. Will be posting images as the work progresses

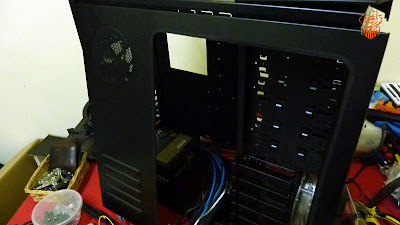

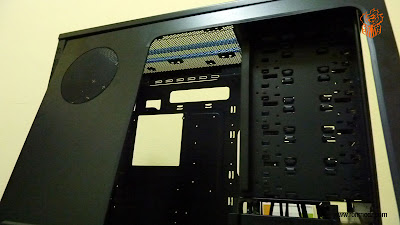

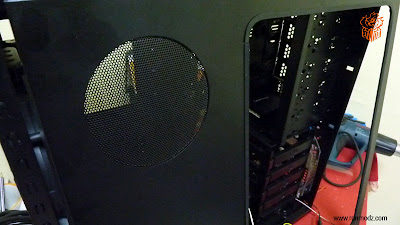

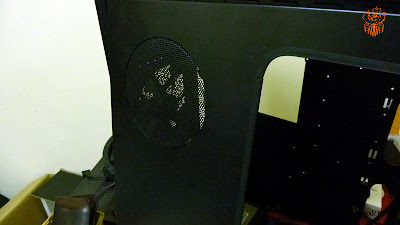

My side window mod for HAF 932, a big window and a small 120mm blow hole - no fans, just for fun

wooiii.. .i envy la.. ..do you cut the side panel on you own..?

The side panel that you see above is the right side panel, i used waterjet cutting service, the main side panel window is slightly bigger and i cut that myself, used jigsaw and the cutting line was not straight. So, when i went to fabricate my logo, i asked the guy favor and he did it for me . It took less than 5 minutes

waterjet cutting can cut weird designs? i have a design, not so hard for waterjet. but quite hard to cut using rotaries or jigsaw. want to find easier cutting techniques. how much ehh?

Yup, i believe waterjet cutting can cut weird designs, waterjet can cut almost anything and any thickness which laser cut can't do. The difference that i see is, when you cut transparent acrylic, laser cut will leave a smooth transparent edge on the cutting area whereas the waterjet will leave a non-transparent cloudy surface. For metal and complicated designs, i would prefer waterjet.

Ever since started to use waterjet, i seem to forgot my jigsaw skills..LOL. For the big window and the blowhole cost me RM60.00. A bit pricy for a 5 min job but it was a precision cut . I guess would be a lot cheaper, if you can write the CNC Gcodes for them, or give them the ED in autocad or ai.

cool. if they can accept AI i can make a quick drawing. will you be free anytime this thursday?
