what about playing with IOH, 1.125v, 1.175v, 1.2v etc...
BIOS 77 RTL 60-63-65
Others u guys might wanna refer to my 1st page ie. GFlops timings voltages etc...

RTL 60-63-65 gave me bsod after 1 pass. Haven't really tried messing with IOH by increment, will give it a try.

eh,mine kenot even Linx...
4.2Ghz HT off with 4k uncore....
lower uncore no problem for me...
set 1.42v vtt already...
does RTL plays big role in dram setting?

p/s : classy bios got so many options,makes me headache...

---

Added on March 13, 2011, 3:26 pmanyone??

This post has been edited by selfdz87: Mar 13 2011, 03:26 PM

you can just leave your rtl on auto. try putting your mch strap to 1600. btw, you're still on dual channel? you can still try 1.45vtt

ok bro...will try that out...thanks mets...
btw how do u flash ur bios bro??using flash drive or u flash it in windows??
latest one is bios 77 right??

oh,i already buy another new stick yesterday...so 6GB now...

This post has been edited by selfdz87: Mar 13 2011, 03:55 PM

Latest bios 78 and flash methods are HERE

yeah bro thanks,already see that links...
little bit confuse abt the flash method...
ASUS is far more easy...hehe

ergh 1.45v vtt in bios 1.43v in windows .
cant lower that thing, else not stable .
does this has anything to do with imc strength or its just diff mobo diff vtt ?

i think it depend on both bro...
IMC+good mobo = nice vtt
no??
plz correct me if im wrong....

ya, my noob asus P6T can boot into window with 4000 uncore
but fail in LinX even with 1.5xx VTT, i gave up oredi~~
my i7 920 same batch as owikh, he can do 4200 uncore with classy, haizz
plan to get new mobo when got $$$$$

@chenhui87
change ur proc with me+i topup??

btw guys i kenot do 2k dram, in bios i already set 1333mhz/2:10 ratio
but when boot into windows it still stuck @ 1600Mhz dunno what is the problem

bios template :









in windows it shows this :

try loosen timing for ram .
try increase tFAW to 24/30

mine set to 24 will make the ram into 4gb .
set tFaw 30 problem solved .

1 thing with 2k dram is that u have to start altering the subtiming a bit .
its not that simple anymore like 1600 or 1866

trfc set to 88 and tref set to 764

ok guys...i will give a try on that setting...
thanks monsh and mets...

reboot now......

and the 3 of your write to read should be higher than that. try 7, 7, and 17

you also might wanna set your mch strap to 1600

---

Added on March 14, 2011, 11:12 pmand also set your ich and ioh vcore to auto. you don't need that high

This post has been edited by metsatsu: Mar 14 2011, 11:12 PM

mets,no go...already try that also...the ram multiplier still stuck at x4 wont go x5
CR 2T also same...add vdimm also same...
haih whats the problem...b4 this i already try the ram can go 2k wif 4k uncore...but not stable...
now try again cannot already....so confuse now....

dun wan lah~~still study now~~will change to classy when i go out to work~
i love my i7 920~~

well, if its meant not to work at 2k then try lower frequency with tighter timing bro .
i even had a hard time trying to stabilize 2k cl9 on my previous hyperX .
with the new dom gt PSC chipset, it's really easy .
i guess its still based on chipset as well .

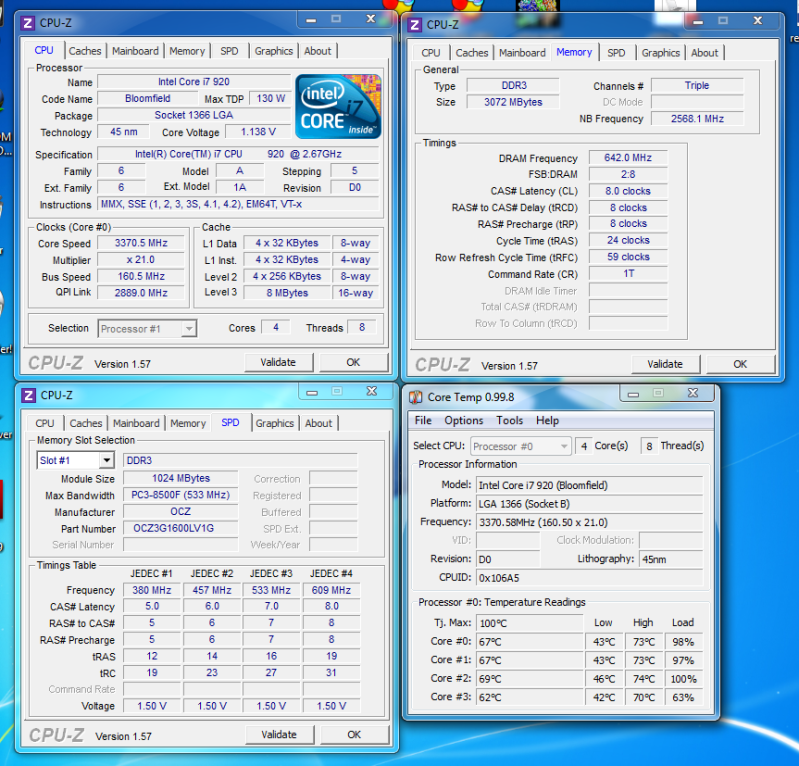

hello...new user reporting in... currently oc to 3.3ghz to gain more ppd on folding@home for team 2999 (folding@malaysia)...



http://valid.canardpc.com/show_oc.php?id=1715317

test with prime 95 for 2 hours, and straight using smp for 12 hours until now... need to change better cooler... following this guide for oc, coz the hardware looks like mine...

every component has different efficiency .
doesn't mean same hardware will give u exact same result .
it'll differ in a way or another .
but it's nice to have same hardware cause then u'll have the full guide for doing it .
