 Model Kits/Toys Painting, Building, Modding Thread, v3

views

Noysan
post Feb 6 2012, 06:15 PM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


QUOTE(chaics85 @ Feb 6 2012, 06:03 PM)
guys.. i'm totally new in painting..
[attachmentid=2671183]
from this picture, the paint chip off (circle in red) after i main main tried to assemble the parts to the body. may i know why will it chip off??

i've sanded it->clean and let it dry few hours->paint with tamiya primer and let dry for overnight->paint a layer of Bosny flat black.

Did i miss anything here? or should i have painted few more layers of the flat black??
*
looks like paint rub.. it's normal when two parts are touching and you try to move them.
What's not normal is they just chipped like putting some masking tape and when you remove the tape. parts of the paint peel off.

Noysan
post Feb 7 2012, 09:07 AM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


QUOTE(chaics85 @ Feb 6 2012, 10:46 PM)
hey thanks. i was thinking, should i repaint the whole body again? or just spray some paint on the chipped area.. if i only sprayed it on the affected area, will the paint look uneven to other part of the body??
*
the smalls ones can painted directly but the big ones where the paint rub is visible, you will have an uneven surface.
I usually sanded problem area, re-prime and paint.

Noysan
post Feb 7 2012, 08:50 PM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


QUOTE(chaics85 @ Feb 7 2012, 06:17 PM)

what is happening?
[attachmentid=2672933]
[attachmentid=2672942]

is the paint eating my plastic? btw, i'm using samurai spray paint for this red. i tested it on my runner and it looks just fine. wonder why like this...  rclxub.gif

may i know what's the best industrial spray paint for model kits?
*
orange peel effect.. I'm too lazy to type sweat.gif too many factors affecting this. refer here:
http://en.wikipedia.org/wiki/Orange_peel_%28effect%29

Noysan
post Feb 9 2012, 01:01 PM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


QUOTE(enJiNer @ Feb 8 2012, 09:29 PM)
some of my works are here http://forum.lowyat.net/topic/210216/+60

currently stop building temporarily to give way to other personal stuff.... maybe i will be back for more later....... i got almost all the kits for my retirement plan flex.gif  flex.gif
*
damn nice work... smile.gif

Noysan
post Feb 14 2012, 02:20 PM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


just sharing my model latest kit.

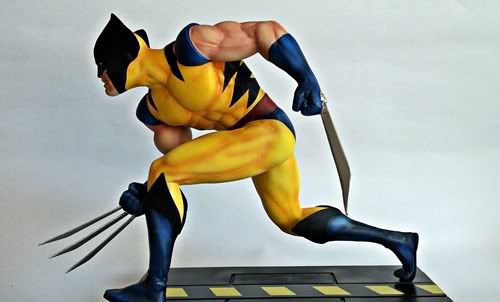

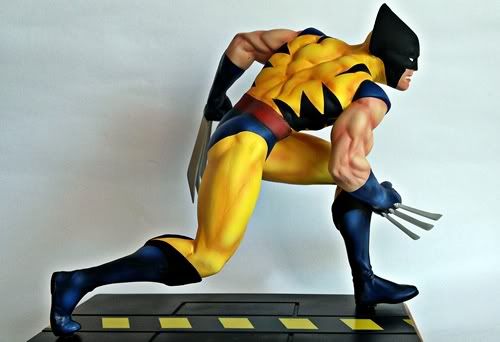

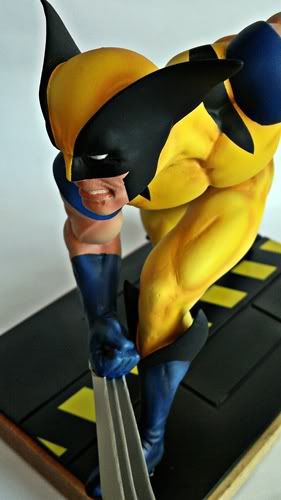

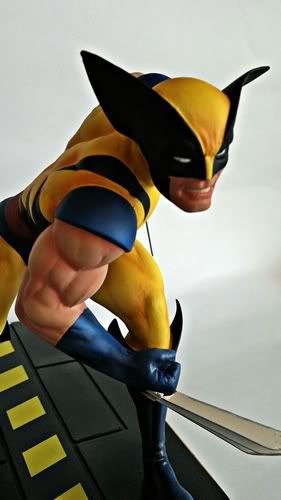

Wolverine
» Click to show Spoiler - click again to hide... «

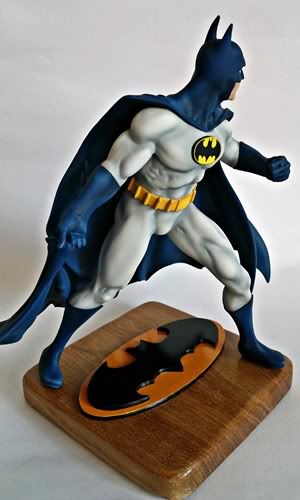

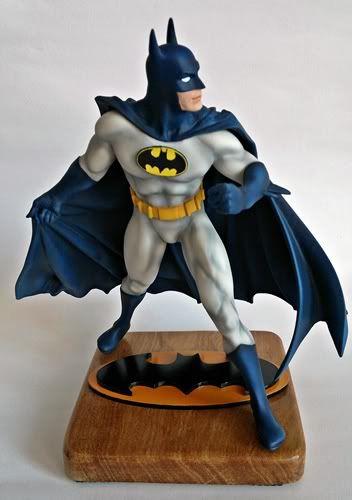

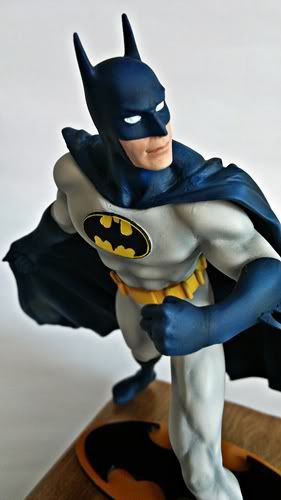

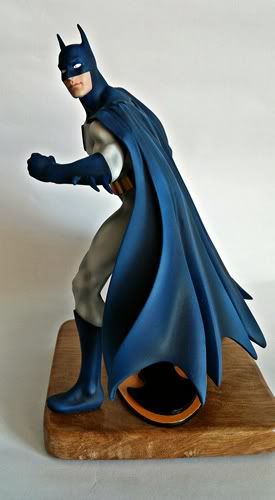

Batman Comic Version
» Click to show Spoiler - click again to hide... «


This post has been edited by Noysan: Feb 14 2012, 02:22 PM
Noysan
post Feb 14 2012, 02:42 PM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


QUOTE(z3r0717 @ Feb 14 2012, 02:37 PM)
like like like...
wonderful shading!!! AB pro.. nice work
*
thanks z3r0.. biggrin.gif

Noysan
post Feb 17 2012, 01:16 PM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


QUOTE(chaics85 @ Feb 17 2012, 10:51 AM)
wow... those are superbly done.  drool.gif

btw guys, anyone knw how they make the stand/ stick.

http://1.bp.blogspot.com/_f-Q03K5lPFM/Svpf...-h/IMG_0006.JPG
*
thanks tiger,chaics... biggrin.gif
custom based. Look at here, there's some tut's how to make one.
http://www.dc23mecharts.com/p/my-tutorials.html

Noysan
post Feb 17 2012, 03:59 PM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


QUOTE(rayloke @ Feb 17 2012, 03:31 PM)
Fantastic work as usual!!! thumbup.gif
*
Thanks rayloke... i have to much time at hand during CNY, nothing to do but this. sweat.gif

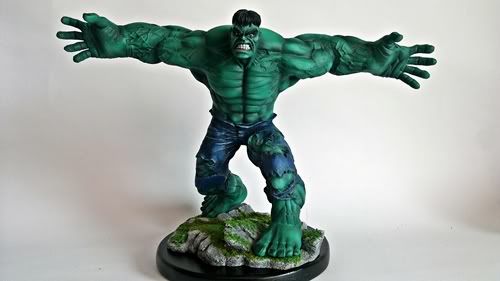

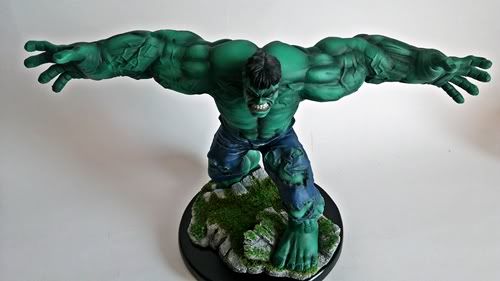

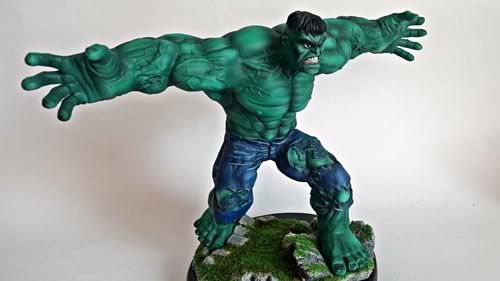

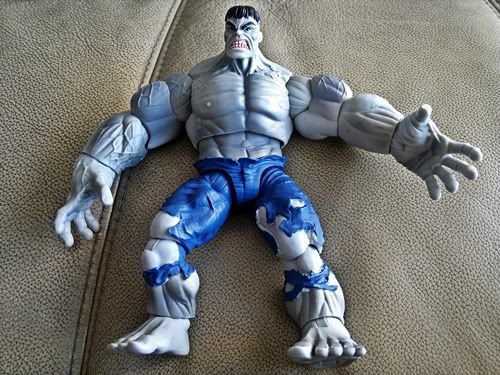

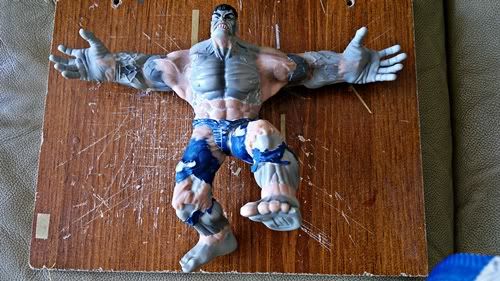

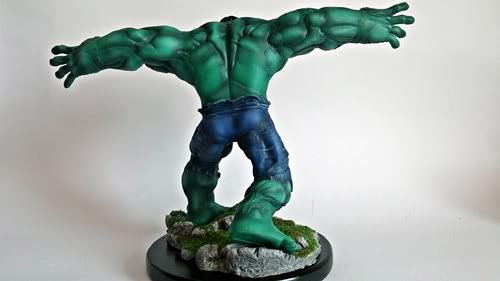

Added on February 18, 2012, 2:10 pmSharing my action figure conversion.
It's a marvel legends BAF Hulk,modified and turned to figurine. smile.gif

» Click to show Spoiler - click again to hide... «
Noysan
post Feb 19 2012, 01:26 PM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


thanks man.. sent you a pm.. smile.gif
Noysan
post Mar 6 2012, 09:53 AM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


» Click to show Spoiler - click again to hide... «

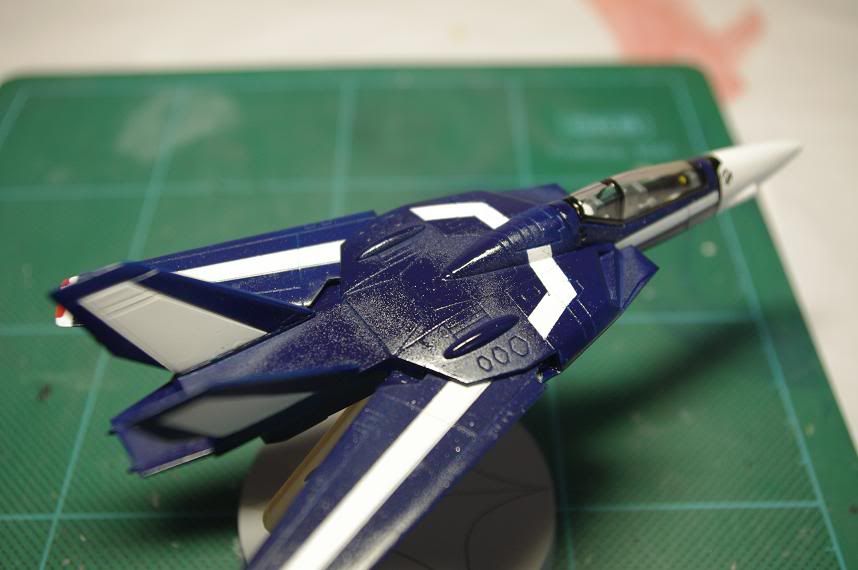

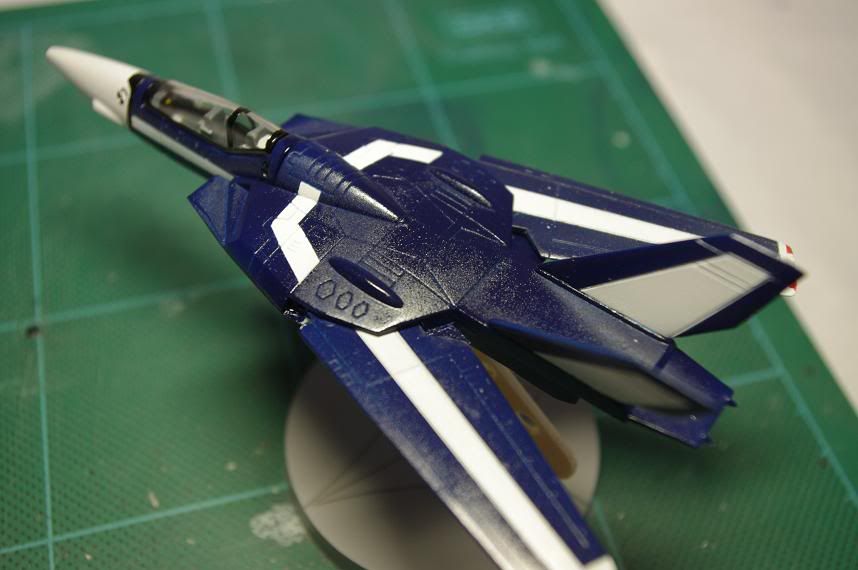

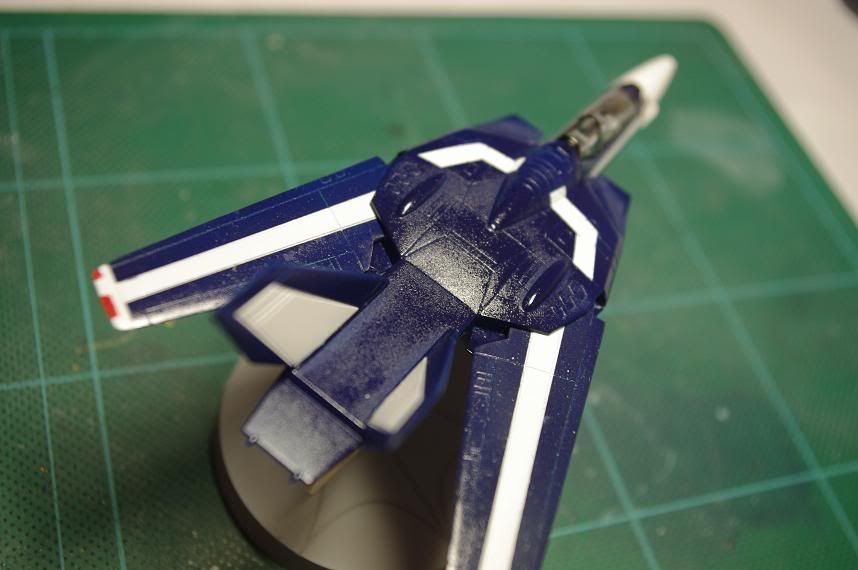

seems your paint is not thinned enough. the paint dried fast and settled unevenly that's why there's shinny/grainy areas.
Noysan
post Mar 13 2012, 09:48 AM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


QUOTE(demonhunter360 @ Mar 12 2012, 09:48 AM)
Hi, I'm a beginner at model kit hobby.

Just got some questions, hopefully you guys can help me out please. ^^
Sorry if I have too many questions, it's so hard for me to find somebody who knows these stuff and help me with my questions.

I got some 1/144 F-Toys Star Wars vehicles.
They come with decals. They are so tiny.
Are these water activated? I need to soak in water for few seconds, slide off paper and put on the vehicle? Should I use tweezers when handling, really small(something new for me).
not sure, i only used decals once. sweat.gif and yes used tweezers

Another question is, how do I do black washes?
thinned your paint as thin as possible (1:5 paint to thinner, my preference), apply the paint using brush. let the paint sipped through the crevices of the figure, then wipe the excess off. Youtube got lot of tuts on washes.

If I were to paint these plastic model kits, do I need to buy and use primer first? Or can the Tamiya acrylic paint be applied straight onto the model kit?
can straight paint on the model BUT the paint won't adhere properly to the surface. Highly recommended to prime the kit first.
If there is some excess cement(transparent)on the kit, can the acrylic paint cover it?
If the excess is just little it can, but i suggest to smooth it out by sanding.

When I was touching up some of my polystone superheroes statues(not model kit), to cover up part of the skin that was too red(under the armpit, probably oversprayed by factory), I mixed Tamiya flat flesh with flat white without diluting with water. Just took with a straw from both bottles, and mixed in a watercolor plastic palette. After i got the correct skin tone, if I felt it was a bit thick, I then poured the mix into a glass bottle and added Mr Color Thinner to dilute before applying.(I was told by this hobby shop guy the thinner works on the acrylic although my understanding is that acrylic is to be diluted with water). Seemed to thin out , and seemed to work. But is my process correct? Am I doing it right?
it depends on the maker. Vallejo acrylics is thinned with water,Mr Color on the other hand should be thinned by thinner not with water. I never tried thinning it with water.

Thanks.
*
Noysan
post Mar 31 2012, 10:41 AM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


» Click to show Spoiler - click again to hide... «

it's too thin. go with the consistency of milk. I might try 1:1.5 or 1:2.
prime your inner frame then brush in thin layers around 3-4. brush stroke in 1 direction.

» Click to show Spoiler - click again to hide... «

priming is a must. It wont lost the details if you apply it just enough.
Noysan
post Mar 31 2012, 03:12 PM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


QUOTE(steph13 @ Mar 31 2012, 12:17 PM)
what if i din prime them? just paint straight
*
then there's a higher chance your paint will chip off easily.

Noysan
post Jun 13 2012, 02:57 PM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


» Click to show Spoiler - click again to hide... «

repaint. smile.gif
Noysan
post Jun 21 2012, 10:09 AM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


QUOTE(Genesiscrew @ Jun 20 2012, 09:28 PM)
Hi~ how to fix a plastic that has been sanded to a round edge back to make it sharp back?
*
putty.. smile.gif
Noysan
post Jun 21 2012, 11:08 AM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


QUOTE(aquilaTE @ Jun 21 2012, 10:43 AM)
Hi. Just a quick question since I couldn't go thru every posts here... can a Tamiya Acrylic Paint(Flat) be painted on metal surface? Cheers in advance.
*
as long you prime it first, should be no problem. smile.gif

Noysan
post Jun 21 2012, 11:20 AM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


QUOTE(aquilaTE @ Jun 21 2012, 11:11 AM)
Ic thx. Just one more, how about metal diecast surface that has paint? Will it stay? Cheers again.
*
prep the surface first (e.g. sanding). if you can strip the paint easily, strip it if not then just sand and make the surface even.
wash with soap > dry > prime > paint smile.gif
Noysan
post Jun 28 2012, 09:34 AM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


QUOTE(PoorVenderz @ Jun 27 2012, 10:57 PM)
Bro's, i just started Gundam few weeks back. Any recommendation for newbie? Spray can (tamiya spray can or those hardware) / air brush? but if using air brush, it's quite expensive right? if follow market price, average price is how much? for full set? if tamiya spray can, any recommendation? sry for asking too much questions here.
*
You better ask tkting. For Rm500 i believe you can have compressor with tank and an airbrush kit.

Noysan
post Jul 9 2012, 04:15 PM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


QUOTE(di3hard @ Jul 9 2012, 03:29 PM)
Hi, all pro dai kor. I am actually at the middle of airbrushing my gunpla and i hope anyone can help me on this.

I am doing a hi nu gundam blue. A bit of whitish blue.

Actually its my first time using airbrush. And I went to shop ystd and that guy recommend me use Mr. Base White 1000 on the first layer for the whitish blue part before apply the (blue mix white) paint on it.

So, the question is, when i put on this Mr Base White, does that part (originally whitish blue in color) need to be totally white. or just slightly white will do? coz i am air brushing now and it kinda thick if it need the part to be total white.

or izzit because the ratio of my mixture is wrong?
*
if your paint is too thick then there is something wrong with the way you paint. Control the flow and don't concentrate on one spot. Keep the airbrush moving in one stroke smile.gif
If you ask me two coating of base white will do. Based on my exp, you can't achieved a perfect white using base white color especially under a gray/dark primer paint.

Noysan
post Jul 9 2012, 05:13 PM

Getting Started
**
Junior Member
156 posts

Joined: Sep 2008


QUOTE(di3hard @ Jul 9 2012, 05:02 PM)
thanks~ what is the ideal mixture ratio of base white color and the thinner? my airbrush keep on got block~
*
To tell you frankly, I don't have the right formula,, tongue.gif . Sometimes it's 1:1, sometimes 1:1.5. sometimes even more. it depends on my mood I guess.. biggrin.gif The number varies, I just look how the paint flows when I'm mixing it in my mixing plate. "milk consistency" is the right term they said.
