xp90 & tornado..

just got xp120 in the rig now.. will try higher.. i smell 2.9

and preparing watercooling setup.. i think at 1.7 will hit 2.95 at least.. this proc still have quite a bit of headroom

ram is 3200LLv1.1 BH-5 .. will do 260 3.3v stable 310 official bios.. 270 2-2-2-5 3dmark05 benchable.. haven't tested highest clock for it..

This post has been edited by babyelf: May 27 2005, 04:39 PM

stepping

CAA2C 0509 DPMW

My rig
DFI NF4 Ultra-D 331-2 bios
3200LL 2x512mb BH-5
MSI 6800GT 410/1120 stock cooler
XP120 and sunon 108cfm fan



just tested more.. prime will come later.. i'm sure prime stable for 2830.. will post one later.. i don't really believe in prime much.. but i'll try just to make it complete



266*11 bootable.. will try more vcore once i have my watercooling

thnx for warm welcome

and did a value vx review here before hehe
http://xtremesystems.org/forums/showthread.php?t=63346

This post has been edited by babyelf: May 27 2005, 05:23 PM

hehe.. hope u get some good results with it

anyway.. more results.. just tested


gonna prime now

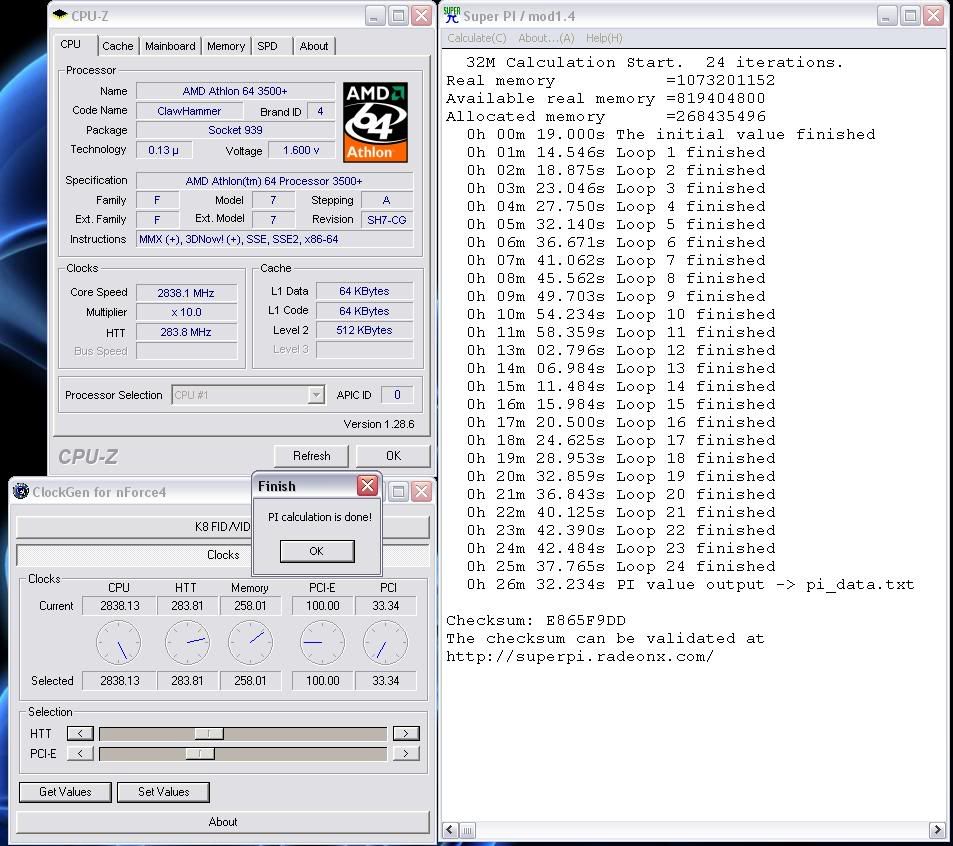

superpi done with msn in the background and IE as well

antonio_zth.. patience.. slowly burn in .. boleh dapat punya hehe

This post has been edited by babyelf: May 27 2005, 06:03 PM

i'll see what i can do..

have to go back to 310 official bios.. i get higher results for memory with that bios
270 2-2-2-5 benchable

it's not the value vx.. that's my old bh-5.. and still have head room with those sticks

i can do 260 3.3v stable with official 310 bios
270 3.5v

haven't tried higher cause i got my value vx .. now back to testing my old bh-5

when i change back to official bios i'll test my value vx as well.. i have a strong feeling it will do 260 at least.. if it won't my next bios will be hellfire's bios.. some say it gave UTT more headroom

This post has been edited by babyelf: May 27 2005, 06:39 PM

np bro.. will do..

might finish testing this proc soon.. venice might be on the way for testing soon i think.. haven't send to me yet.. hopefully soon hehe

ocz recommended users to burn in 3.2v 2-2-2-5 200mhz for 48 hours.. i didn't do that.. i went straight to 3.3v 220mhz 1.5-2-2-6 and started burning in for about 10 hours..

then i had subsequent burn ins.. total about 40+ hours?

haven't really burn them in yet.. 48 hours not really enough.. will continue burning them in..

but yea... what u do is u burn in at a speed u know it'll do just fine.. no errors or so for about 20-30min then let it continue.. for about 10 hours at least when u sleep.. then start pushing it up.... about 10mhz increase and burn in.. then 10 then burn in.. until u hit a wall then increase by 3-5mhz then burn in ..

then when u get ur the max u can get with desired voltage.. then change a different bios and test same configuration and see whether u can go higher..

310 gave me the best compability and overclock.. so i'm going back to 310 now and test my value vx..

my bh-5 can do more than 270 with 310.. but 331-2 won't even let me do higher than 266 3.6v

so yea.. going back to 310 and get the 8k sandra bandwidth later

tried already.. more clock for my claw.. i mean can boot into windows at a higher speed...

but i heard for venice and san diego it'll be better

very early ones can hit high clocks with low volts

the ones between 08 to 16 needs more vcore..

now they're back to low volts again..

it's not their fault.. it depends on the batch one.. some are better some are not.. that's y u have ppl looking for 044x winnies and FX55..

tried the x64 since the first beta.. the last beta was the best.. haven't tried the full version tho..

overclocking wise .. i can't get my abit programs to work on the x64.. haven't tried the dfi on x64 yet.. will do soon.. time to find a full version of x64

oh yeah.. games etc runs smoother on x64.. my CSS plays smoother and i get more fps than x32

but one thing that didn't work on x64 is gunbound =/

This post has been edited by babyelf: Jun 1 2005, 10:05 PM

venice don't really like TCCD heh.. have to tweak alot to get it to work fine..

i don't think they have divider for nf2 platform..

divider means running a ratio for ur FSB and memory speed

250 x 9 = 2250

divider at 166 will give u 204mhz on ram

it can.. depends on what chip u have on it.. check whether u have hynix D43 or D5 or not..

use A64 helper.. google it and download it.. it should help u calculate

not problem.. maybe it's just ur processor.. some don't do very well.. i take it that u ahve winchester

how to set it? it should be called something like DRAM frequency or divider .. look for one that gives u a few options like

100
133
166
200

in bios

ianho.. blow a fan into ur case and try again..

ask those that have ur board.. i duno what it's called on ur bios

check every settings and see.. should have one with 200 166 133 100

yea.. cool the dimms and circulate the air better.. lower chipset temp and mosfet temps.. try and see..
