I bought a Lancool PC-K62 few days ago,

that time when i install mobo,i already got some little trouble,

the mobo can't seem to fit the casing hole,"senget" a little bit,but still can screw it

then today my hd4670 arrive

i can't seem to install the gc,then i unscrew the mobo and it fit right in the slot,

one problem after another,i can't screw the mobo at all,

it got away from the casing hole (more "senget)

i can only screw the upper part of the mobo,hardly

any of you can tell me what i did wrong here?

or who have this case and mobo combination,

pls HELP me



This post has been edited by V3nz: Feb 24 2010, 07:59 PM

Wait, I show you something

Go read the second section(misc accessories) of this guide. Click on photos to enlarge.

This post has been edited by Silverfire: Feb 24 2010, 02:34 AM

are you telling me to screw the golden screw/mobo stanoffs first?

but i already did,if i didn't use the screw,i think i'll face short circuit already,

so any other solution?

Yeah, you have to screw them onto the motherboard tray 1st. But you already did that? Can post picts of your rig?

now?

pls wait...........

Yala now la use table lamp if not bright enough

Don't know what part you want to see

so,here is it

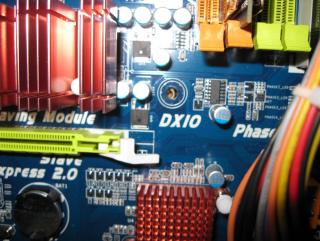

here is how the "senget" part look like

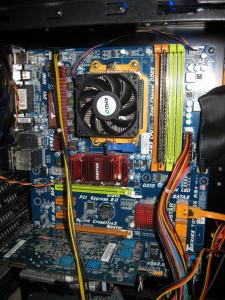

and here is the overall picture (ignore the cable )

Can show how does it look like from below? Under your graphics card. By the way, try screwing the outer screws 1st. Upper right and bottom right.

This post has been edited by Silverfire: Feb 24 2010, 02:59 AM

kinda hard,since its blocking by my kinda hanging psu

but i try my best,

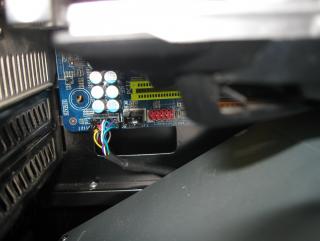

here it is,not much different,just the same...

You can't push your motherboard to fit those holes? What is blocking, actually?

the case?

or maybe the gc,

or maybe both....

all off the screw is not fit into ur gold stand off ke???
maybe becoz of case kot but at first time u did screw the mobo...
n after install gc it seems cannot screw at all...

yeah,don't know why,

will try silverfire method tomorrow morning....

was hoping for someone have case and mobo like mine to guide me

or someone selling it can try and see whether they can screw it or not

This post has been edited by V3nz: Feb 24 2010, 03:35 AM

I have the similar problem like yours. But what I did is just push the mobo until I can screw. Even the I/O panel now is curve outwards.

u better check ur mobo plate kat casing tu...
it look like ur mobo is push more to the right side...
suspect ur mobo plate x ngam btol2 ngan ur mobo...
but anyway goodluck bro in trying silverfire method...

bro
kasi tolak skit mobo backward

First of all, make sure the motherboard backplate or I/O shield is properly installed. Then screw in the holes on opposite sides of the motherboard first.

Thx for all you guys help,but it doesn't work,

yes,the problem comes from i/o panel at first,but that time i still can screw,

due to the the hole not so "senget"

but then my gc just won't fit (see pic below) then i unscrew my mobo,

install the gc,my mobo holes don't fit the case holes already

i don't think i can push it as its block by the gc,

if push kaow kaow,i scare i will break both the mobo and the gc

here is some pic after wasting 2 hours of my life trying to configure whats wrong(no result,still the same )

without the i/o panel:



with i/o panel (with some effort still can scew):

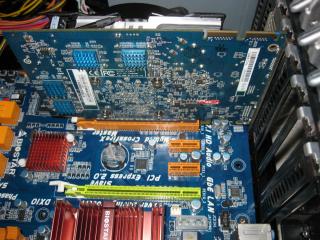

The gc just won't fit if the mobo are scewed:

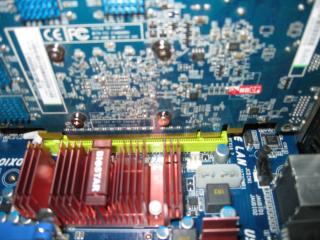

After the gc fit (i unscrew all the srew):

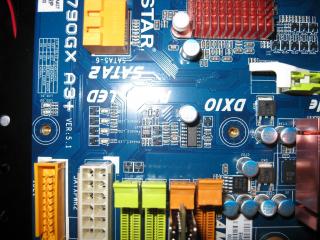

See the cap between the case and mobo -

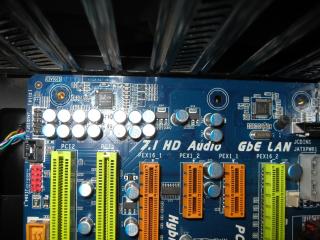

Before install gc (can't install it like this,the gc will somehow stick with the mobo,hard to explain):



after install gc (the mobo go backward away from the case holes):



Any other idea?



This post has been edited by V3nz: Feb 24 2010, 12:20 PM

does the mobo tray flex??

got this similar problem with a diff casing and mobo.

end up installing the thing with the case standing up instead of lying it on the side.

what mean by flex?

and

what is the thing you talking bout?
