hi slapshock,

Just to tell u that when flying in 3d, it all about rhythm and timing.

ok lor.. this things take time. if now you fly without knee shaking.. bestt woo... me still shaky abit lor... same as my fingers...

Fuyoo.. QIW became sifu now ka... good 4 u ma.. Sifu QIW is really good wt his heli ma..

---

Added on May 20, 2010, 3:11 pmbro daddoo...
Really to say that I'm not 3D expert ma... I never mention that I'm 3D expert.. i've got few skill only maa.. that's why still shaky ma... haha... Once u fly in 3d u will know better about this.. hehehe... try it.

This post has been edited by zhnme: May 20 2010, 03:11 PM

This is my last video flight at bukit jelutong.


Setup :
2x Hitec 65HB (convert to metal gear)(ail and pitch)
1x hitec 65HB (karbonite) for elevator
1x Align 750 + Align 520 Tail servo
1x 14t 450M 3500kv align motor and 35A Align ESC.
1x Rhino 25C 2250mAH

Pitch Idle up: -12 -6 0 6 12
Th Idle up : flat 96%

*testing protos 500 paddle in 450 heli.

This post has been edited by zhnme: May 20 2010, 03:52 PM

What's this.. hermmm.. small one... gud 2 fly relax...

It's Trex 250 Old version one.. not SE though... but still fun to fly ma.... not very itchy as many people say.. Try to shoot video later...

Coz i thought it will be twitchy as heli go scale down. but this one not that much la... i set it basic on radio. pitch only 11+/-, throttle is 0, 40 80 90 100, idle up throttle 100 90 80 90 100. no expo or dual rate and swash plate is ail (50) ele(50) pit(45).

Wanna try 3D but the blade is still plastic one.. wait 4 carbon lor...

This post has been edited by zhnme: May 25 2010, 05:20 PM

soon or later u will understand it.. just be patient.

So far for me idle set up is more for people who start to learn 3D and people who already able to do normal figure of 8. But still u can learn it in earlier stage just 4 knowledge.

Coz sometimes beginner forgot that when on odle up the negative pitch is activated. Thus when throttle down the heli went down faster than normal setting. in case of emergency(beginner) their normally tendency over to take throttle down when heli a bit out of control.

PheonixRC also can if not mistaken.

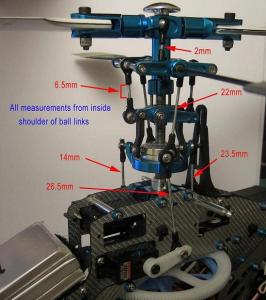

U can use this image as a guide.. then adjust it back a bit to your own figure.

Firstly make all the linkage length base on the picture. then fix it in the heli.. then tune it again for perfect setup.
1. Linkage for servo to main swashplate
- Adjust to make swashplate level from all side in 50% point of throttle (center stick)\
2. Linkage for mixing arm to blade holder
- Use the pictures length.. Don't do more adjustment on this one.
3. Linkage for swashplate to mixing arm
- Adjust to get pitch 0 degree in center stick. ( both blade ).\
4. After that normally u will have full travel from + pitch and - pitch with lowest point and highest point of throttle stick.
5. Normally it will became 10/11 +/- degree for this setup.. Can make it bigger or smaller usign swashplate setting in TX (pit).

** 2mm and 6.5mm do not adjust.. leave it like that.

This post has been edited by zhnme: May 27 2010, 04:27 PM


Attached thumbnail(s)

another thing. These measurement is only for trex v2 (old type of linkage). Not applicable for newer linkage.

it's not about head design, but the ball link design.. newly align design is abit shorter if i'm not mistaken. so in the image will be slightly longer and it has been measured from shoulder of the ball link. but for hk450gt i think it's still using the old v2 design.

mine..

ok la... at least it can cure my hungriness of flying...

my throttle is only 95 flat.

Personally what really matter is the design of the heli especially main rotor head. Even it's flasher or tarot; as long it's design is the same as trex pro, it will perform just like trex pro (within the pilot itself). Good pilot is the key where any CCPM heli will perform well if the pilot have good reflex hand and good set up. Even Belt-CP can perform flawlessly as I have been through it before.

Well... It's all depend on the pilot itself.


Mine in BTHO.
With setup of :
Pitch : -12 -6 0 6 12
TH : 96% flat
Wooden Blade Align 325
450M Stock Align motor and Hobbywing 40A
3x Tower Pro 9G cyclic
1x Align 520 with Futaba 401 Gyro
TX : Futaba 6exh 35.140mhz


In Jelutong
Setup :
same as above except
325 carbon fiber OEM blade
3x Hitec 65HB cyclic
1x Align 750 Gyro

This post has been edited by zhnme: Jun 9 2010, 05:12 PM

DS520 align is good servo 4 tail. paired with Align 750 is the best. Align 410M is digital servo is is also good for 3D but 4 some reason it's durability is not to par with Hitec 65MG. For about same speed and good durability, choose Hitec 5065MG Digital servo for cyclic. It's highly recommended for hardcore 3D and crash resistance is high.

can go to RC Smart (PJ) or RC Dreamz (Kelana Jaya) or My Mega Station (Teluk Pulai Klang]

---

Added on July 5, 2010, 11:47 amgot my hand of 3 units of 410m. Belong to a friend. Testing it with my trex pro 450..

This post has been edited by zhnme: Jul 5 2010, 11:47 AM

aiya... I already bought T7C maaaaaaa......
