yes bro...but finally i cover it with final touch up after riveting work finished...will uploading pic later...



This post has been edited by nidzamputra: Jan 31 2010, 05:52 PM

now proceed to river work...

took 2 hours to finished this work...need to think first before seal the rivet...i do 2 or 3 mistake then need to drill out back rivet...






some primer part not covered by black paint

---

Added on January 31, 2010, 10:01 pmfinal touch up before assemble hardware to casing...









This post has been edited by nidzamputra: Jan 31 2010, 10:01 PM

finally almost 30 hours i've done my 'Save Budget'

after cleaning all fan...








hardware inside my renovation room








modded CCFL at side panel...

'Save Budget' in action

nice bro! may i know how much is the cost ?

the spray ? the primer ? the sand paper, and other stuff ?

im thinking of modding mine too if it's not too expensive.

WAA....

congrats bro... mission accomplish already..
worth it took 3 days on leave to do modding

Flat Black Paint = RM5.50 *3 = RM16.50

Primer Paint = RM5.50 *2 = RM11.00

Sand Paper 800 = RM1.50 *3 = RM4.50

Rivet Bullet = RM2.00

Total = RM34.00

for this job..i'm just used 1 piece sand paper only...

haha guna 1 sheet sand paper pon sebab malas nk gosok ah tu

yes...this is fun time for me...3 days on leave make me rest & relax...sometimes it's can be release your tension...hahahahahah

---

Added on February 1, 2010, 10:13 am ...tau pun...lagi pon aku nak jimat...beli mahal tu sand paper tu...tauke kedai gred A punya sand paper...tp mmg berbaloi...tahan lama..tu pakai sekeping jer...satu casing leh gosok...


This post has been edited by nidzamputra: Feb 1 2010, 10:13 AM

nice, simple project !

nice prep job bro, and taking the whole casing apart before painting it..now i got some idea on where to start.. i just bought a new cm690 casing..gona spray it flat black inside before stacking in the goodies..

the idea put primer is good..it's work..the paint not so easy peel off...the important thing is you need sanding it 1st...

the sanding can be done even without disassembling the casing part by part rite?? coz i dont have the riveting tool..

welcome to the dark side....

yes bro..it can be done even dismantling the casing...

for riveting tool i saw last time it's cost only RM36...hehehehe..i think it's enough..no need mahal2 punya tool..hehehehe

---

Added on February 1, 2010, 3:04 pmtankiu bro..wakakaka


This post has been edited by nidzamputra: Feb 1 2010, 03:04 PM

hg tak habaq kat aku pun nak wat.. kalau dak leh pi lepak ngan hang.. tulong mana2 hak patut

bro u using normal driller to drill out the rivet? then buy new rivet n using driller to drill back? hardware shop got sell this rivet?

yes..using driller to drill out the rivet...

and used riveter tool to assemble back

---

Added on February 1, 2010, 3:32 pmaku tgk hang tak online pon..mcmner aku nak panggil..wakakakaka


This post has been edited by nidzamputra: Feb 1 2010, 03:32 PM

expensive or not the riveter tool?? wat is the size of the bit u used to drilled out the rivet? cos i was thinking to mod my cm690 too...

This post has been edited by subrok007: Feb 1 2010, 03:36 PM

not so expensive for riveter tool...just RM40...

for the drilling size i'm not sure bro..let me check it 1st...


UPDATED...

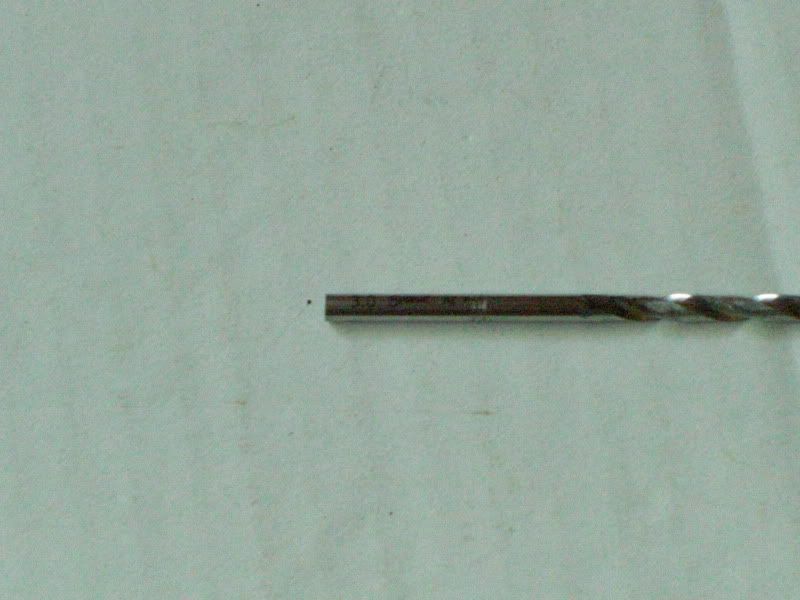

i'm used drilling 3.0 size

sorry for blur picture...
