Custom itx casing

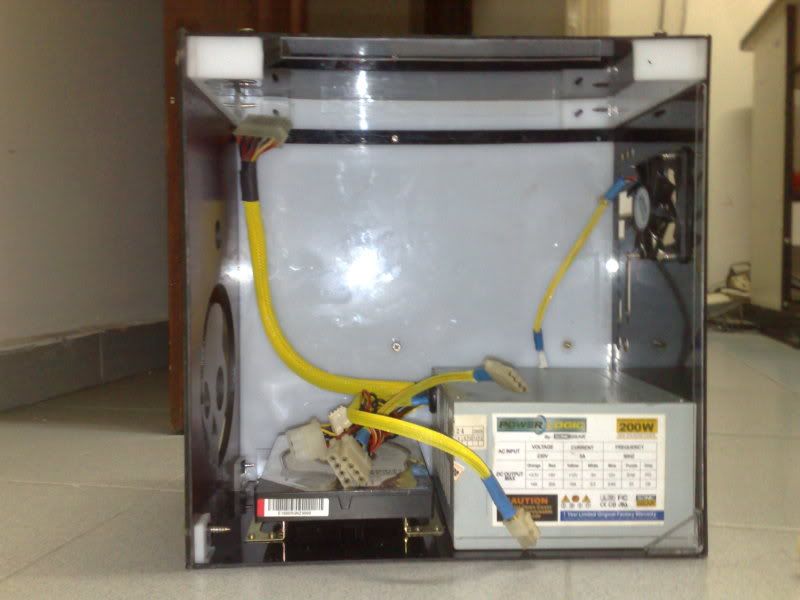

inside

---

Added on January 11, 2010, 1:41 pmleave sum touchup work....

This post has been edited by lun1986: Jan 28 2010, 11:17 PM

why not make the casing smaller?

nais... but arent this a little... big?

try made one by minimizing the size.
something like stack the psu on the mobo... just my 2 cent

agree

try make it ngam-ngam fit a psu inside. that's the point of itx, small

wah..look big..for ventilation purpose?i think it would be better if can squeeze into smaller size case...

anyway... this is really a nice one...
i plan to do one myself but dun have the time...

nowadays i venture into full atx already

coz wanna make it btx style.
next project would be SFF

btx in a sff?
haha... anyway, it still qualify as a sff coz the size is still small compare to the other case.

should cut those extra molex (sleeveless) wire ?

---

Added on January 11, 2010, 11:24 pm

This post has been edited by lun1986: Jan 11 2010, 11:24 PM

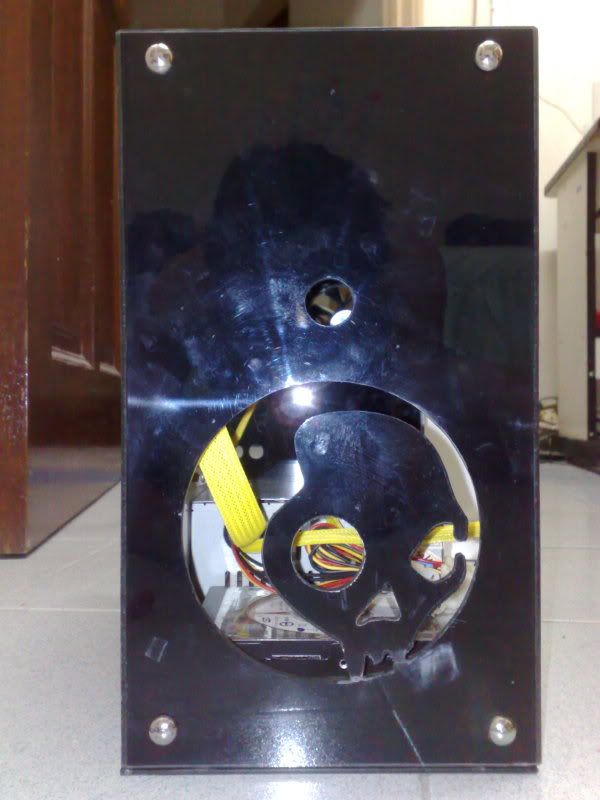

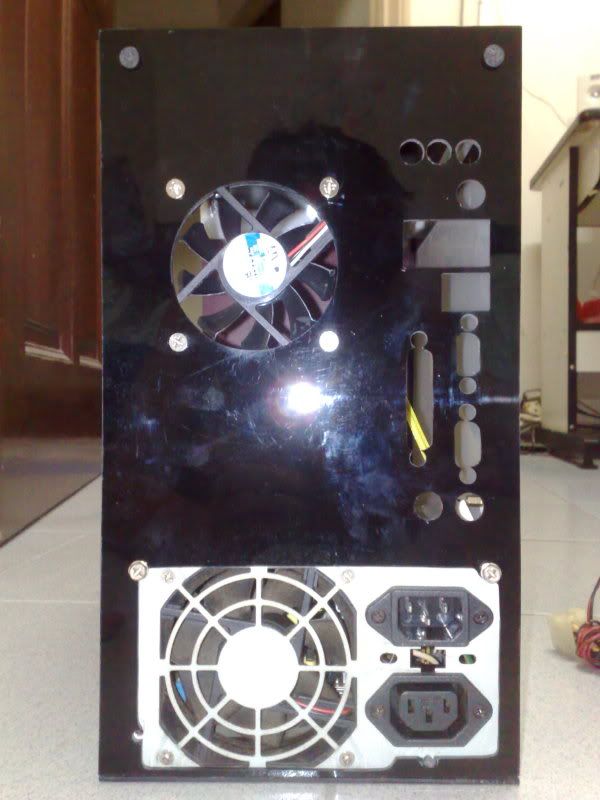

nice cutting at the i/o backplate, nice 3d effect at the skull

the psu dont have any bottom mounted fan?

also where to mount the dvd drive?

i think u can see the hdd mounted on above picture...
and the psu is single 80mm fan so no problem mount like that...

btw, wow... u skill is really polished... wounder when i can get those skills.

tat is a cheapo PSU,no bottom fan.
my PSU mounting is terbalik 1,if got bottom fan then will become top fan.

i dun put dvd drive in tis case.
front (skull) will be a 120mm fan intake.

thank for viewing !!!

nice cutting u have there...

looking good ..

thanks for support.
the casing is with my fren rite now installin window. coz i noob bout software,format...

the psu had spary to black, blue ring illuminate switch install, acrylic add for leg of the case.
will post a photo when get back my rig.

This post has been edited by lun1986: Jan 20 2010, 11:40 AM

nice... where u found the blue ring switch?

hmm one question

how do make those custom small holes with different sizes??

hole saws?? doubt theres a drill bit that big and even if there is.. no way the holes were smooth..

buy from oversea

---

Added on January 21, 2010, 11:05 amfor hole,by drill bit.
others by coppin saw


This post has been edited by lun1986: Jan 28 2010, 11:17 PM

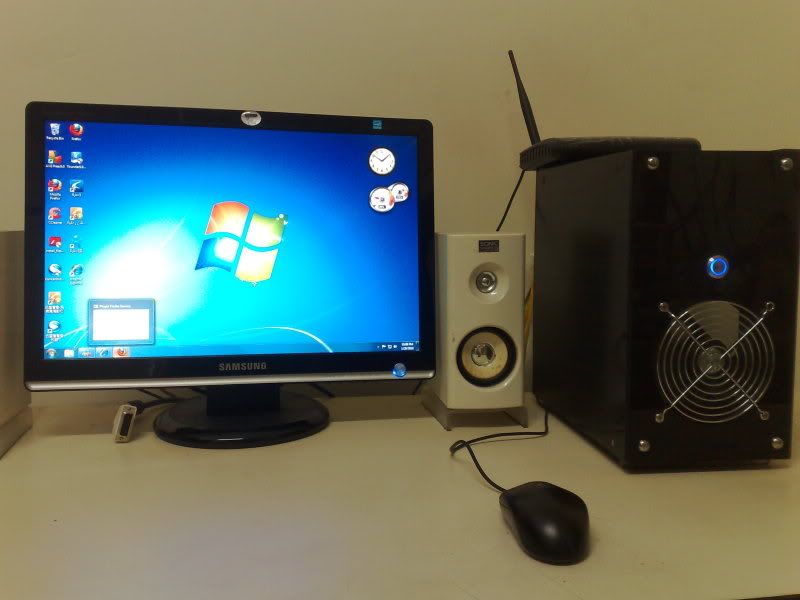

finally it's done !!
the teeth of the skull hav broken already ,n add a fan grill for the 120mm intake fan.



install with Window 7

grats for finishing
was wondering when it'll be done lolz
if ur skull was still there
it would probably look nice
now that it's gone
it's a simple looking case
didn't show the insides?

This post has been edited by Jinster: Jan 28 2010, 11:45 PM

i'm so careless, make it's teeth broke....

inside many cacing.
very scary ~~

@Jinster
noted u ask info bout black arcylic,my back panel is black arcylic.

This post has been edited by lun1986: Jan 28 2010, 11:54 PM

well i thought u had some uv inside as well, wanted to see how it looks with uv light...

and i also thought ur outcome was like

http://www.chilledpc.co.uk/forum/showthread.php?t=1129

btw, do u hav the white/opal acrylic thingy?



haha

This post has been edited by Jinster: Jan 29 2010, 01:02 AM

dun wan too complex,later cannot finish.
the white arcylic got,tis type is not solid white. so the light can go through it.

but the source also need enuff bright.

haha
okies~
thanx for the info ^^

home made casing...nice one...
the skull will make the case more 'garang"...
sad skull didn't survive..but it still nice..

bro,
the cost for the project?
still awesome even w/o the skull

the skull can rebirth de as i use chorofoam to stick back.
but dun wan la,scare later broke again n spoil my fan

the cost din count oo, but the casing is PRICELESS ~

yup.. agree.

totally priceless dude

just curious bout the cost.. might order 1 from u

buy is the best for those ppl that dun hav tools.
got tools but no skill also waste money.

i cant do back same like tis casin anymore liao,coz tis is the one.
next arcylic casing ,bLinD BliNd maybe

when it is custom made, it'll always be a one of a kind, the second copy would not always be exactly the same
as a suggestion, u could screw the skull logo thingy like how those fan grills are screwed in front of the fan

take more angle ler.... its look gigantic

shud add light inside so that the shadow of the skull can be projected. haha. will be darn awesome.

must bundle with wiping cloth to remove fingerprints!

nice touch there!

simple and mini casing woots!! with transparent side panel would look awesome too

updated !!

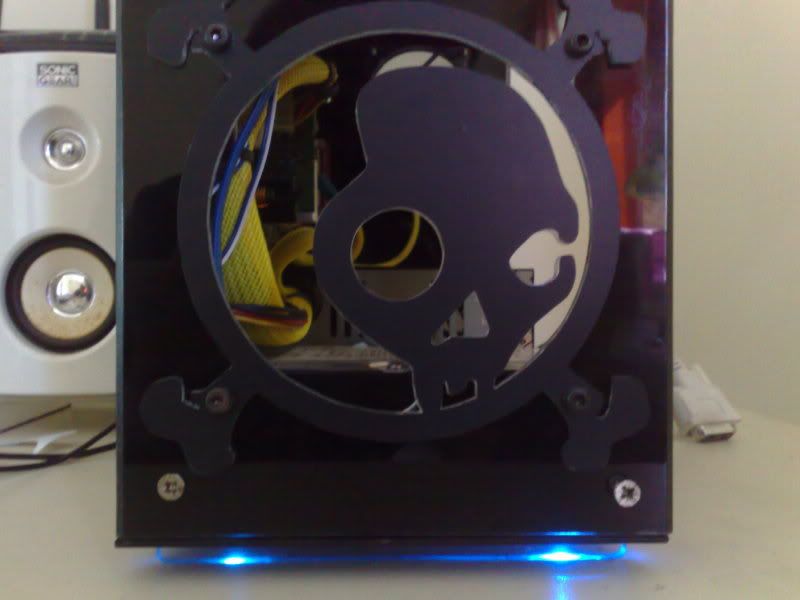

Finally done my skull fan grill. use matte black sticker, apply on 3mm acrylic n cut !!


the stock fan screw not enuff long, so i get sum screw from hardware shop


but they dun come with nut , so i did tis

custom nut.

n finally,this is it ! Front

rear


This post has been edited by lun1986: Feb 11 2010, 06:07 PM

hei i saw a small LED there, what color is it ?

This post has been edited by blaze_spirit: Feb 11 2010, 06:39 PM

blue?

yup,is blue. wanna match the blue ring switch.
use as hdd led

good job. now got the skull back. maybe need to paint the skull...

my project have to postpone, i will pm you with the details of my acrylic cut when i get all the rest of the stuff after cny

haha finally u make it as a grill =P
good to see it's back
looking forward to ur finished photos

the skull is like tat liao,no paint la. i use matte black sticker.
the reason use transparent is i wanna put led on back

okie,confirm me anytime. but gong xi fa chai dulu la



listen ur comment mar, make a skull fan grill
gong xi fa chai dulu, slow slow do.

well, it's either that or redo the whole front lolz..
there are probably other ways but i can't think of any at the moment lol..cny cny cny

not think gamble gamble gamble mer

lolz..
aiya..no need burst my bubble =x

how do you glue that acrylic? using what glue? or u using chloroform?

yup,choloroform
btw ur touch screen monitor very cool !!

---

Added on February 19, 2010, 11:29 ambig updated!

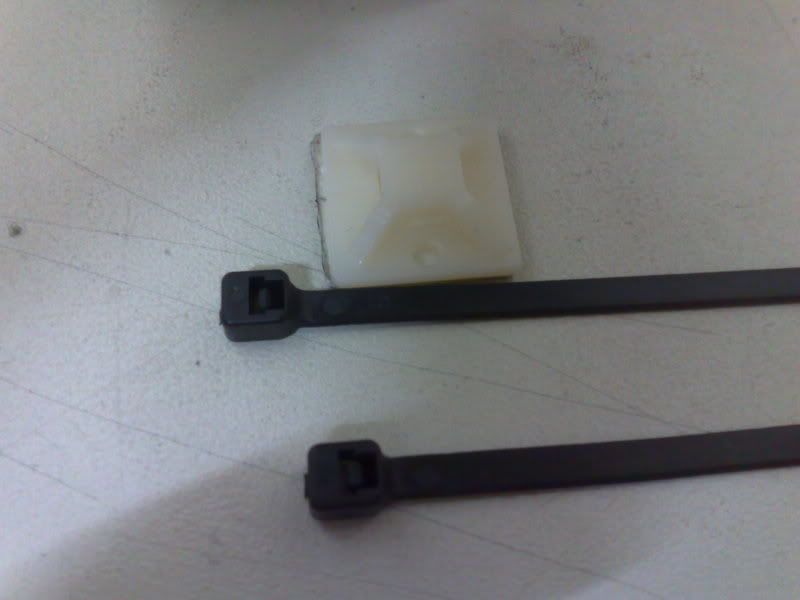

diy tis for the acrylic leg,dun hav proper Heat Shrinkable Tube so i just use cable tie..

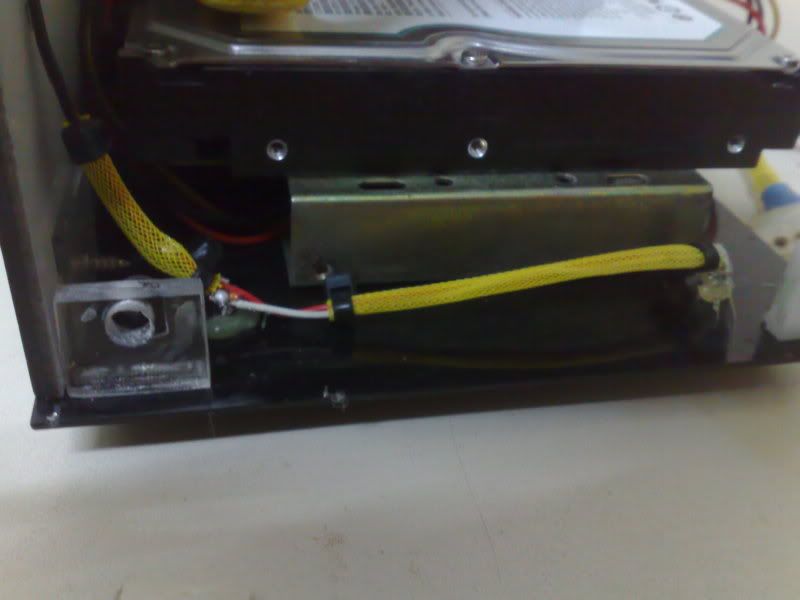

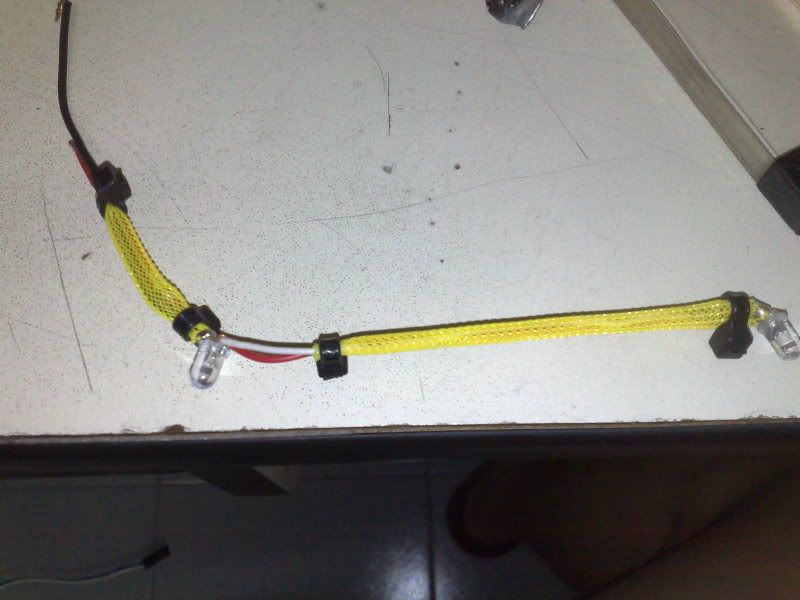

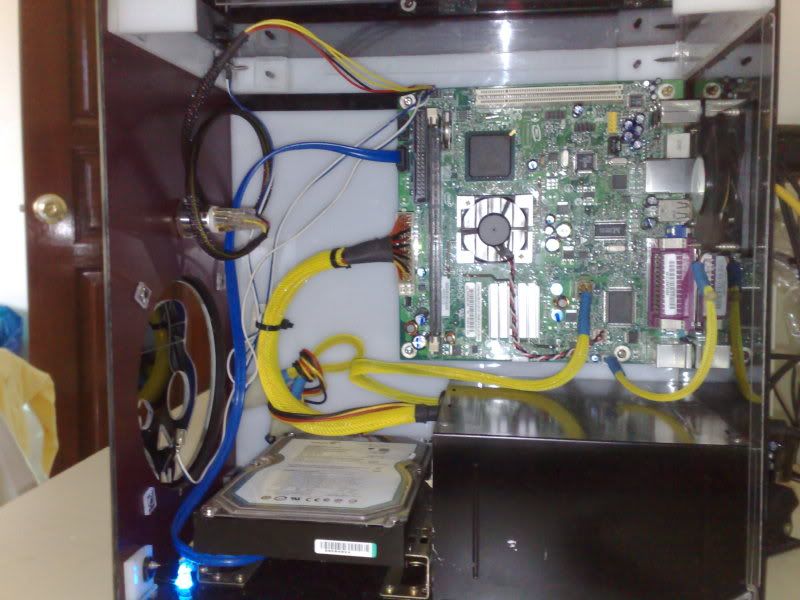

use tis thing to do cable management

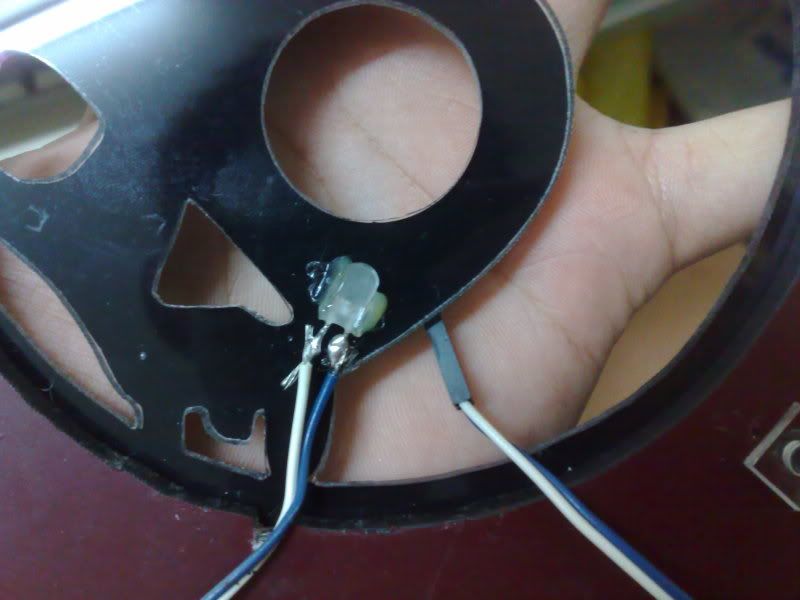

the hdd led behind the skull seem like lebih 1.




This post has been edited by lun1986: Feb 19 2010, 11:40 AM

some suggestion , want install the front fan behind of the skull ? and put ur "net" infront ur that fan oso . will like nice ? and i suggest u spray the internal case become black , and put UV light + some light . then i think perfect , and spray ur fan oso . include cpu fan

and .... this mobo so old =="

oh.. it is easy to glue it using chloroform? instant stick or need to wait?
i only use superglue when i built my "drawer case' a couple of years back.
it is hard to find chloroform that time. but , u can see a whitish spot all over glued area

yup, mimo TS monitor was really cool. suitable to put at ur case as 2nd monitor too, interested to get one?

the front skull suppose is 120mm fan intake,but screw not enuff long.so din put lor
lazy to redo again n again la.

next time upgrade mobo oni do a new casing

---

Added on February 20, 2010, 3:33 pmyup, very easy. wait bout 10 second oni !!
wanna get sum ??

cny, pokai

This post has been edited by lun1986: Feb 20 2010, 03:33 PM

hey lun1986

long time no see... grats to see u finishing this project

after the led job, got any picture?

yoyo,long time no c.
duno hav oo. wat else photo u request

Bro Lun,may i know wher u get tat switch button?

buy from oversea
interested ?

Always have had this kind of casing in mind! thanks for sharing! nice work bro!

how did you cut the acr

choppin saw
check tis
http://forum.lowyat.net/index.php?showtopic=999708&hl=

Nice job bro
Kudos to your hardwork and creativity.

thankx

another sff is comin

nice work done bro , how u cut the fan hole?

choppin saw

Nice effort man

nice job

thanks

nice modding

thanks man, long time ago mod

how much that thing cost you? haha.

material, <rm50 may b....
those blow holes, cut myself

blowholes use what cut?

Nice job bro.... do you have the operating temperature?

choppin saw

---

Added on February 26, 2011, 7:36 pm???

This post has been edited by lun1986: Feb 26 2011, 07:36 PM

u the men!

nice

where u get the material..?

Advertising shop.

ic.. may i know specifically which shop u usually go

my boss's shop at rawang

great job man

whoa..tengkorak !! nice bro

glad to see many ppl like tis mod

hope can start another scratch build project soon

simple clean n nice....

How was the temperature for this system?

good air ventilation?

dunno,how to test ?

good job bro!

nice work-log...

Sound like u can build for me

wow.. nice 3d skull..

Bro, Now I wan see you make ALUMINUM PLATE casing

This post has been edited by WWWYKI: Jan 22 2012, 09:15 AM
