AMD® Socket AM2&AM3 Overclocking V21, ~.~ Thuban & SPI 32M Season.
|
|
 Jan 16 2010, 07:36 AM
Return to original view | Post
#1
|

Junior Member
157 posts Joined: Mar 2007 From: P.J
|
xixo,able to pass 1 hour?
|
Quote|
|
|
|
|
Jan 16 2010, 09:24 PM
Return to original view | Post
#2
|
|
Junior Member
157 posts Joined: Mar 2007 From: P.J
|
» Click to show Spoiler - click again to hide... « weird,my nb-vid maximem only 1.25  |
|
|
Jan 16 2010, 09:45 PM
Return to original view | Post
#3
|
|
Junior Member
157 posts Joined: Mar 2007 From: P.J
|
i try all the bios already,some even cannot boot when hex code pass 17
 Added on January 16, 2010, 9:51 pm QUOTE(cloudwan @ Jan 16 2010, 09:40 PM) ONLY 1.25v? cloudwan,i need it when crank up the nb freq. Mine at stock only 1.1v ler.. 1.25v is quite high already   now this is weird issue make me can't get nb freq pass 2500mhz btw,urs lower maybe due c3 stepping This post has been edited by nicholas0507: Jan 16 2010, 09:51 PM |
|
|
Jan 16 2010, 10:08 PM
Return to original view | Post
#4
|
|
Junior Member
157 posts Joined: Mar 2007 From: P.J
|
Pi season
 |
|
|
Jan 16 2010, 10:20 PM
Return to original view | Post
#5
|
|
Junior Member
157 posts Joined: Mar 2007 From: P.J
|

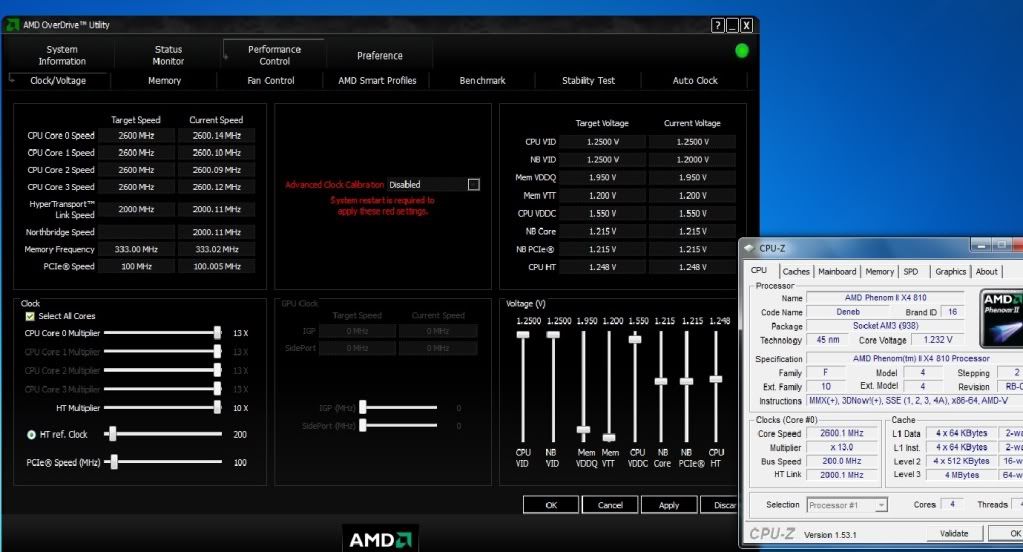

latest one only be processor can show nb-vid in bios,mine one still able to unlock the cache,but can't adjust nb-vid in bios,try AOD maximum only 1.25.
probably i got a bad chip?or dfi bios issue with this chip?  btw,how far u can push ur chip now? hardly saw ppl with dfi board unlock b50 in lyn |
|
|
Jan 18 2010, 09:19 PM
Return to original view | Post
#6
|
|
Junior Member
157 posts Joined: Mar 2007 From: P.J
|
ah_khoo,what is ur maximum vid for cpu nb?
This post has been edited by nicholas0507: Jan 18 2010, 09:19 PM |
|
|
|
|
|
Jan 18 2010, 10:32 PM
Return to original view | Post
#7
|
|
Junior Member
157 posts Joined: Mar 2007 From: P.J
|
QUOTE(ah_khoo @ Jan 18 2010, 09:58 PM) not so sure bout cpu-nb vid, but in bios, max volt allowed is 1.83v... my poor chip on dfi board can't get juice more than 1.25 for cpu nb i dun think i'm gonna need that much, max i'll use is below 1.4v which i thin gud for a 2.5/2.6GHz nb freq. given limited mileage of this 'lil chip, i doubt i need super high nb freq. i'll be dead happy if this chip can do 3.6GHz w/ < 1.4v.  |
|
|
Jan 18 2010, 11:14 PM
Return to original view | Post
#8
|
|
Junior Member
157 posts Joined: Mar 2007 From: P.J
|
QUOTE(nicholas0507 @ Jan 16 2010, 09:24 PM) » Click to show Spoiler - click again to hide... « weird,my nb-vid maximem only 1.25  This post has been edited by nicholas0507: Jan 18 2010, 11:15 PM |
|
|
Jan 19 2010, 07:17 AM
Return to original view | Post
#9
|
|
Junior Member
157 posts Joined: Mar 2007 From: P.J
|
QUOTE(xixo_12 @ Jan 18 2010, 11:24 PM) lol no worries nic.. u edi won the competition lol..........xixonola,just curios to see everybody can do at high nb freq but mine cannot ah_khoo,u mean hex code in bios? |
|
|
Jan 19 2010, 05:55 PM
Return to original view | Post
#10
|
|
Junior Member
157 posts Joined: Mar 2007 From: P.J
|
QUOTE(ah_khoo @ Jan 19 2010, 09:37 AM) my bad, can only use d hex code to set vimc (cpu-nb vid) i know bout the code,but sadly once i put HEX 18 above,it won't boot  The Hex codes needed are: HEX = Volts HEX = Volts 00 = 1.5500 14 = 1.3000 01 = 1.5375 15 = 1.2875 02 = 1.5250 16 = 1.2750 03 = 1.5125 17 = 1.2625 04 = 1.5000 18 = 1.2500 05 = 1.4875 19 = 1.2375 06 = 1.4750 1A = 1.2250 07 = 1.4625 1B = 1.2125 08 = 1.4500 1C = 1.2000 09 = 1.4375 1D = 1.1875 0A = 1.4250 1E = 1.1750 0B = 1.4125 1F = 1.1625 0C = 1.4000 20 = 1.1500 0D = 1.3875 21 = 1.1375 0E = 1.3750 22 = 1.1250 0F = 1.3625 23 = 1.1125 10 = 1.3500 24 = 1.1000 11 = 1.3375 25 = 1.0875 12 = 1.3250 26 = 1.0750 13 = 1.3125 27 = 1.0625 source: http://csd.dficlub.org/forum/showthread.php?t=9838 |
|
