My PC Specs
AMD Athlon X2 5200+
Biostar TA770 A2+
Kingston HyperX 1GBx2 DDR2800
Sapphire Radeon HD4650 512MB DDR3
Seagate 250GB + Western 80GB Ext
Cooler Master Hyper TX3 Dual-Fan Mode
ICute 450W PSU

I want u guys out there help me out to find da best and the most reliable BIOS for OC pc here,juz suka2 want to OC..hehe...ive tried OCed to 3.2Ghz but not too stable...got some..hehehe...currently i download the BIOS from here CLICK HERE...cant find the stable one...can anybody help me?

SCROLL DOWN FOR BETTER UPDATES

This post has been edited by wajahebat: Jan 3 2010, 08:23 PM

that mobo support 45nm proc...(not official, mod i think)
the owner told me last time... its unker digswell...or just try put in any 45nm proc without update bios..mebbe working

old proc is not OC frendly.. so seek mod bios and go for 45nm

if u insist, u shud try urself with bios is the best.. kekeke

im using mod bios now actually...still not satisfied with da result..wanna try with amd BE oc kaw2...wanna try how it looks like...my system goes unstable when i oc my proc over 3.02Ghz...so disturbing...maybe my proc not OC frenly like ure saying...thnx my fren...

try clicking at these 2..
i dont think they are stable

http://www.ripping.org/database.php?cpuid=466 windsor
http://www.ripping.org/database.php?cpuid=655 -brisbane

even 3.3ghz can get top30..

thnx br0 for ur knowledgable info....seems its not my mobo's problem...one more question...im using HyperX DDR2 800 dual channel 1GB...but windows juz detect at DDR2 667 and volatage at 1.8V....why is that? but i have set all setting in BIOS to 2.1V voltage and Max memory clock at DDR2 800...test screen in BIOS shows correct DDR2 800 but windows juz at DDR2 667 1.8V ?? can guide me with that...very thnk u~

u can actually ask in amd thread instead of creatin a new thread imo. a quick glance at ya pc spec tell me 2 of ya stuff could be d culprit:

1. khx > i dun really fance khx even they're rated as performance ram, some kvr or value ram from other manufacturers can easily pawn khx.
2.icute psu > it's not recommended to oc usin this kinda psu, u sure need to invest on a decent psu.

also, pls put ss showin ya current setup, best if can include voltages & temp readin...

This post has been edited by ah_khoo: Dec 31 2009, 09:32 AM

1. yeah..i also read bout KHX bad ass...but seems got gain in performance a bit...im juz stick with it now...u all know ram pricing now increase a lot..tension loooo...

2. haha..got this psu for free...coz last time use this psu to power up my gila rig using 7750 and HD4830 last time...planning to get a better psu next month...

okay will put my current setup setting later....

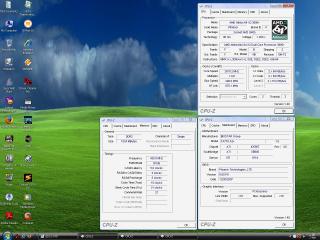

screenshots added~

avoid half multi, try w/ 12x or 13x usin higher htt. ht link keep in 1000 or below. vcore is fine but u must try to stress it to check whether it is enuf.

multiplier locked oledi i think...keep ht link below 1000 or exact is ok mah? orite will try set....vcore a bit worry to test...

all amd locked chips are multi downwardable. as for ht link, slightly lower or exact 1k is ok. u can try w/ 250htt & bump htt & nb voltage a 'lil.

This post has been edited by ah_khoo: Dec 31 2009, 10:38 AM

ok...ive set the HT link to 16 and HT link freq to 800Mhz...still cant figure out how to push nb voltage...can teach me all of it sifu?

here screeshot~

how about using the existing thread..and post some ss..not image from canardpc...

ss include memory tab + priming activity..

just realize that it's not so easy to hit 3.2GHz on am2 chip unless u got a 3800+ f3 which brought by bro dblooi. my previous retail 3800+ f3 only managed a 3.2GHz w/ rather high volt, i assume non be g2 to max out @ 3.2~3.3v w/ slightly more/less than 1.5v.

http://forum.lowyat.net/index.php?act=Atta...=post&id=385698

ya ss is not enuf detailed, best if u can include cpu-z. also, brisbies come w/ spoil dts, dun worry much bout d temp. use ya hand as thermometer instead. d hand job always work...

how is that?


just test to push my BUS to 224x13.5 and when windows starts about 20sec...then it go blue screen..failed...i think this proc cant be OC over 3.0/3.1Ghz...have lower down HT link to 800 and 16bit...wanna try push to voltage...

whts the stable value for NB voltage/HT voltage/CPU voltage...? can teach me a bit? huhu...thnx sifu for ur coorperation...nice la...

ur FSB looks oke coz it must be lower than 1000 to keep safe...some ppl recommend at 600Mhz FSB....use clockgen to OC in windows and more lot function easier interface...

hurmm...yeah...dunno how to use clockgen...ive used to OC in BIOS manually...more safer...puas hati lagi....

what make me wonder where is ur old 7750.that proc really kick american badass.

some tips for TA770 A2+,here the pic for my mobos.use this bios before blank screen appear coz of me fogot to reset bios to flash a new 1.thanks to digs to revive my death bios using how swap.

wow..thts old BIOS...rebelsheaven there makes a lot mod to those TA770 A2+ bios..i think my OC works better with mod BIOS...original BIOS got prob with DRAM..shit

okay...here my new setting and result....hope sifu's here can give some suggestions bout it...iva managed to reach 3.0Ghz max stable...when reach 3.1Ghz...its appears to managed but after streesing for 4minutes...windows jammed...shit...need some help over here...

below are the screenshots...click to enlarge...
