any tips??

already google it, but not much info...

some forumner here is pro i know

GONNA CHANGE TO A COOLER MASTER TX-3

start with asking..

then 1 good old fren come and suggest me great idea

then here am i

______________________________________________________

FINISHED!!!

SCROLL DOWN TO SEE!!

special thanks to

[b]AMJAS [/B]

This post has been edited by AlexLee277: Sep 15 2009, 07:32 PM

Why on earth you would like to do that? Suppose the 478 stock heatsink is better than the new 775.

But than if you really wan do that. You would have to change the fan. Remove the push pin. Cut a arcylic braket on the top and have very long screw.

I would suggest you to get a used or new 478 cooler.

Edit- saw your siggy.
Never say before such thing.
Solution- sell your psu and get a cheap one... Or...
Get a 20pin + 4pin from old psu and change with your 24pin psu


This post has been edited by tjay_tj: Sep 8 2009, 09:33 PM

dont care about my siggy lah..

how am i suppose to do?

teach me more

tx3? haha... i thought u wan use the stock 775...

this is easier, cut a bracket and place it across the space between the heatpipe. than place it with long m3 bolt.

OH yeah hor.. i forget about the hsf lock is use screw to lock on one.. HAHAHA

THANKS BRUDERZZ!!!

---

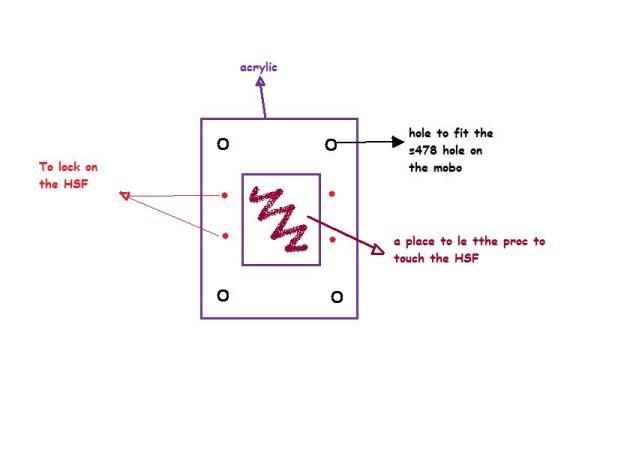

Added on September 8, 2009, 10:23 pmPROTOTYPE OF THE BRACKET

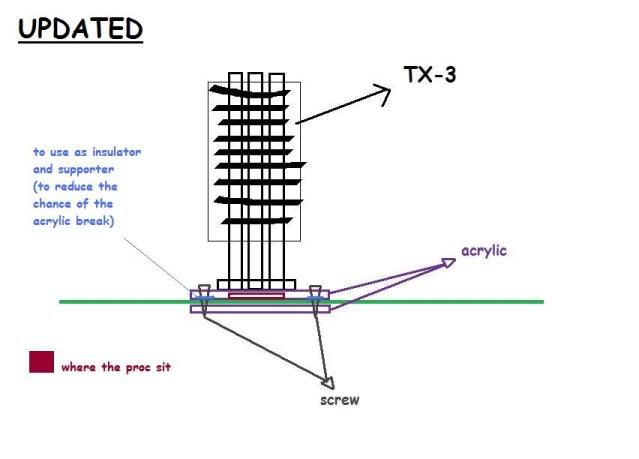

UPDATED


i'll use this

Fan Silencing Hole Edge Protector... from niclasteoh

as the insulator

This post has been edited by AlexLee277: Sep 8 2009, 10:40 PM

some edit will be better.

the rubber is places below the mobo and not in between will be better. this will incrase the height and make the cooler not touch the processor.

and just make sure the base touch the processor after insert the bracket ok ler...


_____ cooler
_____ processor
_____ mobo
O . . O only the rubber washer

This post has been edited by tjay_tj: Sep 8 2009, 10:50 PM

thanks..

i think urs will be better..

wait my tx3 come then i'll update

but my plan is

_____ cooler
- . . - super thin rubber
_____ proc
_____ mobo
O . . O the rubber

This post has been edited by AlexLee277: Sep 9 2009, 12:22 AM

but my plan is

_____ cooler
- .... - super thin rubber
_____ proc
_____ mobo
O . . O the rubber

hmm. where u get the super thin rubber ? and r u gonna apply TIM ?

that is a very thin rubber is located on the screw hole

not a layer of ruber on the proc

sorry for the bad typing

This post has been edited by AlexLee277: Sep 9 2009, 12:22 AM

lol maybe i should try this.. a TRUE on socket 754 xD..

i found out the above plan is not working..

will upload new plan here later

---

Added on September 9, 2009, 1:20 pm--__-- <- acrylic is screw above the cooler
(cooler)
(proc)
(mobo)
-------- <-acrylic

This post has been edited by AlexLee277: Sep 9 2009, 01:20 PM

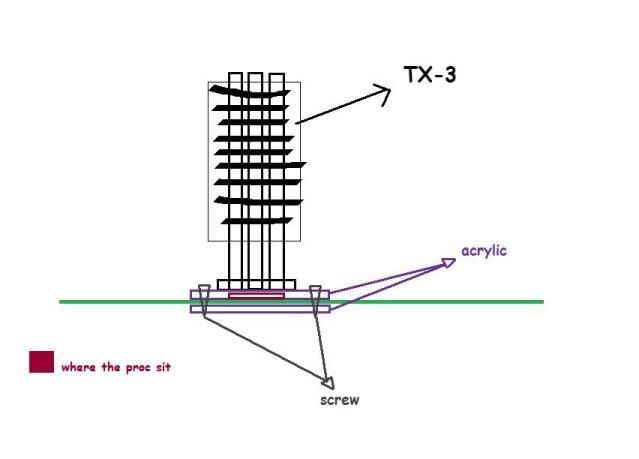

NEW PLAN

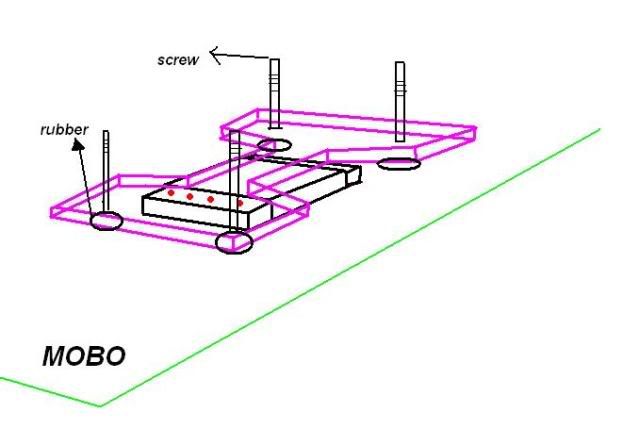

3D ?


okay, i know i drawing skill like sh1t

This post has been edited by AlexLee277: Sep 9 2009, 08:33 PM

LOL...dis thread is like "learn how to draw with Paint application"..

Btw, nice idea u try to mod TS...^^

LOL...
already pay the TX3 should be arriving soon

_______________________________________________________________

OMFG NEED TO RE PLAN



ANOTHER VIEW

---

Added on September 14, 2009, 4:57 pmalready arrive... already make the prototype..

tml will be going for some LONG screw and thing...

duno y my phone got problem.. cant connect...

This post has been edited by AlexLee277: Sep 14 2009, 04:57 PM

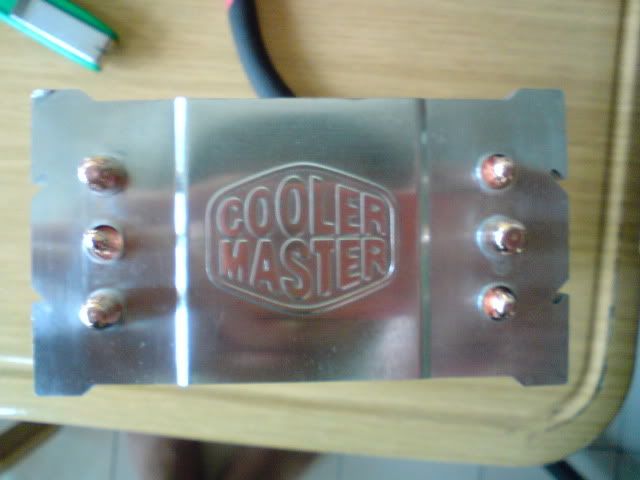

The TX3 just arrive today...





just done some calculation...






AUTOSOL-ED... not much difference

haiya just use your tx3 original bracket lor..use one screw oni each bracket holes

LOL... tot wanna do some stupiak mod.. but nvm..

then i can save acrylic and metal also... good.!

will emel my sketch

This post has been edited by amjas: Sep 14 2009, 11:50 PM

after emel pm me

---

Added on September 15, 2009, 4:16 pmalready finish...

since 'amjas' is giving me some tips... i decided to save some acrylic

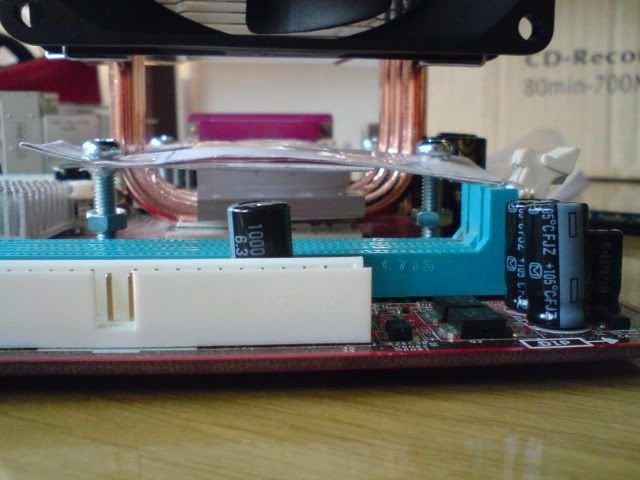

How i screw it... (the pin)

this make the pin flexible

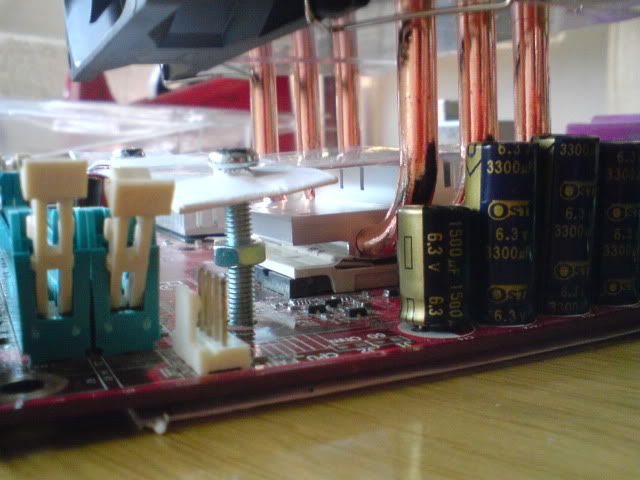

Upper Part

this side i really put them 1 up 1 down... but it still fits!

Lower Part


In My ASUS P4P800-X


dont belive it is a s478?
why not open this spoiler and let me proof it?
-for non-beliver only




haha... no extreme acrylic and screw already... sorry guys

this is a very good cooler... quiet

This post has been edited by AlexLee277: Sep 15 2009, 04:20 PM

not too quite i think...but superb mid range cooler...cool down my proc until 23C in idle load at 35C...nice though...no regret use diz cooler for modding like urs...
