• OSRAM Golden Dragon Plus LED (LX) with lifespan of 50,000 hours• 3 lighting levels, 2 flashing modes
  -Lighting mode: 50 lumens (5hrs) -> 5 lumens (65hrs) -> 127 lumens (1.2hrs)
  -Flashing mode: Strobe -> SOS
• Intelligent memory function
• Uses one 1.5V AA battery (Alkaline, Ni-MH)
• Size: 99mm( Length)*21.5mm(Diameter of the body tube)*25mm(Diameter of the lighting head)
• Materials: aircraft-grade aluminum (lighting head), quality plastic ( Body tube)
• Weight: 53.5g
• Waterproof to IPX-8 Standard
• Accessories: fastener, lanyard, diffuser lens , body clip

The pretty one is me. LOL!!!!
(Just kidding k? I'm certified male. xD)
So when we gonna go yum cha so u can show me ur Wee. Haha!
I think the MC-10 is fugly. Yuck!
Can't imagine why anyone would take this over a Zebralight. xD
Then again, I'm biased.
Hmm... A Fenix release without beamshots? That's a 1st.

Nightstalker1993,
holy####, you received your Wee d !  mine is still in production......and with the shipment ding dong, i guess i have to wait for another 3 weeks to receive mine !

oh and i have just received the cheap MTE P7 light from DX, i'm impressed with it's performance....but don't how to measure the output, lumens etc etc and i have no other expensive light to compare with...

and talking about the Fenix MC-10, there's a chance to win one ! here's how ;


Selamat Hari Raya to all ya ! and happy holiday too !

ROFL @ all of those wee talks... anyway... Thanks for posting your Wee for us... looks.. damn pretty

---

Added on September 19, 2009, 4:10 pmJust something to share



re-charging batteries and checking their voltages, preparing for gf's wed photo shoot

I've used 2 sets of Imedions in my TK40 and they're good batteries! The Powerex 2700mAH are used in the flashes for Nikon alot and their performance are great. The flash 'recharges' faster. Imedions will be used for the first time.

If you guys are considering these batteries for your flashlights, I will recommend it, the Imedions has been great in my TK40.

ROFL @ all of those wee talks... anyway... Thanks for posting your Wee for us... looks.. damn pretty

---

Added on September 19, 2009, 4:10 pmJust something to share



re-charging batteries and checking their voltages, preparing for gf's wed photo shoot

I've used 2 sets of Imedions in my TK40 and they're good batteries! The Powerex 2700mAH are used in the flashes for Nikon alot and their performance are great. The flash 'recharges' faster. Imedions will be used for the first time.

If you guys are considering these batteries for your flashlights, I will recommend it, the Imedions has been great in my TK40.

hi, I dont own this DMM, but by the look of the picture, it seems like you have plug into the wrong socket when you measure mA, when you use mA to measure, you should have plug into the mA, and when you set to 10A setting, use the 10A socket.

Hence the reading on the mA is wrong as you are using the 10A socket, but the reading of  current in the 10A should be correct.

Draw .27A on med should be ok, but are you sure the flashlight draw 2.28A on high? if that is true, then the LED driver is not efficient on the High, it draw around 6W for a 3W output.

Or maybe the DMM is not correctly calibrated.

its not our wed  she's a photographer for somebody's wed

I haven't use Eneloops yet but it's more recognized than Imedions for flashlights used in CPF. There's is a study in CPF for Imedions, quite detail. Eneloops appear to handle higher power draw above 4A better than Imedions. But it wouldn't matter in most flashlights applications where you will be putting your batteries in series for higher power. Even in single AA applications, you won't reach 4AA at this point of time. I chose Imedions because we've been using Powerex a long time. Based on the link I gave, they're quite competitive. Check it out.
Okay, susuman is right about plugging your red pin in the correct socket. If you measure 2m, 20m and 200m (all miliamps) you should connect the Red Pin into the mAB socket. When you measure anything above 200mA to 10A (20m/10A on DMM) you should connect the Red pin into the 10A socket which is correct. Although you can still measure 200m at 10A, but it's hard to read it...

Taking picture 3 and 4:
- at the 20m/10A setting, light at med, it shows 0.27
It means it's drawing 270mA

- on high, it shows 2.28
It means it's drawing 2.28A

I'm assuming the measurement is correct (similar to my LD10 with boost only circuit), take note that the electronics draw this amount of current for regulation. You can't tell what's the exact current driving to the LED. You will need to open the head and desolder the LED for a connection which it's not encouraged. I can assume that the medium mode is around 120mA @55Lumens and 700mA @195Lumens to the LED for example. As the battery voltage fall the current draw will be higher, giving as much power for constant output until it reaches too low, the light will dim incredibly.

Hope that helps to understand some stuff about the LED driver for the P100A2 and your DMM test. Note that you might get different measurements after the LED is hotter.

Yo bro, dunno if I answered this question above. 2.28A seems to be enough eh?

Fluke DMM is well known of their quality, but the price is like maybe 5x more

Nice pictures, you polished until so much difference?

If you decide to take more pics, take the front part also yea, the reflector and emitter, I wanna see

I'm really liking the niteglow ring.
I usually play basketball till the sun sets and i use to hunt for my keys, now problem solved.

---

Added on September 23, 2009, 1:18 amI'm really liking the niteglow ring.
I usually play basketball till the sun sets and i use to hunt for my keys, now problem solved.

---

Added on September 23, 2009, 1:20 amI'm really liking the niteglow ring.
I usually play basketball till the sun sets and i use to hunt for my keys, now problem solved.

I have not received any resolution to the Wee blue trits, although a look at the current last post in the (HTW) thread will show another customer has received blue trits in a Wee with no problem.

dont worry

I got 3 eagletac light so far so good n more coming

nightstalker throw his eagletac light on the floor and broke it,
but Philightsophy got him a replacement head,

nowadays light are all made in china, its all branding anyway

anyway after u get ur eagletac
u can decide for urself got design problem or not

Nope, but 47 said it has in design problem wor

I think its because your Nano charger supports different capacity. Like chargers that can charge both AA and AAA for example.

Just some pointers   if your DMM reads currents at 80mA, then it's charging at 0.9C (Calculation: 0.9C*90mAH = 81mA).

When you say discharging up to 500mA, that means it being used in the Wee? 500mA should be around 5.6C (5.6C*90mAH = 504mA)

Btw, I might have missed this info but what type of battery is it and how many volts? (Nimh, Li-ION)

Nightstalker1993

didnt know Ubuntu also going into bike parts

Oh yeah, just wannt thank old newspaper for letting me tumpang him.
Really appreciate it.

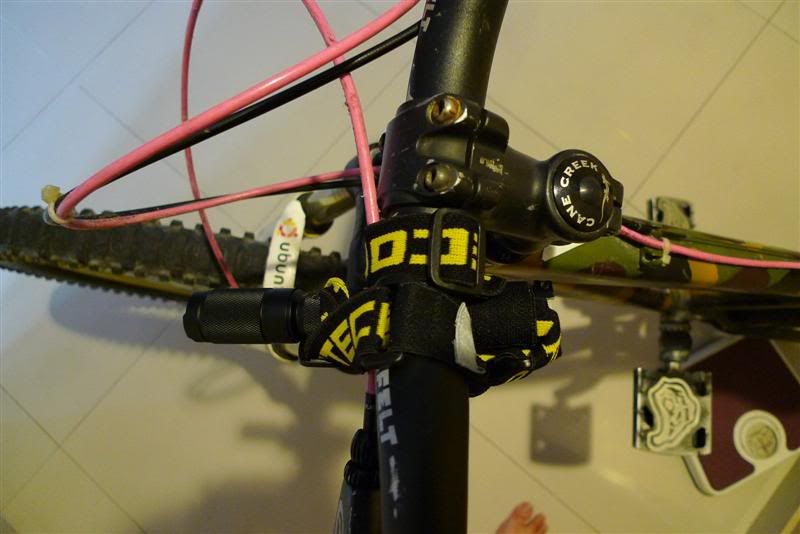

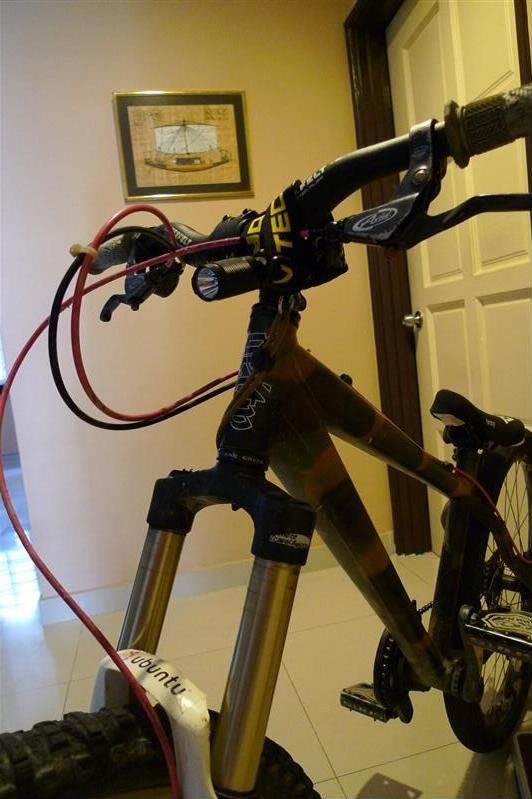

Wah night, so fast u bought the headband already.

I think philightsophy is doing a great job bringing these lights in.


And his prices are very good.
