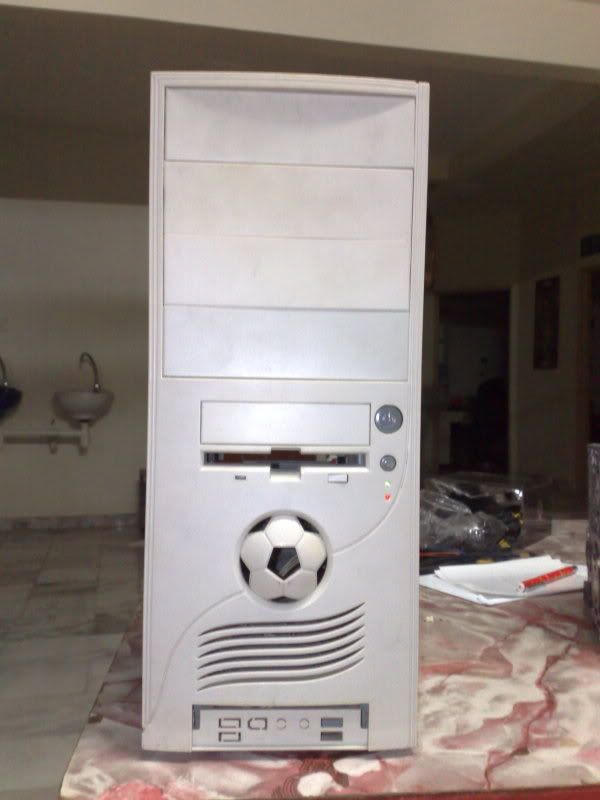

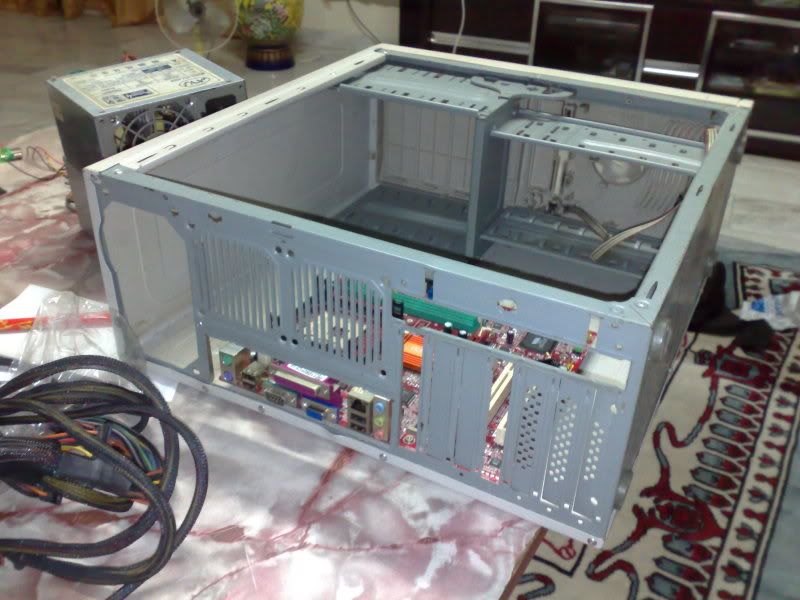

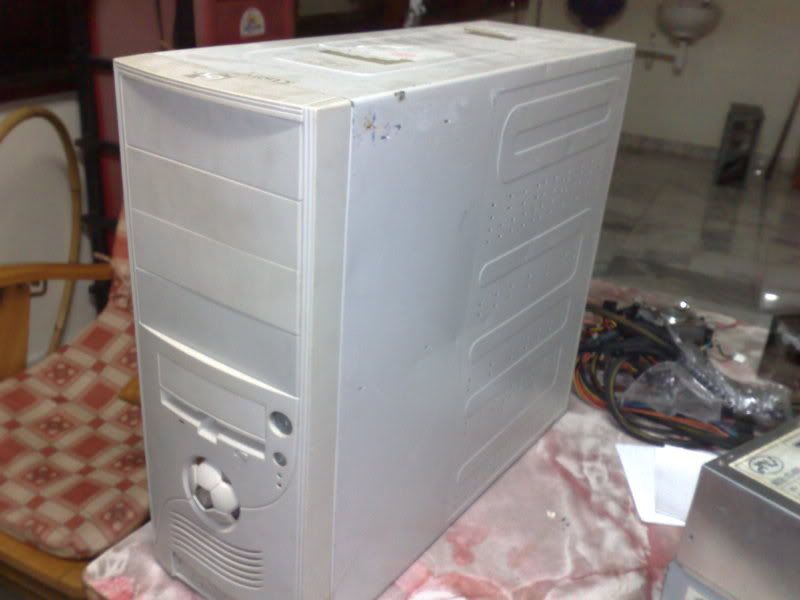

basically my project is wan to build a sff as i love small factor very much. Below is the casing use to mod.is a very louya casing,even dun hav sie panel when i take back home.


& hopefully at least got 50% similar to casing below.

after meet with miss SG-01,i fast fast start my project.

What i gonna to do is :
- use back the back plate n mobo tray as the bottom panel.
- cut to smaller size n bend the side to "L"
- modify a PSU location, to put on the mobo
- update soon

This post has been edited by lun1986: Jul 7 2009, 09:25 PM

Tools :
- Coppin saw
- rotary tools
- cutter

Material :
- Alu
- metal from the casing.

This post has been edited by lun1986: Jul 7 2009, 09:26 PM

before start the project,do sum math 1st. calculate which place should cut


then the project is officially start. 1st to do is dis assembly all rivet. n there r where i wan to put the 5 3/4" bay.


after do sum marking n lining,is ready to cut it into smaller. N bent all the edge.


cut a hole for the PSU,the hole is too big,so i use a alu sheet become the bracket


after done the sandin,tape the masking tape on it.n draw the place wan to cut.


when cutting n bendin is done


This post has been edited by lun1986: Jul 7 2009, 10:37 PM

nice of you to join us in modding.



be aware of the cpu heatsink height

and
+material : arcylic

actually my 1st time mod is mod my centurion5. but just small mod oni.
this oni consider big project. the heatsink height is very fit

yup,think to use acrylic do my casing support. coz easy handle than alu n metal.
tis consider as vandal bulgin illuminated mou ??


This post has been edited by lun1986: Jul 7 2009, 11:31 PM

and arcylic easy to cut and nice too
can add window to it also


generic led switch... i think it is ok for the look fot that price
real vandal bulgin illuminated cost rm70 per switch if u import for overseas

that photo i take from i-cute casing 1.
the front panel n cover, i plan to use alu. more similar to sg-01 mar.
coz is sg01 inspire me de.

windows like this



anyway... great job...

ps... cut that switch out and put it on the mod

actually i'm think to do a circle window on the other side,to show the GC's fan. but still thinkin la. haven decide.
SG-01 really nice ,i like the simple outlook.

the switch no need cut out,i do myself 1

This post has been edited by lun1986: Jul 8 2009, 09:37 AM

wa bro~~gogogogogogo~~~hehe

v also gogogogogo ~~

going into modding also ya...
haha!..
welcome!

can i noe where to get alu plate????

u poison me de lor

---

Added on July 9, 2009, 9:52 amhardware shop or pm me

This post has been edited by lun1986: Jul 9 2009, 09:52 AM

---

Added on July 13, 2009, 7:04 pmwow bro, u already half done your casing...


faster continue la!

This post has been edited by AlexLee277: Jul 13 2009, 07:04 PM

bz on my work recently.
btw i may start other project 1st.



This post has been edited by lun1986: Jul 13 2009, 08:19 PM

wow!!... i saw a atom system is crawling out

plan change,tis casing will temporary use for my mini system.

---

Added on July 14, 2009, 4:36 pmvery little update for today.
revert the alu psu plate on the back plate of the casing. n install a L shape alu to support the PSU.


This post has been edited by lun1986: Jul 14 2009, 04:39 PM

well done bro
can send for powder coat later
