 Project: TV SHOW, i'm back!! (it was a SFF design)

views

TSAlexLee277
post Jul 3 2009, 04:48 PM, updated 17y ago

Dihujani kenangan masa lalu
*******
Senior Member
4,221 posts

Joined: Dec 2007
From: Somewhere on Earth
purpose, use at a tv so that i can watch movie and surf the web with the tv
tools i have
Plastic cutter
solder iron rclxub.gif

Material i have
Acrylic - 2piece of 50cm X 50cm X 3mm Acrylic

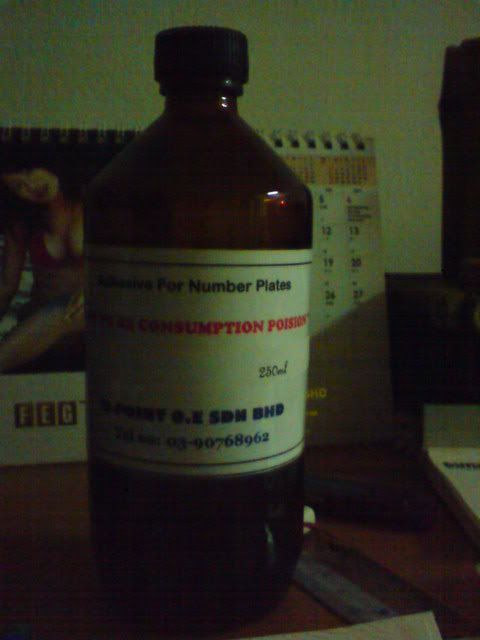

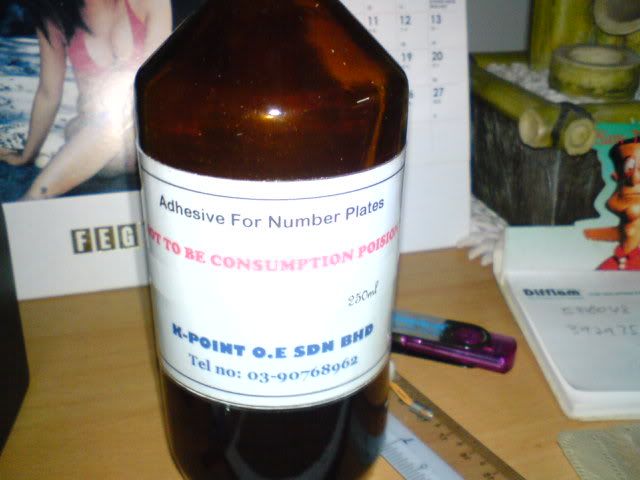

chloroform(for sticking the acrylic, not for raping girl, i'm not those kind of guy)
» Click to show Spoiler - click again to hide... «


budget RM200
BUY LIST
Jig Sawbrought from tesco, Osji brand... hope it tahan lasak ü
acrylic (maybe will need summore)
4CM delta fan
working table

Hardware that is on the way going in it
Phenom II X2 550
4GB DDR800
Gigabyte MA78GPM-UD2H
Sapphire 4770 512MB DDR5
1TB seagate SATA
640GB WD SATA
DVD-RW
Gigabyte SuperB 550W ü
user posted image

thumbup.gif thumbup.gif

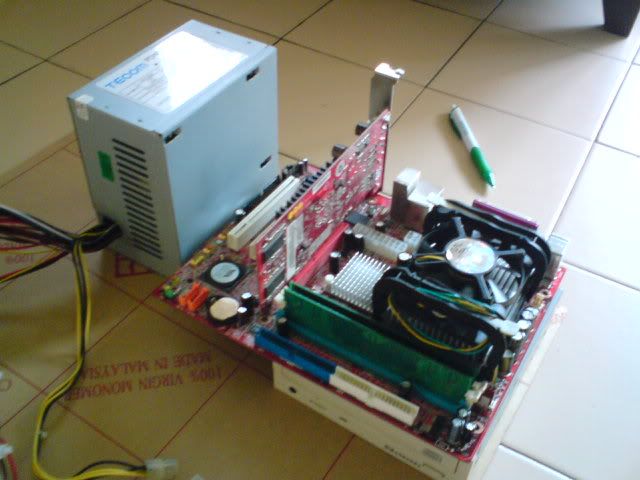

real thing aren't good

RED ALERT!!
after clicking 20 spoiler.. u'll see the real thing that will be going inside...
btw, the motherboard already died,
Reason: dont know y...
after i keep it in a box, then i die after i take it out to asembly...

» Click to show Spoiler - click again to hide... «

_________________________________________________________________________
» Click to show Spoiler - click again to hide... «


___________________________________________________________________________

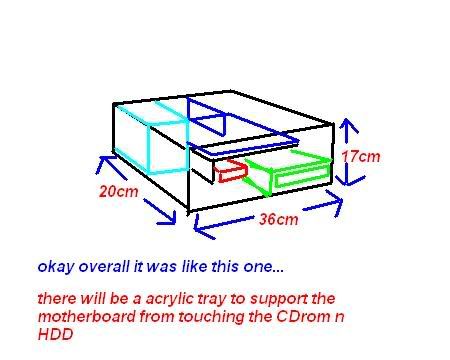

NEW DESIGN

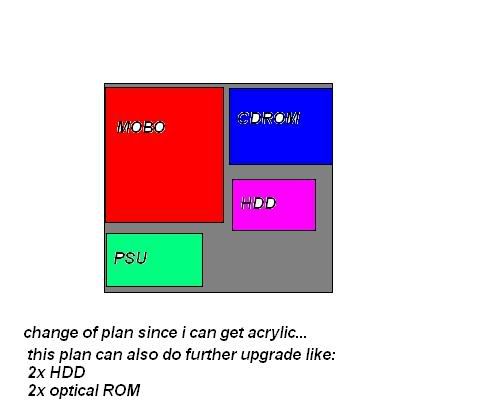

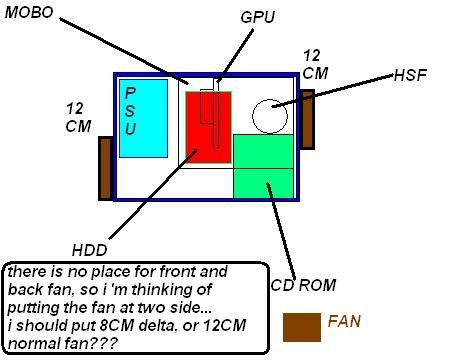

Top View!
user posted image

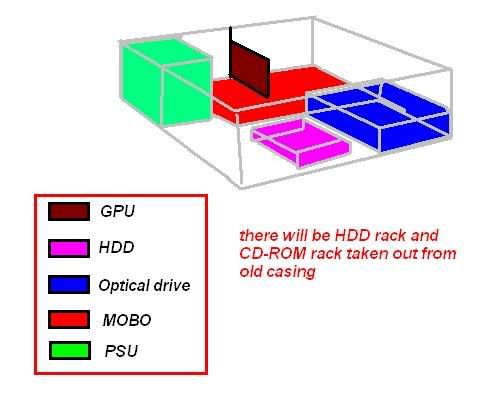

3D view
user posted image

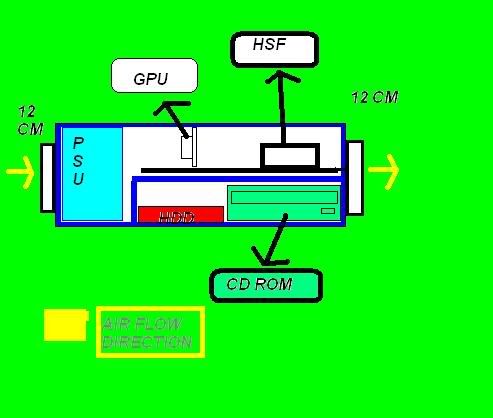

next, working on the airflow...

This post has been edited by AlexLee277: Jul 29 2009, 05:38 PM
Axell
post Jul 3 2009, 08:20 PM

Looking for FL
*****
Senior Member
920 posts

Joined: Jun 2007
From: Somewhere in Malaysia
sexy girl on calendar detected haha

Good Luck bro
lun1986
post Jul 3 2009, 08:47 PM

Enthusiast
*****
Senior Member
939 posts

Joined: Jan 2007
did ur project use skru ?
or all combine by choroform ??

Added on July 3, 2009, 8:59 pmcurious y u put 2 hdd ??

This post has been edited by lun1986: Jul 3 2009, 08:59 PM
TSAlexLee277
post Jul 4 2009, 01:08 PM

Dihujani kenangan masa lalu
*******
Senior Member
4,221 posts

Joined: Dec 2007
From: Somewhere on Earth
QUOTE(lun1986 @ Jul 3 2009, 09:47 PM)
did ur project use skru ?
or all combine by choroform ??

Added on July 3, 2009, 8:59 pmcurious y u put 2 hdd ??
*
i also dunno...

Added on July 4, 2009, 1:09 pmmy project dont use skru...
i'll start a soon as i have the tools i needed

This post has been edited by AlexLee277: Jul 4 2009, 01:09 PM
lun1986
post Jul 4 2009, 03:46 PM

Enthusiast
*****
Senior Member
939 posts

Joined: Jan 2007
the backplate diy or take from old case ??
TSAlexLee277
post Jul 4 2009, 08:01 PM

Dihujani kenangan masa lalu
*******
Senior Member
4,221 posts

Joined: Dec 2007
From: Somewhere on Earth
no back plate cause i need those air to run freely...
no fan will be used...
only HSF, n gpu fan...
and PSU fan for exhaust...
maybe 1 fan on the top to intake...
m2n-e
post Jul 7 2009, 02:39 PM

-Retired From Modding-
******
Senior Member
1,269 posts

Joined: Dec 2007
From: MoD ParaDisE
top intake, no exhaust? that will only heat up ur mobo man, atleast a 2 small tiny fan tongue.gif.
TSAlexLee277
post Jul 7 2009, 03:05 PM

Dihujani kenangan masa lalu
*******
Senior Member
4,221 posts

Joined: Dec 2007
From: Somewhere on Earth
QUOTE(lun1986 @ Jul 3 2009, 09:47 PM)
did ur project use skru ?
or all combine by choroform ??

Added on July 3, 2009, 8:59 pmcurious y u put 2 hdd ??
*
maybe i'll make some L-shape leg and combine it with 1 side then the other side i'll skru..

now i remember y i use 2 HDD
this rig is going to connect to a TV, so, purpose is just to watch TV

This post has been edited by AlexLee277: Jul 7 2009, 03:08 PM
lun1986
post Jul 9 2009, 09:55 AM

Enthusiast
*****
Senior Member
939 posts

Joined: Jan 2007
wat kind of skru u wan to use ??
allen key skru will much better..
TSAlexLee277
post Jul 9 2009, 10:23 AM

Dihujani kenangan masa lalu
*******
Senior Member
4,221 posts

Joined: Dec 2007
From: Somewhere on Earth
maybe is those m3/m4 screw...
i got 50 of those
TSAlexLee277
post Jul 13 2009, 06:54 PM

Dihujani kenangan masa lalu
*******
Senior Member
4,221 posts

Joined: Dec 2007
From: Somewhere on Earth
New item added...

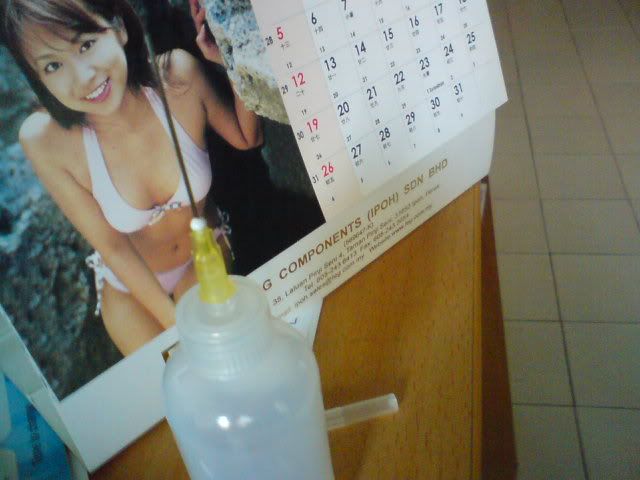

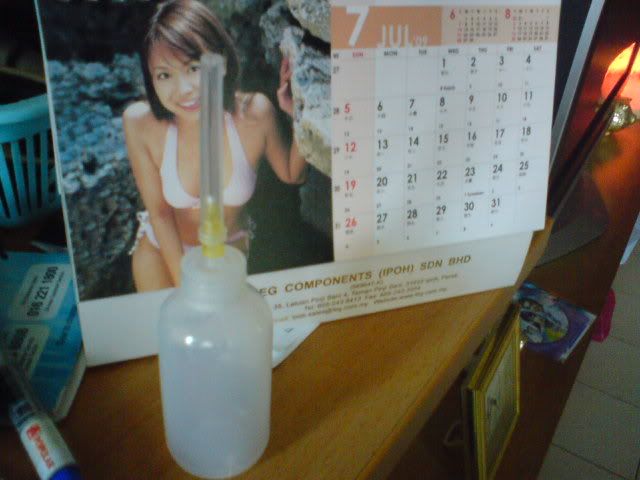

FLUX BOTTLE!! rclxm9.gif

picture:
since u guys love the bikini calendar so much...
y don't take picture with it as background??
user posted image
user posted image

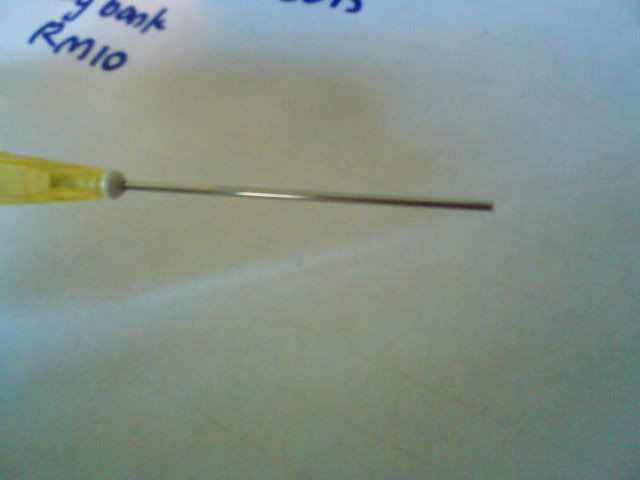

close one.. to the needle
user posted image

brows.gif brows.gif brows.gif

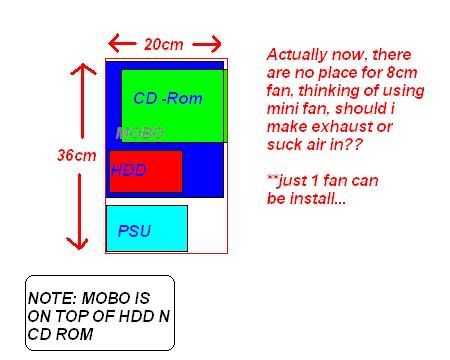

BTW, NEW PLAN HAS BEEN UPLOADED! rclxm9.gif
lun1986
post Jul 13 2009, 08:21 PM

Enthusiast
*****
Senior Member
939 posts

Joined: Jan 2007
where u get tat super nice thing ???
TSAlexLee277
post Jul 13 2009, 09:04 PM

Dihujani kenangan masa lalu
*******
Senior Member
4,221 posts

Joined: Dec 2007
From: Somewhere on Earth
QUOTE(lun1986 @ Jul 13 2009, 09:21 PM)
where u get tat super nice thing ???
*
hoho!!...
1 shop at jalan pasar..
but i dono which shop is that...
SUSProtester
post Jul 13 2009, 09:40 PM

Casual
***
Junior Member
328 posts

Joined: Sep 2008
From: Fox River Status:Wanted
chloroform brows.gif
TSAlexLee277
post Jul 14 2009, 02:50 PM

Dihujani kenangan masa lalu
*******
Senior Member
4,221 posts

Joined: Dec 2007
From: Somewhere on Earth
QUOTE(Protester @ Jul 13 2009, 10:40 PM)
chloroform brows.gif
*
yes brows.gif

so guys, how is my new design??
swmung
post Jul 16 2009, 10:50 PM

Getting Started
**
Junior Member
73 posts

Joined: Dec 2006
From: Cheras cheras cheras !!!!
when start,bro ? biggrin.gif


This post has been edited by swmung: Jul 16 2009, 11:14 PM
TSAlexLee277
post Jul 16 2009, 11:32 PM

Dihujani kenangan masa lalu
*******
Senior Member
4,221 posts

Joined: Dec 2007
From: Somewhere on Earth
QUOTE(swmung @ Jul 16 2009, 11:50 PM)
when start,bro ? biggrin.gif
*
as soon after i buy the jigsaw

Added on August 1, 2009, 11:19 pmwill trully start after i buy working table and finish project: fire it up!

This post has been edited by AlexLee277: Aug 1 2009, 11:19 PM
nkarul85
post Sep 2 2009, 01:39 PM

newbies
******
Senior Member
1,480 posts

Joined: Mar 2009
From: puchong, selangor
no update yet? busy??

waiting update here smile.gif
TSAlexLee277
post Sep 4 2009, 06:41 PM

Dihujani kenangan masa lalu
*******
Senior Member
4,221 posts

Joined: Dec 2007
From: Somewhere on Earth
@nkarul

as soon after i finish the fire
TSAlexLee277
post Sep 8 2009, 04:40 PM

Dihujani kenangan masa lalu
*******
Senior Member
4,221 posts

Joined: Dec 2007
From: Somewhere on Earth
My Mobo died..

bough a ASUS P4P800-X

FOUND A TEMPORARILY CASING FOR THE HTPC

it is a normal ATX casing...

use it on a old colour TV in my room..

now it just lack of DVD rom
