Intel Q9xxx and Xeon 33x0 Family, Show the rest what Intel Quadies can do!

Share on

| Track this topic | Email this topic | Print this topic

Cyclone87

Aug 22 2008, 10:09 PM

Show posts by this member only |This post's rating (0+, 0-) | Post #1

Regular

Group: Senior Member
Posts: 1,122
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Jan 2003
From: Penang

I found it weird when i fail to find overclocking thread on this yorkfield series , therefore i open this thread after 5minutes of searching.
Let dedicated this thread to Intel Quadies 45nm ( Codename : Yorkfield ) .

Here the complete Yorkfield family list

QUOTE

Yorkfield Family

Yorkfield 6mb L2 Cache
# Core 2 Quad Q9300 2.50Ghz (FSB 1333)
# Core 2 Quad Q9400 2.66ghz (FSB 1333)

Yorkfield 12mb L2 Cache
# Core 2 Quad Q9450 2.66ghz (FSB 1333)
# Core 2 Quad Q9550 2.83ghz (FSB 1333)
# Core 2 Quad Q9650 3.00ghz (FSB 1333)

Yorkfield XE 12mb L2 Cache
# Core 2 Quad QX9650 3.00ghz (FSB 1333)
# Core 2 Quad QX9770 3.20ghz (FSB 1600)

Xeon Yorkfield
# Xeon 3320 2.50Ghz 6mb L2 Cache
# Xeon 3350 2.67Ghz 12mb L2 Cache
# Xeon 3360 2.83Ghz 12mb L2 Cache

C2Q 45nm users, come in and show me you break 4.0ghz barrier with your quad . I cant even break 3.5ghz properly with my X3320. Going to try harder later by pump up the vcore.

This post has been edited by Cyclone87: Aug 23 2008, 09:35 AM

kucingfight

Aug 22 2008, 10:13 PM

Show posts by this member only |This post's rating (0+, 0-) | Post #2

I Want My B00bs back!!
Group Icon

Group: Elite
Posts: 3,783
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Jan 2003
From: Sitiawan / Shah Alam / Putra Heights /

Technically, it's tough to get over 450fsb on quads. Even to stablised it on 440fsb is not easy

Cyclone87

Aug 22 2008, 10:16 PM

Show posts by this member only |This post's rating (0+, 0-) | Post #3

Regular

Group: Senior Member
Posts: 1,122
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Jan 2003
From: Penang

QUOTE(kucingfight @ Aug 22 2008, 10:13 PM)

Technically, it's tough to get over 450fsb on quads. Even to stablised it on 440fsb is not easy

Yea i was kinda disappointed because i was aiming for 4.0ghz just like my E7200. But stuck at 444FSB at the moment.

toughnut

Aug 22 2008, 10:41 PM

Show posts by this member only |This post's rating (0+, 0-) | Post #4

13E7

Group: Senior Member
Posts: 2,559
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Jun 2005

LOL! 7.5x on X3320 is PITA to OC till 4Ghz. or should i say impossible. it's FSB wall of that proc, around 440 - 470.

i just tested my X3320 today, FSB wall at 450. still priming at 1.225V vCore (idle: 1.216; load: 1.200)

sup3rfly

Aug 22 2008, 10:55 PM

Show posts by this member only |This post's rating (0+, 0-) | Post #5

Techno Slave

Group: Senior Member
Posts: 1,174
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Jan 2003
From: 秋葉原電気街

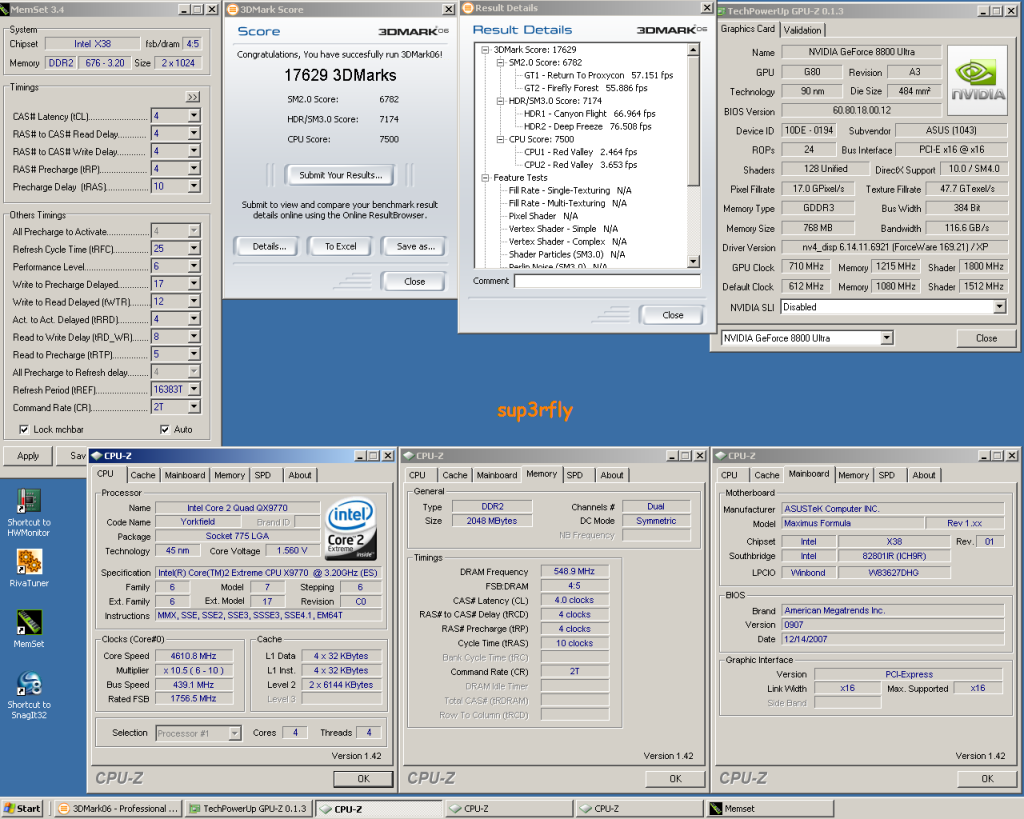

i get 4.6G...well its a qx... unlock multiplier... the max fsb is around 450 - 460 tho... with water cooling...extreme cooling max i gotten for this qx is 5.6g

This post has been edited by sup3rfly: Aug 22 2008, 11:11 PM

toughnut

Aug 22 2008, 11:02 PM

Show posts by this member only |This post's rating (0+, 0-) | Post #6

13E7

Group: Senior Member
Posts: 2,559
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Jun 2005

i will smile to death if i have a QX haha

if target 4ghz, get a quad with multiplier 9x and above

tech_frix

Aug 23 2008, 07:50 AM

Show posts by this member only |This post's rating (0+, 0-) | Post #7

Boo Yah!

Group: Senior Member
Posts: 4,060
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Sep 2007
From: wheres d oil price is higher than condoms..

waaa....really need this thread!!!
any X3320 user???
post up somtng lor....

Cyclone87

Aug 23 2008, 09:00 AM

Show posts by this member only |This post's rating (0+, 0-) | Post #8

Regular

Group: Senior Member
Posts: 1,122
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Jan 2003
From: Penang

QUOTE(tech_frix @ Aug 23 2008, 07:50 AM)

waaa....really need this thread!!!
any X3320 user???
post up somtng lor....

Later i bump voltage on my X3320 all to max and see whether can break 450fsb wall or not.

-pWs-

Aug 23 2008, 09:18 AM

Show posts by this member only |This post's rating (0+, 0-) | Post #9

Folding@Home
Group Icon

Folding@Malaysia

Group: Elite
Posts: 7,945
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Aug 2006
From: 224.0.0.6

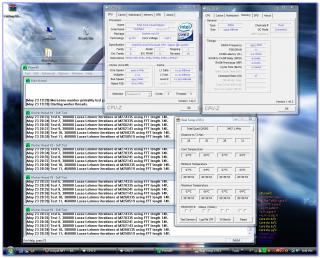

My highest w Q9300.

-pWs-

fesick

Aug 23 2008, 09:47 AM

Show posts by this member only |This post's rating (0+, 0-) | Post #10

Regular

Group: Senior Member
Posts: 1,793
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Oct 2006
From: ::Sri Cempaka Kajang::

QUOTE(Cyclone87 @ Aug 23 2008, 09:00 AM)

Later i bump voltage on my X3320 all to max and see whether can break 450fsb wall or not.

nah -pWs- ady up to that range

toughnut

Aug 23 2008, 11:48 AM

Show posts by this member only |This post's rating (0+, 0-) | Post #11

13E7

Group: Senior Member
Posts: 2,559
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Jun 2005

i meant X3320 FSB wall is 440-460. 450 is specifically for my proc. at least below 1.218V load. will try 2.5V later

kmarc

Aug 23 2008, 11:55 AM

Show posts by this member only |This post's rating (0+, 0-) | Post #12

Technology is too slow!
Group Icon

Group: Elite
Posts: 5,520
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: May 2006
From: Sibu

QUOTE(toughnut @ Aug 23 2008, 11:48 AM)

i meant X3320 FSB wall is 440-460. 450 is specifically for my proc. at least below 1.218V load. will try 2.5V later

Finally got your 45nm proc! Cool!

What mobo are you using?

My P35-DS3 seems to be incompatible with it, had to return it

toughnut

Aug 23 2008, 12:15 PM

Show posts by this member only |This post's rating (0+, 0-) | Post #13

13E7

Group: Senior Member
Posts: 2,559
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Jun 2005

hehe, tested the proc throughly but seem like it hitting FSB wall VERY fast.

450 at 1.2375V Bios (idle: 1.232; load: 1.216). fully stable after priming few hours, few loops of 3DM06

Using P35-DS3P v1.0 with F11 bios. new bios support 45nm cpu. and i noticed that the precision for vCore, vMem, etc has been increased. very precise compare to earlier bios. loadline calibration also available O_o

-pWs-

Aug 23 2008, 12:36 PM

Show posts by this member only |This post's rating (0+, 0-) | Post #14

Folding@Home
Group Icon

Folding@Malaysia

Group: Elite
Posts: 7,945
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Aug 2006
From: 224.0.0.6

QUOTE(fesick @ Aug 23 2008, 09:47 AM)

nah -pWs- ady up to that range

That result was taken w my DFI P35.
Will try oc more using DFI P45 T2RS.

-pWs-

kmarc

Aug 23 2008, 12:38 PM

Show posts by this member only |This post's rating (0+, 0-) | Post #15

Technology is too slow!
Group Icon

Group: Elite
Posts: 5,520
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: May 2006
From: Sibu

QUOTE(toughnut @ Aug 23 2008, 12:15 PM)

hehe, tested the proc throughly but seem like it hitting FSB wall VERY fast.

450 at 1.2375V Bios (idle: 1.232; load: 1.216). fully stable after priming few hours, few loops of 3DM06

Using P35-DS3P v1.0 with F11 bios. new bios support 45nm cpu. and i noticed that the precision for vCore, vMem, etc has been increased. very precise compare to earlier bios. loadline calibration also available O_o

Wow! Nice..... too bad my P35-DS3 couldn't run it well

I was running at 3.26Ghz at 1.175v Bios!!! Stable in prime95 for 6hours but not stable when folding...

Had to return the proc to seller......

dro

Aug 23 2008, 02:47 PM

Show posts by this member only |This post's rating (0+, 0-) | Post #16

=)

Group: Senior Member
Posts: 537
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Jun 2006
From: KL Sentral - Ampang

noob Q's

i see very low vcores (compared to dual & c2d)
is that the actuall Vcore required? even for benching?
wats the temps on this quaddies?

=============================
saw -pWs- 's screenies
60++ oso

This post has been edited by dro: Aug 23 2008, 02:58 PM

Cyclone87

Aug 23 2008, 06:55 PM

Show posts by this member only |This post's rating (0+, 0-) | Post #17

Regular

Group: Senior Member
Posts: 1,122
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Jan 2003
From: Penang

Damn it seem like going to 460FSB is not possible for me even i pump to 1.5v. But there is a guy at garage sales with the same X3320 doing 480FSB at only 1.3v .

-pWs-

Aug 23 2008, 07:16 PM

Show posts by this member only |This post's rating (0+, 0-) | Post #18

Folding@Home
Group Icon

Folding@Malaysia

Group: Elite
Posts: 7,945
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Aug 2006
From: 224.0.0.6

Try to pump some VTT.

-pWs-

OC4/3

Aug 23 2008, 07:36 PM

Show posts by this member only |This post's rating (0+, 0-) | Post #19

Sub Zero Cooling FTW

Group: Senior Member
Posts: 3,045
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Dec 2007
From: Heaven of OCer

QUOTE(Cyclone87 @ Aug 23 2008, 06:55 PM)

Damn it seem like going to 460FSB is not possible for me even i pump to 1.5v. But there is a guy at garage sales with the same X3320 doing 480FSB at only 1.3v .

VTT and GTL Ref is the key

Never really try to clock a quad through

tech_frix

Aug 23 2008, 10:07 PM

Show posts by this member only |This post's rating (0+, 0-) | Post #20

Boo Yah!

Group: Senior Member
Posts: 4,060
Ratings earned: 0+, 0-
Ratings given: 0+, 0-

Joined: Sep 2007
From: wheres d oil price is higher than condoms..

QUOTE(OC4/3 @ Aug 23 2008, 07:36 PM)

VTT and GTL Ref is the key

Never really try to clock a quad through

enlighten me with ur knowledge....
