Phone Specifications

General Specifications :
* 106 x 55 x 17 mm, 124 gram
* Symbian OS 9.1 UIQ 3
* GSM 900 1800 1900 UMTS 2100
* 2.6″ QVGA 240�320 262k TFT display
Camera :
* 3.2 mpx camera with duplex LED flashlight
* Auto Focus, with Macro
* VGA front camera
Internals :
* 160 MB of internal memory
* 208 MHz TI ARM9 processor
* 128MB RAM
* M2 Memory Slot (support up to 4GB)
Connectivity :
* 3G, Bluetooth, Infrared and Wi-Fi B connectivity
Others :
* semi QWERTY keyboard (2 characters per key)
* Embedded Opera 8.5 browser
* Jogdial
* Touch Screen
* FM Radio
* GSM : Talktime 10hours, standby 440hours. UMTS : Talktime 3.5hours, standby 350hours, Video call 2hours
* Software included : Music Player with MegaBass, Video Player, Streaming Media Player, Sound Recorder, Calendar, Tasks, QuickOffice (word, Power point, Excel), PDF+, Notes, Business Card Scanner, Contacts, File Manager, Connection Manager, Remote Sync, Calculator, COnverter, Stopwatch, Time, Timer, Exchange Active Sync (Push Email), Blackberry Connect (Optional)

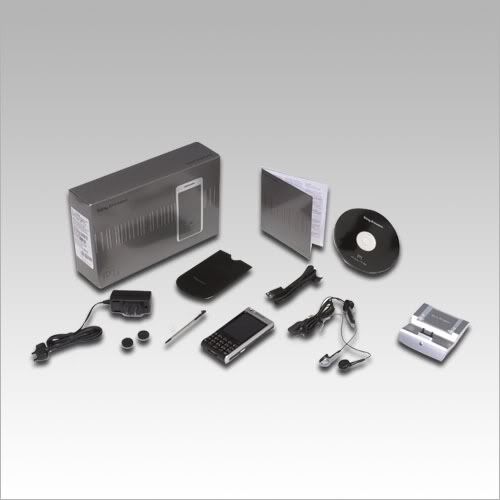

Standard Package (Varies if its AP set)


Before buying: If possible please check the camera shots of the unit to see if theres a green tint on the captured photo. To do this,place a sheet of yellow paper on a good lighting environment and turn off the LED light. Take a picture of the paper

[From V2 by fx_53_xt, a.k.a The President ]

Firmware

Latest - R9K009 Check http://uiq3.sourceforge.net/wiki/index.php/CDA/P1i

R6G04:

R6F41:


Price

Approved Permit (AP) - RM10** , Original - RM16**
Wanna buy? Visit TradeZone

Club Logo


http://www.fileden.com/files/2007/9/9/1421707/sep1i.jpg

http://img.photobucket.com/albums/v290/fx53xt/p1i.png
http://i6.photobucket.com/albums/y219/Crazee_Man/p1i.png

LYN Personal User Reviews

Before you start asking whether P1i is good or Phone X is better, read this!


This post has been edited by carbon14: Jul 27 2008, 11:40 AM

Guides

Firmware Flashing
Note:
Before you begin, view the latest firmware for your region here http://uiq3.sourceforge.net/wiki/index.php/CDA/P1i download these
SE NSE XS++
SEUS

What is CDA?

Why do I need to care?

How to view my phone CDA/Firmware?

Changing CDA And Flashing Latest Firmware (GW1/GW2) by Shufflerz


Changing to Singapore (95 Chinese CDA) and Hong Kong (74 CDA) by fx_53_xt


Bricked Your Phone? Cannot Start? Try Voodoo


-------------------------------------------------------------------------------------------------------------------------------------
Index of Guides !

Use this please!
Find using Ctrl-F [Example : Walkman 3.0 Ctrl-F type WM3]

Walkman 2.0 [WM2]
Walkman 3.0 [WM3]
W960 Startup Animation [W960]
GDesk [GDK]
Album Art [AA]
System Font [SF]
System Hack & Volume Hack [SHVH]
IphoneLock [IPL]
UIQ3 Tweak [TWK]
G700 & G900 Menu Mod [GMM]
SIS Signing Hack [SSH]
Touch PowerOff [TPF]
G900 Torch [G9T]
Walkman System Icon [WSL]
G900 Notes App V2 [GNA]
Edit Status Bar Icons [ESB]
Quickoffice and Pdf+ Upgrade [QOU]
Vista Startup Animation [VSA]
Pop Up Menu Mod [PUM]
---------------------------------------------------------------------------------------------------------------------------------------
Walkman 2.0 Hack by fx_53_xt on R9K009 [WM2]


Walkman 3.0 Hack by carbon14 on R9K009 [WM3]


W960 Walkman Startup Animation by shufflerz [W960]


GDesk (Interface Modding Tool For UIQ3) by carbon14 [GDK]


Adding Album Art in Walkman 3.0 by Shufflerz [AA]


Changing System Font by carbon14 [SF]


System Hack And Volume Hacking by Shufflerz [SHVH]


Iphonelock 0.5 by kwull [IPL]


Tweaking UIQ3 Interface Loading Speed by ares [TWK]


G900 and G700 Menu Icon Modding by squall_kay [GMM]


SIS Signing Hack by squall_kay [SSH]



Touch Poweroff Function by uhlaw [TPF]


Torch Function From G900 by bluehyppo [G9T]


Walkman System Logo by uhlaw [WSL]


G900 Notes Application V2 by bluehyppo [GNA]


Editing Status Bar Icons (Battery,WiFi,Etc) by carbon14 [ESB]


Application Port From G900 (Quickoffice Upgrade!) by uhlaw [QOU]


Vista Startup Animation by uhlaw [VSA]


Pop Up Menu Mod by uhlaw [PUM]

-> Some info contains material from www.esato.com ! Visit them!
-> Some information above taken from The President's V2 thread. Many thanks to him. Da man!

---

Added on April 26, 2008, 2:34 am
Software Links

1.SONY Ericsson update service (SEUS) v2.6.12.4:
http://www.sonyericsson.com/cws/download/1...up-2.7.12.4.exe

2.P1i Software Homepage (includes PC Suite, Language Pack, Exchange Active Sync, iSync for mac, Disc2Phone, Blackberry Connect)
http://www.sonyericsson.com/cws/support/pr...p1i?cc=my&lc=en

3. Sony Ericsson Theme Creator (thanks to karlcheong)
http://developer.sonyericsson.com/site/glo...ate=ps3&zone=ps

4. CorePlayer 1.2
http://www.fileden.com/files/2008/6/17/196...rePlayer1.2.rar

5. PowerMovie 1.01
http://www.fileden.com/files/2008/6/17/196...ovie%201.01.rar

6. Gdesk v0.24 (Read Previous Post For Guide)
GDesk

7. Swiss Manager
http://invitel.hu/zolea/cps/1down.htm
http://rapidshare.com/files/110367495/Swis..._v1.60.rar.html

8. M3 (free video encoding for portable system)
http://www.mediafire.com/?702zmzmkkvt
If it shows an error, just drag it aside and continue using M3.

9. Opera Mini 4
http://www.operamini.com/download/pc/sonye...onyericsson_p1/

10. SE Screen capture utility
http://developer.sonyericsson.com/getDocument.do?docId=85229

11. Fring (Skype,MSN,Yahoo,AIM Chat and VOIP Client)
Fring.com

12. Slick Messenger (Non-Java chat only IM)
http://www.fileden.com/files/2008/4/26/188...se_bdiq2uxr.sis

13. Mobiola Webcam for Symbian Phone
http://www.fileden.com/files/2008/4/26/188...0.3rd_Patch.rar

14. Others


FAQ,
by fx_53_xt updated by carbon14

Q : Why i couldn't login into some of the hotspot while other just work fine?
A : P1i doesn't not support flash and therefore hotspot login tat is using flash interface will not be useable. also note that if hotspot is operating under Wifi-G only mode, P1i will not be able to connect to the network.

Q : How do i view system information / firmware version?
A : go to main menu > more > system information

Q : how do i access the service menu?
A : by scrolling the jog dial up and down, do the following combination trick : up,*,down,down,*,down,*

Q : How do i calibrate the touch screen like the one in windows mobile?
A : go to Main menu > Control Panel > Other > setup wizard. It is available at the last step.

Q : How do i setup the phone for receiving Gmail?
A : Taken from UIQ3 thread :

Q : can i enable chinese support without messing the firmware?
A : you can add support to view chinese fonts but not input. download the file here unzip and then create a folder called resource/font inside your memory card and put the files there. restart your phone and voila, you should be able to read chinese words (credits to the author at http://secentral.net/forum/index.php?topic=12325.0)

Q : Why i'm not able to stream the video from the mobile youtube using wifi but it works fine with 3G?
A : The reason behind this is the port is not forwarded. If you accessing using home network, simply forward the port from the router. Public network currently has no solution yet

Q : What is the different between P1, P1i and P1c
A : There's no such thing as P1. P1i is what we're getting, the i suffix stands for international. P1c is specifically meant for china, with 3G radio taken off due to licensing problem

Q : What is the difference between P1i and W960?
A : They basically share the same hardware structure except W960i comes with 8GB flash memory, memory card slot taken off, pre-installed with Walkman 3.0 software and using normal 0-9 keypad while P1i has QWERTY keyboard, M2 slot and has business card scanner.

Q : Nokia N95 (Symbian S60) versus SE P1i (UIQ3) versus WM6 device, who wins?
A : a very subjective issue and each of them have their own strength. Suggest that visit a proper Nokia/SE/HTC retail store and test them by urself. N95 has weaker battery life (not sure about 8GB version though), no touch screen while P1i is a lil hard to get used to for first timer and slower response time while WM6 is known for strong software library and being expensive

Q : Is there any way i can turn my p1i into W960i?
A : the current answer is, no. but there are people working on it, at the mean time, you can have the Walkman 2.0 installed with some hacks. refer below.

Q : Does P1i support GPS?
A : P1i doesn't have GPS antenna and therefore have to rely on external hardware. Currently the only which has compatible hardware and malaysia map is Garmin and SONY Ericsson HGE-100 GPS adapter. There are other compatible GPS out there but i cant seems to find one with Malaysia map.
- Use Garmin Mobile10x with MalSingmaps, free updated maps by the locals.

Q : Can my P1i play .xxx files?
A : Use the M3 encoder found in the software links post and convert them to W950 or UIQ3 safe in the dropdown box.

Q : The media player sucks man! Can I have something better?
A : Good for you, came in time for two full guides. Read the Guides section for conversion to Walkman 2.0 (W950) or Walkman 3.0 (W960)

Q : The Wi-Fi doesn't seem to connect! / Connected but can't find server!
A : Ask Atih.. And download OperaMini, the built in one didn't get the DNS server correctly for me the first time.


This post has been edited by carbon14: Jul 27 2008, 11:30 AM

Recommended Accessory Setups

Audiophile Setup


PM me if you wish to add a setup!

The Club Members

Knights of the Order of Ze P.1.i

1) fx_53_xt
2) Evirober
3) Karlcheong
4) lovehewit
5) BratPaq
6) Ah Wai
7) Na.Tech
8) Chikanot
9) Kenji82
10) sonyclie77
11) G-Izzat
12) j0ann3
13) JayC75
14)
15) jason83
16) numerical
17) lowyatguy
18) amplobs
19) joshua_chin
20) ooikl
21) Ravenkean
22) arjenayai
23) maxmove2nd
24) seanjordaneast
25) hanissyazwan
26) - L e O -
27) Seaedge
28) tzyy
29) LivingLife
30) goonzoopera
31) Travies
32) rider28
33) Bujerona
34) lilredridinghood
35) shawnloong
36) lching
37) nohal
38) NIckLJF
39) squall_kay
40) jizzazz
41) powerern
42) ccjett
43) nira_110 x3 tongue.gif
44) chengkiat
45) JdOtL
46) whit3puppy
47) Lestat
48) yuheng
49) littleway
50) TianYin86
51) kingkong88
51) Fattyfei
52) Shufflerz
53) Fallen_D
54) SaltyEgg
55) esssymanex
56) investor
57) crash
58) boapike
59) myqd
60) steel2k2
61) Kyl3
62) Digital_Life
63) williamlee_1985
64) aprisis
65) skullz)
66) uhlaw
67) kader
68) sharkkjerung
69) lcly9394
70) walabies
71) wills
72) hushymushy
73) cuz
74) ccc8910
75) ys_neo86
76) mizandude
77) Glau
78) mivecv6 (fable_faiz)
79) RacingTech
80) Fasap
81) bluehippy
82) Elvinyew (elpha)
83) AcheY87
84) lek_e30
85) amk
86) PeRi0eci
87) chongsang
88) cutiepooh
89) kmheing
90) SpikeTwo
91) gamenoob
92) piratorian
93) yeah_guyz
94) Biskutnaga
95) lord_jagganath
96) LittleD
97) Watashiwa_Baka
98) jojo_lulu
99) jenwai
100) ywy85
101) boyakasha1234
102) Fusion
103) mr-2
104) carbon14
105) atih007
106) NSkyline
107) chooipeng87
108) hsiengloong
109) clieman
110) aut15
111) starwalk2002
112) umang2
113） sprix
114）Carnage11
115) superhero_123
116) killz23
117) jlyeow
118) shadow111
119) azmie73
120) teikwing
121) gogoman86
122) mariooo
123) shinzan
124) allenultra
125) geronimo
126) metfan
127) phil08
128) tanks268
129) carloompunk
130) ben3003
131) nixk
132) Sphenix
133) Najibian
134) Panasonic88
135) roye
136) munet
137) Austin123
138) gambateh
139) jcmf
140) mzaidi
141) hydelai
142) anakkerang
143) louis6

If your not here PM me
Over 100 members and counting... Almost to 150!

This post has been edited by carbon14: Jul 20 2008, 09:49 PM

Great! version 3 is out. i can't wait the president's comment.

carbon14, a little bit suggestion.

Don't directly link one attachment or file to the previous one.
Its better if you reattach or reupload it.

You can use www.fileden.com.
Its something like Photobucket, but it allow you to upload your own files in your own account.
I've been using this website since 2 years ago, and my files that I've uploaded still under the same link.

This post has been edited by Shufflerz: Apr 26 2008, 09:17 AM

nice... V3 edi.. keep up the good works guys...

congrtaz on v3 bro

Can anyone help upload "HackPack By Mr. T From SE-NSE" here or other place? coz it's so hard for me to donwload from rapidshare...@@
Thanks!

nway TS, the ex p1i user no need to put i guess...if u notice there are more than 1 that had sold their p1i

If mod to Walkman 3.0 and when we update the latest phone firmware in future, will the latest firmware erase the walkman 3.0? Is the firmware for W960 or P1? I quite confused..@@

im not sure either it will delete or not, but this walkman 3.o is not FW conversion from p1i to w960, but it js the walkman 3.0 media player GUI only...thus it still retain p1i FW

Thanks, squall_kay!

Later on i need to flash my firmware to chinese (singapore) firmware. My friends keep complaining that i use "english" to write my chinese..@@

As i have latest firmware G604 already, after i flash my phone, do i still need to updata firmware again? Will it still rmain at G604 after flashing?

Second thing i need to do is, testing this Walkman 3.0! Wahaha...

I feel so sad as i dropped my phone last week....The front metal at 2 corners got 2 scratches... so sad...

u need to change ur phone CDA back to SG cda so that u can update to latest SG FW
huk3...sorry to hear that, luckily my phone still not drop yet but hv slight minor tiny stratch due to coins in pocket

aw, new thread
so seem like walkman v3 quite stable on most of u guy's hand?

yalor..base on them, quite ok...make me wanna try also...
nway, if this walkman 3.o stable in p1i, thus it will eliminate w960 advantageous over p1i la (nway w960 still advantage in terms of slimness and 8gb)

wah V3 already for this good phone

I don't know weather is my problem or what.
I found out a small little bug regarding on the WALKMAN 3.0.
Here's the deal, if you launch WALKMAN 3.0, play songs, bla bla bla, and you're done with it.
When you off it, after a while, Swiss Manager will help to clear our unused task.
In this case, WALKMAN 3.0 will be ended.
And the next time you launch WALKMAN 3.0, and play, it won't come out any sound, until you restart your phone.
You all get the thing I've said? ><"

This post has been edited by Shufflerz: Apr 26 2008, 01:45 PM

great job!!! lovin this phone and this thread =D

---

Added on April 26, 2008, 2:14 pmQUOTE(Carnage11 @ Apr 24 2008, 06:50 PM)
woot! i put transformers movie n tonnes of 'get a mac' vid clips n i have a spare 1.5gb to use...i absolutely love this phone!!! my ultimate multimedia phone!! but just an opinion...the proccessor speed aint as fast as iphone n ipod touch....used to playing with mac stuff edi



hey bro, can i ask how big is the file of transformers movie and what format you used?

are u using a 2gb card? can i know the brand name of the card & how much you bought it?

thanks!!

dude, i just saw ur post, im using Sandisk 4gb and the file size for the 2:23:57 movie is around 560mb. i tot would be more but hey, its uber clear and the cg roxx!! it was included in the package as i requested with a 2 yr warranty n paid RM 2000 ori from thorus.

This post has been edited by Carnage11: Apr 26 2008, 02:14 PM

My phone also lag and hang. Any same issue here?

Anyway congrat to V3

This post has been edited by tplcaik: Apr 26 2008, 02:45 PM

based on the user lists...
I m still having this phone, but not using it anymore...will I be in the ex list too?...
