Budget Intel Dual-Core overclocking thread, Pentium/Celeron Dual-Core + Intel 945GC
| Kopitiam Ops in progress - Trolls be warned. |
    |
|
|
 Mar 23 2008, 11:20 AM
|
 ~Oc Hard As Hell~  Group: Senior Member Posts: 3,073 Joined: May 2007 From: Home   |
in that question, well, the stepping and batch is the answer. thats why i pointed across the important point that you have to disregard the proc built and stepping in this equation. I was merely answering to your statement that says that
QUOTE size of heatsink determine the temperature of the processor, overclockability? no but technique/skill YES ! |
   |

|
|
|
Mar 23 2008, 12:44 PM
|
 ♫♪♪♫♪♫♪♪♫♪♫♪♪♫ Group: Senior Member Posts: 831 Joined: October 2007 From: negeri 9 |
QUOTE(a1098113 @ Mar 23 2008, 11:20 AM) in that question, well, the stepping and batch is the answer. thats why i pointed across the important point that you have to disregard the proc built and stepping in this equation. I was merely answering to your statement that says that  actually i am asking about batch la  jus take the heatsink as a standard to represent the batch only,and of course,if wan overclock kao kao sure need a aftermarket heasink la,then which of u are using 945gc board and manage to overclock well ? |
 |
|
|
|
Mar 25 2008, 10:50 PM
|
 GRexer(tm) KuzTomZ(R)  Group: VIP Posts: 3,132 Joined: January 2003 From: Puchong   |
QUOTE(xk2 @ Mar 22 2008, 04:00 PM) why e2160 got 2 version ? one is with lower heatsink one,and one is normal jus like other intel proc, which one is better ? and which 945gc board is the best ? there are few choices: msi abit asus gigabyte ecs which one is more overclockable? i have tried the asus and msi,they only manage to go 2GHZ with e2160,the ecs cant overclock, give some coment pls  Most of the reason why people find the Intel 945GC chipset "not overclockable" is behind it's not just drop-in can overclock. The BSEL 266MHz FSB mod MUST be done to enable it to overclock better(to at least 333MHz FSB), that's the main "secret recipe" for the budget Intel Dual Core + 945GC chipset overclocks. |
|
|
|
|
|
Mar 26 2008, 06:57 PM
|
|
♫♪♪♫♪♫♪♪♫♪♫♪♪♫ Group: Senior Member Posts: 831 Joined: October 2007 From: negeri 9 |
QUOTE(GRexer @ Mar 25 2008, 10:50 PM) Most of the reason why people find the Intel 945GC chipset "not overclockable" is behind it's not just drop-in can overclock. The BSEL 266MHz FSB mod MUST be done to enable it to overclock better(to at least 333MHz FSB), that's the main "secret recipe" for the budget Intel Dual Core + 945GC chipset overclocks. bro,can teach me how to do tat ? coz i have tested all 945gc mobo with e2160,no one can reach higher than 2 ghz and i wanna get myself a combo of e2160 plus 945gc soon,i plan to get asus brand's 945gc,so hope u can teach me how to do the mod ?coz no money to go for p35 |
|
|
|
|
|
Mar 26 2008, 11:55 PM
|
|
GRexer(tm) KuzTomZ(R) Group: VIP Posts: 3,132 Joined: January 2003 From: Puchong |
I ain't too sure if the Asus board would overclock much, since it's kinda a "budget build" anyway, i would really go wif the proven ASrock Conroe1333-D667 that me, kucingfight and allenultra is using.
Of course, you can try the Asus also but i'm not too sure about it's BIOS options. Nevertheless, with the BSEL mod done, you already have a 33% increase in speed  |
|
|
|
|
|
Mar 30 2008, 07:39 PM
|
|
♫♪♪♫♪♫♪♪♫♪♫♪♪♫ Group: Senior Member Posts: 831 Joined: October 2007 From: negeri 9 |

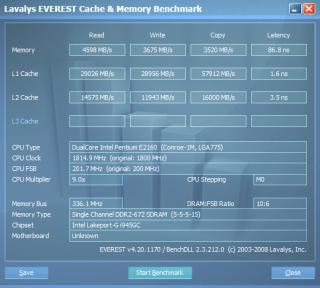

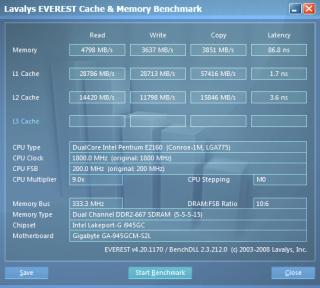

Benchmark between 2 945gc mobo
using gigabyte 945gc micro atx mobo and Msi 945gc micro atx mobo with e2160 MO stepping msi system: e2160 @ 1.8ghz 1x 1gb kingston value ram ddr2 667 windows xp super pi 1m = 33s gigabyte system: e2160 @1.8ghz 2 x 1gb kingston value ram ddr2 667 dual channel windows vista super pi 1m = 32s This post has been edited by xk2: Apr 3 2008, 02:51 PM Attached thumbnail(s)
|
|
|
|
|
|
Apr 3 2008, 11:30 AM
|
|
GRexer(tm) KuzTomZ(R) Group: VIP Posts: 3,132 Joined: January 2003 From: Puchong |
Just curious, is the comparison from local? Would love to check out the Gigabyte mobo from the owner.
|
|
|
|
|
|
Apr 3 2008, 01:56 PM
|
|
♫♪♪♫♪♫♪♪♫♪♫♪♪♫ Group: Senior Member Posts: 831 Joined: October 2007 From: negeri 9 |
QUOTE(GRexer @ Apr 3 2008, 11:30 AM) Just curious, is the comparison from local? Would love to check out the Gigabyte mobo from the owner. ya,it is done by me,coz i choose the spec for fren  |
|
|
|
|
|
Apr 5 2008, 03:36 PM
|
 RAM enthusiast's Group: Senior Member Posts: 558 Joined: January 2003 From: ipoh perak but student in gombak (UIA) 012-9190793 |
just got myself e2160 and reaper ram today.. hunting for a budget mobo now. w8 for my result. lol
|
|
|
|
|
|
Apr 10 2008, 12:01 AM
|
 Enthusiast Group: Senior Member Posts: 696 Joined: November 2006 From: BM, Penang |
hey, im kinda new here. well, i just got my E2200 (dun ask me why i didnt get E21XX instead, n its OEM, so i got it cheap)
im using MSI 945G board here n heres the result i manage to push  i cant seem to adjust the multiplier so, the furthest i could boot is on 265mhz. (mobo failed to boot when i try on 270mhz) |
|
|
|
|
|
Apr 10 2008, 12:51 AM
|
 Regular Group: Junior Member Posts: 193 Joined: December 2007 |
Just my 2 cent opinion.......
Someone claim that the latest (2008) e2160 have shorter heatsink.........my theory is that intel dont want people to reach high OC level with stock cooling....???(i saw some other forum that e2160 easily reach 2.8Ghz with stock fan and stock vcore)...... |
|
|
|
|
|
Apr 10 2008, 01:29 AM
|
|
RAM enthusiast's Group: Senior Member Posts: 558 Joined: January 2003 From: ipoh perak but student in gombak (UIA) 012-9190793 |
QUOTE(digita1tech @ Apr 10 2008, 12:51 AM) Just my 2 cent opinion....... Someone claim that the latest (2008) e2160 have shorter heatsink.........my theory is that intel dont want people to reach high OC level with stock cooling....???(i saw some other forum that e2160 easily reach 2.8Ghz with stock fan and stock vcore)...... about the heatsink i dunno, but e2160 that ca achieve 2.8g with stock fan & vcore is common(i got one from allenutra 2.8g stock and still climbing). 2160 to hit 3g at stock is a gem. This post has been edited by gamers maniac: Apr 10 2008, 01:30 AM |
|
|
|
|
|
Apr 14 2008, 09:20 PM
|
 Enthusiast Group: Senior Member Posts: 827 Joined: November 2004 From: malacca & KL  |
searching around the internet, find out even got 1333 FSB mod & 1600 fsb mod... can it be done on my e6300?
http://www.xtremesystems.org/forums/showthread.php?t=132900 http://www.xtremesystems.org/forums/showthread.php?t=149513 |
|
|
|
|
|
Apr 16 2008, 10:05 AM
|
 Look at all my stars!! Group: Senior Member Posts: 8,402 Joined: January 2003 From: Ipoh/UTP  |
QUOTE(Fyonne @ Apr 10 2008, 12:01 AM) hey, im kinda new here. well, i just got my E2200 (dun ask me why i didnt get E21XX instead, n its OEM, so i got it cheap) im using MSI 945G board here n heres the result i manage to push i cant seem to adjust the multiplier so, the furthest i could boot is on 265mhz. (mobo failed to boot when i try on 270mhz) 2.9ghz at stock vcore would be very good. My E2160 only managed to do 3ghz at stock vcore. Goldfries' did 3.2ghz, kucingfight's did very well too. Basically e2xxx max out around 2.8 to 3.0ghz for stock vcore. This post has been edited by allenultra: Apr 16 2008, 10:06 AM |
|
|
|
|
|
Apr 16 2008, 10:14 AM
|
 Enthusiast Group: Senior Member Posts: 936 Joined: December 2006 From: Genting Casino toilet |
Yay count me in,just got my hands on a cheap Pentium Duo Core E2140 1.6Ghz and a Gigabyte 945GCM motherboard with 1GB RAM and onboard graphic card.
Planning to oc above the 2.4Ghz mark Got any advice and comments on this motherboard? This post has been edited by 779364: Apr 16 2008, 10:17 AM |
|
|
|
|
|
Apr 17 2008, 06:55 AM
|
 Regular Group: Junior Member Posts: 427 Joined: December 2006 From: Subang |
bros, using e2140, the Biostar mb that I have cannot oc in bios ..cannot change the fsb..stuck at 200 ...when use the software provided by mb disc and change to fsb 290, says oced but when run 3dmarks no diff--how come? Doesn' twork? tx
|
|
|
|
|
|
Apr 17 2008, 09:45 AM
|
|
Look at all my stars!! Group: Senior Member Posts: 8,402 Joined: January 2003 From: Ipoh/UTP |
QUOTE(779364 @ Apr 16 2008, 10:14 AM) Yay count me in,just got my hands on a cheap Pentium Duo Core E2140 1.6Ghz and a Gigabyte 945GCM motherboard with 1GB RAM and onboard graphic card. Planning to oc above the 2.4Ghz mark Got any advice and comments on this motherboard? try bsel mod, see if the cpu boot on the board. then try OC from there. ronho, try the bsel mod first. then use clockgen to push if BIOS oc option sux. Flash to latest bios? |
|
|
|
|
|
Apr 17 2008, 02:04 PM
|
|
Enthusiast Group: Senior Member Posts: 696 Joined: November 2006 From: BM, Penang |
well, i research bout bsel Pentium Dual Core E2xxx series, the only thing i got is how to mod E21XX series, but never E22XX series, so kinda worried if its E22XX can be bsel mod like E21XX
 beside, its seem that there is someone using E2200 bsel mod to 2.9 ghz (well im hitting this with FSB OC), will it OCable after bsel safely? (i dun wan to fry it yet) |
|
|
|
|
|
Apr 17 2008, 08:38 PM
|
|
Look at all my stars!! Group: Senior Member Posts: 8,402 Joined: January 2003 From: Ipoh/UTP |
fyonne, u seem a bit confused here.
bsel mod is for CPU with 800mhz to be recognised as 1066mhz when slotted into the board. it works on e4xxx series as well but not all motherboards support bsel modded CPU. "dun want to fry it yet"....monitor the temperature and make sure heatsink fit nicely, what would u worry then? |
|
|
|
|
|
Apr 18 2008, 06:15 PM
|
|
Regular Group: Junior Member Posts: 427 Joined: December 2006 From: Subang |
bro, use what to bsel?? heard some pen but buy where and what name?? some rear demister thing???? whrer??? txtx
|
|
|
|
  |
